Product Overview

Description



Product Description


 Bargain Price Only in Alibaba





Brief Introduction




LPT series are through-bore slip rings (the center hole can pass through the drive shaft, gas-liquid passage; it can

also integrate high frequency, fiber, encoder, waveguide, gas and liquid and other joints). The use of advanced fiber

brush ensures reliable contact under extremely low friction. The center hole is available from 0 to 1000mm. The current

is from mA to 5000 amps. The voltage can be up to 10000 volts, which can fully meet different needs of transmission.






Features:


  • Transmit analog and digital signal

  • The power and signal are mixed transmitted, and the signal categories are as follows:

  • Ethernet: Rate (10Mbps/100Mbps/1000Mbps)

  • Industrial Ethernet: EtherNet , EtherCAT ,ProfiNet, Powerlink , SercosIII/IP, etc.

  • HD video: SDI, LVDS, etc.

  • Serial communication: RS232, RS485, RS422, etc.

  • Universal Serial Bus: USB2.0

  • Industrial Fieldbus: CANBus,ProfiBus, InterBus, CC-Link, DeviceNet, etc.

  • Sensor signal: thermal resistance, thermocouple, strain gauge, etc.

  • Long service life, maintenance-free

  • Easy to install




Main Applications:



Industrial automation equipment/Medical equipment/Wind power equipment/Test equipment/Exhibition /

display equipment/Robots/Turntable equipment/Amusement equipment/High-speed railway equipment/Packaging

machinery/Ship offshore equipment/Construction machinery

























































Electrical & Electronics


Mechanical


Enviromental


Number of

Circuits


06/12/18/24


Rotating

Speed


0-300rpm


Temperature


Industrial: -20℃~+60℃

Military: -50℃~+80℃


Current


5A(Signal)/10A/15A


Contact

Material


Engineering plastic


Humidity


60%RH or higher


Voltage


240VAC/DC


Housing

Material


Aluminum


Protection

Grade


IP50


Dielectric

Strength


1000VAC@50Hz


Torque


≤0.1N.m/6 circuits,

+0.03N.m/6 circuits


Others


Insulation

Resistance


≥500MΩ@500VDC


Wire Type



Teflon or others



Life Span



10 million

(customizable)



Dynamic Contact

Resistance


1mΩ min.


Wire Length



rotor/stator:300mm

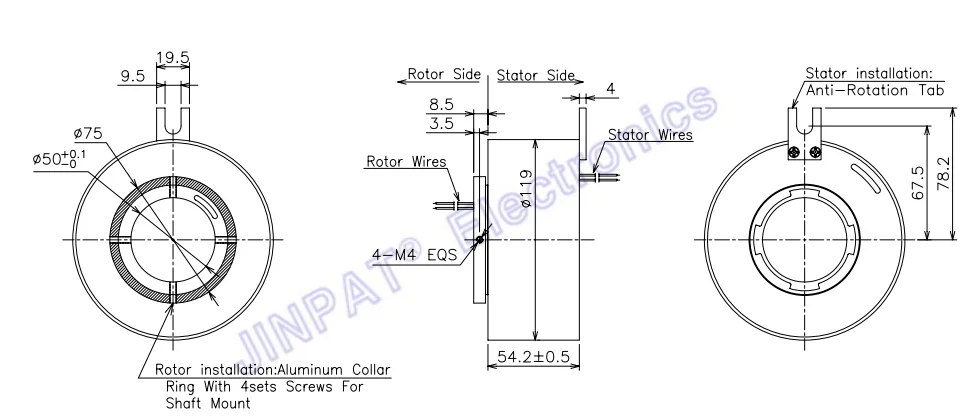

Product outline drawing

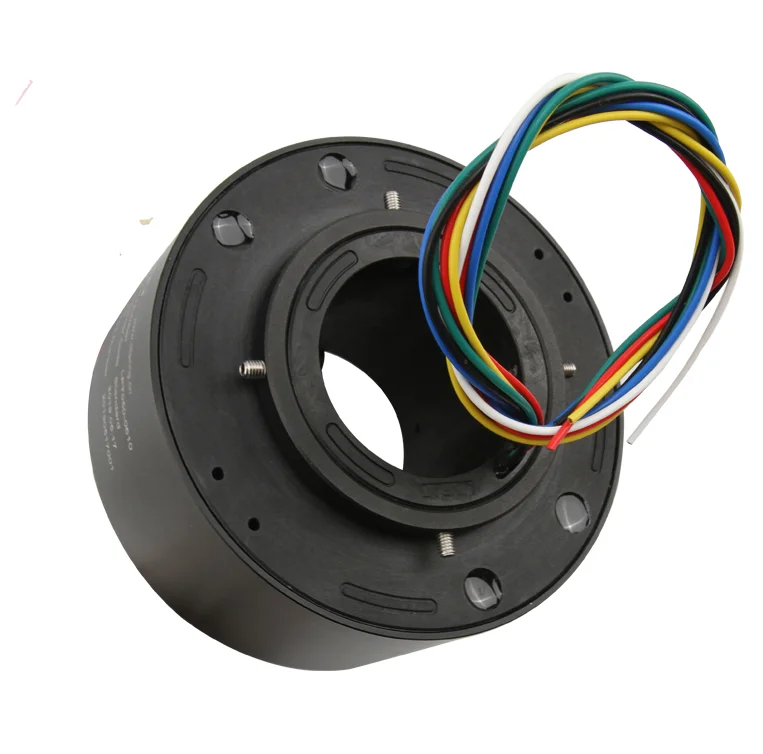

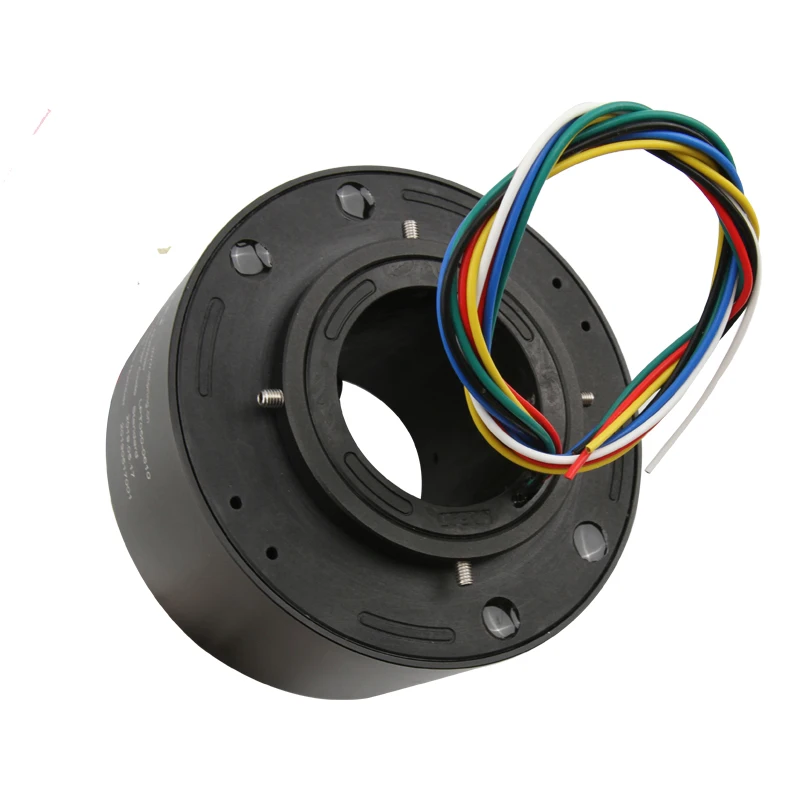

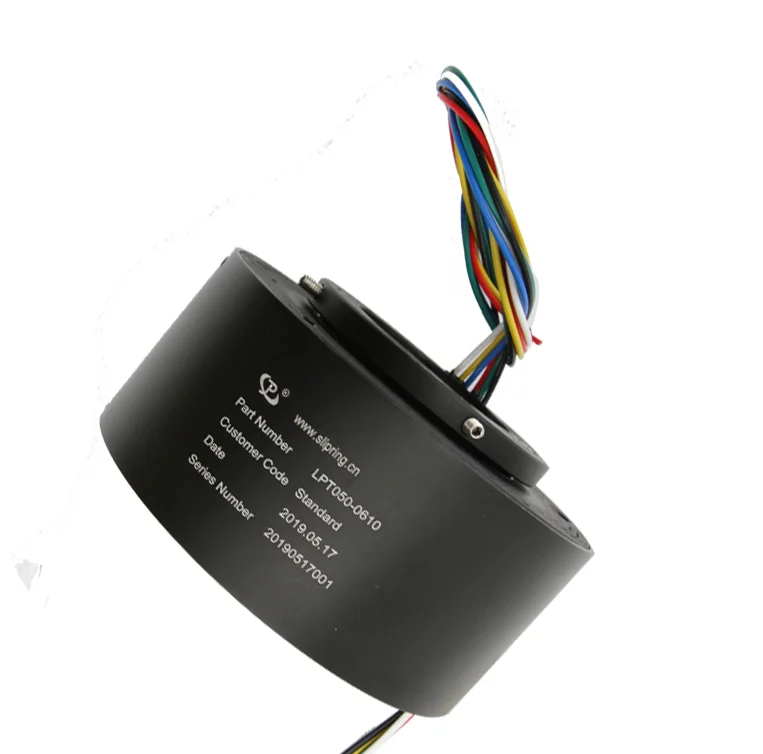

Product Image




JINPAT Electronics entered into slip ring field in 1996. It is a national high-tech enterprise

specializing in the research and development, manufacturing, and sales of slip rings. JINPAT

has a senior R&D team that consists of numerous engineers who have ever worked in multina-

tional companies or famous insititutes, which are committed to the development and manu-

facturing of high-quality slip rings that improve system performance and prevent damage to

the wires as they rotate.




JINPAT Electronics has passed the ISO9001 quality management system certification, the

ISO14001 environmental management system certification, the UL, FCC, CE, RoHS, REACH, BV

classification society’s certification, the explosion-proof certification, and it has obtained 55

national patents. Keeping improving and innovating, JINPAT slip rings are not only reliable in

performnace, long in lifespan, free in maintenance, but also with the features of high protec-

tion grade, anti-explosion, anti-quake, anti-impact, high and low temperature resistance, high

perssure resistance, low electrical noise and low loss of signal transmission.




JINPAT slip rings have been widely used in the navy, army, air force and police force. Our

products are also used in the security, industrial automation, power, instrumentation, aviation,

transportation, construction, wind power, robotics, medical and other cutting-edge fields.




JINPAT Electronics has a long-term relationship with many domestic and foreign industrial

technology giants such as GE, Honeywell, CNOOC, BYD, Sany Heavy Industry, Zoomlion,

SUZLON, AVIC, CASC, CASIC, CETC, CSIC, and South Surveying & Mapping. JINPAT is commit-

ted to a win-win outcome with its customers by providing quality products and services.
