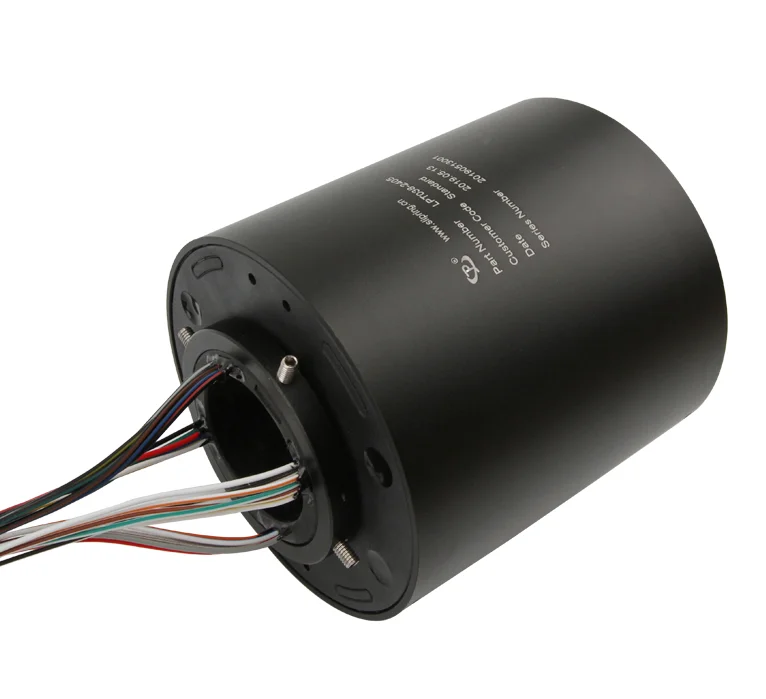

Electric Hollow shaft,360 rotating power bore size 38.1mm 24Circuits 5A,Through bore slip ring





Brief Introduction

LPT series are through-bore slip rings (the center hole can pass through the drive shaft, gas-liquid passage; it can

also integrate high frequency, fiber, encoder, waveguide, gas and liquid and other joints). The use of advanced fiber

brush ensures reliable contact under extremely low friction. The center hole is available from 0 to 1000mm. The current

is from mA to 5000 amps. The voltage can be up to 10000 volts, which can fully meet different needs of transmission.



Features:

• Transmit analog and digital signal


• The power and signal are mixed transmitted, and the signal categories are as follows:


• Ethernet: Rate (10Mbps/100Mbps/1000Mbps)


• Industrial Ethernet: EtherNet , EtherCAT ,ProfiNet, Powerlink , SercosIII/IP, etc.


• HD video: SDI, LVDS, etc.


• Serial communication: RS232, RS485, RS422, etc.


• Universal Serial Bus: USB2.0


• Industrial Fieldbus: CANBus,ProfiBus, InterBus, CC-Link, DeviceNet, etc.


• Sensor signal: thermal resistance, thermocouple, strain gauge, etc.


• Long service life, maintenance-free


• Easy to install

Main Applications:

Industrial automation equipment/Medical equipment/Wind power equipment/Test equipment/Exhibition /

display equipment/Robots/Turntable equipment/Amusement equipment/High-speed railway equipment/Packaging

machinery/Ship offshore equipment/Construction machinery



Electrical & Electronics		Mechanical		Enviromental
Number of Circuits	06/12/18/24	Rotating Speed	0-300rpm	Temperature	Industrial: -20℃~+60℃ Military: -50℃~+80℃
Current	5A(Signal)/10A/15A	Contact Material	Engineering plastic	Humidity	60%RH or higher
Voltage	240VAC/DC	Housing Material	Aluminum	Protection Grade	IP50
Dielectric Strength	1000VAC@50Hz	Torque	≤0.1N.m/6 circuits, +0.03N.m/6 circuits	Others
Insulation Resistance	≥500MΩ@500VDC	Wire Type	Teflon or others	Life Span	10 million (customizable)
Dynamic Contact Resistance	1mΩ min.	Wire Length	rotor/stator:300mm

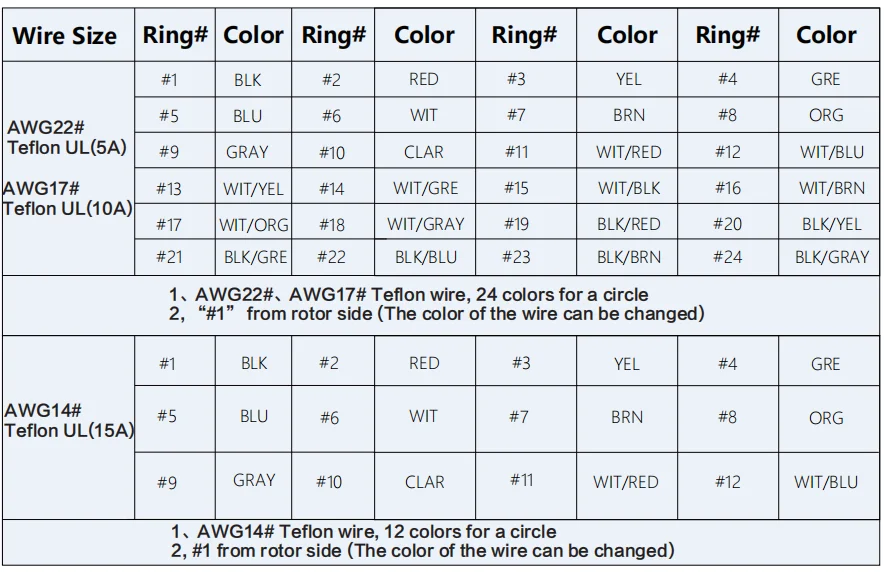

Wire Color Code

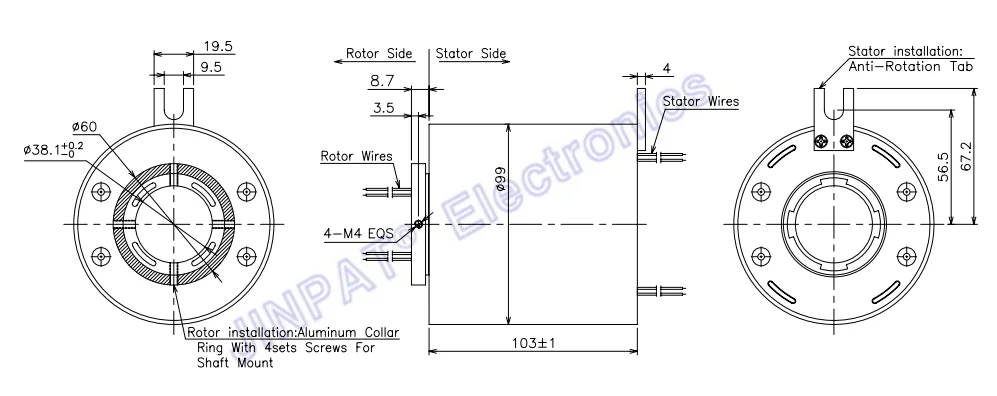

Product outline drawing

Welcome to JINPAT Electronics

 Providing free custom slip rings solutions,creating propulsion for your technology

• With a large plant of over 12,000 square meters and more than 500 employees.


• The company has been awarded the title of "National High and New Technology" and has obtained 69 patents.


• Long-term cooperation with global famous enterprises and agents all over the world.


• With Over 10,000 designs with success in civil, military, commercial and industrial applications.


• Founded in 1996, with more than 20 years of production and R & D experience.


• Providing free custom slip rings solutions,which can be suitable for a variety of  equipment


• Fast delivery

1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

3.What kinds of slip rings do we provide

• Electrical Slip rings (capsule slip ring,through-hore slip ring,miniture slip ring, etc)


• Signal Slip rings (USB2.0/USB3.0 slip ring,fiber optic rotary joint,high frequency slip ring,etc)


• Pneumatic/Hydraulic Rotary Unions


• Custom Slip Rings


• Large volume series

4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you provide custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
