LGK 200 Amp Plasma Power Source IGBT Plasma Cut 200
US $1000-$3000
HUAYUAN Plasma power supply for well known brands in China
- Category: Plasma Power Source >>>
- Supplier: Shandong Jiaxin Machinery Equipment Co. Ltd.
Share on (62213993371):
Product Overview
Description
Product Description

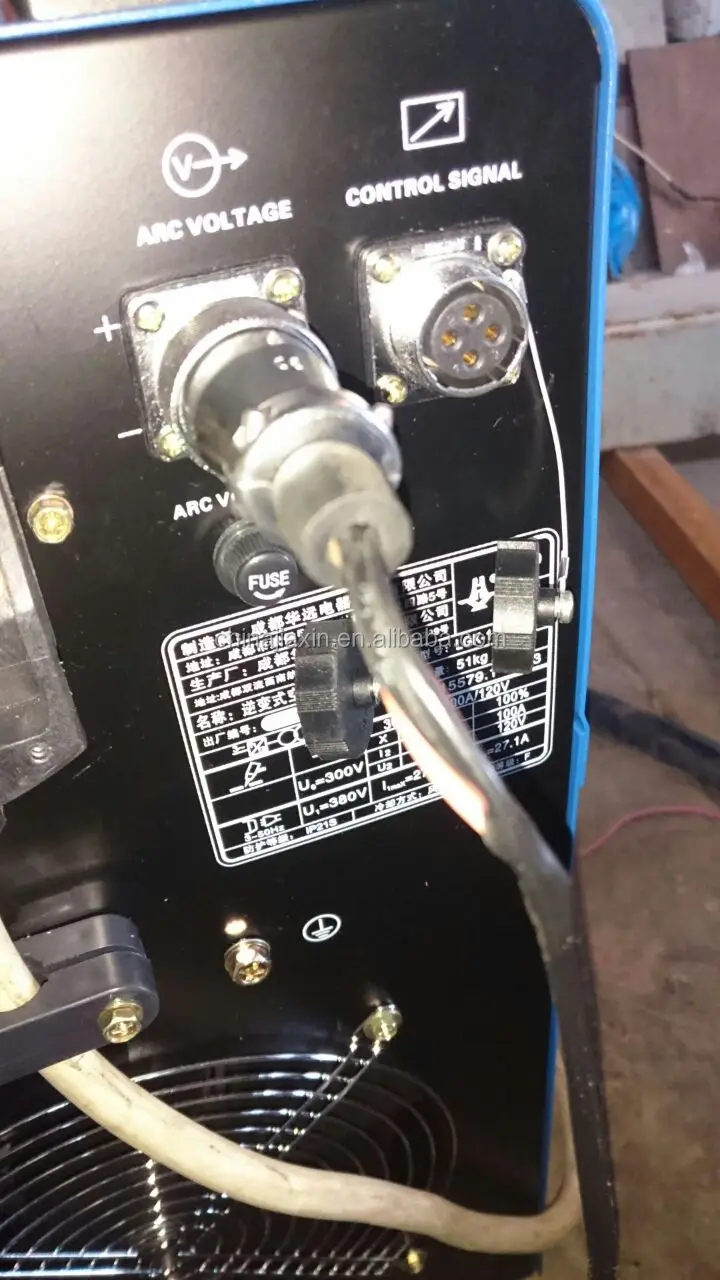

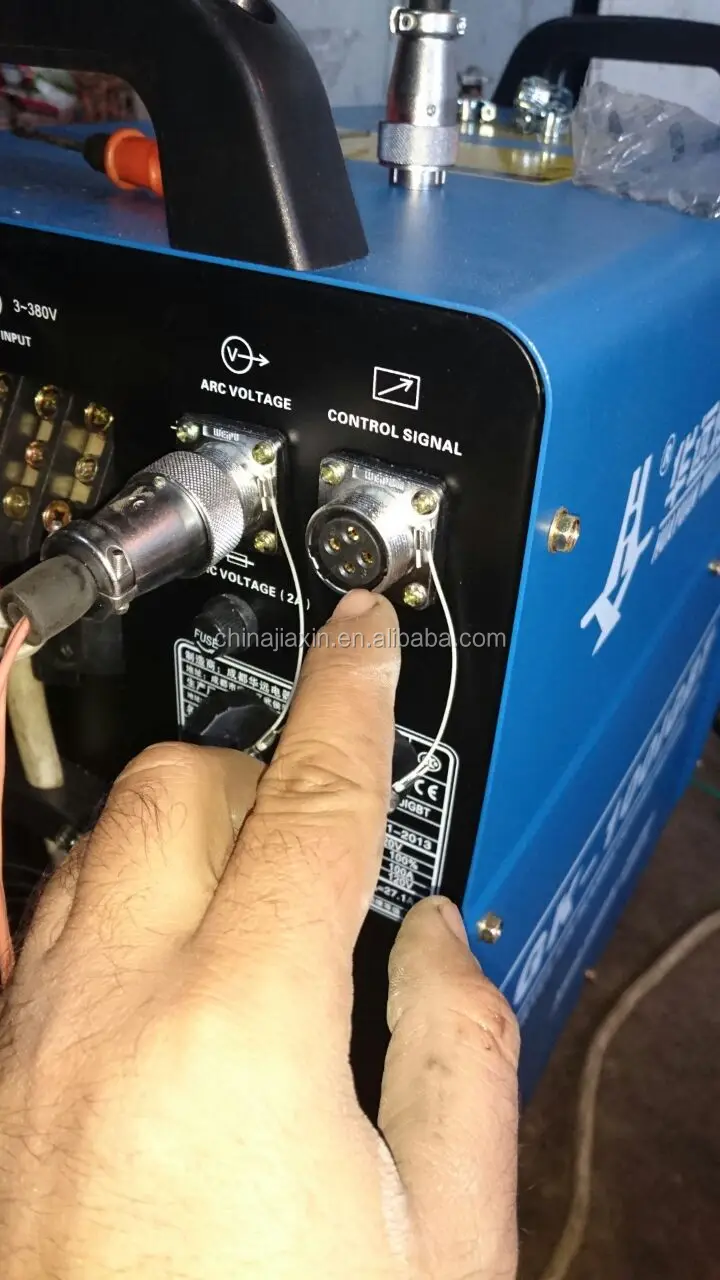

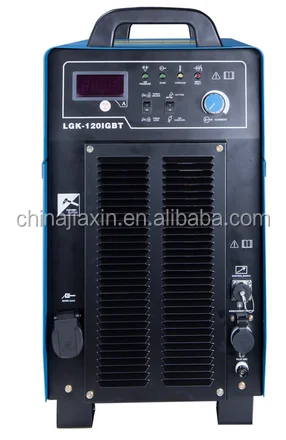

Detailed Images
frequency converter power source for huanyuan brand 63A to 300A
LGK series inverter type air plasma cutting machine, Is a new design of metal processing equipment, Insulated gate high
power transistor IGBT and pulse width modulation (PWM) soft switching technology are used to design and manufacture.
The cutting machine can cut all metal materials, especially suitable for "flame cutting" can not achieve high alloy steel and non-ferrous metals. The seriesof cutting machines have reasonable static and external characteristics, and also have good dynamic characteristics, With high frequency arc starting function .Widely usedin all kinds of machinery manufacturing industry. According to the CISPR11 requirements, the electromagnetic compatibility of the equipment is classified as: class a..
power transistor IGBT and pulse width modulation (PWM) soft switching technology are used to design and manufacture.
The cutting machine can cut all metal materials, especially suitable for "flame cutting" can not achieve high alloy steel and non-ferrous metals. The seriesof cutting machines have reasonable static and external characteristics, and also have good dynamic characteristics, With high frequency arc starting function .Widely usedin all kinds of machinery manufacturing industry. According to the CISPR11 requirements, the electromagnetic compatibility of the equipment is classified as: class a..
1.The arc energy is highly concentrated, with good stability and strong cutting force
2. Cutting speed (3-5 times of gas cutting)
3.Cutting costs are low
4.Incision stenosis. Clean and tidy; close to vertical.
5.Small deformation of workpiece
6.The cutting current is adjustable continuously
7.Easy arc setting
8.The operation is very convenient
9.Light weight, small size, easy to move
10.High efficiency, high power factor, it is a kind of energy saving equipment.
11.Low noise and strong adaptability
12.Has two functions of self-locking and non self locking, adapt to the length of slot without requirement, can reduce the labor intensity of workers.
13.Easy to form cutting equipment
2. Cutting speed (3-5 times of gas cutting)
3.Cutting costs are low
4.Incision stenosis. Clean and tidy; close to vertical.
5.Small deformation of workpiece
6.The cutting current is adjustable continuously
7.Easy arc setting
8.The operation is very convenient
9.Light weight, small size, easy to move
10.High efficiency, high power factor, it is a kind of energy saving equipment.
11.Low noise and strong adaptability
12.Has two functions of self-locking and non self locking, adapt to the length of slot without requirement, can reduce the labor intensity of workers.
13.Easy to form cutting equipment
Product Paramenters
Main technique parameters of Huayuan plasma power source
Parameters
model | LGK-100IGBT
| LGK-120IGBT
| LGK-160IGBT
| LGK-200IGBT
|
Shell shield rank | IP21S | |||
Input voltage | 380V,50/60Hz,three phase | |||
Rated input capacity | 17.8KVA
| 22.4 KVA | 32.2KVA | 46.5KVA |
Rated output current | 100A | 120A | 160A | 200A |
Rated output voltage | 120V | 128V | 144V | 160V |
Rated duty cycle | 100%/40°C | |||
Open circuit voltage | 275V | 275V | 315V | 315V |
Current adjusting range | 30～100A | 30～120A | 40～160A | 40～200A |
Insulation grade | F | |||
Quality cutting thickness(steel) | 0.3～18mm | 0.3～20mm | 1～25mm | 1～30mm |
Max cutting thickness(steel)(handheld) | 35mm | 38mm | 50mm | _ |
Applied plasma gas | Compressed air | |||
Work plasma gas | 0.4~0.6MPa | 0.4~0.6MPa | 0.4~0.6MPa | 0.4~0.6MPa |
Torch cooling mode | Air-cooling | Water-cooling | ||
Arc striking method | Non-contact arc striking | |||
Dimension(L×W×H) (mm) | 695×320×580
| 695×320×580 | 800×380×610 | 800×380×810 |
Weight | 51Kg | 52Kg | 73Kg | 90Kg |
