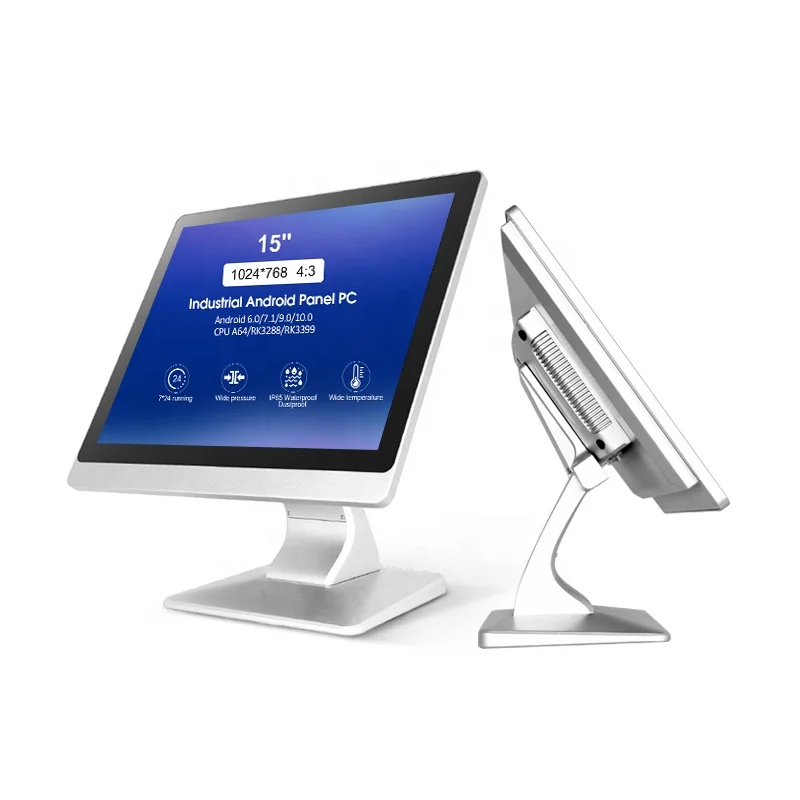

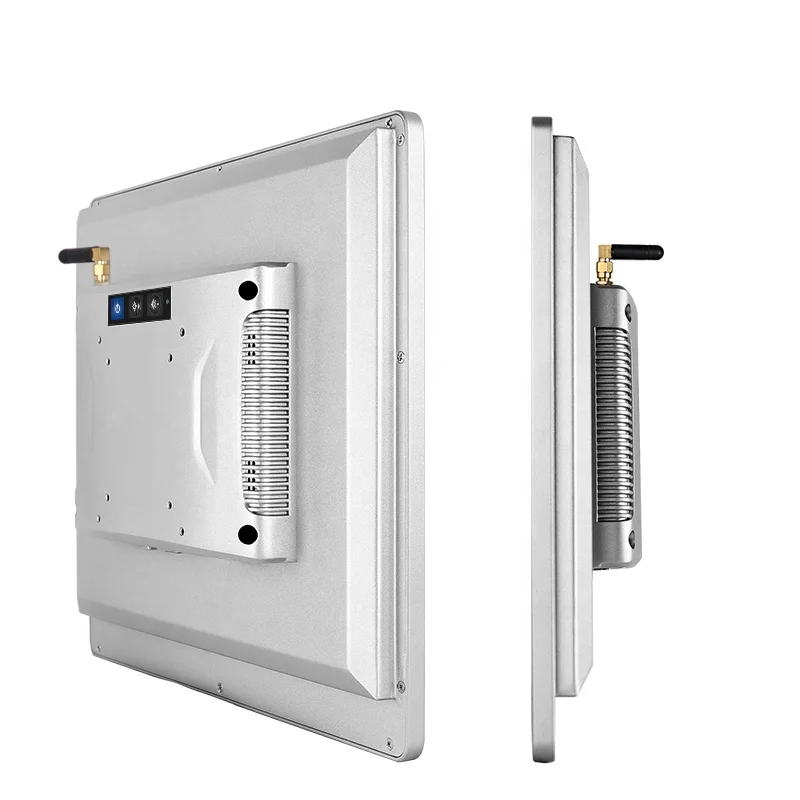

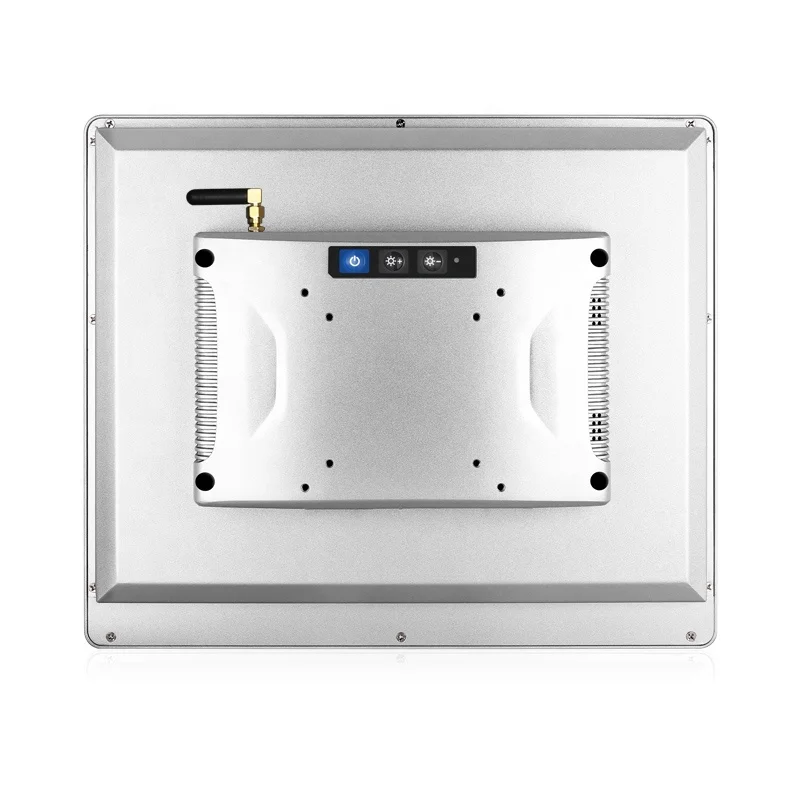

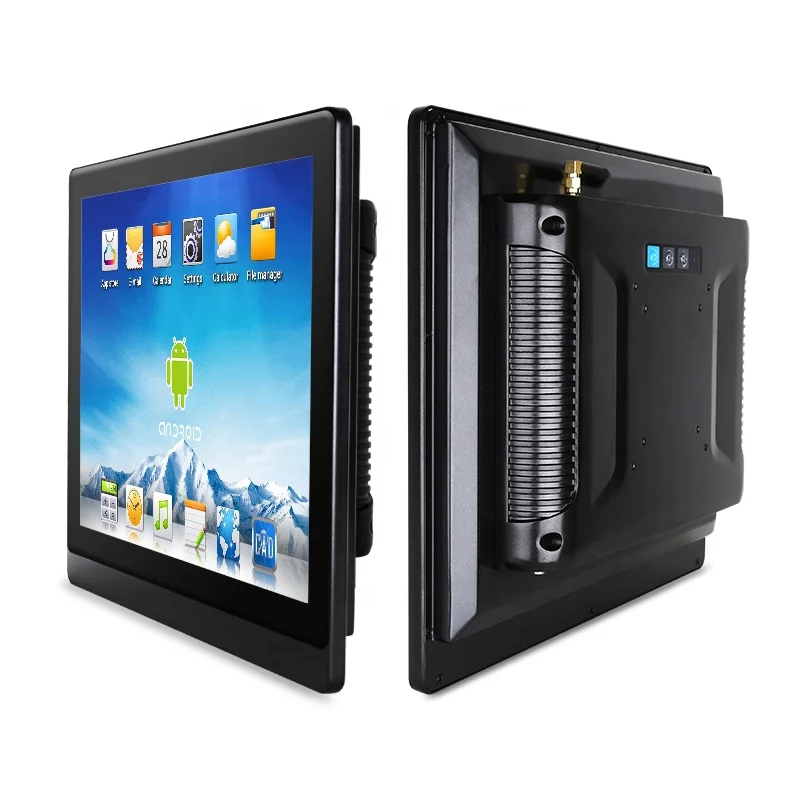

15 inch Vesa Mount IP65 Capacitive Touch Screen All in One Desktops Computer Industrial A64 Android Panel PC with Rj45 and Rs232
- Category: Industrial Computer & Accessories >>>
- Supplier: Shenzhen Le Hua Display Electronic Technology Co. Ltd.
Share on (62215838409):
Product Overview
Description
4th Generation 10mm bezel Android All In One PC
LHDE Android Panel PC is an industrial-grade product, and it adopts a technological aesthetic design in appearance, with a fashionable and simple style, meeting the appearance requirements of various environments. Widely used in Industrial automation equipment control, Smart city fields, Medical, Self-service terminal equipment, Artificial intelligence and other fields.
Product Description

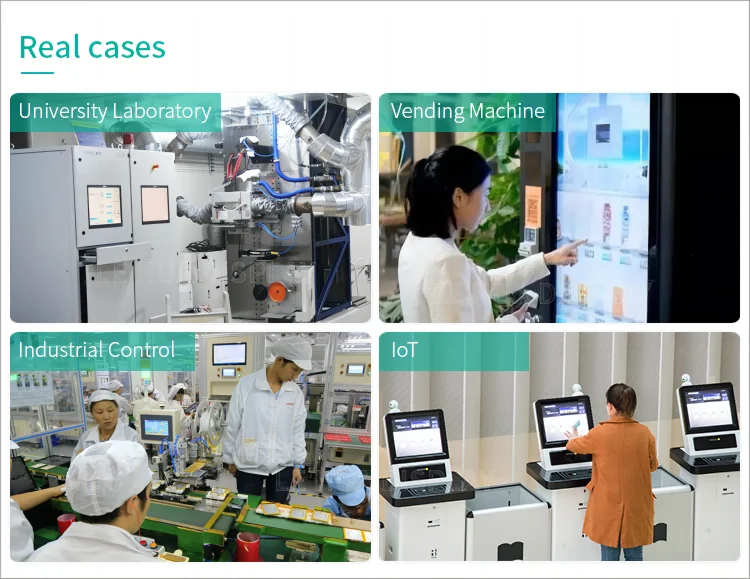

Application

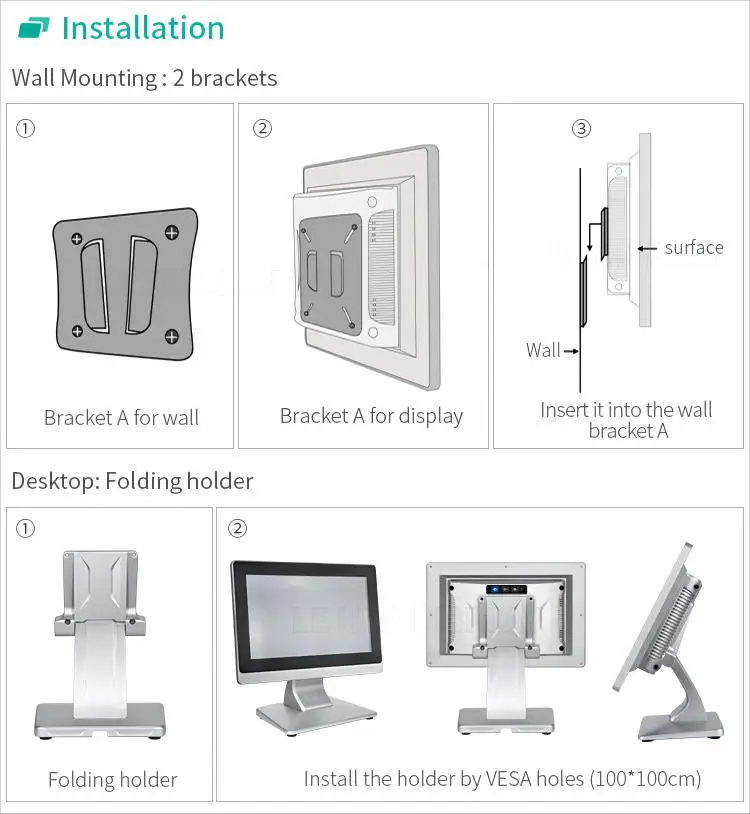

Installation Instructions
Product Paramenters
Size | 15" | |
Resolution | 1024×768 | |
View Angel | 85/85/85/85 (L/R/U/D) | |
Colour | Chroma: 16.7M | |
Brightness (standard value) | Brightness: 300cd/m2 | |
Contrast | 700:1 | |
Response time | 6.5ms | |
Display area | 304.128 × 228.096mm | |
Pixel pitch (mm) | 0.297(H) X 0.297(V) | |
Touch screen type | Capacitive touch screen | |
Resolution | 500DPI | |
Input | Handwriting or capacitive pen | |
Surface hardness | 7H | |
Calibration | Support | |
CPU | Allwinner A64 Cortex-A53 quad-core 64-bit CPU , main frequency 1.5GHz | |
GPU | Mali400MP2 | |
RAM | 2G(DDR3) | |
Storage | EMMC 8G | |
Operating system | Android 6.0 | |
3G module | PCI-E standard interface for Mobile, Unicom, Telecom (optional) | |
4G module | PCI-E standard interface for Mobile, Unicom, Telecom (optional) | |
WiFi | 2.4G | |
Bluetooth | BT4.0 | |
GPS | Optional | |
MIC | Optional | |
RTC real time clock | Support | |
Timer switch | Support | |
System Upgrade | Support local SD, USB upgrade | |

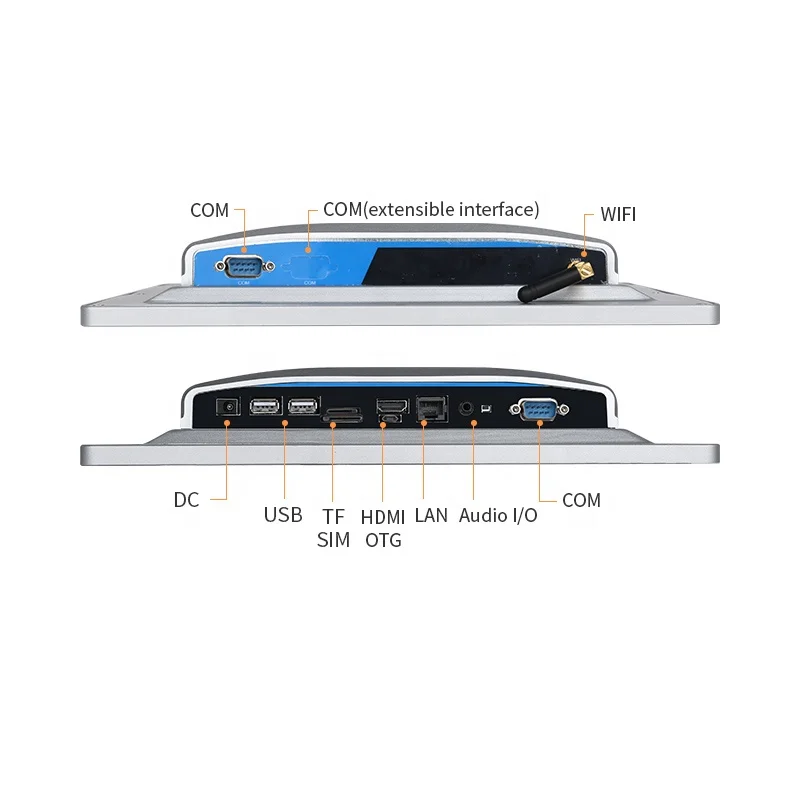

Interface | DC port | 1*DC 2.0 |
HDMI | Support HDMI data output, maximum support 1080P | |
USB-OTG | 1 | |
USB-HOST | 2*USB2.0 | |
RJ45 Ethernet | 1*10M/100M/1000M adaptive Ethernet | |
SD/TF | TF data storage, up to 32G support | |
Headphone holder | 3.5mm standard interface | |
SMI card | SIM card interface standard interface supports various formats (depending on 3G / 4G module) | |
RS232 | 2*RS232 | |
RS485 | Optional | |
RS422 | Optional | |
GPIO | Optional | |
Operating temperature | -10 °C to 60 °C | |
Storage temperature | - 20 °C to 70 °C | |
Humidity | Humidity: 95% Non-Condensing | |
Mean time between failures (MTBF) | 7*24H | |
Power consumption (maximum) | 18W | |
Power input | AC 100-240V 50/60Hz passed CCC certification, CE certification | |
Power Output | DC12V / 4A |

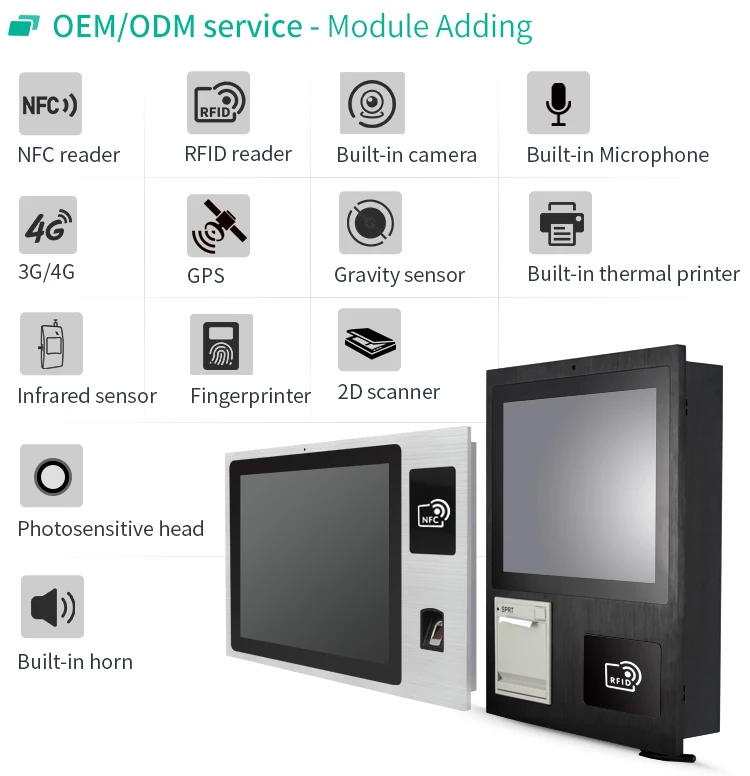

Customized Services
Recommend Products

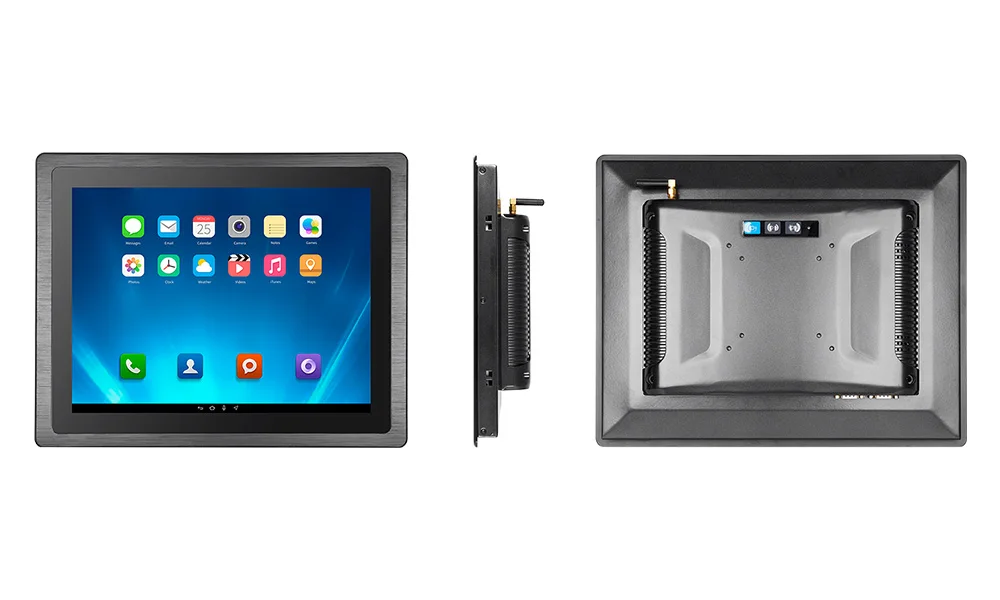

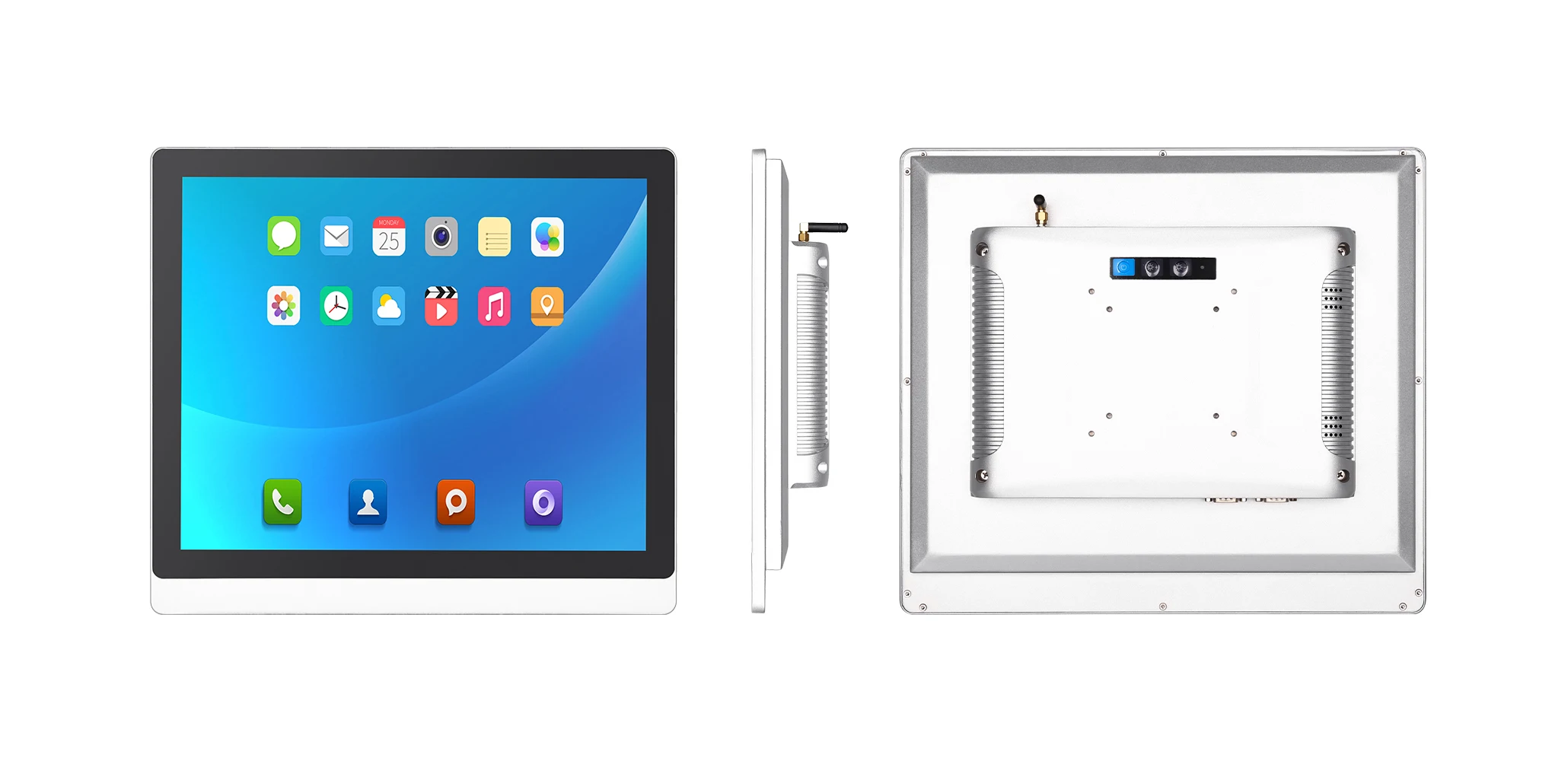

3MM bezel Industrial All In One PC for options, better for Embedded
Sizes: 7", 8", 10.1", 10.4", 11.6", 12", 12.1", 13.3", 15", 15.6". 17", 17.3", 18.5", 19", 19.1", 21.5", 23.8"
Related Products
OS: Without OS or Windows, Linux for options

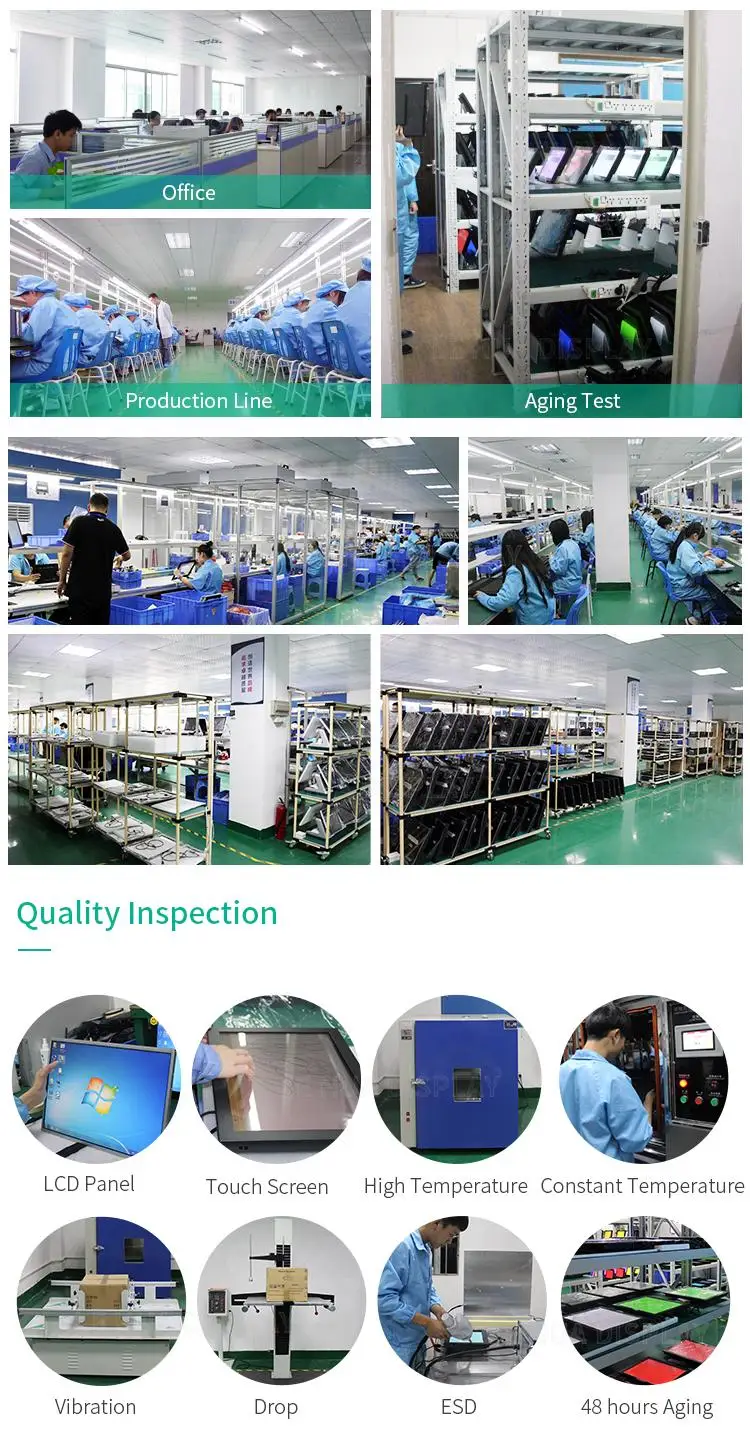

Company Profile
Shenzhen Le Hua Display Electronic Technology Co., Ltd. is a professional company engaged in independent R&D, manufacture, sale of Industrial Touch Screen Monitor, Android All In Nne Panel PC, Industrial Windows All In One Panel PC, Industrial Mini Box PC, and Industrial Motherboard. Our company was established in 2013, our workshop covers 6000 square meters. We can offer product design, system integration, software test, ODM/OEM service, and a complete product line.
Le Hua enforces the strictest quality control to ensure complete customer satisfaction. Our manufacturing process meets ISO9001 quality assurance standards and we hold other safety certifications including CE, FCC, RoHS, and IP65. We strive to offer superior quality and reliability supports in the most cost-effective way that meets the customer’s requirements.
Le Hua enforces the strictest quality control to ensure complete customer satisfaction. Our manufacturing process meets ISO9001 quality assurance standards and we hold other safety certifications including CE, FCC, RoHS, and IP65. We strive to offer superior quality and reliability supports in the most cost-effective way that meets the customer’s requirements.
Packing & Delivery
Packing: Carton with pearl bag and cushion inside,pallet and wooden crate available for mass order.
Shipping: Shipping by express,by sea,by air,by railway.
Shipping: Shipping by express,by sea,by air,by railway.
FAQ
Q1: Can we accept sample order?
A1: Yes, samples are always available and can be dispatched to you very quickly.
Q2: What's the time of delivery?
A2: Depends on order quantity and our production schedule. 3-5 working days for sample order of standard model ; 12-25 working days for custom sample order & mass production after payment receipt.
Q3: What paying methods do you accept?
A3: Alibaba Trade Assurance, T/T, Paypal , etc.
Q4: What is our the warranty policy?
A4: 12 months warranty lifetime free maintainance except the human damage and force majeure factor, can be 24-monthes with extra cost.
A1: Yes, samples are always available and can be dispatched to you very quickly.
Q2: What's the time of delivery?
A2: Depends on order quantity and our production schedule. 3-5 working days for sample order of standard model ; 12-25 working days for custom sample order & mass production after payment receipt.
Q3: What paying methods do you accept?
A3: Alibaba Trade Assurance, T/T, Paypal , etc.
Q4: What is our the warranty policy?
A4: 12 months warranty lifetime free maintainance except the human damage and force majeure factor, can be 24-monthes with extra cost.
During the guarantee period, we will send the new replacement components for free if it's because of hardware problem after we confirm, and cover the shipment fee for the replacement delivery.
Beyond the guarantee period, we will provide maintenance service and technical support (Hardware and other possible charges, we will not bear the responsibility).
Beyond the guarantee period, we will provide maintenance service and technical support (Hardware and other possible charges, we will not bear the responsibility).
