Twin track manufacturer of biplanar overhead chain conveyor

Product Overview

Description

Twin track manufacturer of biplanar overhead chain conveyor



Track	Type	Pitch	links	wheel	Ultimate strength	single point loading anility
Fabricated from 3 mm thick cold formed angle	Bi-planar	6’’/8”/10”	30*6mm track En8	load wheel 47mm dia. & guide wheel 47 mm dia 2.each	6000KG	less 100KG

Track: Fabricated from 3 mm thick cold formed angle( open and closed track options available).

Chain:

Type: Bi-planar

Pitch: 6’’/8”/10”

links:30*6mm track En8

wheel: load wheel 47mm dia. & guide wheel 47 mm dia 2.each

Ultimate strength: 6000KG

As the name indicates it is available in different shapes with two or four wheels bi-planar chain conveyor as per customer demand. It is mostly used where uni planar chain systems may not fit to place or design purpose. It allows for maximum use of floor area and reduced installation cost, time frame and uses air available space



These are capable to convey the material in X-Y-Z direction. Very superior, robust & sturdy in operation and also having good durability.

Mostly applicable to Overhead conveyors, light power & free conveyors which will be used in Plant shops, Cement industry, In-floor systems & assembly lines etc.

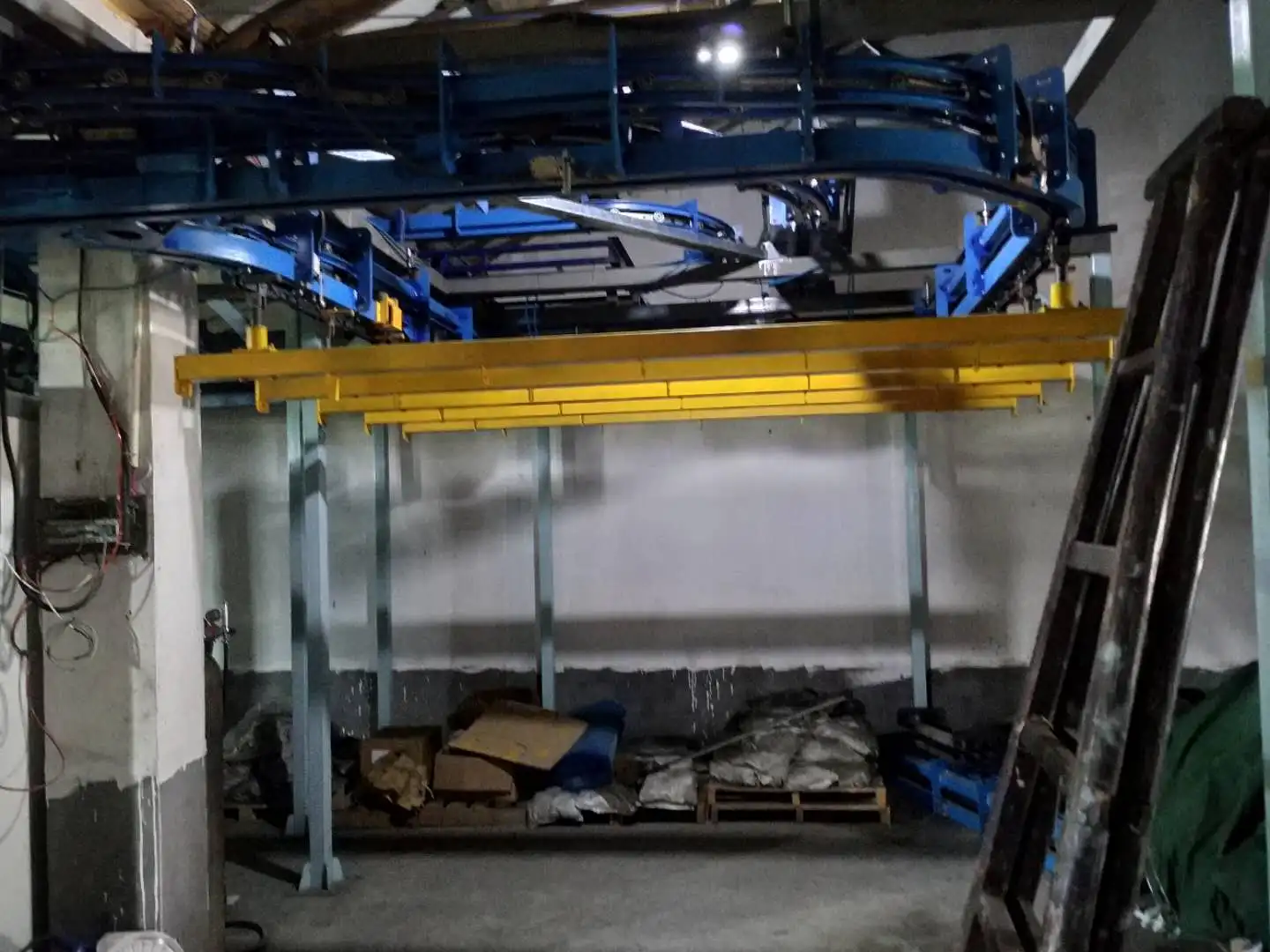

Four wheel Bi Planar chain overhead conveyor application

Our biplanar overhead conveyor chain use foe different trasmission area.



Please feel free to contact for more details:

Jasmine liu

Phone(wehatspp, wechat):+8613628346049

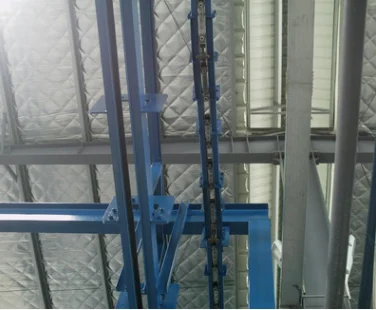

Four wheel Bi Planar chain overhead conveyor
