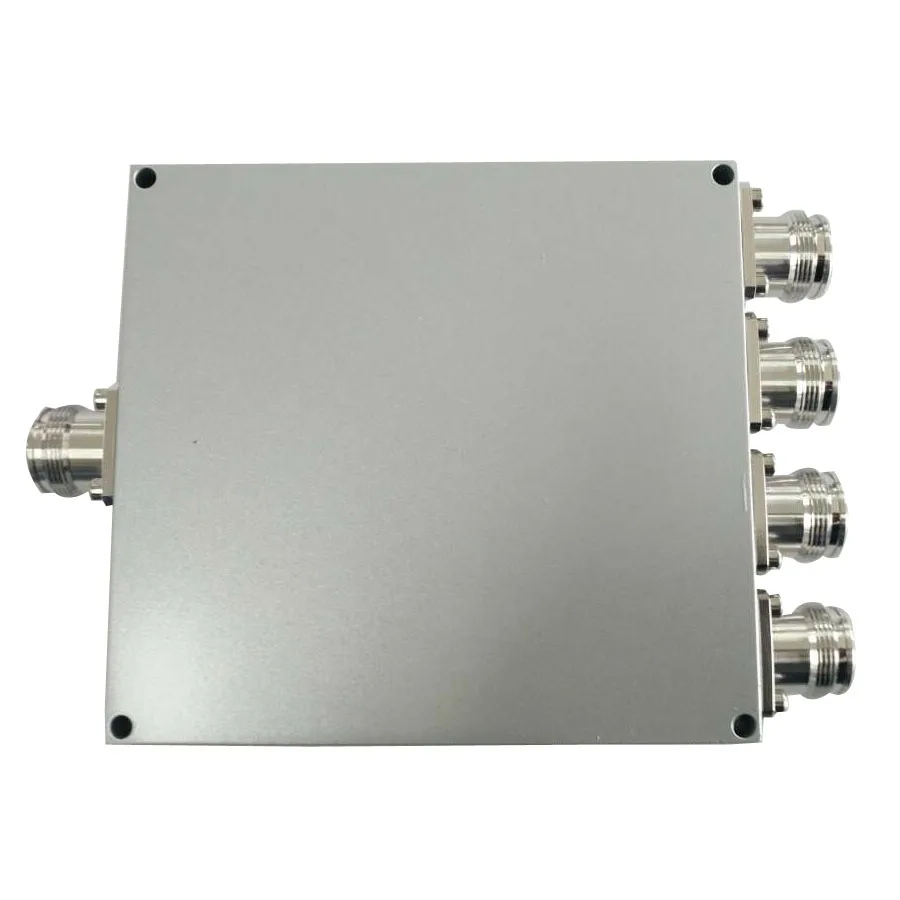

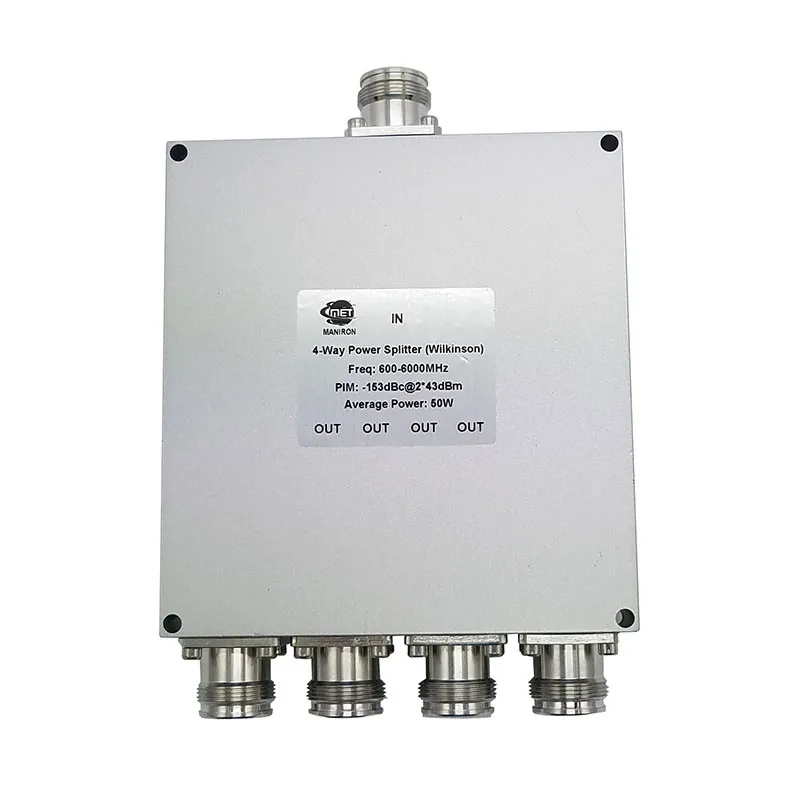

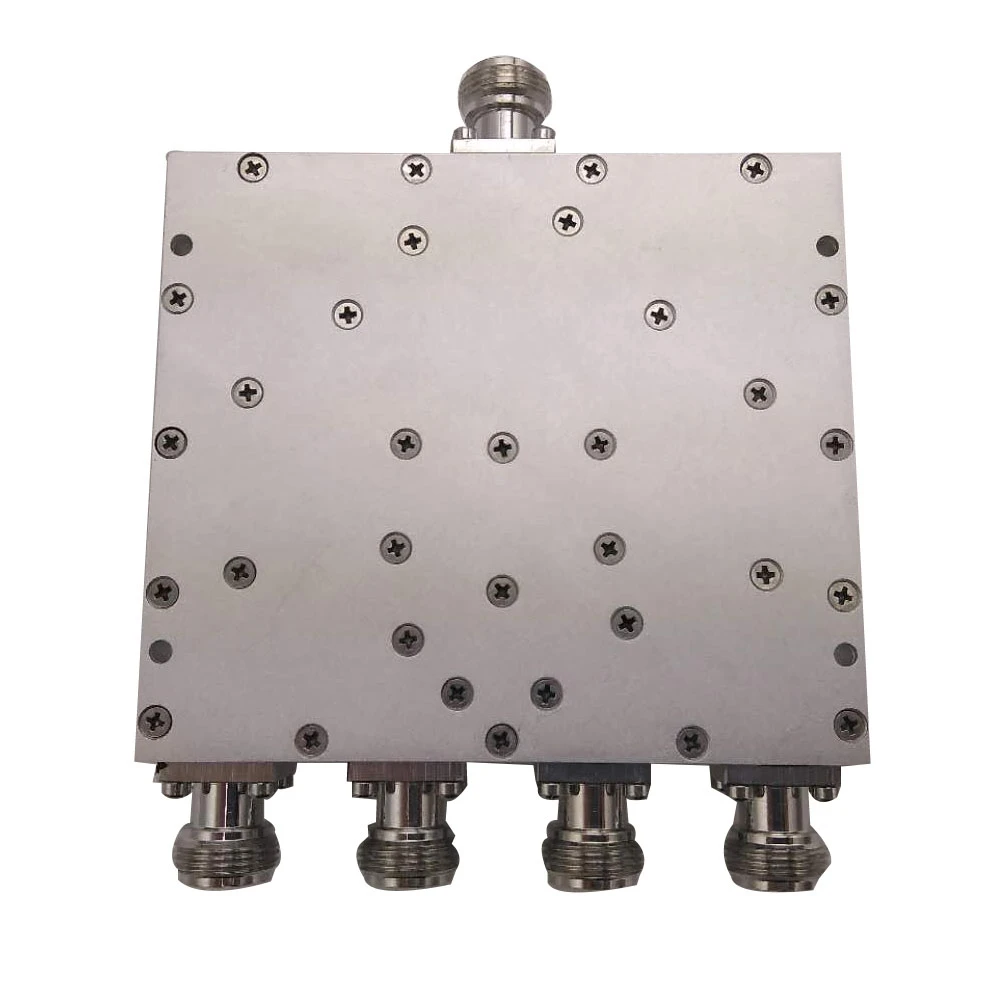

RF 694 3800MHz 4 Way Power Splitter 50W Wilkinson Power Splitter RF Power Divider Low PIM BTS IBS DAS
RF 694-3800MHz 4 Way Power Splitter 50W Wilkinson Power Splitter RF Power Divider Low PIM BTS IBS DAS
RF 694-3800MHz 4 Way Power Splitter 50W Wilkinson Power Splitter RF Power Divider Low PIM BTS IBS DAS
RF 694-3800MHz 4 Way Power Splitter 50W Wilkinson Power Splitter RF Power Divider Low PIM BTS IBS DAS
RF 694-3800MHz 4 Way Power Splitter 50W Wilkinson Power Splitter RF Power Divider Low PIM BTS IBS DAS
RF 694-3800MHz 4 Way Power Splitter 50W Wilkinson Power Splitter RF Power Divider Low PIM BTS IBS DAS
RF 694-3800MHz 4 Way Power Splitter 50W Wilkinson Power Splitter RF Power Divider Low PIM BTS IBS DAS

RF 694 3800MHz 4 Way Power Splitter 50W Wilkinson Power Splitter RF Power Divider Low PIM BTS IBS DAS

Share on (62216710063):


Price:

Quantity:


Product Overview

Description


Product Description


Specifications

Frequency Range

♦ Wide Frequency Band

    600-6000MHz


Features

◆ 3G/4G/5G LTE Coverage

♦ Low Insertion Loss & low vser

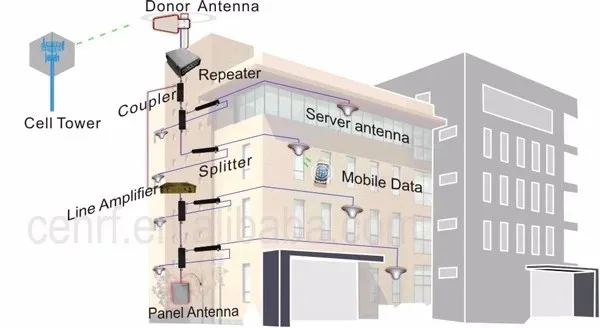

♦ Widely used for in-building Soloution

♦ Indoor & Outddoor, IP65 applicationn

\t

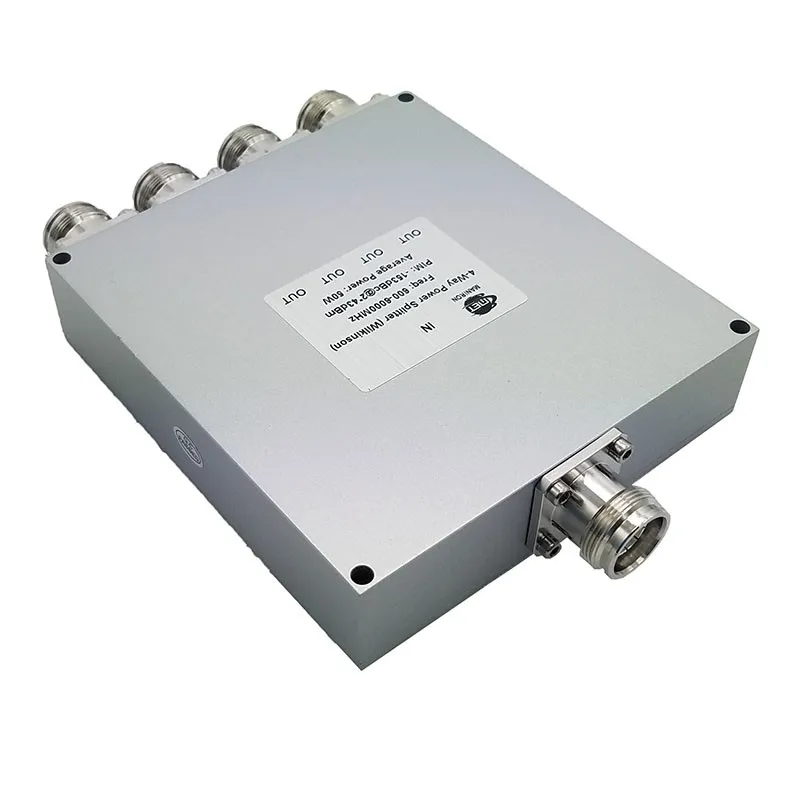

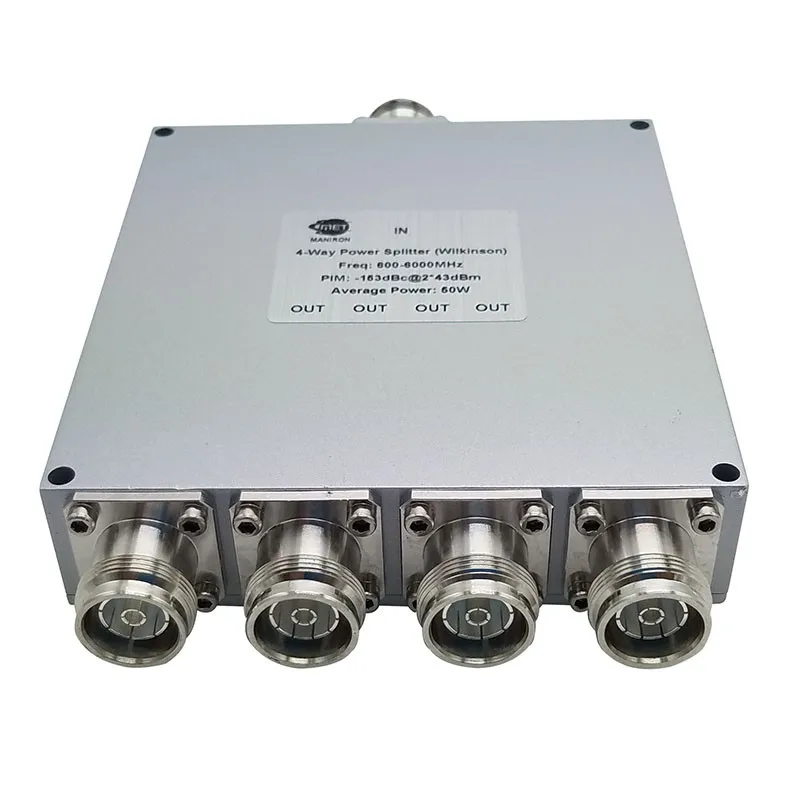

Product Name
\t
50W Power Splitter
\t
Model No.
\t
MWPS-6060-02-NF-153
\t
MWPS-6060-03-NF-153
\t
MWPS-6060-04-NF-153
\t
Freq(MHz)
\t
600-6000
\t
Split Loss(dB)
\t
3.0
\t
4.8
\t
6.0
\t
Insertion Loss(dB)
\t
≤1.8
\t
≤2.3
\t
≤2.8
\t
Isolation(dB)
\t
≤18
\t
≤16
\t
≤16
\t
VSWR
\t
≤1.45
\t
≤1.50
\t
≤1.50
\t
PIM (dBc)
\t
≤-153dBc@2*43dBm (698-2700)
\t
Power(W)
\t
50(average)
\t
Impedance
\t
50 ohm
\t
Connector
\t
4.3-10
\t
Color
\t
Silver-plated
\t
Temp(deg)
\t
-30~+70
\t
Application
\t
Indoor or Outdoor, IP65


Our Services

1. Professional skills support.

2. OEM services is available.

3. 24 hours you can contact our salesman and engineer.

4. We will try our best to provide support whatever you need and we can do.

NOTE: All the specifications can be changed as customer's requirment.  Our company has a variety of products to choose.

Our Company


Maniron Electronic & Technology co., LTD, established in 2002, is a leading manufacturer  of RF Passive Components for Inbuilding Distributed Antenna Systems by providing OEM  Business mostly all over the world.
Maniron Electronic & Technology co., LTD has a huge fellowship that is composed of many highlevel technologists. We also has established a Research Institution which is cooperting with some famous universities in China.


Scale of company:


     A. 150 staff, inclduing 10 RF Engineers, 3 with State-level.

     B. Company covers an area of 1800 square meters with Production, Research, Sales and so on.

     C. 6 Network Analyzers (Agilent, Jointcom), 4 PIM Analyzers (Jointcom) and other facilities

      Certifying Agency: AHTA/HFB (ANHUI Telecom Admistration HEFEI Branch)

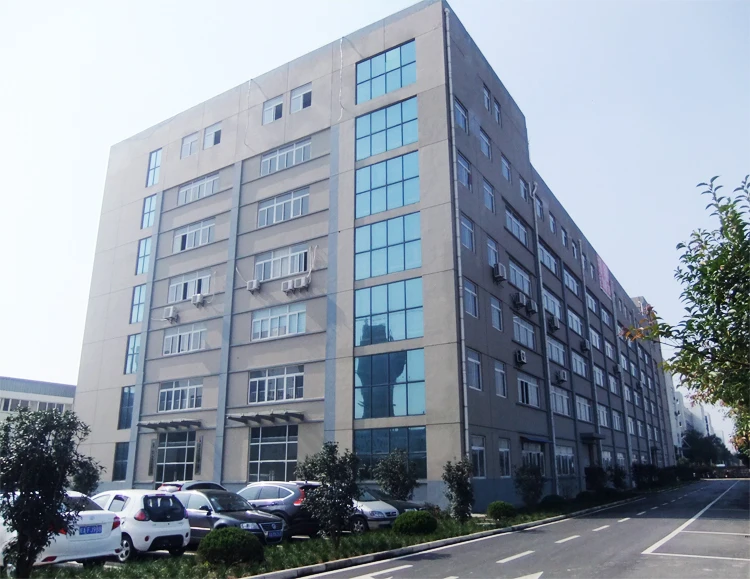

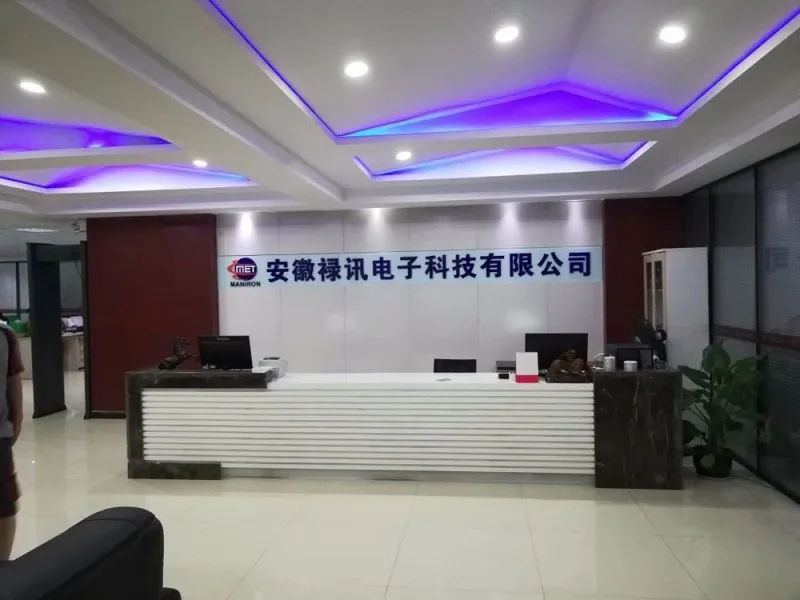

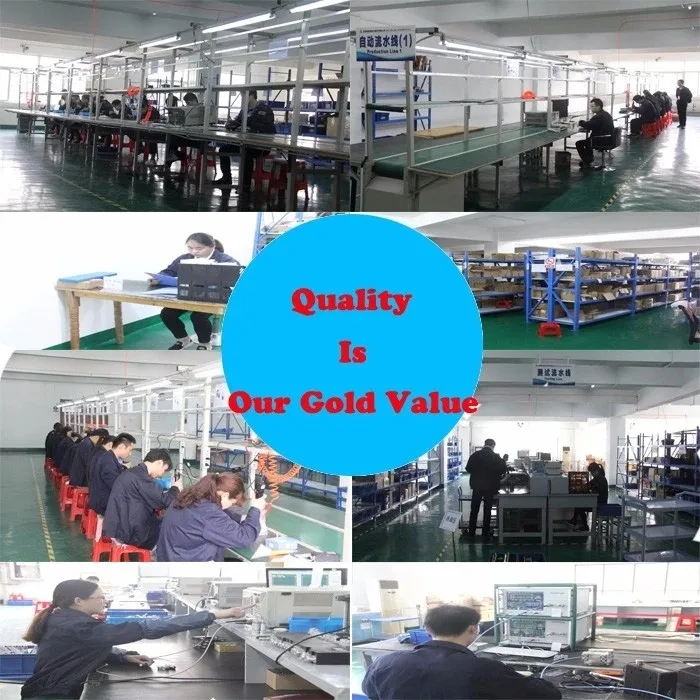

Factury Indoor

Fun activities

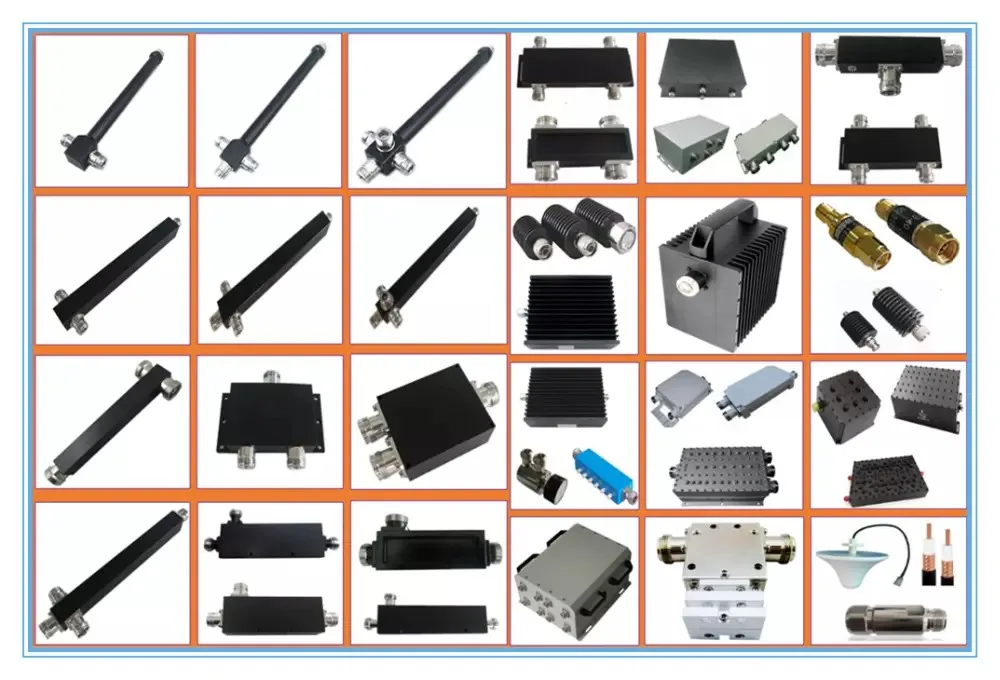

What we produce

Product Range: RF/Passive/Microwave Components in Telecommunication field.

Product Name: Power Splitter, Directional Coupler, 3dB Hybrid Coupler, Triplexer, Diplexer, Hybrid Combiner, Attenuator, Termination, Cable, Antenna, Connector, Isolator, Circulator and so on.

Application Range: IBS and BTS construction and installation, Military Telecommunication, Products Frequency Range is wide from 0-40Ghz.
