Mineral Separator Machine alluvial gold mining equipment

Flow chart for Mineral Separator Machine alluvial gold mining equipment

Alluvial gold mining need same process and equipments: Feeding, Sieving, Separation, Refine etc...... After sieving, the material should be feeded into Concentrating machine. Gold specific gravity is about 19, sand specific gravity is about 3-5. The Principal Methods of alluvial gold (placer gold) are Gravity Separation.
Now the most popular gold mining gravity equipment are: Sluice Box, Centrifugal Concentrator, Shaking Table. In recent years, concentrator is widespread used, and the effect is good. Concentrator recovery rate is up to 98%.

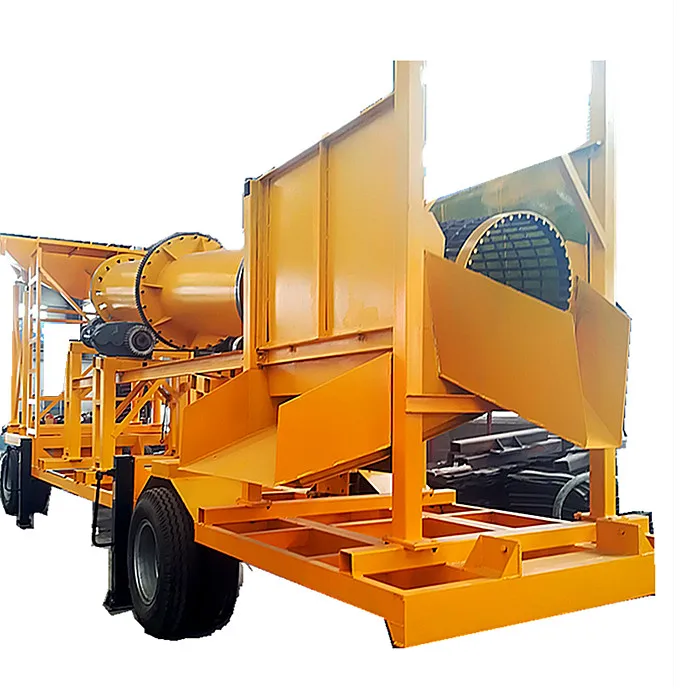

Mobile Gold Wash Trommel/Alluvial Gold Extration Equipment/Alluvial Mine Machine ---- Gold Concentrator ---- Gold sluice box ---- Shaking table ---- Amalgamator ---- Furnace
.

Product Name	Mineral Separator Machine alluvial gold mining equipment
Screening Equipment	Scrubber for washing clay Gold trommel for sieving
Concentrating Equipment	Gold Centrifugal Concentrator for concentrating Fine Powder gold Sluice for concentrating Particle gold/Granula gold
Capacity	3tons/hr to 250tons/h
Feeding size	Base on Raw Ore
Power	Electric or Generator unit
Usage	Gold Mining Machinery/Gold Washing
After-sales service	Engineers available abroad

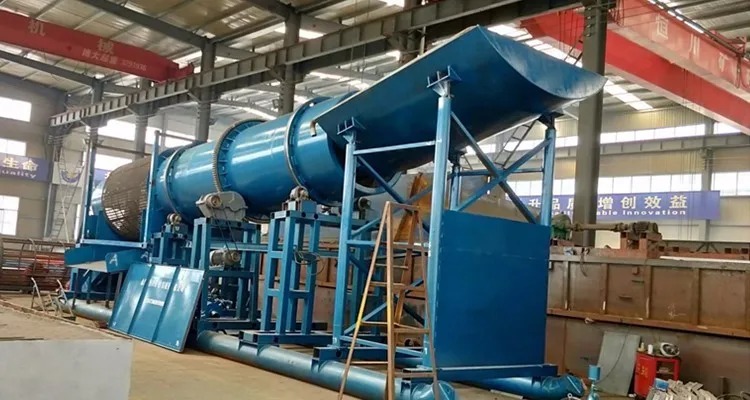

Products Show

Photo in details

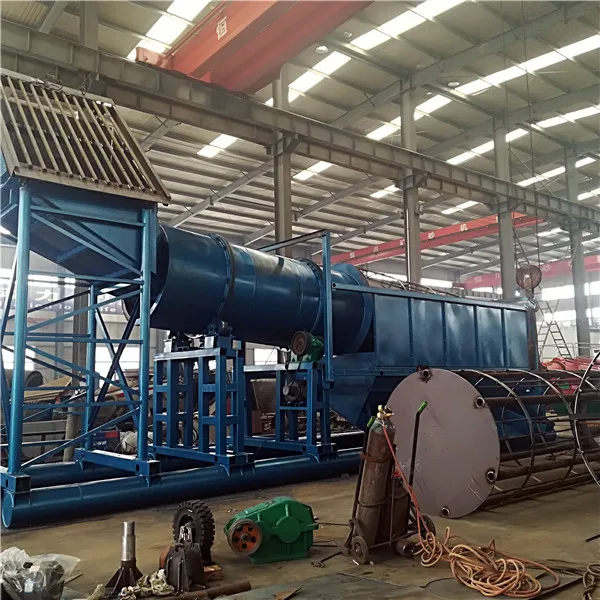

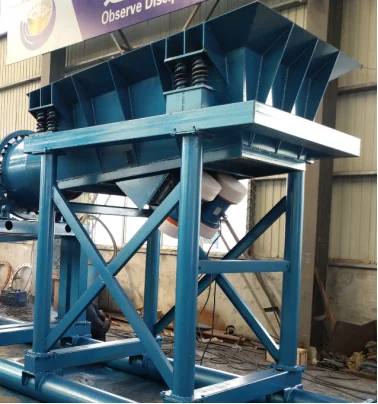

Feeding System

Name: Hopper Feeder
Size (mm): 3000*3000*1800mm
Grizzly screen space: 150mm or as required
Grizzly material: Railway tracks
Remark: Water spray pipes along hopper sides
Function: To feed the materials evenly to the scrubber and trommel

Sticky clay Washing Scrubber

Gold Wash Scrubber is very important,especially for the raw ore with very sticky clay .
Clay is every miner's enemy no matter what type machine you use. Clay will cut production down significantly.

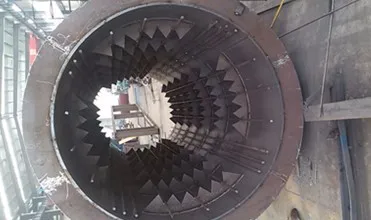

Our newest Clay washing scrubber with special teeth, in order to make sure the high Recovery rate

Screening System

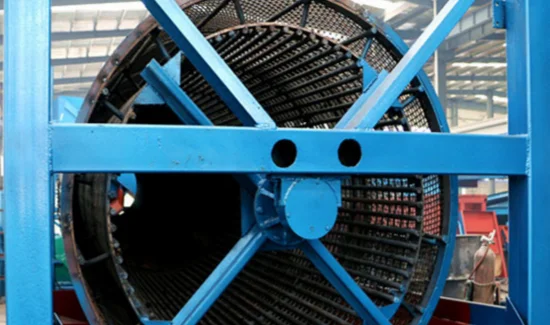

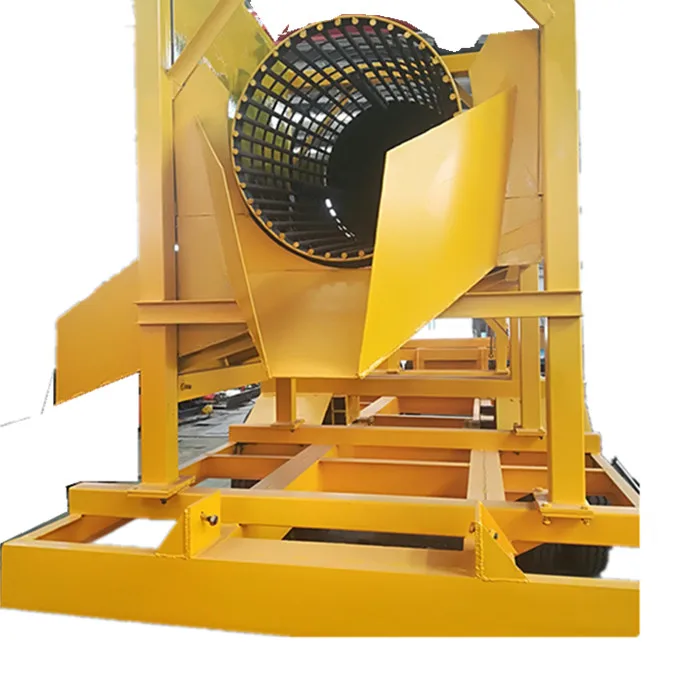

Name: Gold Trommel Screen
Size (mm): φ1500*3500 or according to processing capacity
Remark: 2 layer trommel screen
Function: For washing, screening and separating the minerals
Water spray pipes: On both sides of the trommel
Mesh size: 12mm and 6mm or according to clients requirment

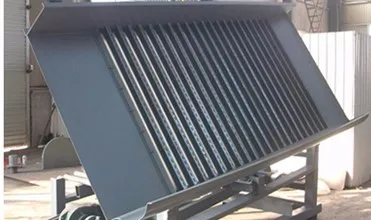

Pulsating sluice

For the Gold Mining Machinery/Gold Mining Equipment:

Due to high recover rate and low price, Pulsating sluice box is more and more popular in mining market.
Pulsating sluice box is easy and fast for cleaning. It only take 10-15 minutes to cleaning and recover sand, every 6 hours.

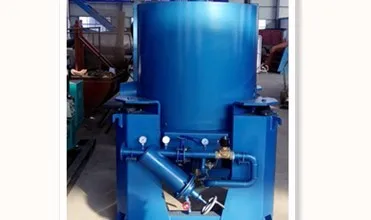

Gold centrifugal concentrator

For the Gold Mining Machinery/Gold Mining Equipment
Gold centrifugal concentrator usually for concentrating the powder fine gold, which is with very high Recovery rate.
1.Our Newest Gold centrifugal concentrator are with Polyurethane lining, which increase the Wear Resistance.
2.The Reverse Water flushing:The newest Concentrifugal concentrator is with oblique water holes with most suitable angle, which slove the problems of ore hardening.

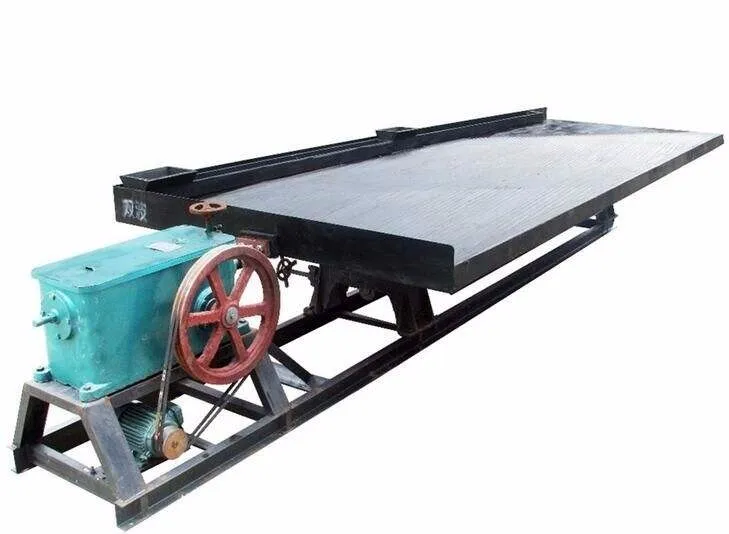

Gold Shaker Table

Model: 6S
Power: 2.2Kw
Function: to further process the concentrates from the sluice and/or concentrators

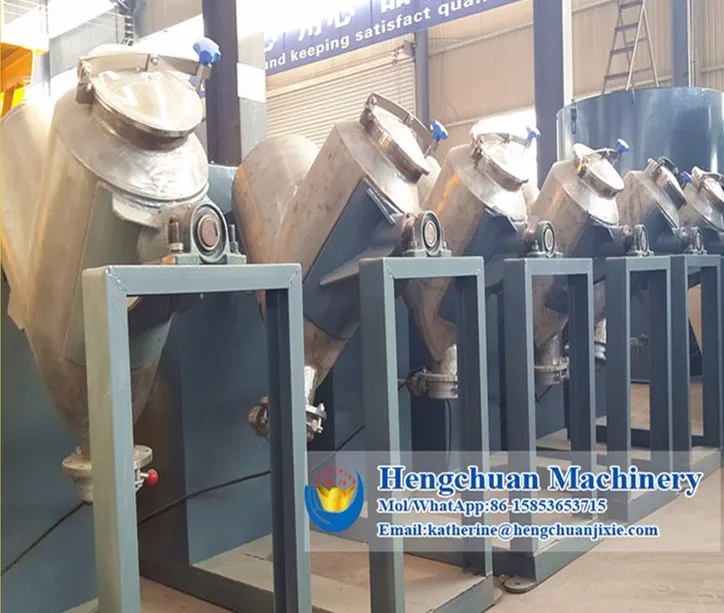

Mercury Amalgamator

Type: V-shaped
Working mode: amlagamator + distiller retort
Function: With the help of Mercury, to extract all the gold out from the concentrates that recovered by the sluice and concentators
Recovery rate: 100%

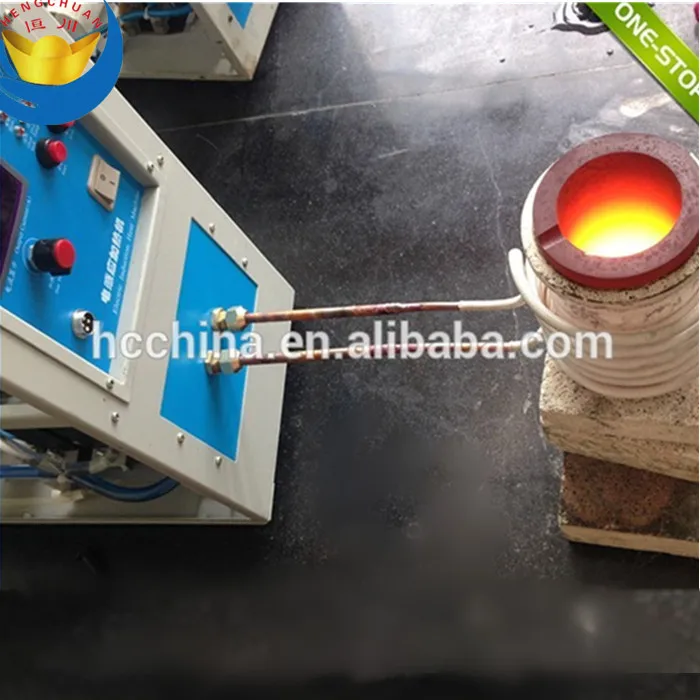

Gold Smelting Furnace

Capacity: 10-15kg per batch
Moulds: 100g; 200g; 500g; 1000g
Function: to smelting the gold sand and make into final product of gold bars

Certification

Our Company

Factory

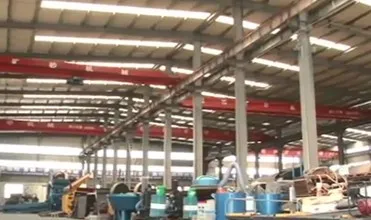

Our Factory

Workshop

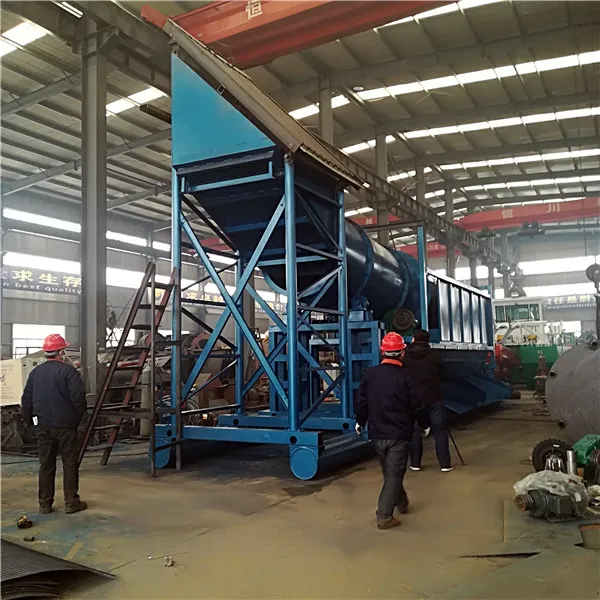

Our Workshop

Office

Our Office

Team

Our Team

Packing & Delivery

Packing Details  : Export standard container 20GP or 40GP,40HQ. Small spare parts will be put into box.

Delivery Details : By sea or by truck, base on customers' demand.

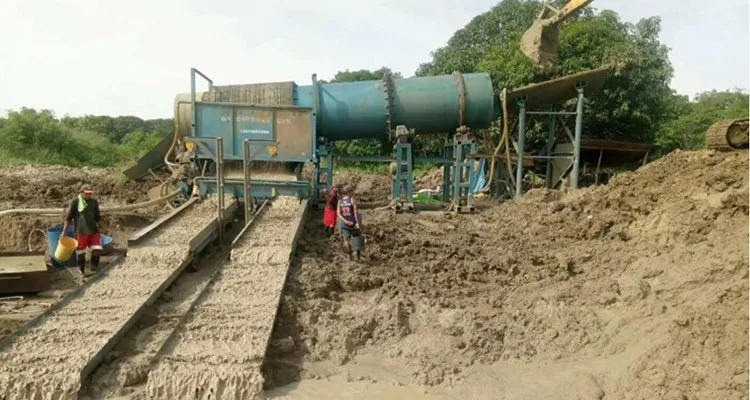

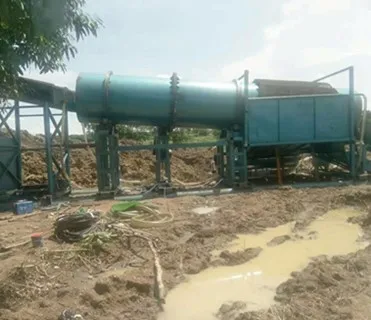

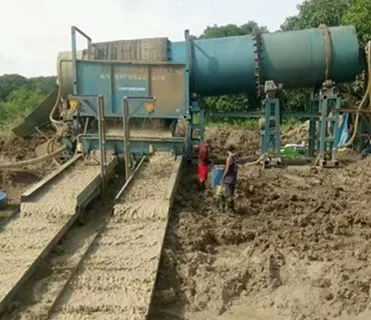

Trommel scrubber to Mali

Trommel scrubber to Suriname

Trommel scrubber to Africa

Trommel scrubber to Chile

Trommel scrubber to Malaysia

Trommel scrubber to Kenya

Keywords

Mineral Separator Machine alluvial gold mining equipment

* gold mining equipment

* machine gold mining

* gold mining

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.not Trading company

Q:I never used this kind of machine, how should i do?

A:Our engineers will guide you in the installation and use, and we will offer english manual and guide video.
And when our enginner install for you abroad, they will train your staff for free.

Q:Warranty period?

A:We will send you the broken parts in warranty period. Pls feel free to contact me by Email/Skype/Whatsapp 24hours.

Q:In order to give you a responsible quotation, you can inform us the following information

1).Type of minerals to be mined?
2).Type of deposit (Primary/hard rock, or secondary/placer)?
3).Physical characteristics of the ore (sandy, with light clay or heavy clay)?
4).Intended feed capacity (Tons/hour)?
5).Would you like to share with us some photos of your ore? for engineer better understanding.
