Product Overview

Description





FEATURES
• Compatible to UV, Double rod (separated flame rod and igni-tion rod) and 1 rod (integrated flame    rod and ignition rod) flame detection which can be set manually
• Integrate 6 kinds of timing choices which can be set manually according to the application requirements
• 24 hours continuous operation (except UV application)
• Life-cycle ≥ 250K times (Note 1)
• IP54 protection field or cabinet installation

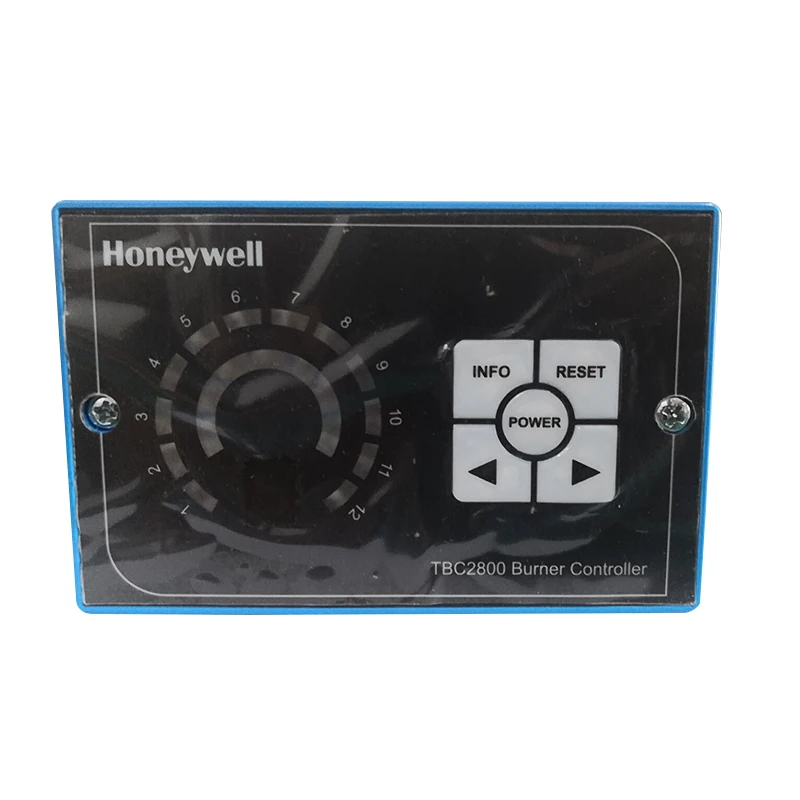

• Multifunctional LED lights and buttons indicate the Flame strength, fault & operation sequence       and parameters
• Remote or on-site reset
• Adjustable flame on-off threshold
• Comply with EN298

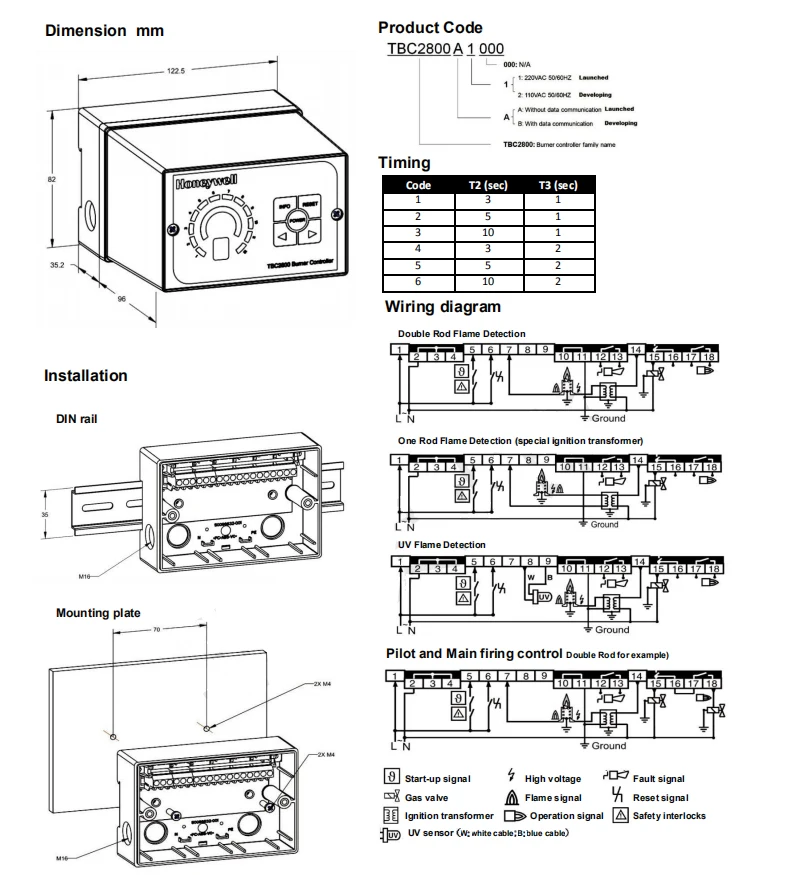

W x D x H
122.5 x 82 x 131.2mm
Mains input
220/230VAC –15/+10% 50 60Hz
Power consumption
9 VA
Cable length of flame rod
75m(max)
Flame threshold setting
1~10µA
Cover material
PC/ABS
Protection class
IP54
Ambient temperature
-20
Ambient humidity
95%, non condensing
Lifecycle
 250,000 cycles comply with EN298
Drive gas valve 1A(max) power factor
 1
 Drive ignition transformer 2A(max) PF 0.2
 Maximum output for terminal 2A 242Vac
 UV sensor C7027A/C7035A/C7044A
APPLICATION
TBC2800 series is the high-performance burner controller which is designed for commercial and industrial application and suitable for gas firing.
TBC2800 series can be used for pulse firing and modulating firing mode.
TBC2800 series applies to multiple burners application, such as steel, machinery manufacturing, non-ferrous metals, glass, ceramic, petro chemical and other industries.


23_08




FAQ

Q: Are you trading company or manufacture?

A: Both.

Q: What's your product range?

A: We specialize in product solenoid valves,butterfly valves,pressure push-button valves, ignition transformer,burner controller,electric actuator, and other combustion accessories.

Q: What's your strong product?

A: Solenoid valves,butterfly valves,pressure push-button valves.

Q: Do you provide sample? Is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of the freight.

Q: How long is your delivery time?

A: Generally it is 7 days if the goods are in stock, or it is 30 days if the goods are not in stock, it is according to the quantity.

Q: What is your terms of payments?

A: * Payment ≤ 10000 USD,100% T/T advance .

   * Payment ≥ 10000 USD,30% T/T advance and settle the 70% balance before delivery.
