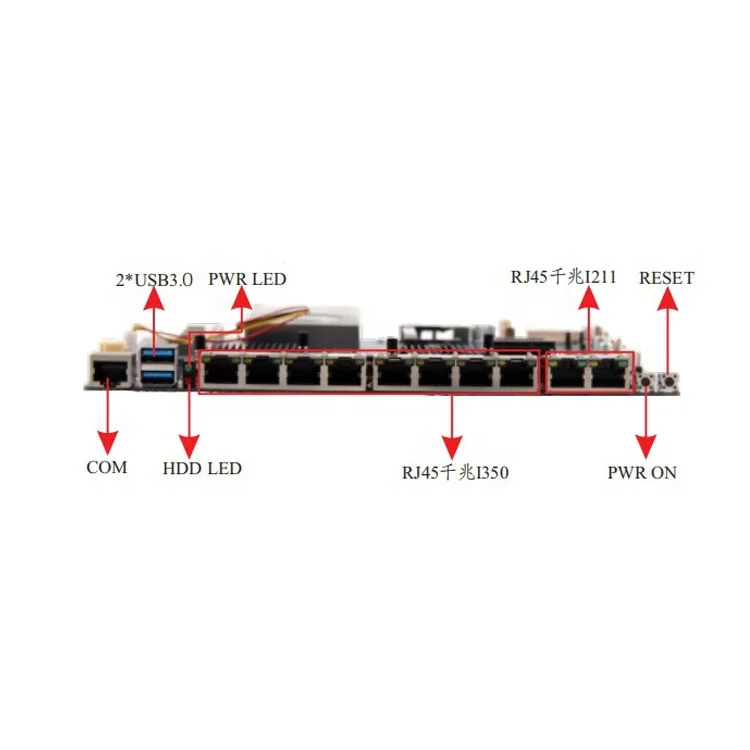

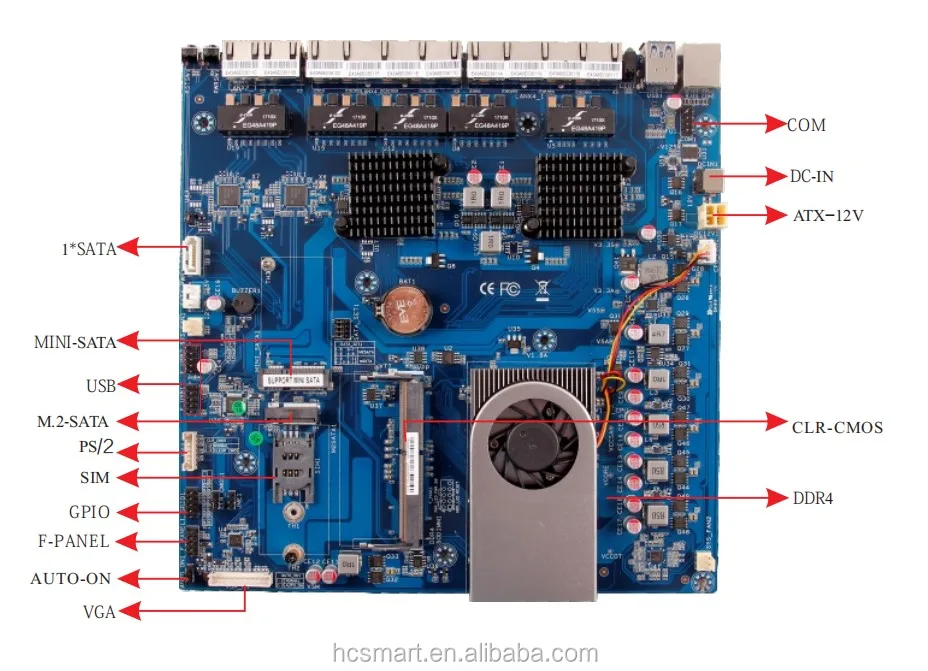

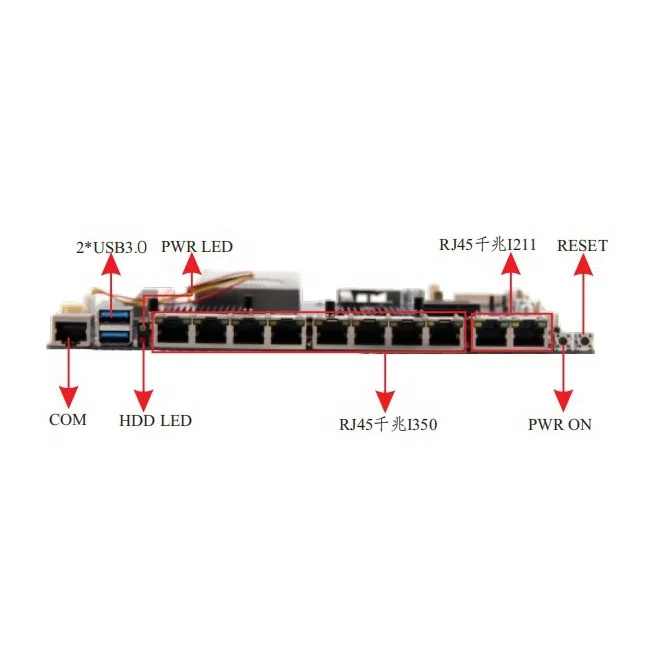

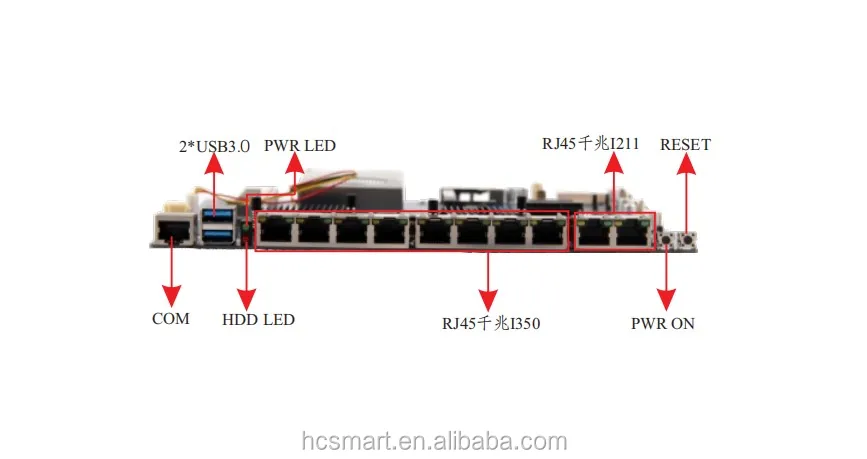

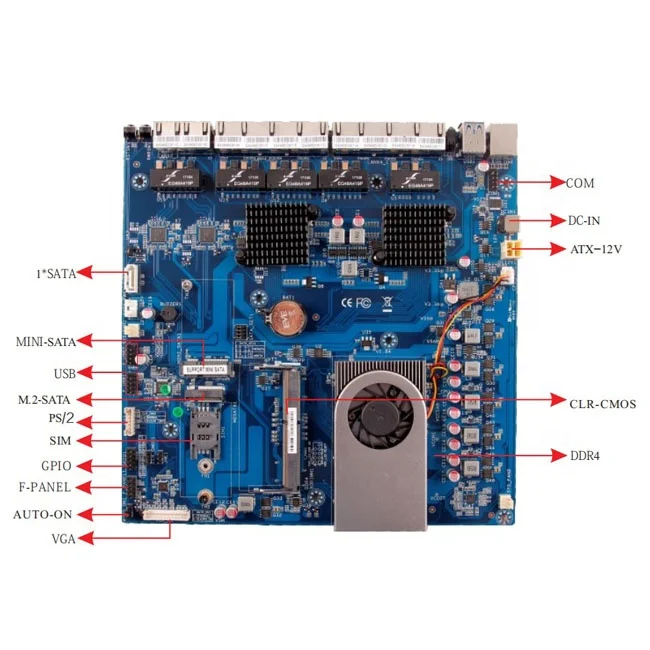

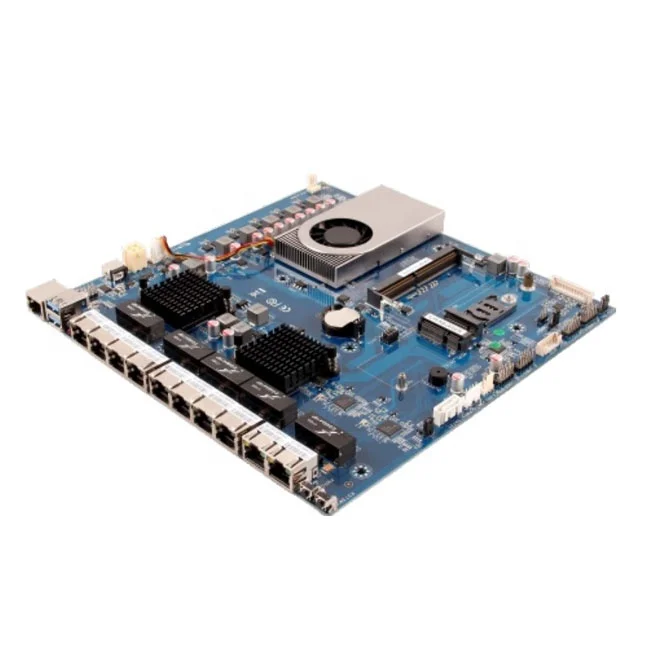

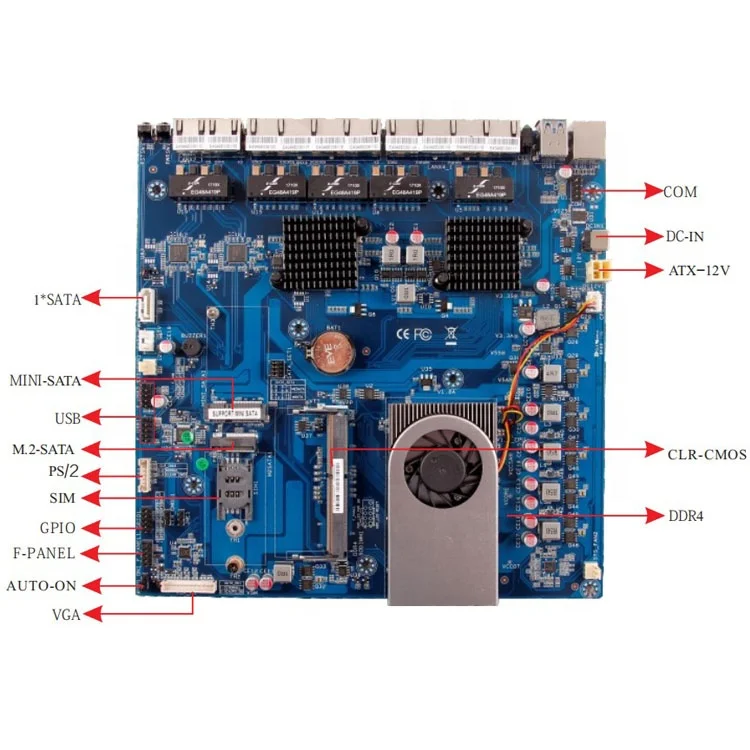

Intel skylake 3855u embedded firewall computer motherboard with 10 1000M lan for network security firewall router
1.intel 3855u processor
2. 1*sata 3.0 1*msata 1*m.2 sata 2.0
3. 10*1000M lan DDR4 ram socket
4.vga header com header
5.solution for firewall computer router
Product Description
Processor
CPU
Intel skylake 6th gen 3855u
Frequency
Dual core 1.6g
Chipset
SOC
TDP
15W
Memory
slot
1*SO-DIMM,DD4 1600HZ
Capacity
MAX to 16GB
Storage
connectors
1*SATA3.0 1*MSATA 1*M.2 SATA
1*MSATA
1*SIM
Display
chipset
HD integrated
connector
VGA header
LAN
chipset
2*Intel i350 2*I211
connector
10*RJ 45 1000m
Audio
chipset
connector
I/O
com
2*com(1*RJ45 to com )
lPT
USB
2*USB3.0,2*USB2.0 header(expand to 4*USB2.0 connectors)
GPIO
1*GPIO
Header
1*F-PANEL
1*PS/2
2*F-USB 2.0
1*CPU-FAN
1*CLR-CMOS
1*AUTO-ON
1*COM 1*12V ATX
1*VGA
Power
power supply
1*DC IN 12V/4 PIN ATX
OS
Win7/win8/xp/linux
BIOS
AMI BIOS
Working environment
working temp
-10~60degree
storage temp
-10-70 degree
Relative humidity
5%-95% non-condensing
Form factor
Size
230*230mm
Packaging & Shipping
Carton box : 20pcs/ carton 15kgs/carton
Shipping by Air or express . you can reveive the cargo in 5-15 days
Our Services
We can give you 1 year warranty
To assure the quality, we usually do full test befor shippment to avoid the quality issue
24*7 hotline for inquiry, if you have any questions about our products, you can contact us any time.
Company Information
FAQ
1.What is your payment terms ? T/T Paypal westunion money gram for sample or small order
2.What is your lead time? 3-5 working days after receipt of payment
3.Do you have warranty about your products? Yes, 1 year
4. Can you do customlized serive ? Yes. We can add your logo on our products. or we can design as per your requirements OEM and ODM serive are available
