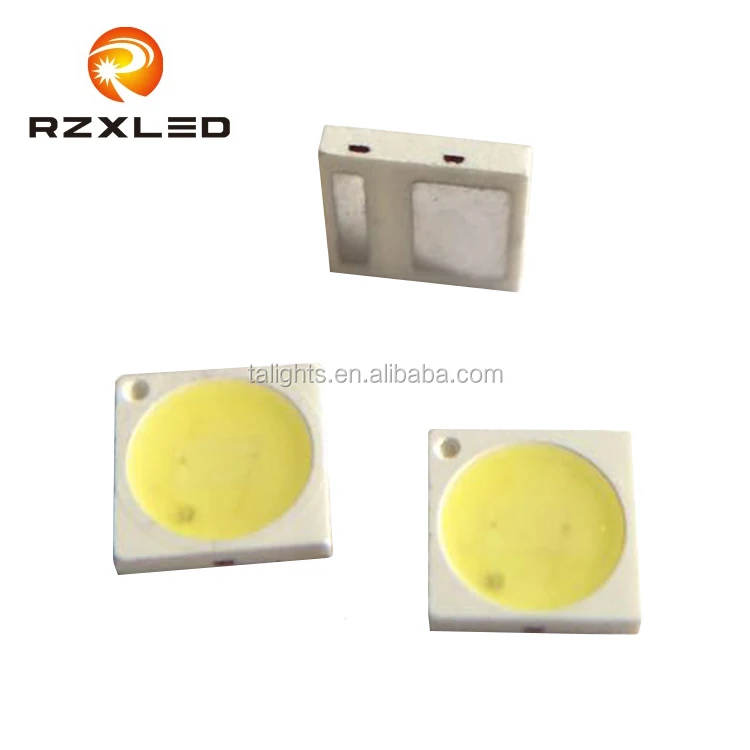

LED 1W 3030Package 3V Cold White 15000K Diode For TV Backlight

Product Overview

Description

Specifications: 1W

1. Brand new and high quality.

2. LED emitter: 1W. Forward Current: 150-350mA

3. Emitted color:   Cold White 12000-15000K  /15000-18000K

4. CRI:   70

5. DC forward voltage (VF):  2.8-3.4V

6. Beam angle: 120 degrees.

7. LifeSpan time: > 50,000 hours.

8. Intensity luminous:  100-120 LM

9. RoHs compliant, lead free.

Note:not waterproof,not more than load,cooling temperature is not

higher than sixty degrees
There are thousands of modules so we can't list all in our store.
Please contact us for check if you can't find in the store.
Thank you!

Package included:2000PCS/Reel

3030(1W 3V 100-350MA)

Dimension	3.0x3.0x0.6mm
Power Consumption	1W   100-350MA
Color Temperature	Cold white12000K-18000K
Efficiency	100-120LM
Voltage	2.8-3.4V
CRI	70
Application	TFT TV Backlighting
