Product Overview
Description
Product Description
The product has a wide range of applications, good sealing and stability.
Product Profile

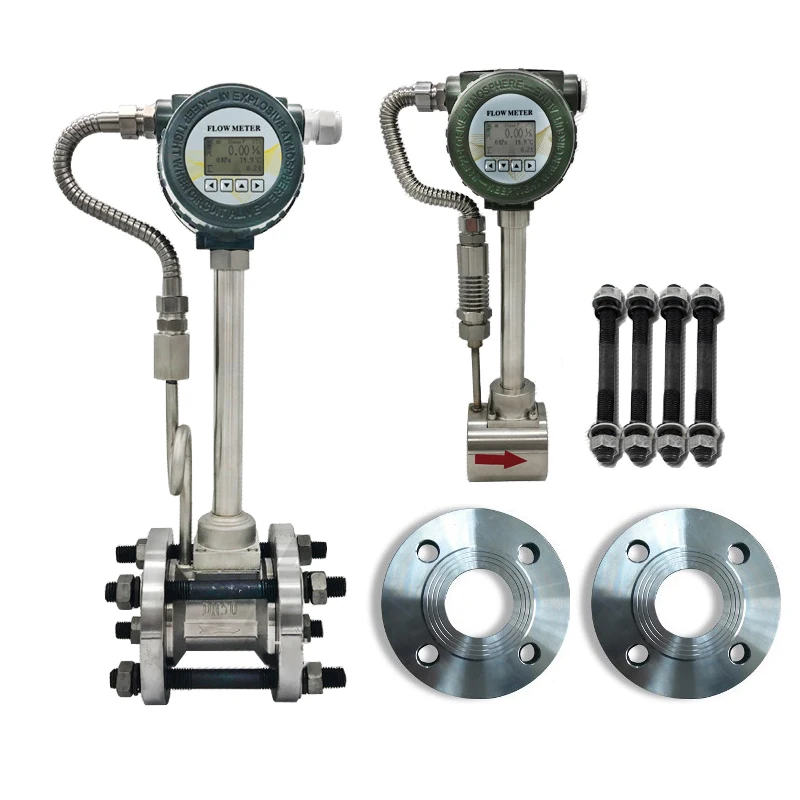

Intelligent integrated display vortex flowmeter is a new intelligent instrument with multi-function and integration, which is developed with advanced low-power MSP430 chip as the core. The converter has multi-point coefficient correction function. This series of products adopt segment code LCD display with high contrast and low power. Two display units are optional. A variety of electrical signal output modes are optional, especially suitable for quantitative control. This series of products can not only display the commonly used volume flow units, but also display the mass flow units by setting the measured medium density. On the basis of the above functions, in order to meet the different needs of users, users can choose the communication function of MODBUS protocol based on RS485 interface.
Technical parameter table
Medium | Air, oxygen, nitrogen, coal gas, natural gas, chemical gas,Saturated steam, superheated steam,Water, high temperature water, oil, beverage, chemical liquids etc.. |
Caliber | Flange connection:DN15~DN300 |

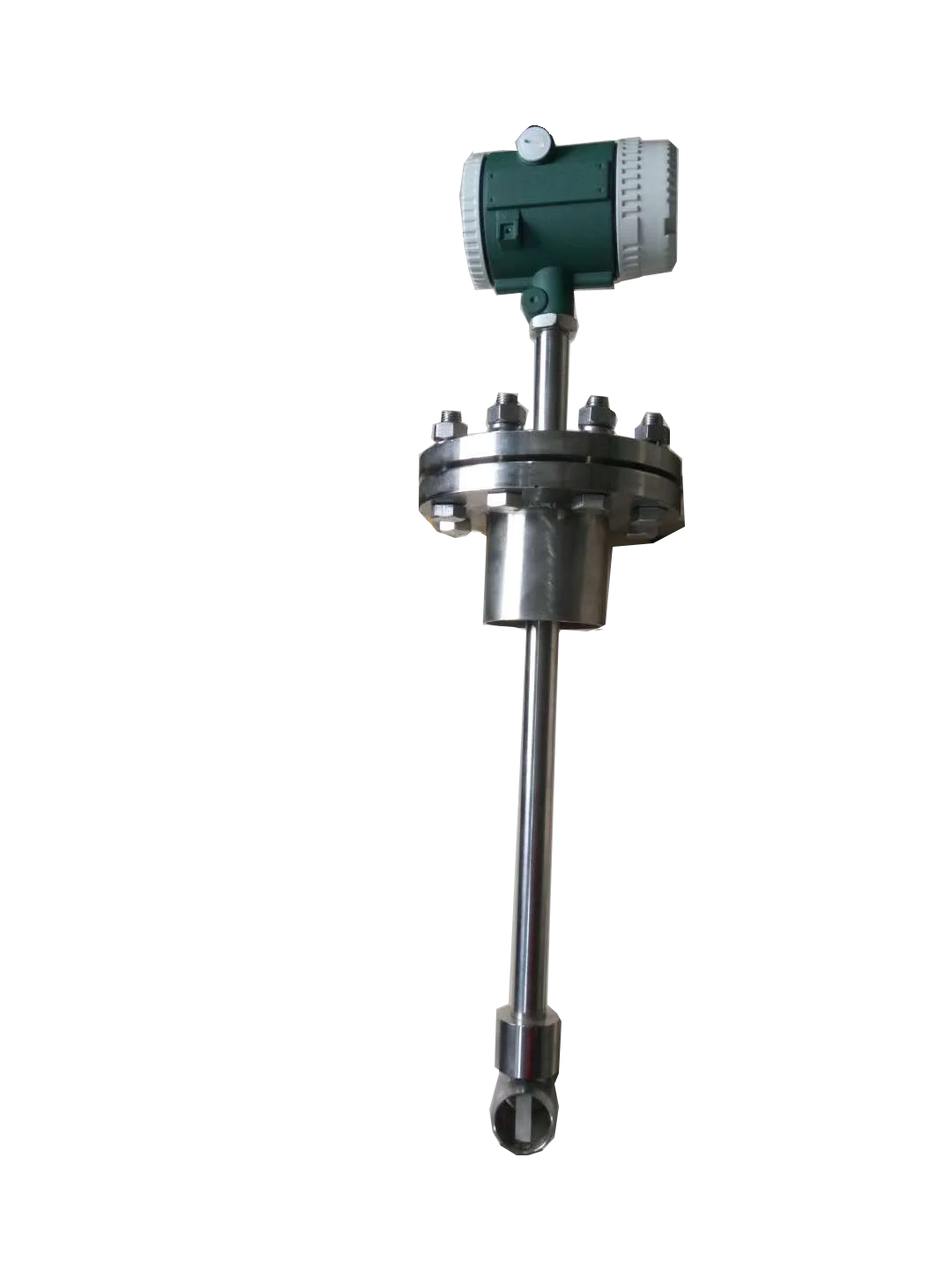

Accuracy | Pipe type: Class 1.0 Insertion type: Class 2.5 |
Range ratio | 1:10~1:20 |
Flow range | 0.5~10m/s |
Medium temperature | -40℃~+350℃ |
Operating condition | Temperature: -25℃~60℃ |
Humidity: 5%~90% | |
Nominal pressure | ≤1.6Mpa (offer ≤2.5Mpa and ≤4.0Mpa customization) |
Power | DC24V <0.5W |
Battery powered | DC3V/3.6V Minimum operating voltage:>2V/2.1V Working current:1170±20μA/300±5μA |
Frequency range of input signal | 0~3000Hz |
Output | Current output:4~20mA,0~20mA |
insulation resistance | >500MΩ |
communication interface | RS485 |
Communication protocol | MODBUS-RTU |
