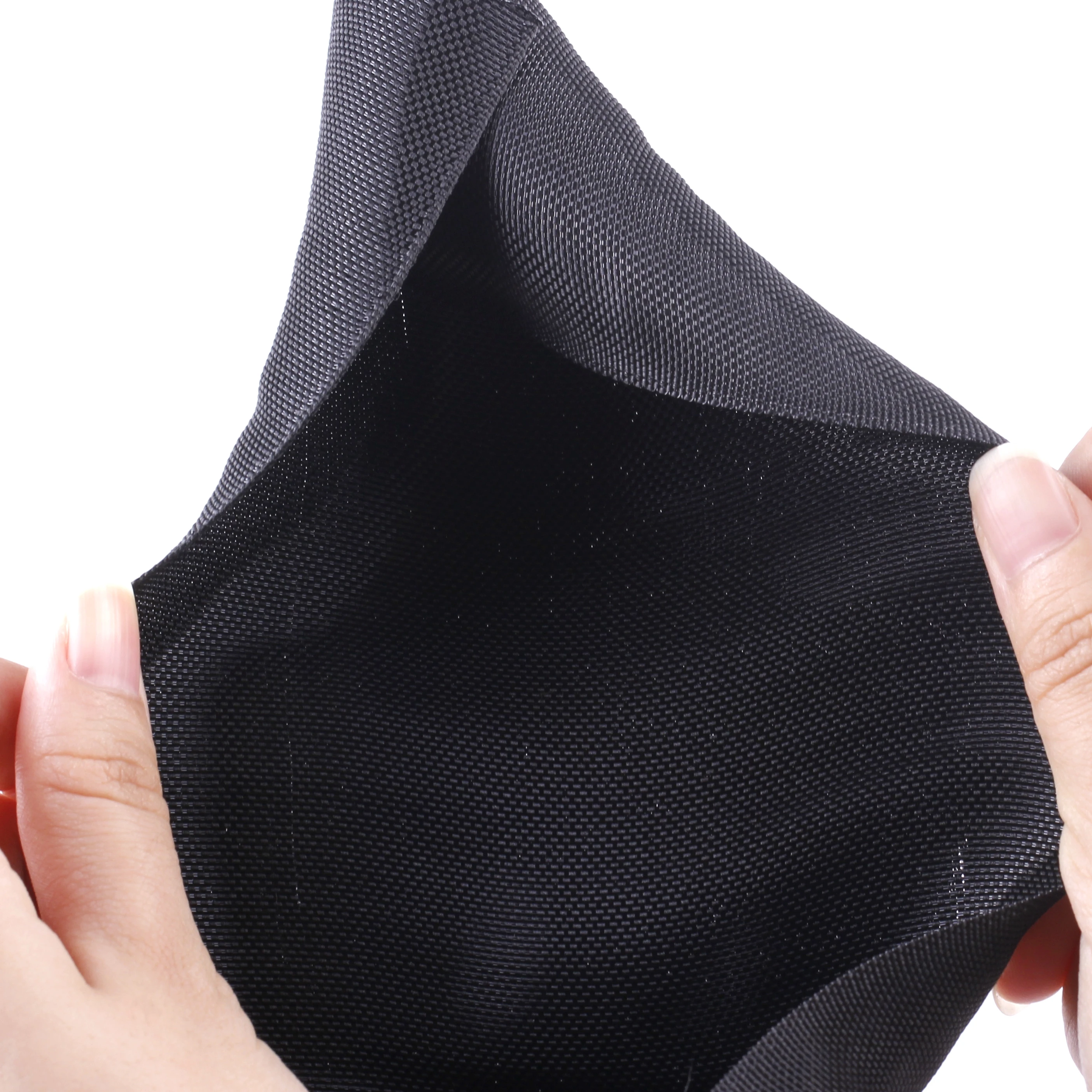

25.4mm black Braided Split Wrap for Post termination Cable Organisation

Share on (62218994712):


Price:$0.71 - $0.73

Quantity:


Product Overview

Description


Product Description

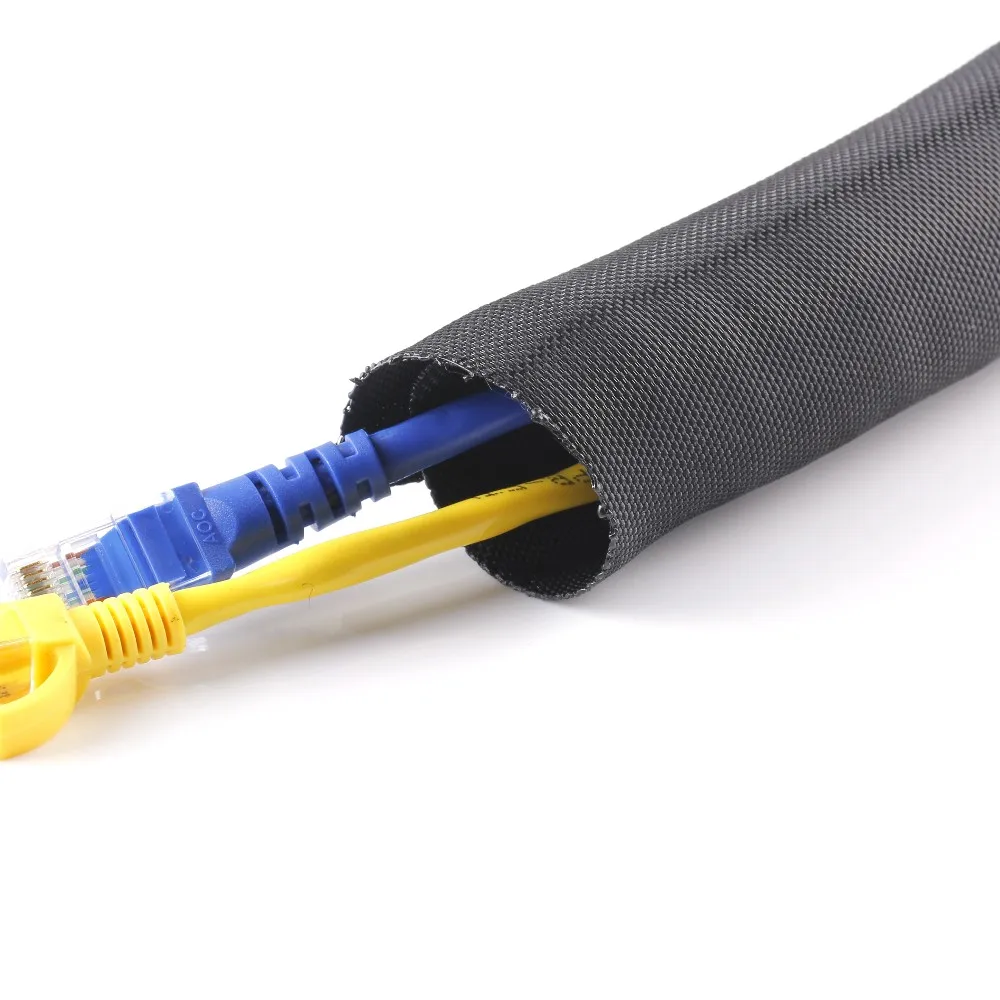

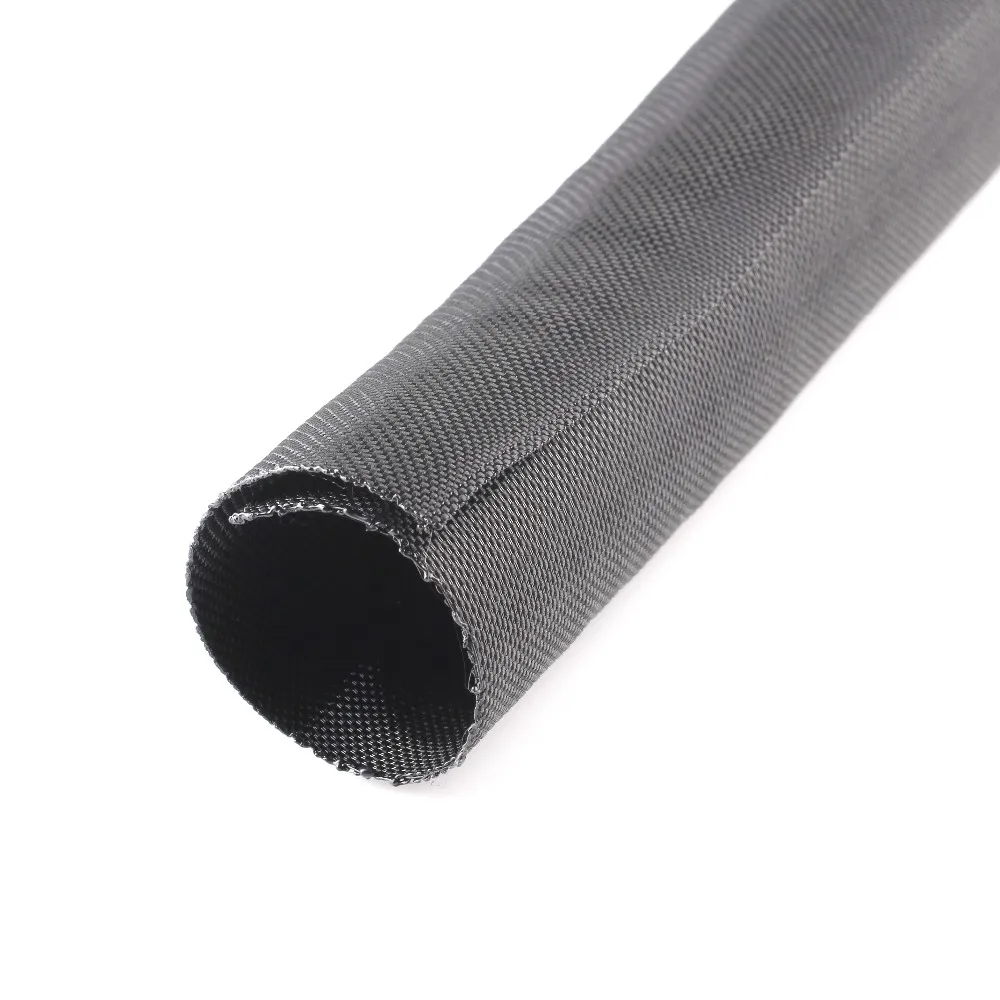

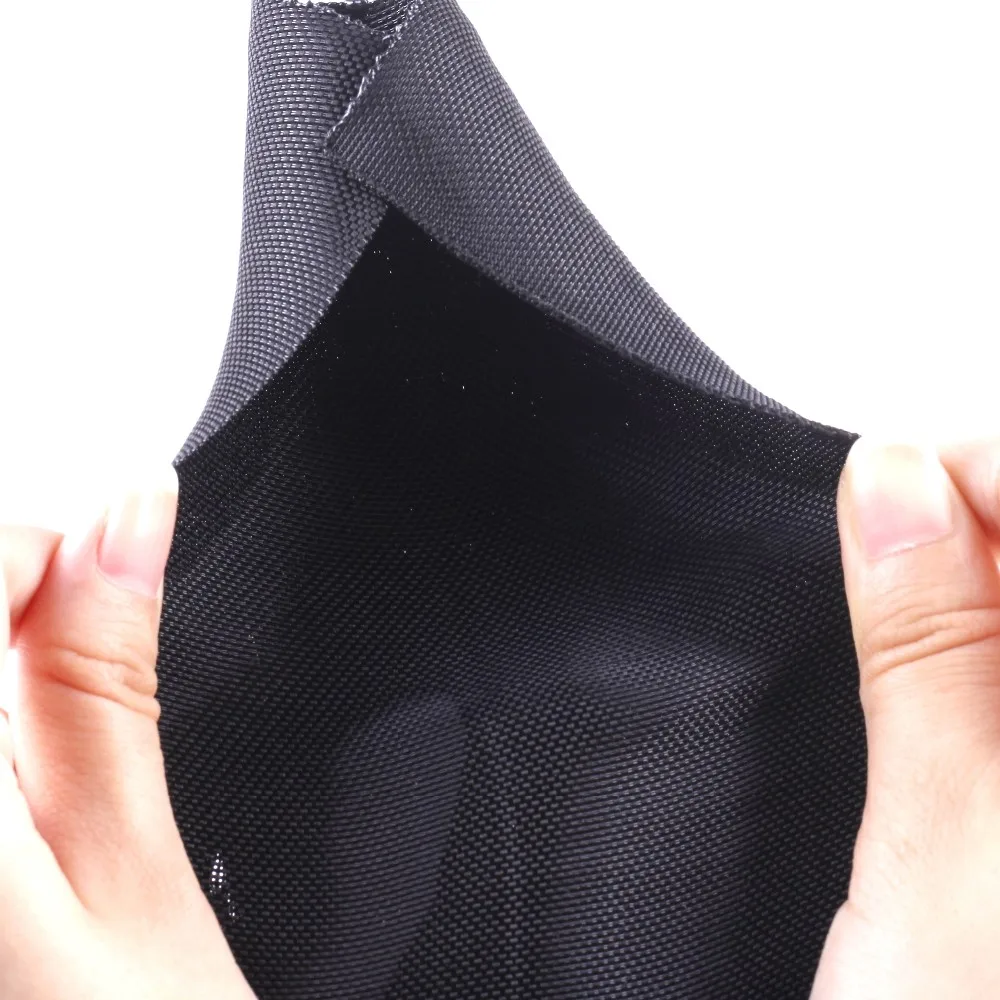

PP Self-Wrapping Braided Sleeving

◆Easy, cost and labor effective installation

◆25% edge overlap
◆Cut and abrasion resistant
◆More flexible than split convoluted or spiral wrap.
◆Retains shape and rigidity throughout operating temperature range -50C to 150C.
◆Melting temperature is 250C.
◆Great on home theater wires, computers or gaming system components, even on small equipment hosing.
◆Ideal for providing reliable cable protection in electronic, power, communications, manufacturing, and other applications.

\t

Part No
\t
Size
\t
Expanded Range
\t
Standard Packing
\t
Inch
\t
MM
\t
 Min.(I)
\t
 Max.(O)
\t
m/Roll
\t
LS-SCW-3.2
\t
1/8''
\t
3.2mm
\t
3.2mm
\t
5.5mm
\t
500m/Roll
\t
LS-SCW-4.8
\t
3/16''
\t
4.8mm
\t
4.8mm
\t
7.5mm
\t
500m/Roll
\t
LS-SCW-6.4
\t
1/4''
\t
6.4mm
\t
6.4mm
\t
8.5mm
\t
400m/Roll
\t
LS-SCW-8.0
\t
5/16''
\t
8.0mm
\t
8.0mm
\t
10.0mm
\t
200m/Roll
\t
LS-SCW-9.5
\t
3/8''
\t
9.5mm
\t
9.5mm
\t
11.5mm
\t
200m/Roll
\t
LS-SCW-12.7
\t
1/2''
\t
12.7mm
\t
12.7mm
\t
15.0mm
\t
200m/Roll
\t
LS-SCW-15.0
\t
19/32''
\t
15.0mm
\t
15.0mm
\t
17.5mm
\t
150m/Roll
\t
LS-SCW-19.0
\t
3/4''
\t
19.0mm
\t
19.0mm
\t
21.0mm
\t
100m/Roll
\t
LS-SCW-25.4
\t
1''
\t
25.4mm
\t
25.4mm
\t
27.5mm
\t
50m/Roll
\t
LS-SCW-31.5
\t
1 1/4''
\t
31.5mm
\t
31.5mm
\t
35.0mm
\t
30m/Roll
\t
LS-SCW-38.1
\t
1 1/2''
\t
38.1mm
\t
38.1mm
\t
41.0mm
\t
25m/Roll
\t
LS-SCW-50.8
\t
2''
\t
50.8mm
\t
50.8mm
\t
54.0mm
\t
20m/Roll
Detailed Images
Certifications
Application



      PP Self-Wrapping Braided Sleeving is widely used in the field of protecting cables,wiring harnesses and tubes.Such as:automobile wire harnesses.eletronic devices,railway.


Exhibition
Our Company



Total Solution ProviderDongguan Liansi electronics Co. Ltd is specilized in manufacturing Braided expandable sleeves,connector series and Optical Fiber cables more than 7 years. Overall our products are compliant UL, ROHS, ISO9001:2008 systerm. low-smoking and Halogen free approvals.

From the design of new products to the re-engineering of existing products for quality improvement or cost reduction, our engineering team is capable of meeting our customers' requirements. Other advantages:Plastic injection, molding, automatic assembly equipment and automatic train lines.

Hold hundred sets of high-speed braid machines which can do colorful, multi-patterns ,multi-specs sleeve. (2MM-150MM) . Sample lead time:0.5-3 days


WorkShop

laboratory

Office

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.

Our Service

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
