3 Axis CNC Router Kit 3018 Engraver Control Injection Molding Material Milling CNC Machine

Share on (62220893446):


Price:$130.00 - $145.00

Quantity:


Product Overview

Description








Product Description


CNC 3018 DIY Engraving Machine
This CNC engraving machine is an excellent affordable self-learning engraving tool that allows you to try your DIY ideas at a low price and without the risk of damaging expensive equipment.
  • Premium Quality
  • Ease Of Use
  • Convenient Control
  • High Performance

Specifications

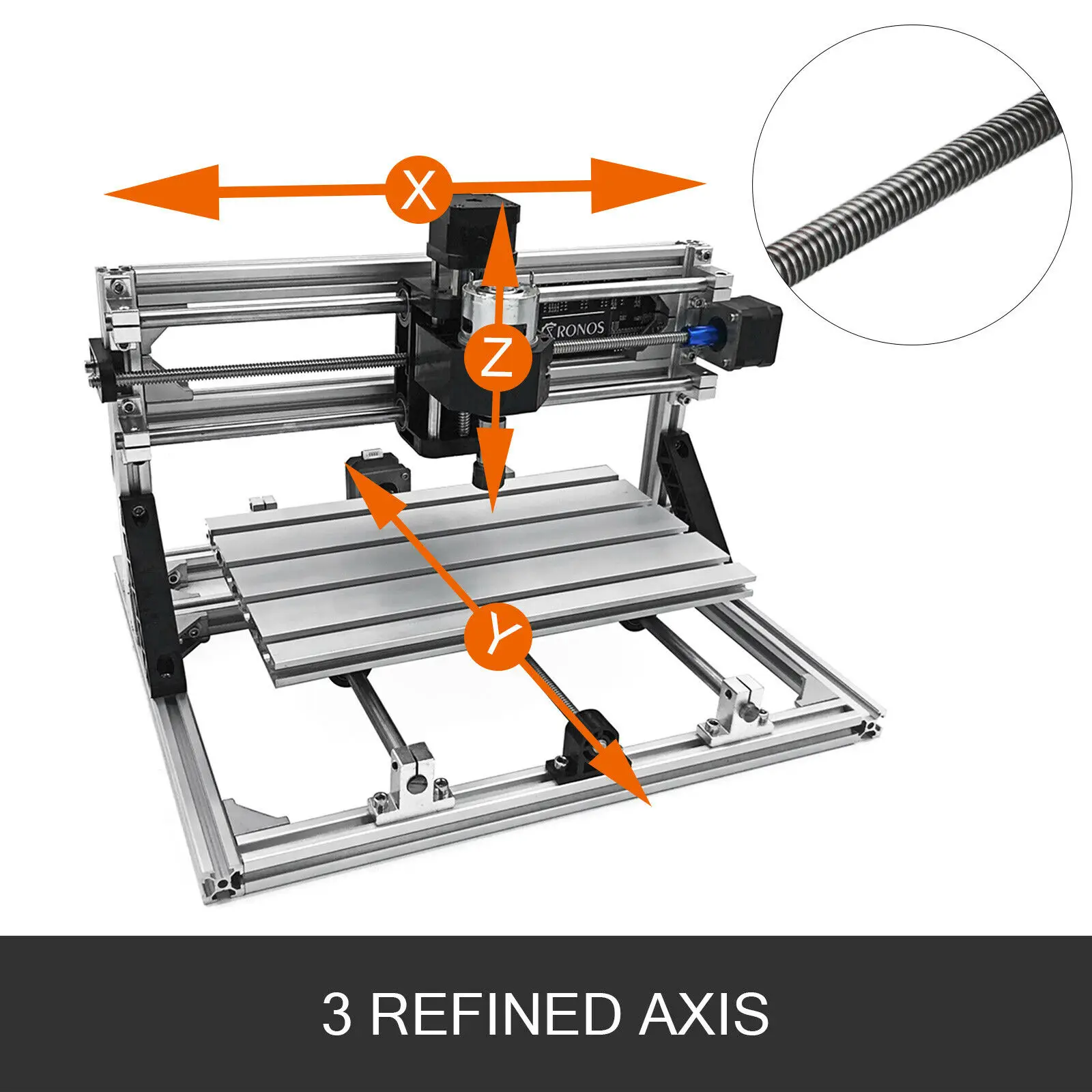

  • Effective Working Travel: 300(X)x180(Y)x45(Z)mm (11.8"*7.1"*1.8")

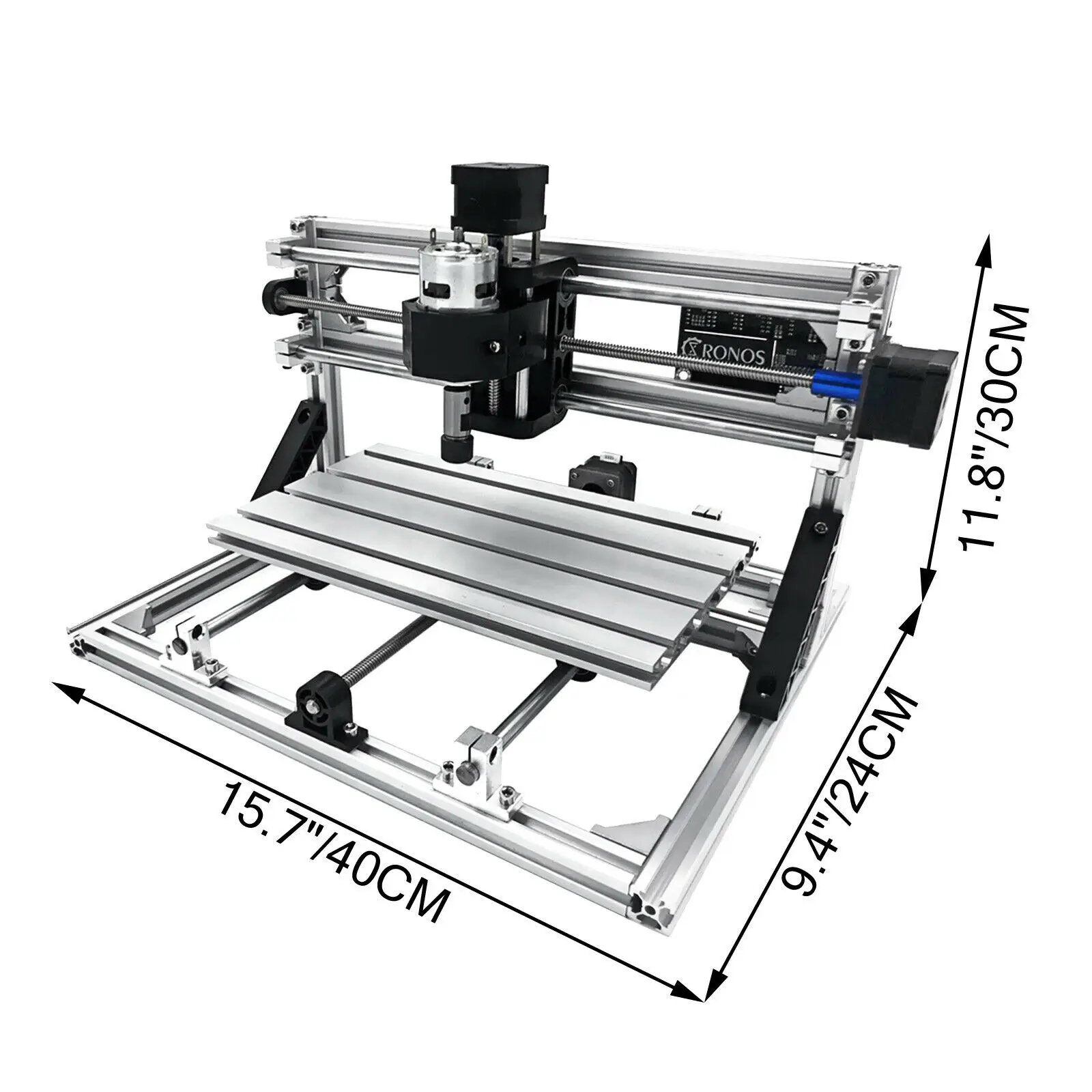

  • Shape Dimension: 400x300x240mm (15.7"*11.8"*9.4")
  • Materials: 2020 Aluminum Profile & Injection Molding Material
  • Driving Units: T8 Stainless Steel Screws
  • Spindle Speed: 10000 rpm/min
  • Input Power: DC 24V
  • PositionaI Accuracy: 0.08-0.1mm (0.003"-0.004")
  • Gross Weight: 17.1 lb (7.76 kg)



Key Features


Features & Details

  • [PREMIUM QUALITY]- Made of 2020 aluminum profiles and black injection molding material for Long-term use and high precision. The working travel of this machine is 300(X)x180(Y)x45(Z)mm.
  • [EASE OF USE]- According to the instructions, the machine is easy to assemble. Simply connect to computers via USB port, and controlled by GRBL. Supports windows XP SP3, win7, win8, win10,(32/64) and Linux system.

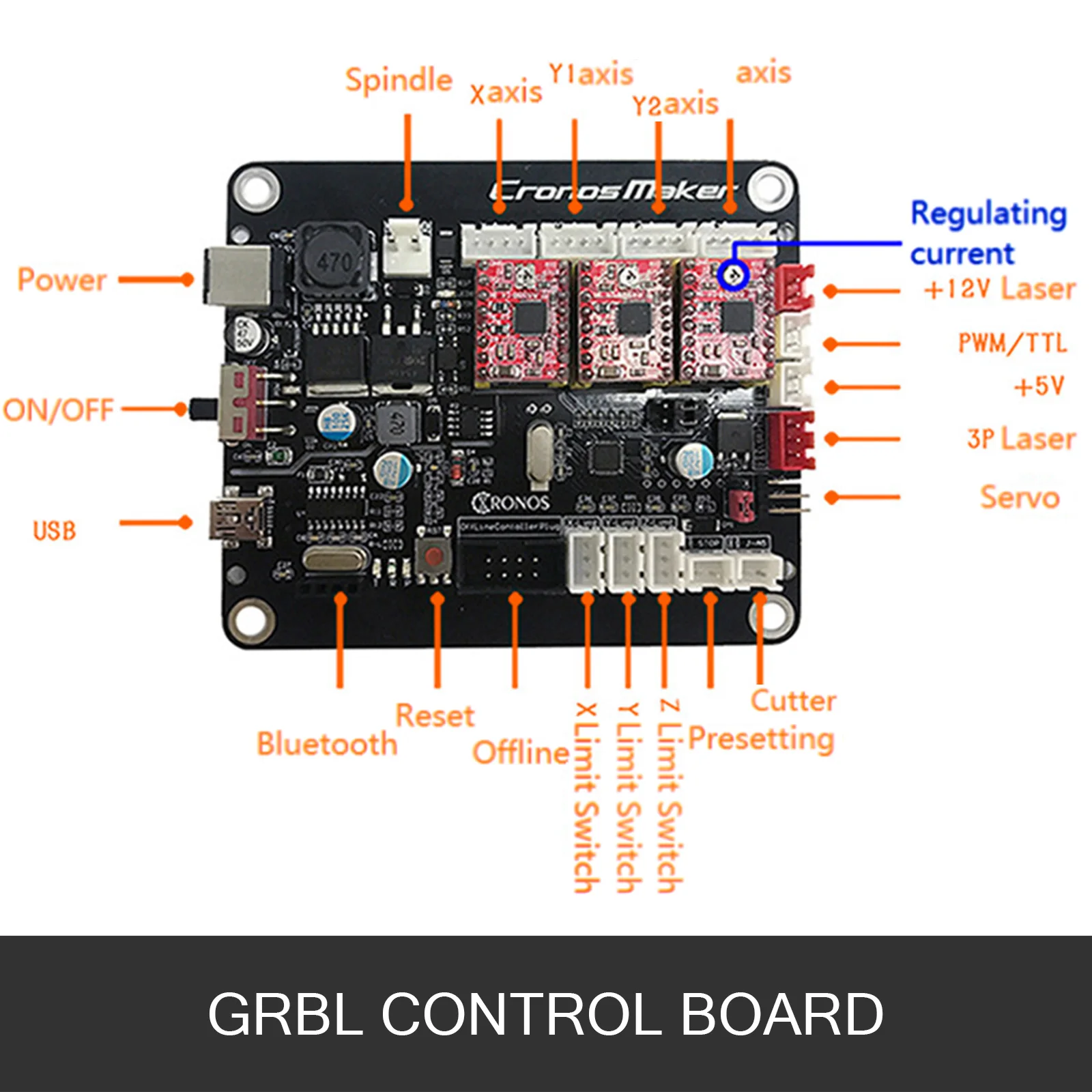

  • [CONVENIENT CONTROL]- Comes with an ingenious GRBL control board, featuring dual Y-axis, four-axis drive and full functionality.

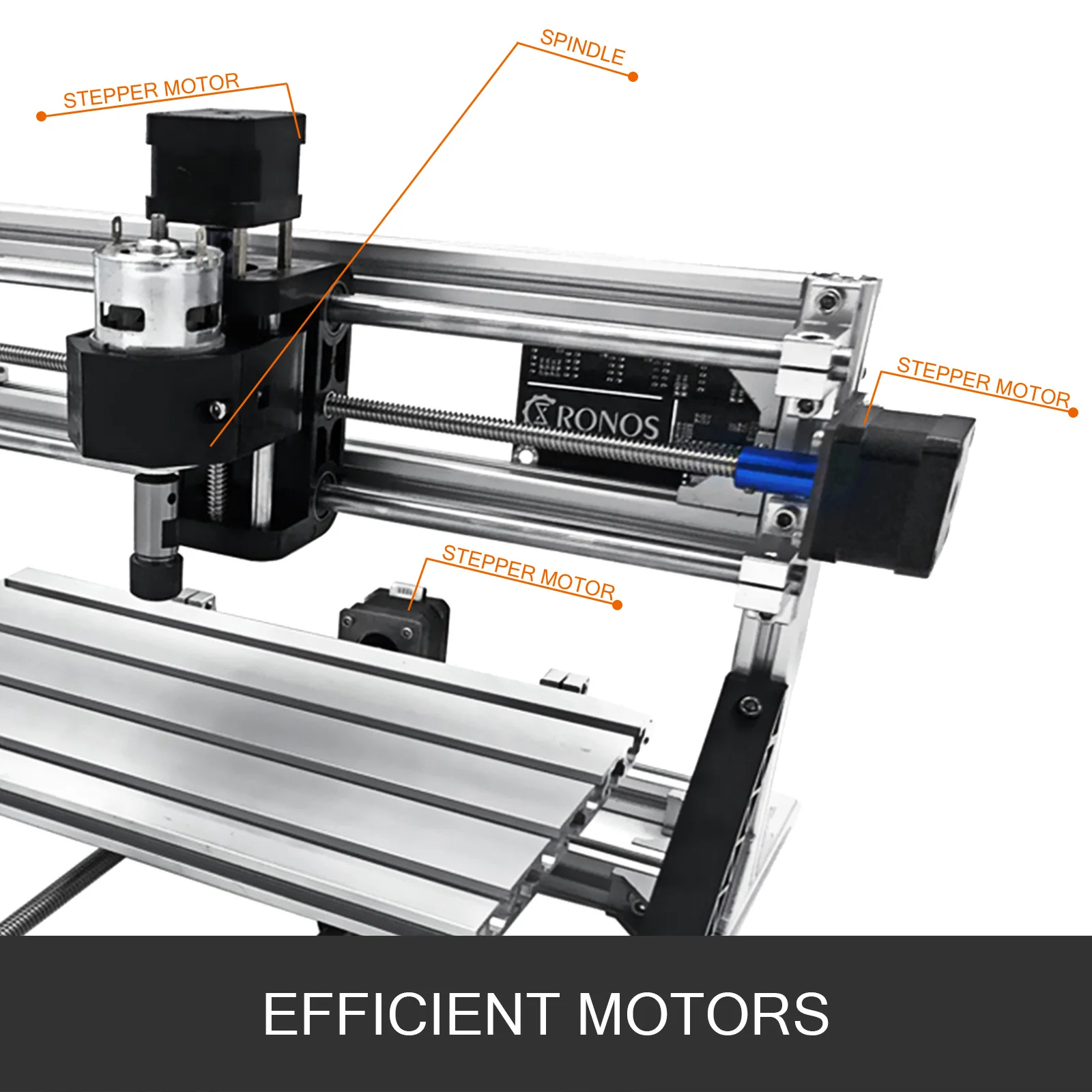

  • [HIGH PERFORMANCE]- Equipped with T8 screw rods driving units, three 42 stepper motors, and a 775 (12-36V)24V spindle motor with rotational speed of 10000r/min.

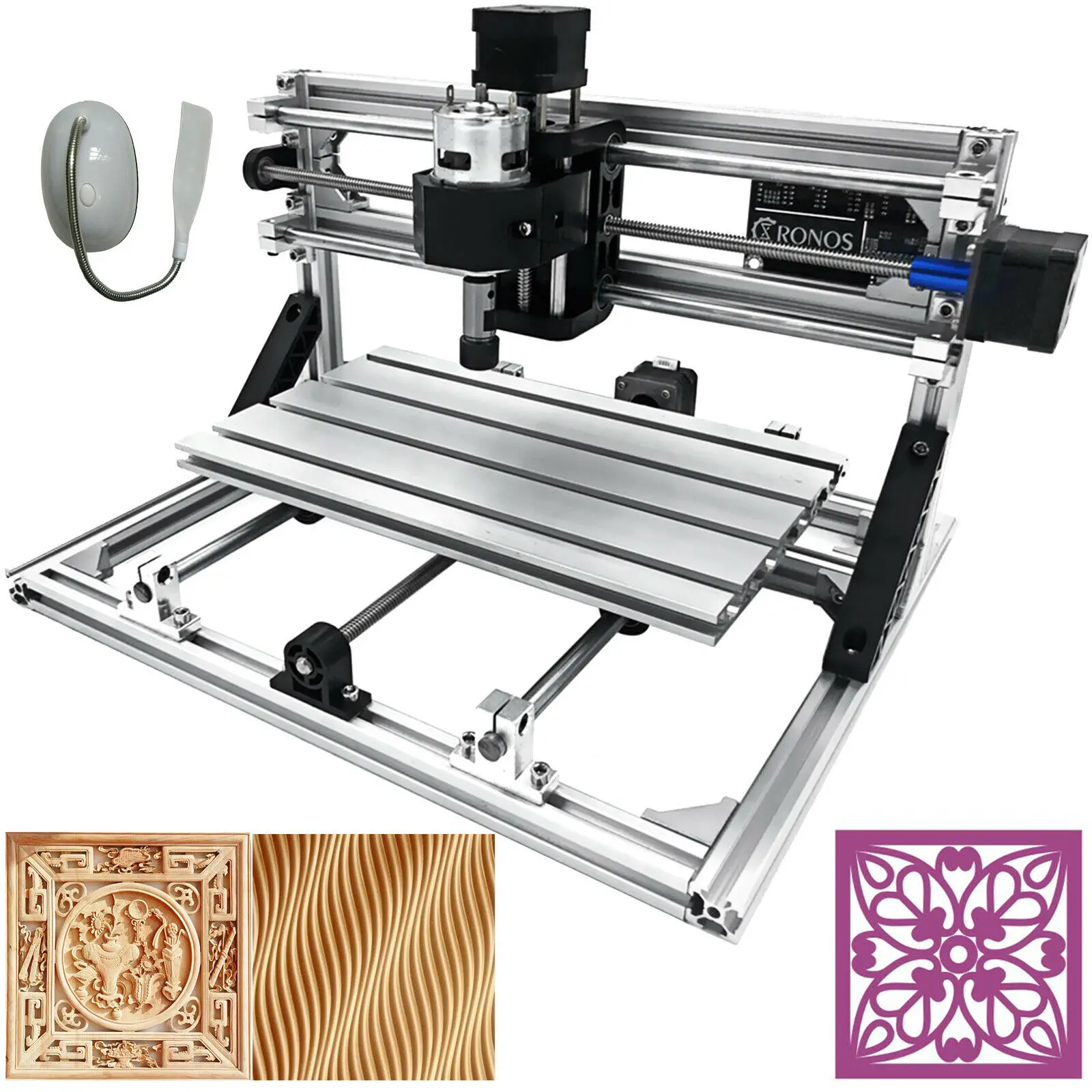

  • [VERSATILE USE]- Used to engrave all types of plastics, soft aluminum, acrylics, PVCs, PCBs, etc.

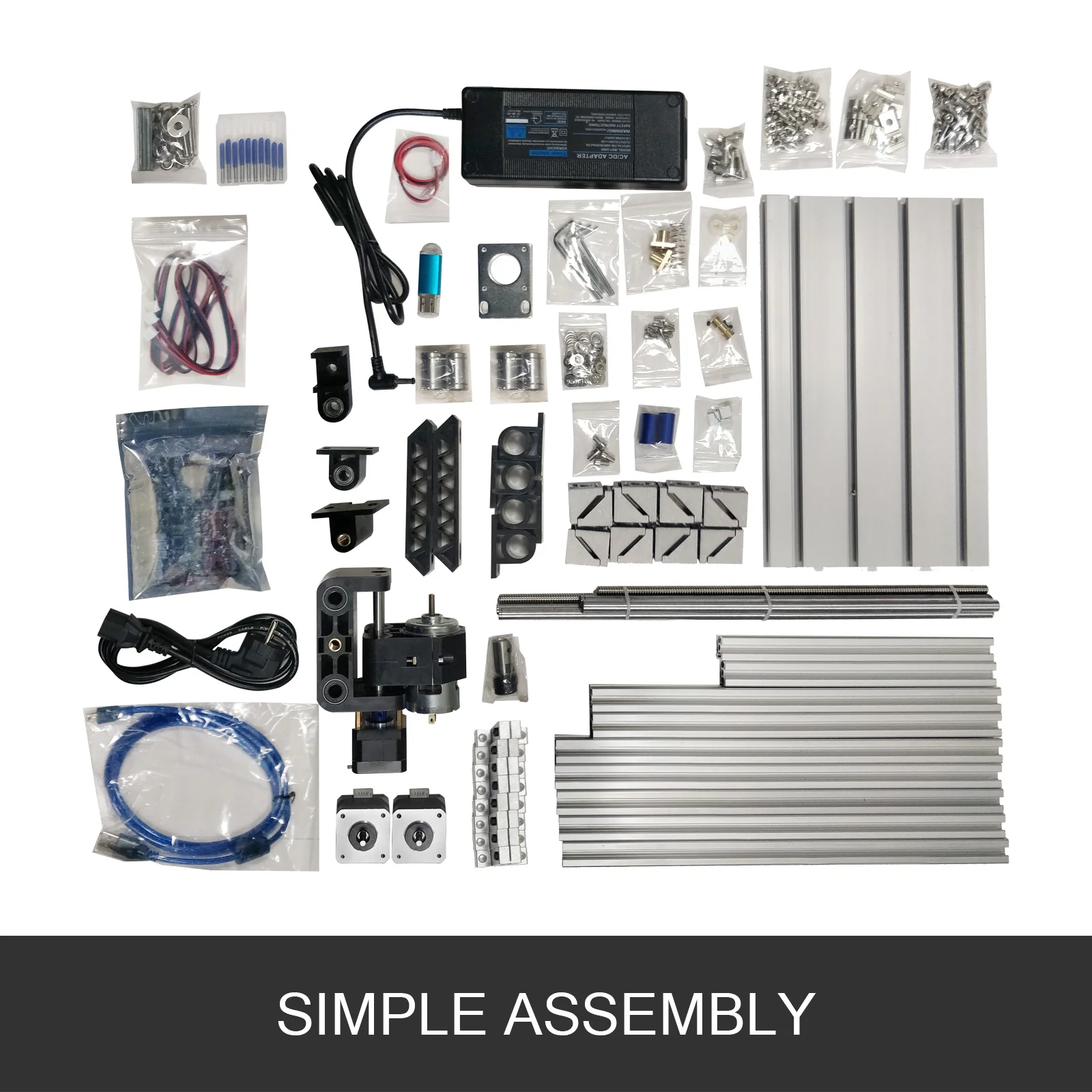

Package Content

  • 1 x CNC 3018 Router Kit
  • 1 x Spindle
Company Information
Business modleManufacture&Trading
Place of originShanghai,China(Mainland)
Delivery time5~10 days
Minimun order quantity1 set
PaymentL/C;T/T
Warranty2 years

rBVaEFe1clWAa5nSAAN6SYVYcTo364



2

packing and shipping



hot sell

  • 1 x Power Supply
  • 1 x Cable
  • 2 x Graver
  • 1 x Table Lamp
