Hot Dip Galvanized Highway Guardrail/ Traffic Crash Barrier
- Category: Traffic Barriers >>>
- Supplier: Wuhan Dachu Traffic Facilities Co. Ltd.
Share on (62220936432):
Product Overview
Description
Product Description

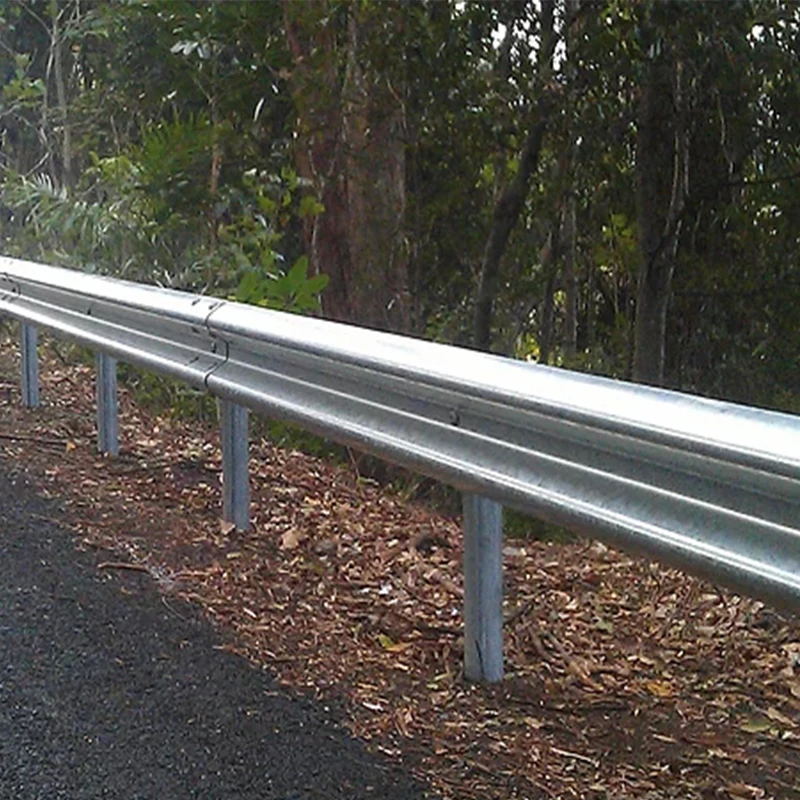

Straight Galvanized W-Beam Guardrails
W-beam guardrail is a kind of road crash barrier used for securing highway safety by preventing errant vehicles from sliding out of the roads and impacting the roadside buildings or other objects. So it is most commonly fixed on the side of the highways, dock areas, aisles, especially on curves and slopes for protection against run-off-road collisions.
Our W-beam guardrail product is formed in accordance with the latest highway safety barrier technology for making sure its high durability and maximum strength. It is made of high quality steel, which reduces the impact force caused by mobile equipment to the maximum extent.
Our W-beam guardrail product is formed in accordance with the latest highway safety barrier technology for making sure its high durability and maximum strength. It is made of high quality steel, which reduces the impact force caused by mobile equipment to the maximum extent.

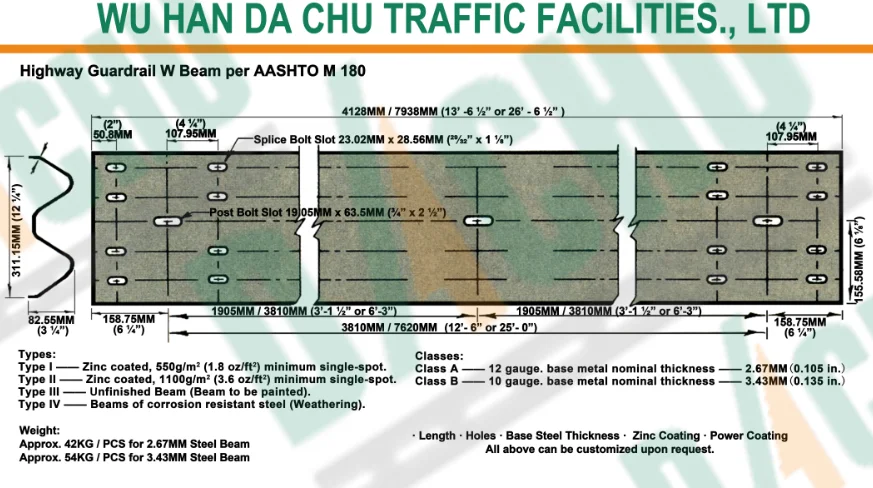

Drawing
Name | W Beam Guardrail Per AASHTO M180 |
Size | Effective Length of Beam Section 12.5 ft or 25.0 ft Can be Customized |
Steel Thickness | Class A = 12 gauge (.105NOM.) Class B = 10 gauge (.135NOM.) Can be customized. |
Surface Treatment | Hot Dip Galvanized as per ASTM A653 |
Zinc Coating Thickness | Type 1 = Zinc coated 550 g/sq. meter minimum single spot Type 2 = Zinc coated 1100 g/sq. meter minimum single spot Type 3 =Uncoated Steel Type 4 = Weathering Steel Can be customized. |
Free Sample | Available |
Production Time: | Approximately 7~15 business days. |
Production Capacity | 60000 Tons/Month |
Warranty | 2 Years |

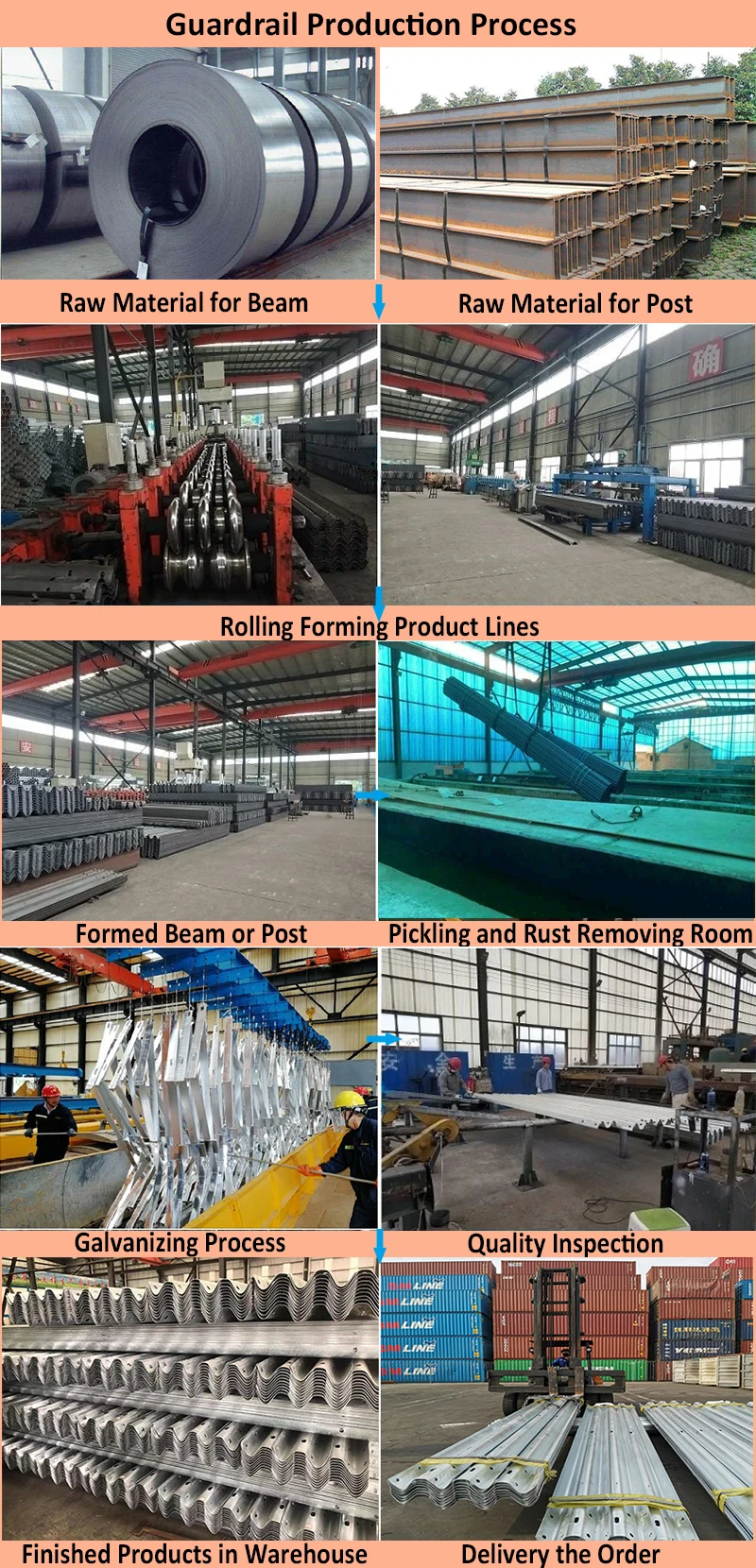

Production Process
Certifications
Company Profile
Da Chu Group is an industry leader and global supplier of commercial highway products. Our core product lines include guardrail, end terminals, steel barriers, sign supports, and delineators.
We offers a broad range of products tested to under established federal crash test standards. Our products are sold throughout the U.S., Canada, and Mexico and to more than 100 international markets.
Da Chu Group is based in Wu Han City, with multiple plants in the Hu Bei and He Bei Provinces, Da Chu Group has grown and evolved to become China's leader in the design and fabrication of specialty guardrail products.
We offers a broad range of products tested to under established federal crash test standards. Our products are sold throughout the U.S., Canada, and Mexico and to more than 100 international markets.
Da Chu Group is based in Wu Han City, with multiple plants in the Hu Bei and He Bei Provinces, Da Chu Group has grown and evolved to become China's leader in the design and fabrication of specialty guardrail products.
Our Advantages
More than Just Highway Protection
Da Chu Group is a trusted manufacturer of Highway Guardrail components for parking lots and warehouses.
We carry an extensive inventory of standard Class A 12 Gauge Highway Guardrail components such as W-Beams, Galvanized Steel Post I-Beams (with and without base plates), Curly Ends, Flared Ends and Hardware.
With years of experience in guiderail/guardrail and roadside safety, we have the "know how" to provide you with quality products meeting Federal and State DOT Specifications.
Customized are available. We also can provide multiple heights and lengths according to your requirement. If you have the specs, just send it to us. If you do not have the specification drawing, just tell us the parameters, we will make a specs drawing for you.
.
Da Chu Group is a trusted manufacturer of Highway Guardrail components for parking lots and warehouses.
We carry an extensive inventory of standard Class A 12 Gauge Highway Guardrail components such as W-Beams, Galvanized Steel Post I-Beams (with and without base plates), Curly Ends, Flared Ends and Hardware.
With years of experience in guiderail/guardrail and roadside safety, we have the "know how" to provide you with quality products meeting Federal and State DOT Specifications.
Customized are available. We also can provide multiple heights and lengths according to your requirement. If you have the specs, just send it to us. If you do not have the specification drawing, just tell us the parameters, we will make a specs drawing for you.
.
