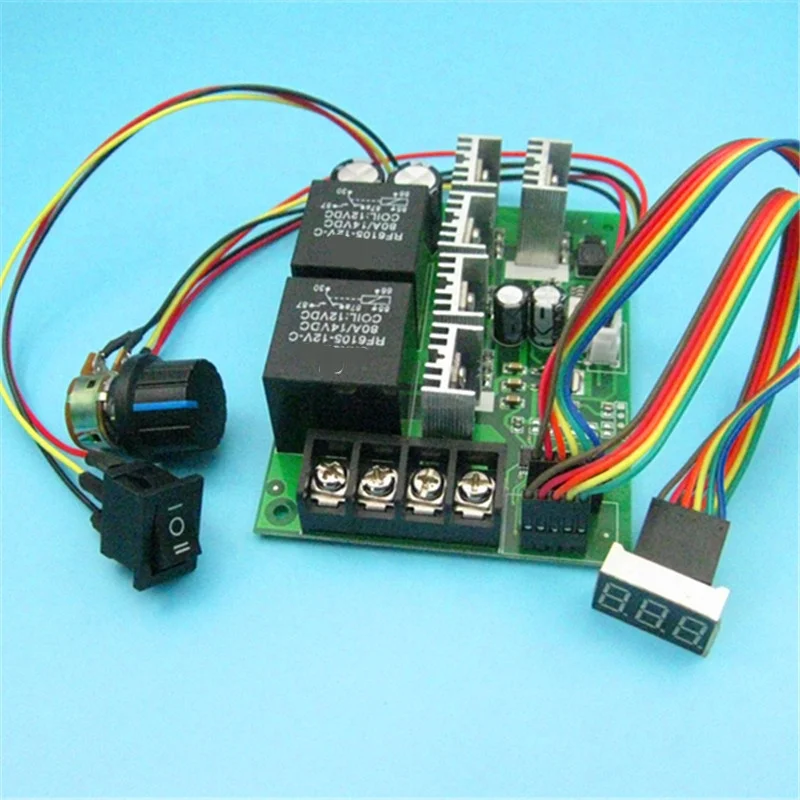

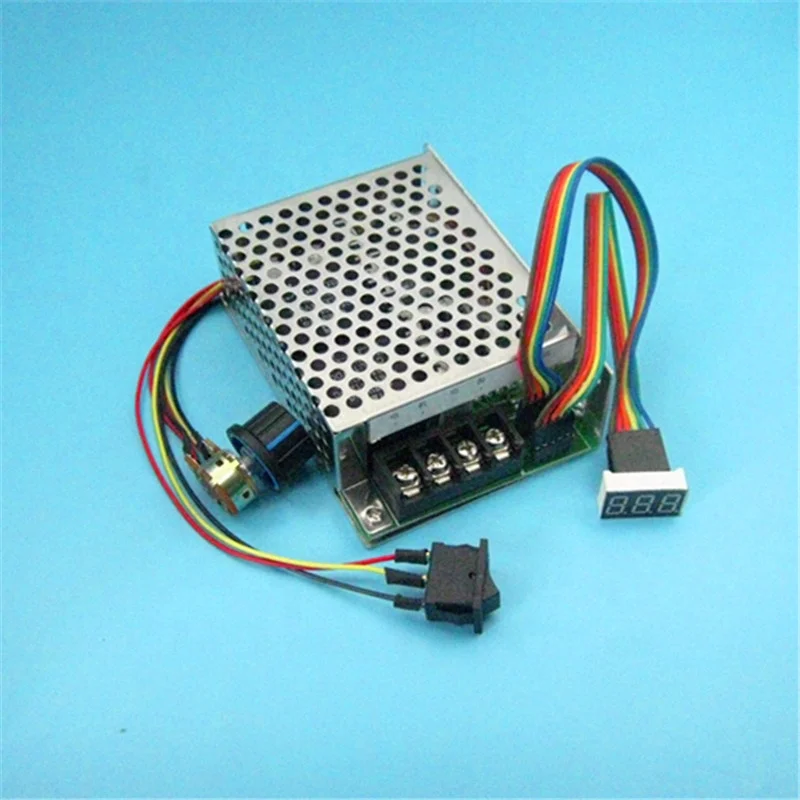

DC motor governor with digital display scale 40A 12V24V36







With positive and negative turn switch, potentiometer knob with switch, can use PLC to control positive and negative turn. Positive and negative switches can be replaced by inching switches.   Technical indicators: Input voltage: dc10-55v (equal to the rated voltage of the motor) Output voltage: linear under load Maximum current: 60A Continuous current: 40A (use to dissipate heat or reduce current for a long time) Type of speed regulation: current regulation Speed regulation mode: potentiometer (linear) Support motor: dc brush motor Forward and reverse: support Speed range: 0 -- 100% Control frequency: 15KHZ Wiring type: terminal Knob specification: 100K (with switch) Wiring type: fence terminal Net weight: 249g Motherboard size: 100MM*76MM*28MM Housing size: 110*78*38MM   Note:The digital display is the percentage of full speed 0-100 non-motor actual speed The input voltage must be plus or minus The input voltage shall be equal to the rated voltage of the motor within 10-55v dc.   Make sure the positive and negative connection is correct before power, and the wiring should not touch the heat sink, which may burn the circuit board.Note that this is not a power module, the motor must be connected to speed regulation, do not connect the motor multimeter output unchanged, can not be connected to ac.With brush motor.
