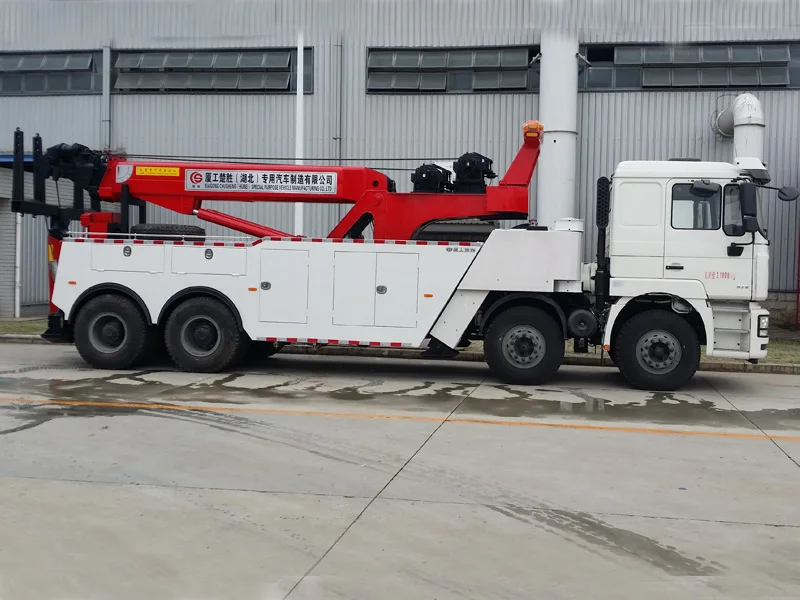

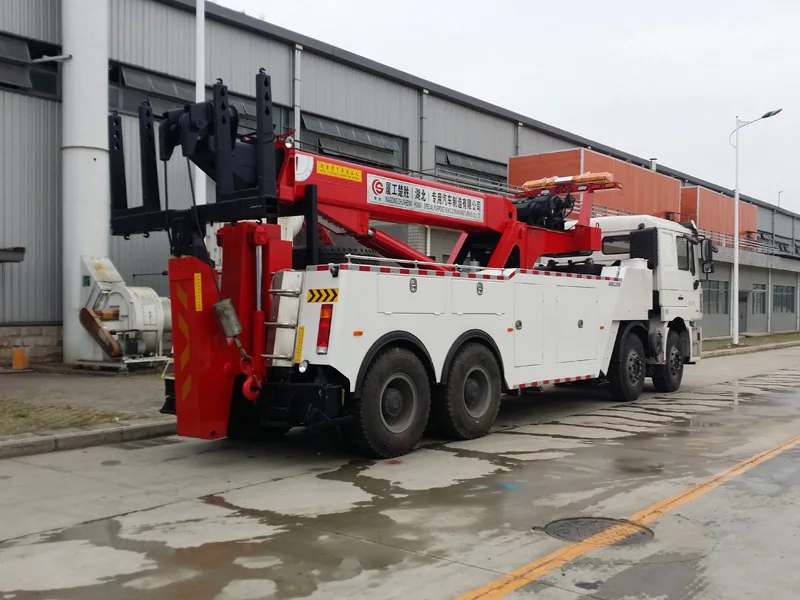

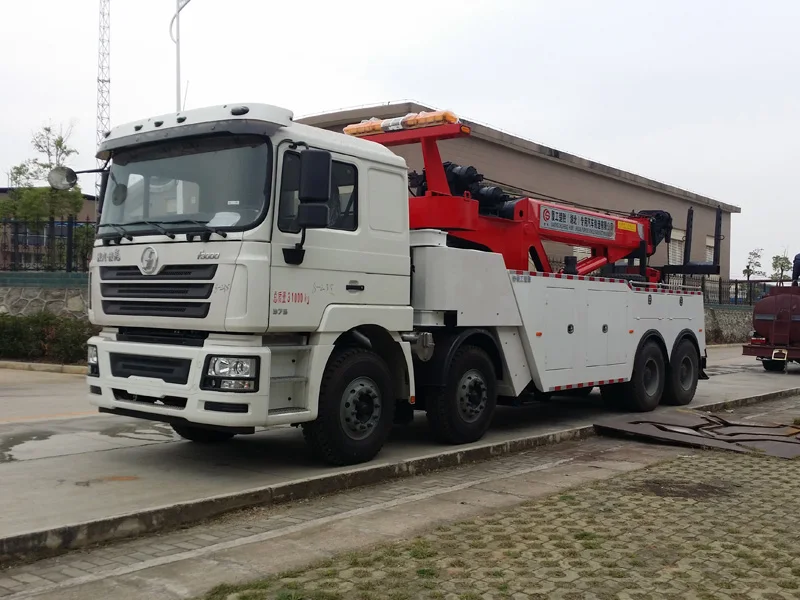

Shacman 8x4 12 wheel 25 tons recovery wrecker truck 30 tons Rotator Road Towing Truck wrecker for sale
- Category: Tow Truck & Wrecker >>>
- Supplier: Hubei Chusheng Vehicle Imp.&Exp. Co. Ltd.
Share on (62222282922):
Product Overview
Description
Product Description
Heavy Duty Shacman 8x4 360 degree rotation 30 ton road wrecker trucks 2*25 ton crane towing truck for sale
Features
Wrecker truck is also called wrecker towing truck, flatbed tow truck, tow truck hydraulic, tow trucks wreckers, rotator tow truck, towing wrecker truck, road wrecker truck, wrecker truck towing truck, road wrecker, rotator wrecker, recovery wrecker, wrecker tow truck, recovery truck, rotator recovery truck, wrecker with crane, etc.
1. Function: Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.
2. Application: Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Technical parameter for Shacman 8X4 360 degree Towing Wrecker Truck
CHASSIS | |||||
Cabin | Shacman standard cabin,Right hand drive,with air conditioner,allowed for 2~3 persons | ||||
No load(kg) | Curb Weight | 13070 | |||
Front axle | 7000*2 | ||||
Rear axle | 18000*2 | ||||
Full load | Max. Overall Weight | 31000 | |||
Overall Dimensions(mm) | Length | 11430 | |||
Width | 2500 | ||||
Height | 3270 | ||||
Wheel base(mm) | 1800+4600+1350 | ||||
Track(mm) | 2022/1830 | ||||
F/R Suspension(mm) | 1500/2200 | ||||
A/D Angle(°) | 16/18 | ||||
Driving Model | 8*4 | ||||
Tyre | 315/80R22.5 | ||||
Max. Speed(km/h) | 105 | ||||
Max. Grade-ability(%) | 30 | ||||
Min. Turning Diameter(m) | 22.6 | ||||
Min. Ground clearance(mm) | 310 | ||||
Engine | Model | WD615.47 | |||
Horsepower(HP) | 371 | ||||
Displacement(mL) | 9726 | ||||
Transmission | HW19710,10 forwards&2 reverses | ||||
WRECKER EQUIPMENT | |||||
Max. Towing Weight(kg) | 43000 | ||||
Lifting System | Max. Lifting Weight(kg) | 25000 | |||
Max. Lifting Weight under all extension(kg) | 8300 | ||||
Effective Length of Corbeling Arm(mm) | 3650 | ||||
Extend-retract of Corbeling Arm(mm) | 1750 | ||||
Slope Angle of Corbeling Arm(°) | 7 | ||||
Folding angle under no load(°) | -7~92 | ||||
Folding angle under load(°) | -7~16 | ||||
Max. Ground Distance(mm) | 900 | ||||
Landing Strength(KN) | 80*2 | ||||
Hydraulic Hose | Tianhe,Guangdong Province | ||||
Hydraulic Joint | Germany technology and exported Sealing rings | ||||
Hydraulic Lock | Jiangyin Mingcheng Hydraulic and Mechanical Co.,Ltd. | ||||
Swivel Joint | Yangzhou Zhongmei Pressure Parts Co.,Ltd. | ||||
Compartment plate | One-step Modeling by Germany 3P2A 1000T punching machine | ||||

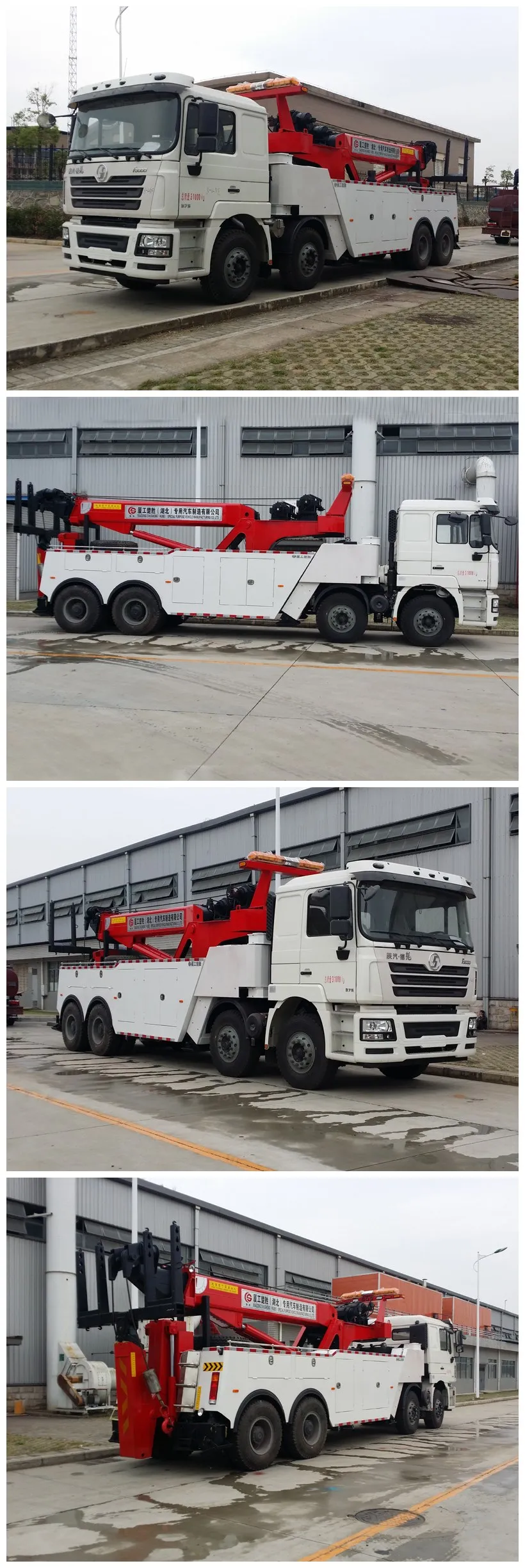

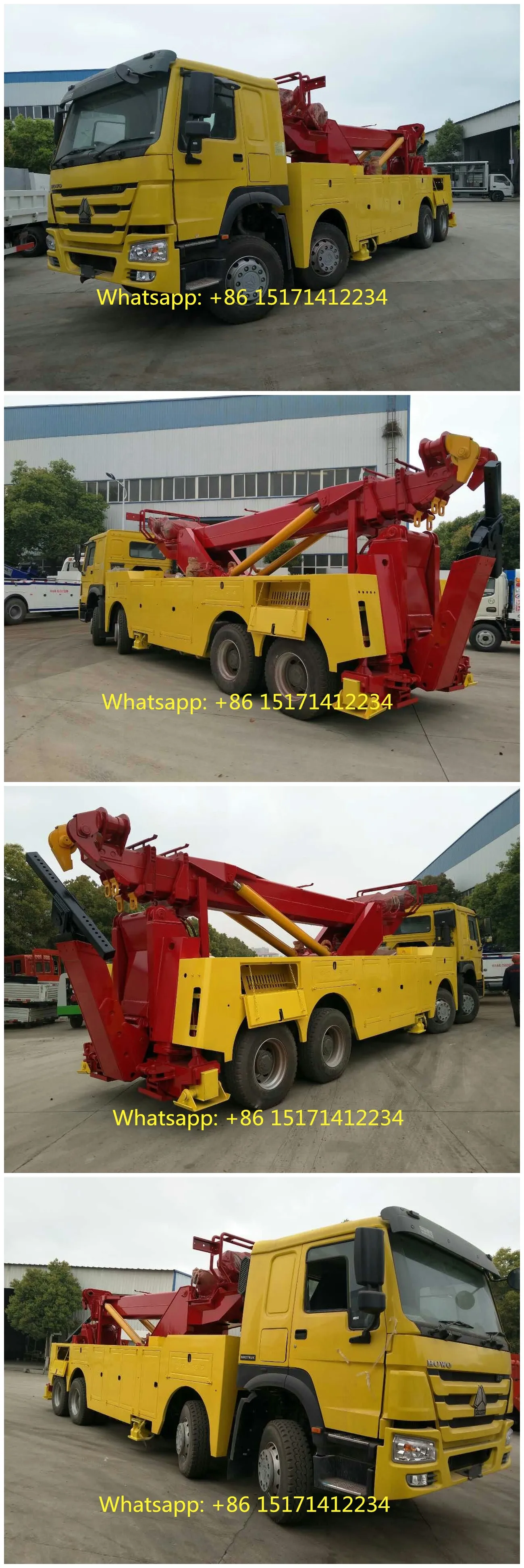

Detailed Images

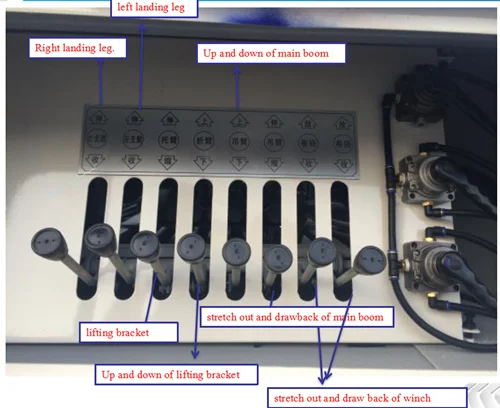

English operation control panel
rotator towing wrecker truck operation flow chart
Related Products

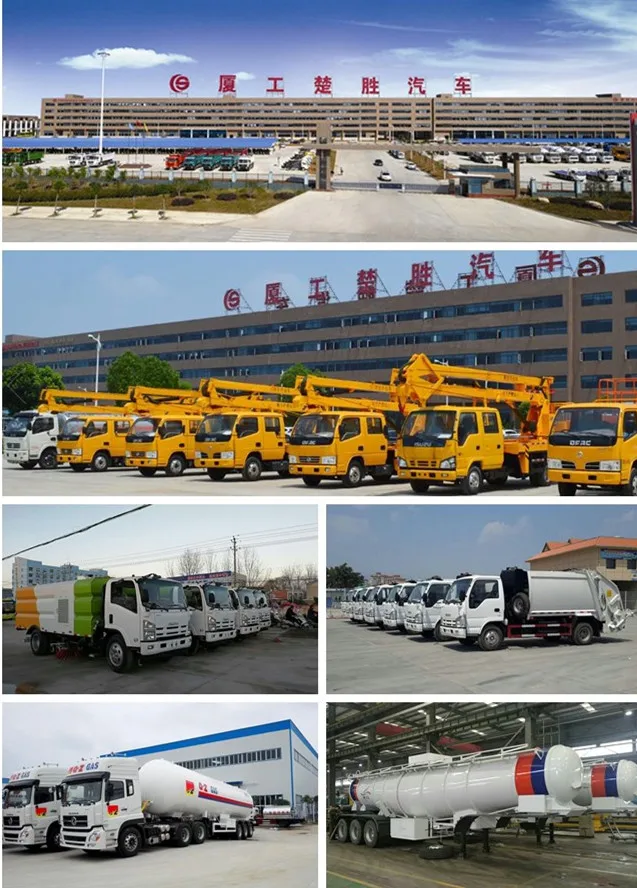

Company Information
