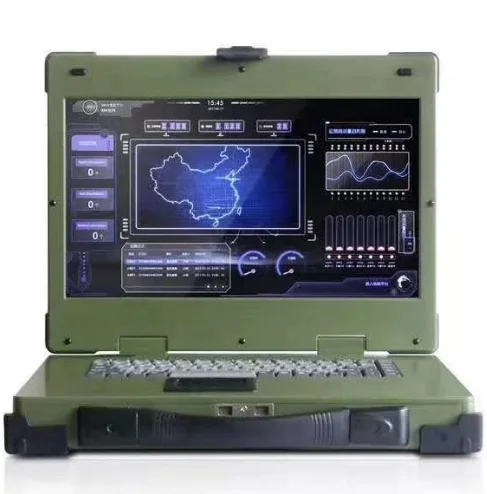

14.1 inch industrial Waterproof Customized Industrial computing workstation Portable Computer all in one pc Rugged Laptop
- Category: Industrial Computer & Accessories >>>
- Supplier: Shenzhen Pontron Technology Ltd.
Share on (62222553875):
Product Overview
Description
Product Description
Main feature:
« 14.1”Upward Portable Industrial Computer
« Aluminum-Magnesium Alloy Chassis
« 14.1 ”TFT LED, with 1280x800 resolution
« Integrated with 88keyskeyboard,Touchpad
« Built-in 7800mAh lithium battery
« Support 2.5”HDD,SSD driver
« W/ power supply battery management software

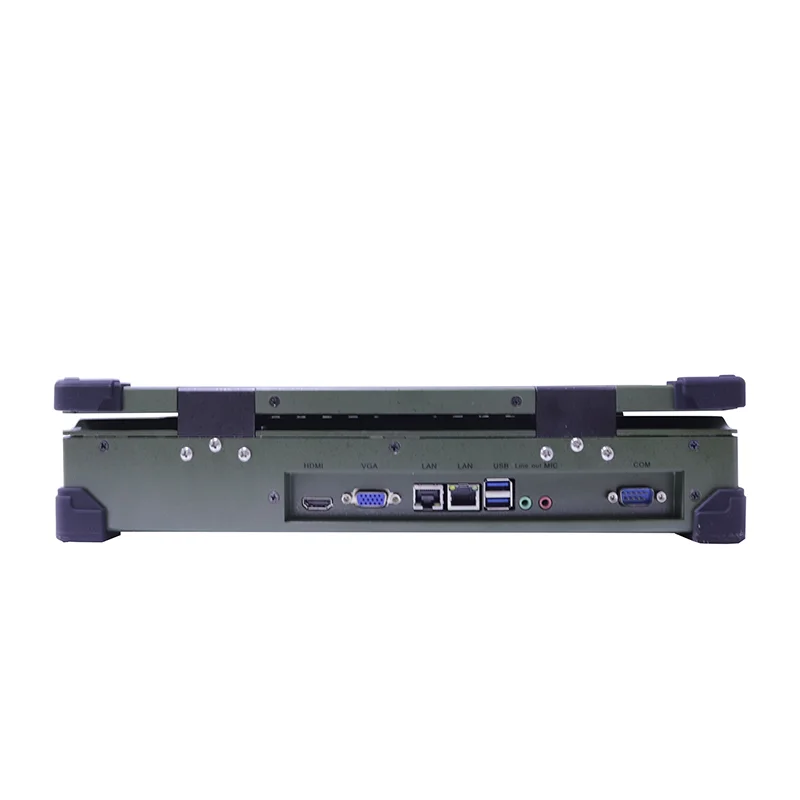

« W/ 1*MIC-IN, Line-out ,2*Lan ,2*USB, 1*VGA, 1*HDMI, 1* 3PIN Waterproof .
« W/ 1*PCI/PCIE expansion slot .
« Support 18V~23V DC
Introduction:
« PIP-N1410Cis a Upward industrial portable computer, which offers at most 1*expansion slots and integrates with high brightness LED,Aluminum-Magnesium Alloy chassis.
« It can adapt to any complicated environment and it also offers cost-effectiveness, permanent,multi-functional standard platform for portable computers.
Specifications:
Material | Industrial dual Al-alloy |
Motherboard | Supports MINI-ITX Motherboard Installation Space left(Optional) |
CPU | Intel I5-3337U 1.8Ghz ~2.7Ghz dual core 4 threads . |
Chipset | Intel® HM77 |
Display | 14.1″ TFT LED |
Resolution | 1366(W)x768 (H)(Optional) |
Memory | DDR3 1600MHz 4GB |
Storage | 2.5" HDD500 / 1T GB (optional) |
Speaker | 2*speaker, 2W(Optional) |
Expansion slot | MINI-PCIE |
Fan | 2* Fan |
IO
| 2 x LAN |
1 x VGA | |
1 x HDMI | |
2 x USB2.0 | |
1 x Audio | |
WIFI | Optional |
Hard/Disc driver | 1*2.5”HDD Driver |
Keyboard | Ultrathin 88keys |
Touch pad | Supported |
Touch | Supported (Optional) |
Battery | Internal Smart Lithium Polymer battery,7800mAH (Optional) |
In Front Control | 1 x Power button,1 x Lock button |
Operating System | WES7-WS7P,Win7 pro, Win 8, Linux, Win 10 etc |
Power Supply | DC18~23V Power input |
Dimension | 350mmx250mmx63mm |
Net Weight | 6Kg |
Gross Weight | 9Kg |
Operating temp | -10°C ~+50°C |
Storage temp | -40°C ~+80°C |
Humidity | 10~90% condensing 5~95% non- condensing |
Ordering information:
| PIP-N1410 | 14.1" Industrial Upward portable Computer, W/14.1” TFT LED/Keyboard/Touchpad/DC18V 90W |

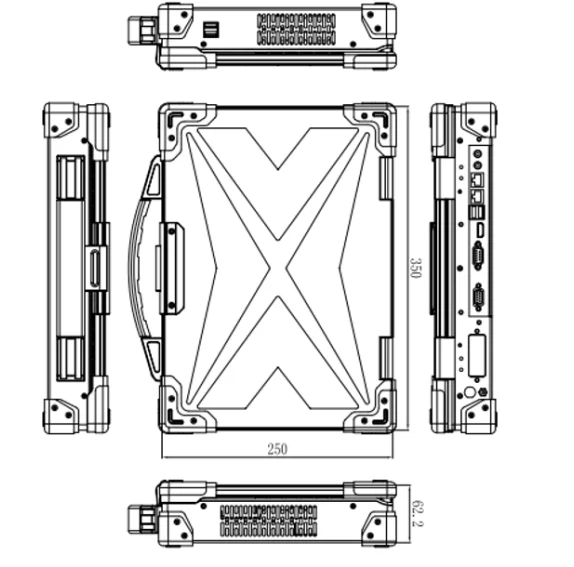

Drawing :
Packing list :
1 * CD
1 * Screws
1 * User Manual
Contact:
Andy (Sales)
Tel:+86 755 23109509
WhatsApp/Wechat:+86 17328749046
Skype:17328749046
