Chinese supplier SAE J2064 5/16 inch Type C Type E r134a r404 R12 freon high pressure flexible air condition rubber hose
- Category: Air Conditioning System >>>
- Supplier: Hengshui Yatai Especial Rubber Products Co. Ltd.
Share on (62222911979):
Product Overview
Description
Chinese supplier SAE J2064 5/16 inch Type C Type E r134a r404 R12 freon high pressure flexible air condition rubber hose
Used in the A/C system of vehicle and the other cooling system
HOSE MARKING:YATAI AIR CONDITION HOSE 5/8″DN16 W.P.35BAR 508PSI
| TYPE | HOSE SIZE I.D | R.O.D | O.D | MAX W.P | MIN B.P | MIN B.R | W.T | ||||
| DN | dash | inch | mm | mm | bar | psi | bar | psi | mm | Kg/m | |
| A/C 10 | 8 | -5 | 5/16" | 8.0 | 15.2 | 35 | 508 | 140 | 2032 | 55 | 0.15 |
| A/C 10 | 10 | -6 | 7/16" | 11.5 | 18.4 | 35 | 508 | 140 | 2032 | 70 | 0.19 |
| A/C 10 | 12 | -8 | 1/2" | 13.0 | 21.0 | 35 | 508 | 140 | 2032 | 75 | 0.27 |
| A/C 10 | 16 | -10 | 5/8" | 15.5 | 23.0 | 35 | 508 | 140 | 2032 | 85 | 0.30 |
| A/C 20 | 8 | -5 | 5/16" | 8.0 | 19.0 | 35 | 508 | 140 | 2032 | 70 | 0.20 |
| A/C 20 | 10 | -6 | 7/16" | 11.5 | 23.0 | 35 | 508 | 140 | 2032 | 85 | 0.31 |
| A/C 20 | 12 | -8 | 1/2" | 13.0 | 25.4 | 35 | 508 | 140 | 2032 | 95 | 0.45 |
| A/C 20 | 16 | -10 | 5/8" | 15.5 | 28.6 | 35 | 508 | 140 | 2032 | 105 | 0.51 |
CONTINUOUS SERVICE TEMPERATURE RANGE: -40°F / +482°F; -40°C / +250°C

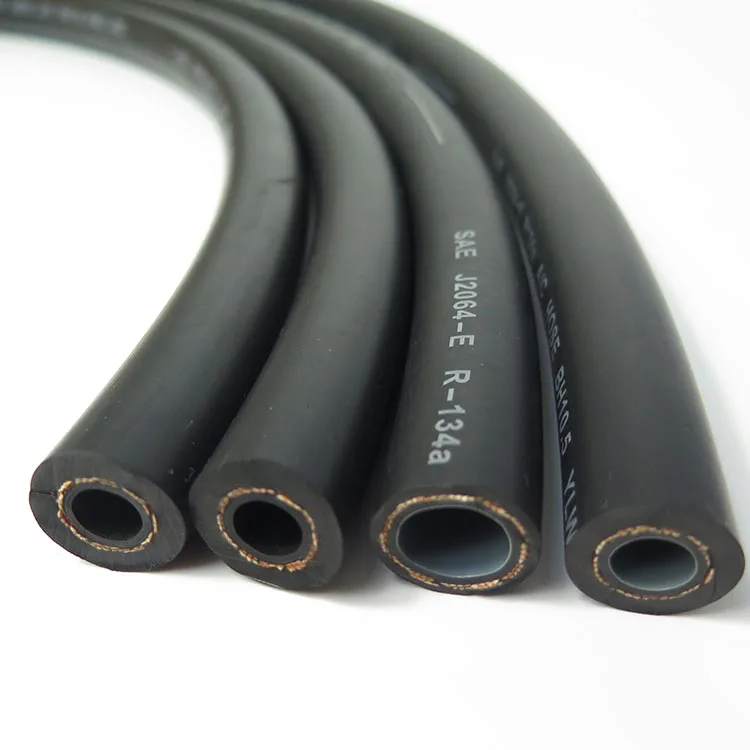

TUBE:EPDM/IIM
BARRIER:PA
MIDDLE LAYER:EPDM/CSM
REINFORCEMENT: PET/PVA
COVER: EPDM
