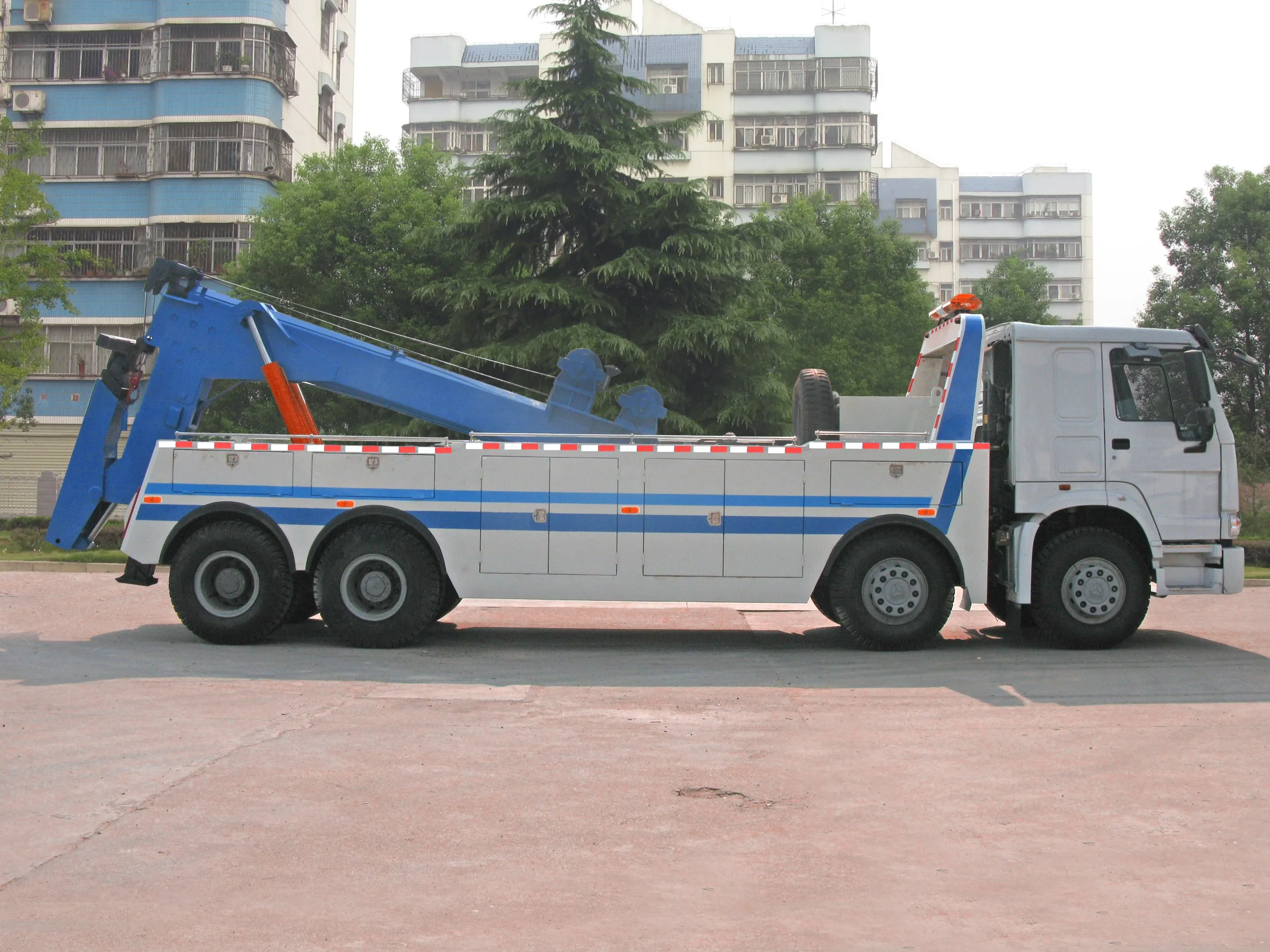

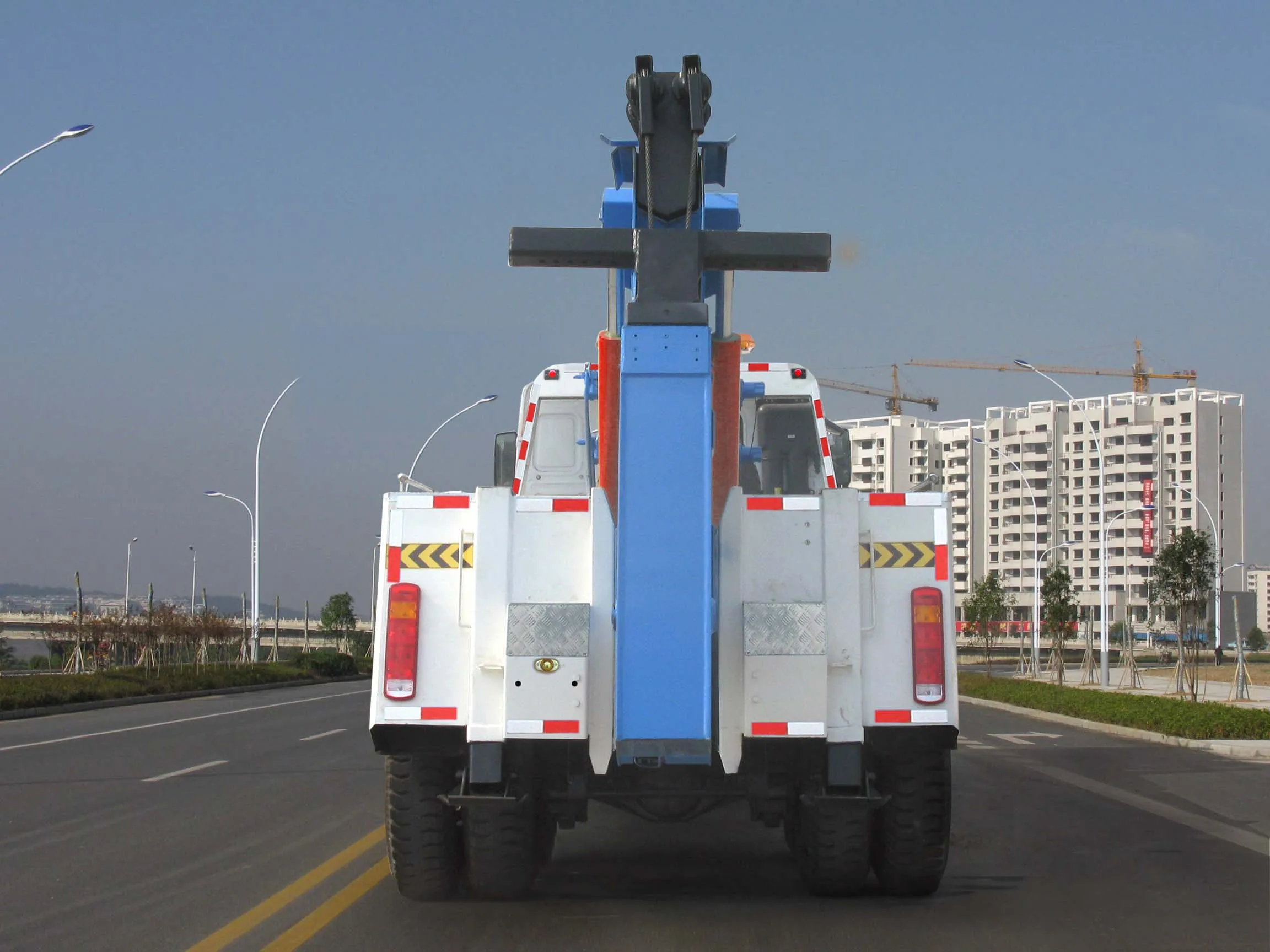

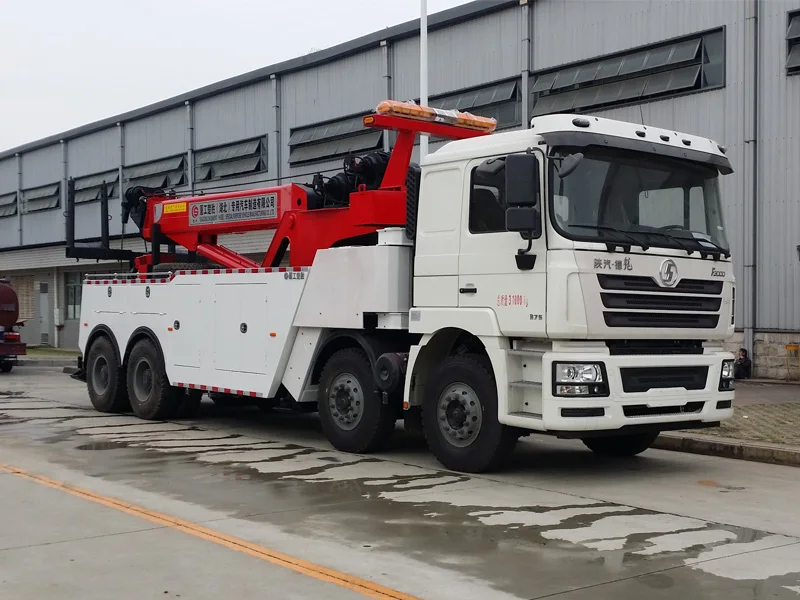

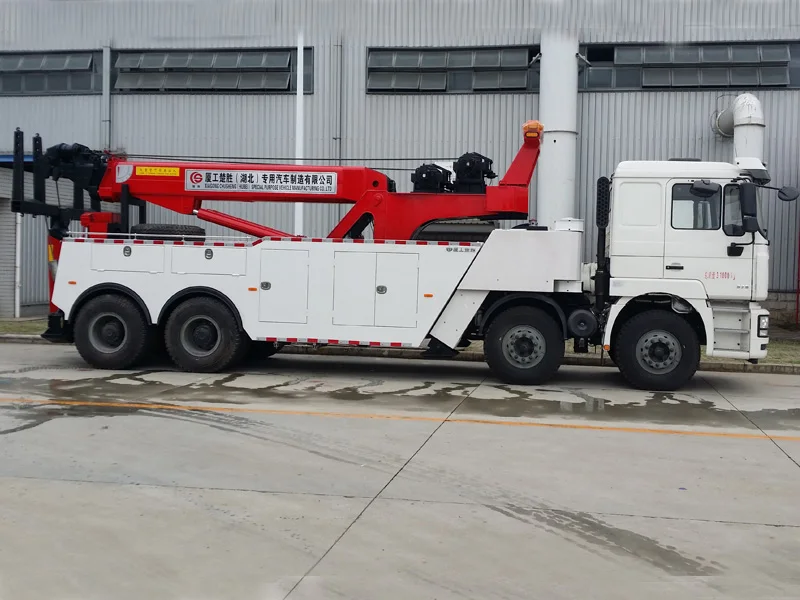

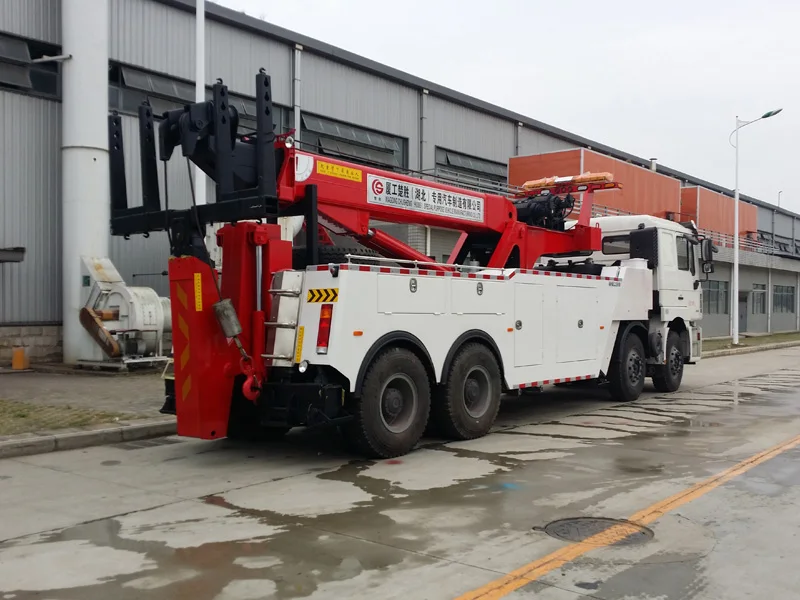

Heavy Duty Shacman 8x4 360 degree rotation 30 ton road wrecker trucks 2*25 ton crane towing truck for sale
Features
Wrecker truck is also called wrecker towing truck, flatbed tow truck, tow truck hydraulic, tow trucks wreckers, rotator tow truck, towing wrecker truck, road wrecker truck, wrecker truck towing truck, road wrecker, rotator wrecker, recovery wrecker, wrecker tow truck, recovery truck, rotator recovery truck, wrecker with crane, etc.
1. Function: Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.
2. Application: Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Technical parameter for Shacman 8X4 360 degree Towing Wrecker Truck
CHASSIS
Cabin
Shacman standard cabin,Right hand drive,with air conditioner,allowed for 2~3 persons
No load(kg)
Curb Weight
13070
Front axle
7000*2
Rear axle
18000*2
Full load
Max. Overall Weight
31000
Overall Dimensions(mm)
Length
11430
Width
2500
Height
3270
Wheel base(mm)
1800+4600+1350
Track(mm)
2022/1830
F/R Suspension(mm)
1500/2200
A/D Angle(°)
16/18
Driving Model
8*4
Tyre
315/80R22.5
Max. Speed(km/h)
105
Max. Grade-ability(%)
30
Min. Turning Diameter(m)
22.6
Min. Ground clearance(mm)
310
Engine
Model
WD615.47
Horsepower(HP)
371
Displacement(mL)
9726
Transmission
HW19710,10 forwards&2 reverses
WRECKER EQUIPMENT
Max. Towing Weight(kg)
43000
Lifting System
Max. Lifting Weight(kg)
25000
Max. Lifting Weight under all extension(kg)
8300
Effective Length of Corbeling Arm(mm)
3650
Extend-retract of Corbeling Arm(mm)
1750
Slope Angle of Corbeling Arm(°)
7
Folding angle under no load(°)
-7~92
Folding angle under load(°)
-7~16
Max. Ground Distance(mm)
900
Landing Strength(KN)
80*2
Hydraulic Hose
Tianhe,Guangdong Province
Hydraulic Joint
Germany technology and exported Sealing rings
Hydraulic Lock
Jiangyin Mingcheng Hydraulic and Mechanical Co.,Ltd.
Swivel Joint
Yangzhou Zhongmei Pressure Parts Co.,Ltd.
Compartment plate
One-step Modeling by Germany 3P2A 1000T punching machine
Detailed Images
English operation control panel
rotator towing wrecker truck operation flow chart
