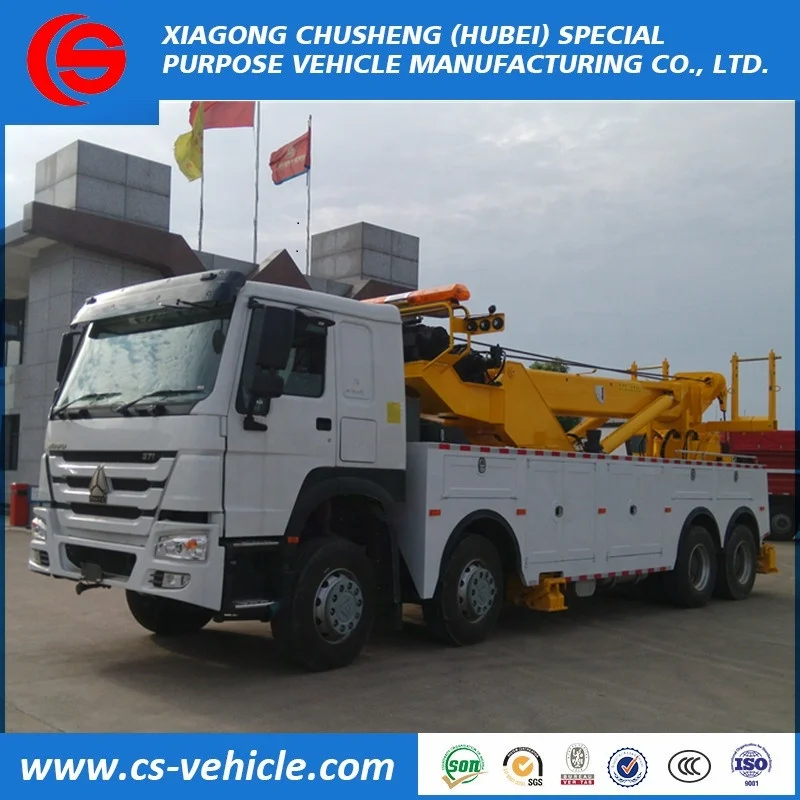

HOWO 360 degree rotation Crane 30tons Lifting 12 wheel heavy duty wrecker tow truck for sale
- Category: Tow Truck & Wrecker >>>
- Supplier: Hubei Chusheng Vehicle Imp.&Exp. Co. Ltd.
Share on (62223197280):
Product Overview
Description
HOWO 360 degree rotation Crane 30tons Lifting 12 wheel heavy duty wrecker tow truck for sale
Tow truck, whole name is road wrecker, also called as the wrecker truck, tow wrecker truck, tow truck wrecker, wrecker towing truck,etc.
Our tow truck consists of the chassis, hoisting equipment,truck tow hook, tow truck winch, tow truck wheel lift, hydraulic system, electric control system, truck body and the tool boxes.
The tow truck can hoist, lift, draw and be with other special functions, mainly used in highway and city road obstacle cleaning.
Our one tow two wrecker truck which called flatbed tow truck can also deal with 2 sets of accident vehicles, upper back down tow, and mainly used within 3 tons of cars.
Equipped with 3 ton to 5 ton lift equipment, bind belt, auxiliary wheel, J type of hook, winch, electronic lamp, 20M steel wire, megaphone,etc
As a professional tow truck manufacturer, the wrecker tow truck we produce is from 3 ton to 60 ton. The road wrecker truck we manufacture are flatbed tow truck, under lift wrecker truck, rotator tow truck, tow truck mounted crane,etc.
The parameter of HOWO 360 degree rotation Crane 30tons Lifting 12 wheel heavy duty wrecker tow truck for sale:
| Cabin | Driving type 8x4, Right hand drive | |||
| HOWO 76 cab, with air condition and one bed, 70°hydraul`ically tillable to the front as attached photo for ref. | ||||
| Vehicle Main Dimensions | Overall dimensions (L x W x H) mm | 11460×2500×3270 | ||
| Wheel base (mm) | 1800+4600+1350 | |||
| Wheel track (front/rear) (mm) | 2022/1830/1830 | |||
| Approach/Departure angle(°) | 16/18 | |||
| Weight in KGS | Tare Weight | 24870 | ||
| payload | 30000 | |||
| Front axles loading capacity | 2x9000 | |||
| Rear axles loading capacity | 2x16000 | |||
| Engine | Brand | Sinotruk | ||
| Model | WD615.47 | |||
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||
| Horse Power(HP) | 371 | |||
| Emission standard | Euro | |||
| Gearbox | HW19710, 10 Forwards gear & 2 reverse gear | |||
| Tire | 12R22.5 tubeless tire with one spare | |||
| Clutch | Reinforced diaphragm clutch, diameter 430 mm | |||
| Steering | ZF8098 | |||
| Oil tank | 400L | |||
| Special Device For Wrecker System | ||||
| Hoisting Organ | Rated under-pulling capacity | 40000 | ||
| Max Under-hoisting Capacity (kg) | 16000 | |||
| Max Under-hoist length (mm) | 1630 | |||
| Under hoisting work angle | -10~85° | |||
| Lifting Organ | Max lifting capacity(kg) | 30000 | ||
| Max lifting high(mm) | 12000 | |||
| Telescope length(mm) | 6000 | |||
| Winch | 15000kgs×2 | |||
| Steel rope | 50M,Φ22 | |||
| Crane luffing angle | 5°~ 60° | |||
| Crane rotation angle | 360°All Rotation | |||
| Landing Leg | Distance between front legs(mm) | 6100 | ||
| Distance between rear legs(mm) | 4000 | |||

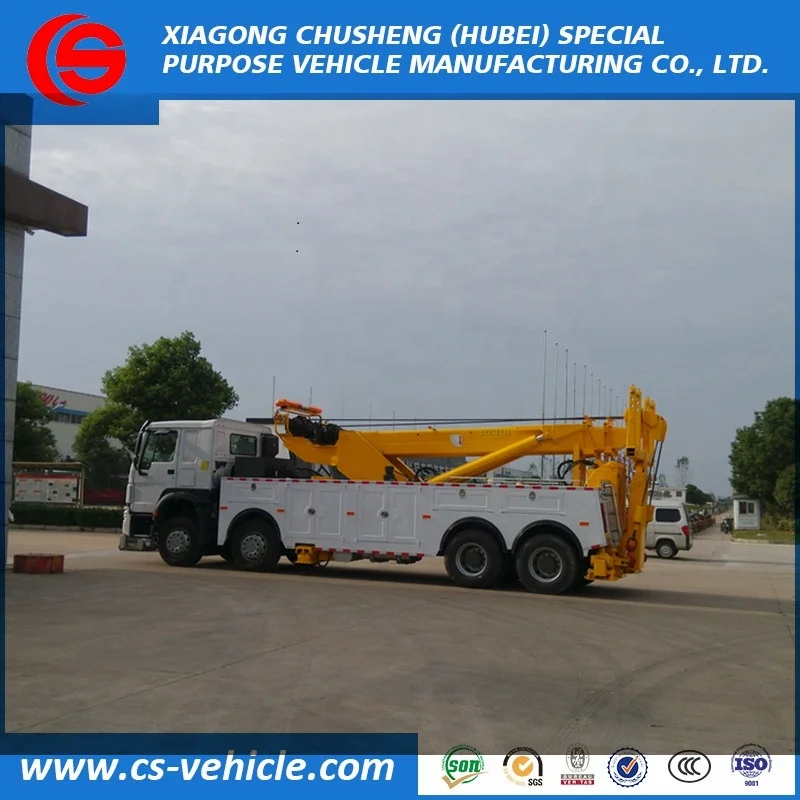

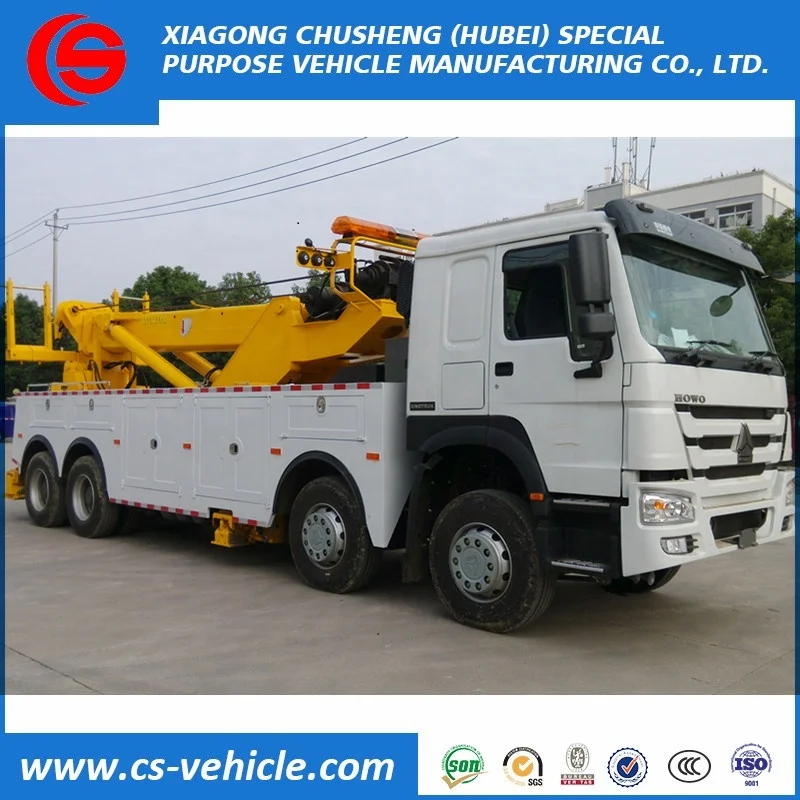

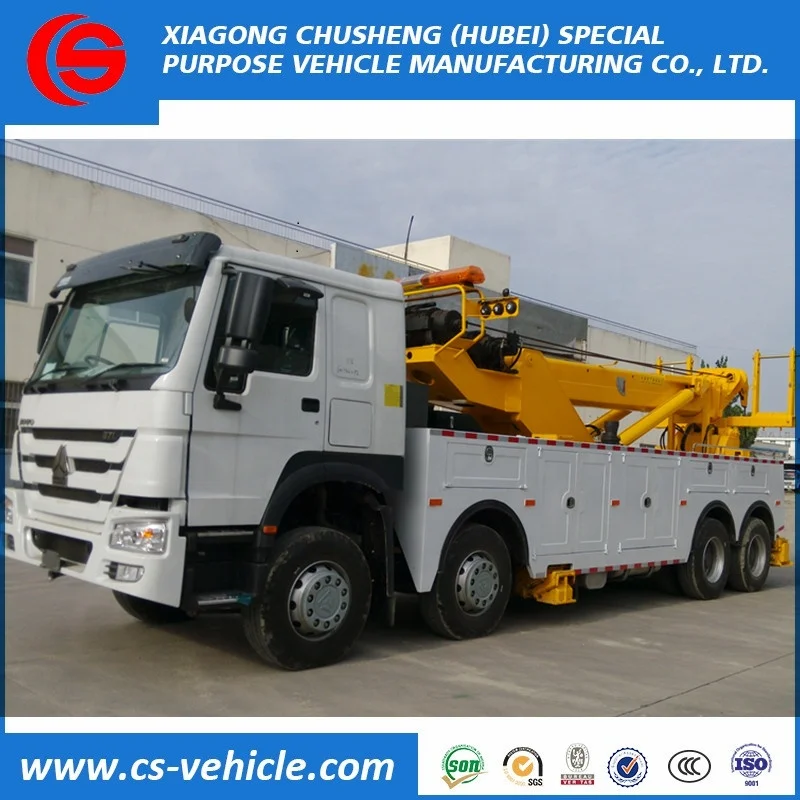

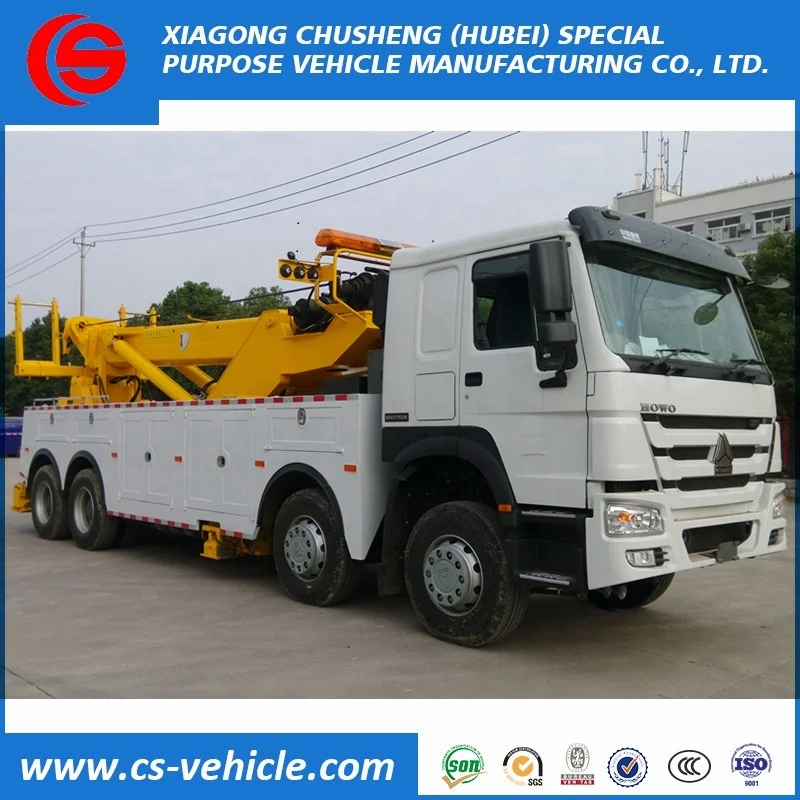

The pictures of HOWO 12 Wheeler 360 Degree Rotator Wrecker Towing Truck 30 Tons Wrecker Truck for Sale:
Company Information
1. Xiagong Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is a famous and the biggest manufacturer with very professional experience in special automobile field for more than 15 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.
2. Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.
3. We have successfully exported to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru, Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines, Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc.
We have strict quality control of raw material, professional management team and technical workers, advanced equipments, strict inspection before delivery, excellent packing and shipping team.
Packaging & Shipping
Our Services
1. One Year Warranty for three key parts (Engine, Axle, Transmission).
2. Other spare parts could be supplied by cost price.
3. Engineer abroad for customer service.
