57J1880EC-1000 Two phase Closed Loop Step Servo Motor
US $35.00-$38.00
Шаговый двигатель Nema 23 с высоким крутящим моментом, 57 мм, 3 нм для ЧПУ
- Category: Stepper Motor >>>
- Supplier: Changzhou Jinsanshi Mechatronics Co. Ltd.
Share on (62224342195):
Product Overview
Description
57HS nema 23 series stepper moter :
| Model No | Step Angle(°) | Rated Voltage(V) | Rated Current (A) | Phase Resistance(Ω) | Phase Inductance (mH) | Holding Torque (Kg.cm) | Motor Length (mm) | Leads No. | Motor Weight(Kg) |
| 57HS41-1004 | 1.8 | 5.4 | 1 | 5.4 | 9.5 | 5.5 | 41 | 4 | 0.45 |
| 57HS41-2004 | 1.8 | 2 | 2 | 1 | 2.2 | 5 | 41 | 4 | 0.45 |
| 57HS41-2804 | 1.8 | 2.24 | 2.8 | 0.8 | 1.4 | 5.5 | 41 | 4 | 0.45 |
| 57HS51-1504 | 1.8 | 2.4 | 1.5 | 1.6 | 3.8 | 8.2 | 51 | 4 | 0.65 |
| 57HS51-2004 | 1.8 | 2.4 | 2 | 1.2 | 3 | 9 | 51 | 4 | 0.65 |
| 57HS51-2006 | 1.8 | 2 | 2 | 1 | 1.6 | 7 | 51 | 6 | 0.65 |
| 57HS56-1504 | 1.8 | 5.7 | 1.5 | 3.8 | 12 | 13.5 | 56 | 4 | 0.7 |
| 57HS56-2804 | 1.8 | 2.8 | 2.8 | 1 | 3 | 12.6 | 56 | 4 | 0.7 |
| 57HS56-3004 | 1.8 | 2.85 | 3 | 0.95 | 2.8 | 12 | 56 | 4 | 0.7 |
| 57HS56-2006 | 1.8 | 3.6 | 2 | 1.8 | 2.8 | 9 | 56 | 6 | 0.7 |
| 57HS64-3004 | 1.8 | 3.9 | 3 | 1.3 | 2.2 | 15 | 64 | 4 | 0.8 |
| 57HS76-2004 | 1.8 | 8.6 | 2 | 4.3 | 16.2 | 24 | 76 | 4 | 1 |
| 57HS76-2006 | 1.8 | 4.4 | 2 | 2.2 | 3.6 | 13 | 76 | 6 | 1 |
| 57HS76-2804 | 1.8 | 3.08 | 2.8 | 1.1 | 3.6 | 19 | 76 | 4 | 1 |
| 57HS76-3004 | 1.8 | 2.7 | 3 | 0.9 | 3.5 | 20 | 76 | 4 | 1 |
| 57HS76-4004 | 1.8 | 2.4 | 4 | 0.6 | 2.2 | 20 | 76 | 4 | 1 |
| 57HS82-3004 | 1.8 | 4.2 | 3 | 1.4 | 5 | 22 | 82 | 4 | 1.2 |
| 57HS82-4004 | 1.8 | 3 | 4 | 0.75 | 3.5 | 20 | 82 | 4 | 1.2 |
| 57HS100-3004 | 1.8 | 3 | 3 | 1 | 4.5 | 25 | 100 | 4 | 1.4 |
| 57HS112-3004 | 1.8 | 3.9 | 3 | 1.3 | 6.5 | 30 | 112 | 4 | 1.7 |
| 57HS112-3504 | 1.8 | 2.45 | 3.5 | 0.7 | 3 | 28 | 112 | 4 | 1.7 |
| 57HS112-4004 | 1.8 | 3.6 | 4 | 0.9 | 4 | 30 | 112 | 4 | 1.7 |

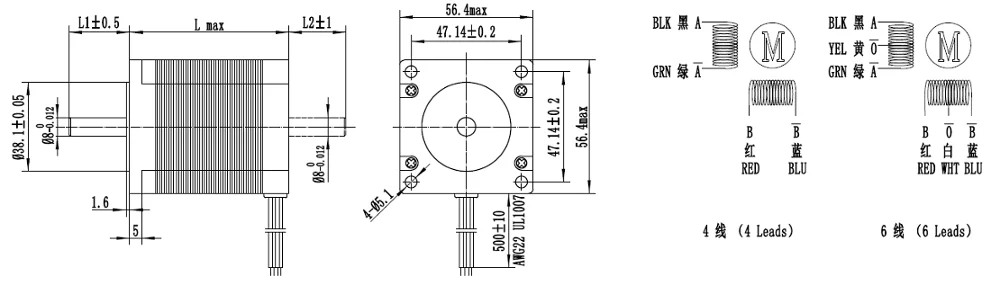

Wiring Diagram And Dimensions:
Company Information
Our main products include stepper drivers for all stepper motor, stepper motor from size NEMA 8 to NEMA 42 series hybrid stepper motor, easy servo stepper motor and driver, and variable sizes linear stepper motor, stepper motor with gear box, stepper motor with brake. And we always research and develop new products.
Company Show:
The Exhibitions:
Certification:
Contact Information:
Skype: iviezhai
Wechat: iviezhai
Whatsapp: 0086-13401517369
Phone: 0086-13401517369
