Roller length 1730 mm rubber calender

Product Overview

Description

Roller length 1730 mm rubber calender



Benefits of Rubber Calendar Machine:

• Higher productivity
• Better processing of rubber
• Minimal manual interference
• Higher quality products
• Uniformity of products

Rubber Calender



1. Rubber calender suitable for many rubber products, has high efficiency
2. Rubber calender can according to certain form arrangement, under certain temperature, extends the rubber or the plastic suppression certain thickness and the superficial shape film
3. Rubber calender may carries on to the textile fiber curtain canvas or the steel wire curtain cloth hangs the rubber the machinery.
4. The rubber calender have several type (two rolls/three roll/four rolls)you chose it according your need.



Rubber calender made by our factory is mainly used for calendaring rubber film, rubber tape, etc
Roller chilled alloy cast iron into a high quality steel production, chilled alloy cast iron rollers with sufficient hardness and wear resistance, and grinding smooth surface, high-quality steel roller can do the engraving of the desired pattern. Rollers can pass into the steam and cooling water, to regulate the temperature.

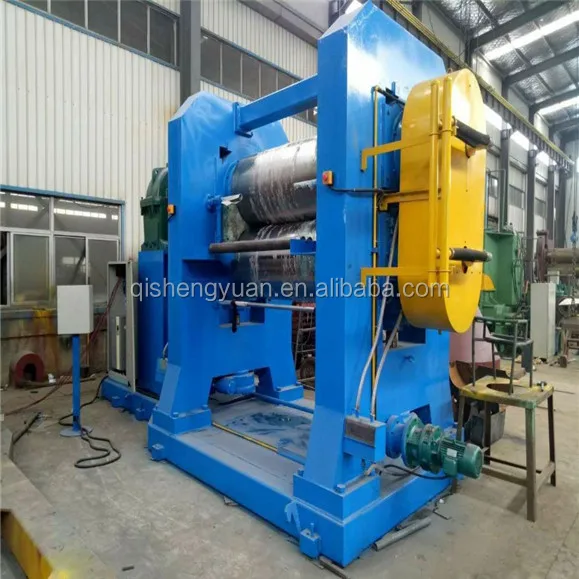

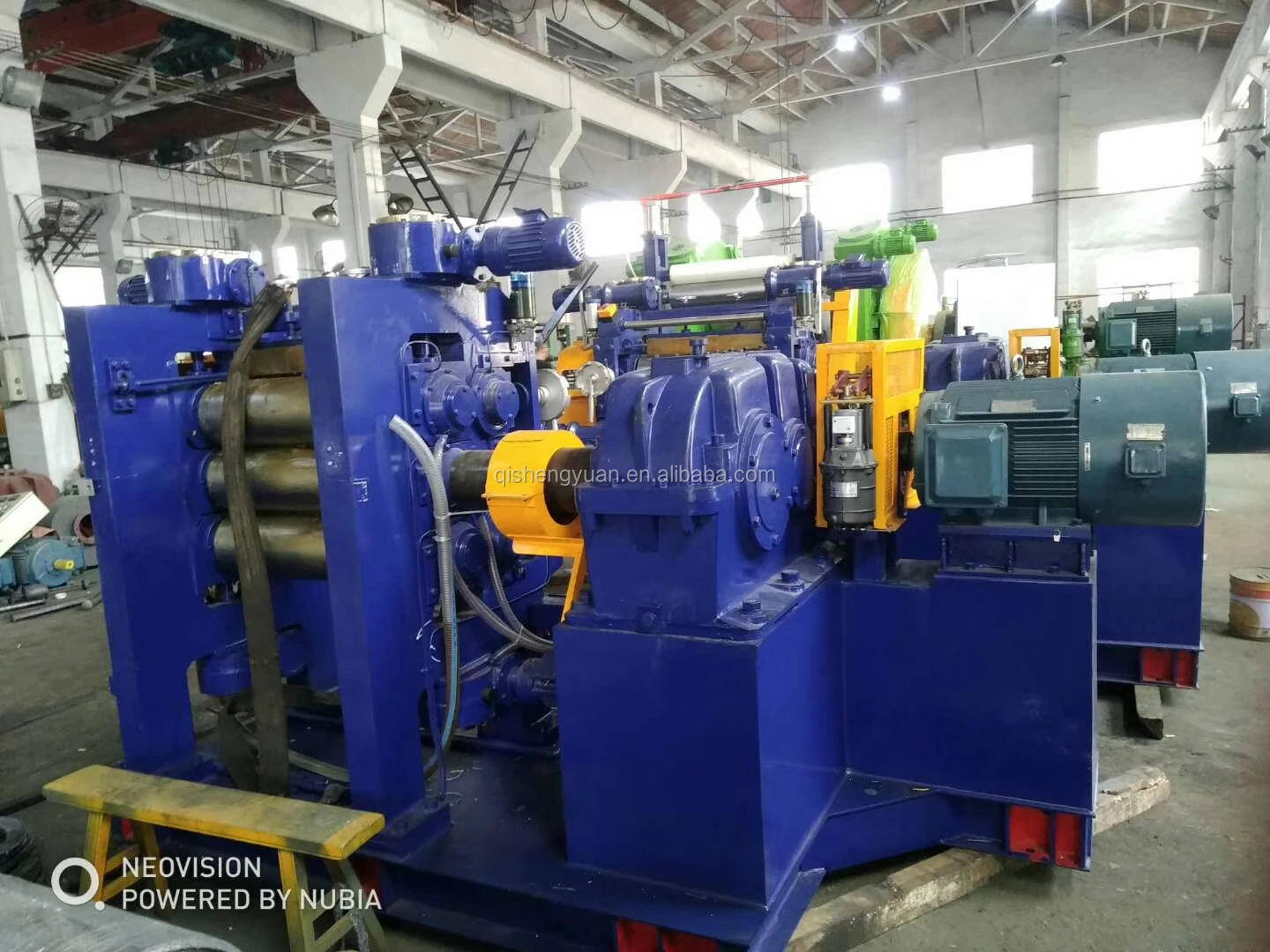

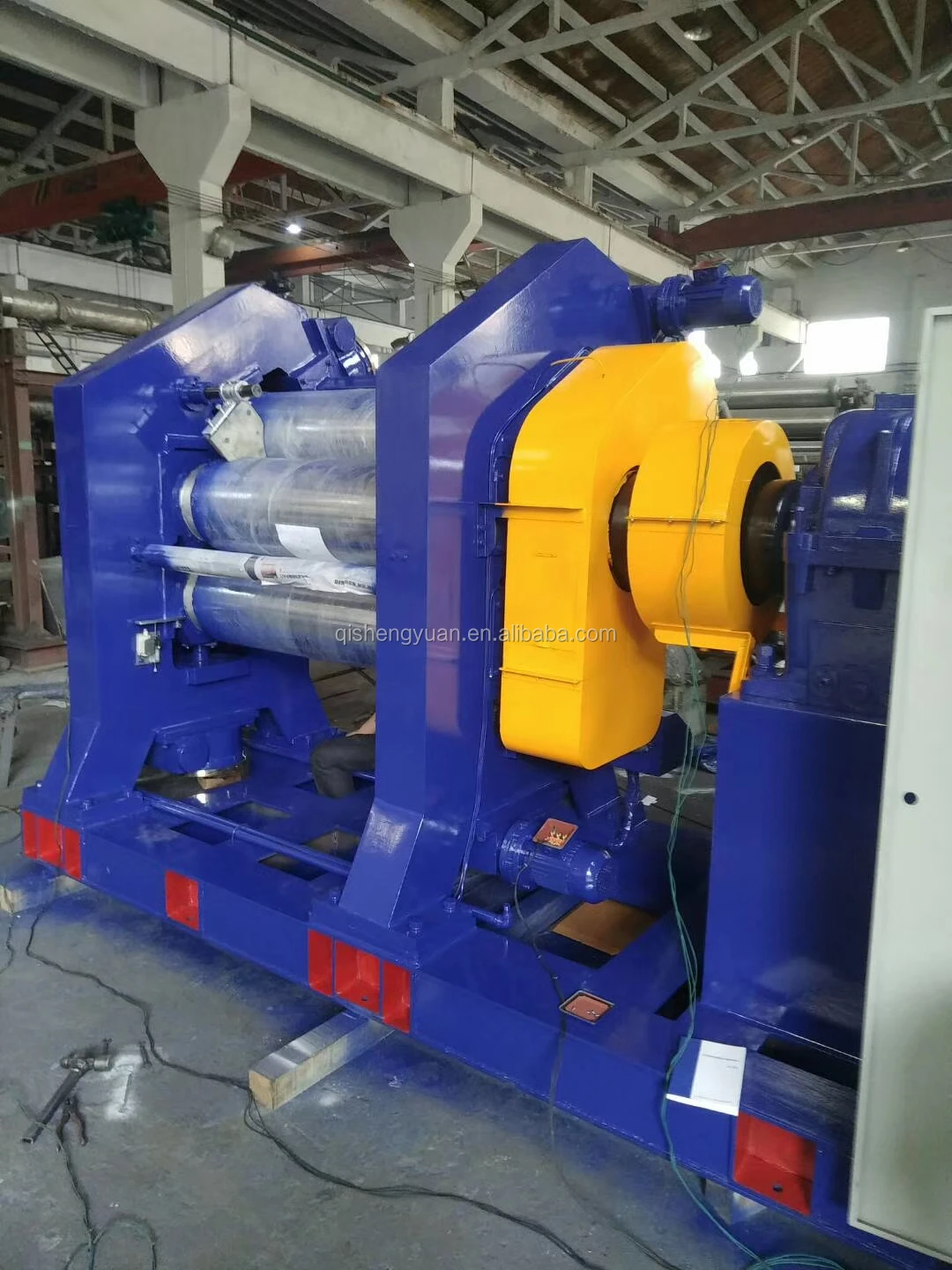

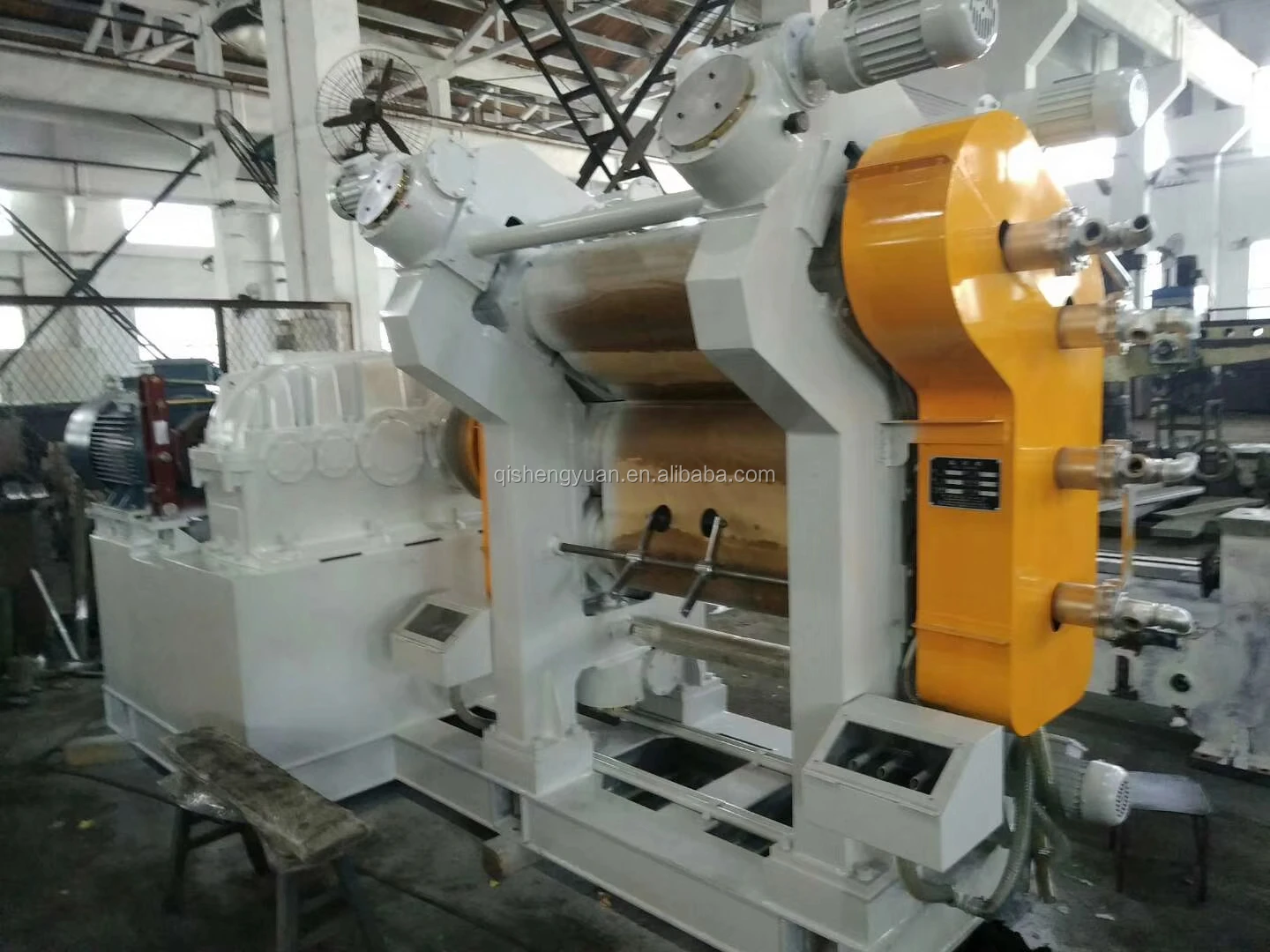

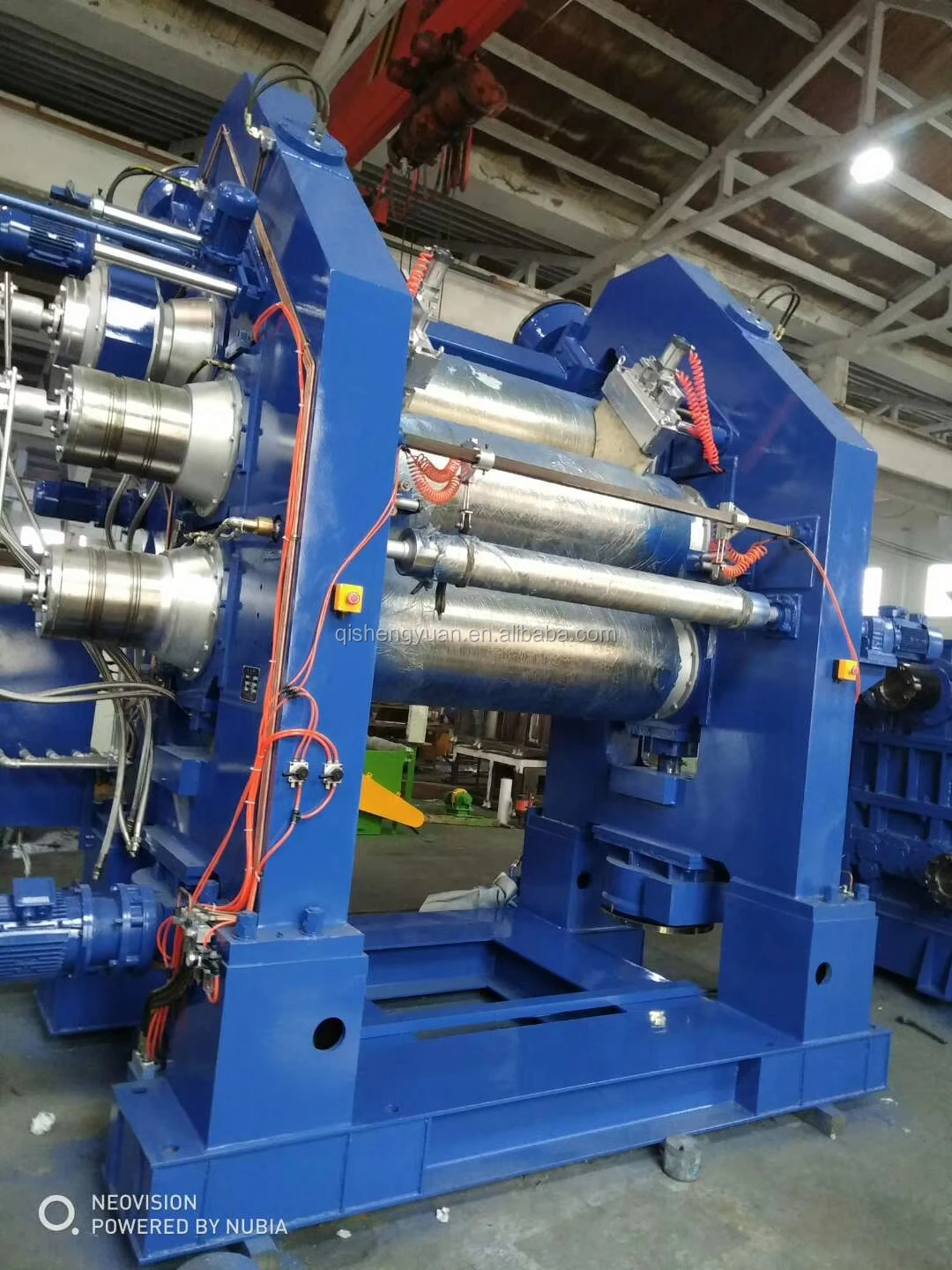

Three Rollers Rubber Calender Machine
Manufacturer from China

Main Parameters:





Type	Dia.x Length of roll (mm)	Linear speed of mid.roll (m/min)	Min thickness of calendered product (mm)	Width of calendered product(mm)	Motor Power(KW)	LxWxH(mm)	Weight (t)
XY-3I1120	360x1120	7.5-22.5	≥0.20	900	13.3/40	6050x1500x2240	11.6
XY-3I1400	400x1400	8.8-26.39	≥0.20	1200	18.3/55	5600x1410x2385	15
XY-4F1120	360x1120	7-21	≥0.20	900	18.3/55	6100x1660x2330	13
XY-4F1400	400x1400	8.8-26.39	≥0.20	1200	25/75	6350x1850x2490	18
XY-3L1120	360x1120	2-20	≥0.20	900	37	5500x1700x2300	11.7
XY-5T635	240x635	9	≥0.50	550	7.5	1400x1000x1870	2
XY-5T700	230x700	1.5-13	≥0.50	600	7.5	3600x1620x1030	3.5
XY-4r1730	610x1730	5.4-54	≥0.15	1500	180	7050x4110x3750	64
XY-4r1830	610x1830	6-60	≥0.10	1600	67x4	8250x3860x4640	68

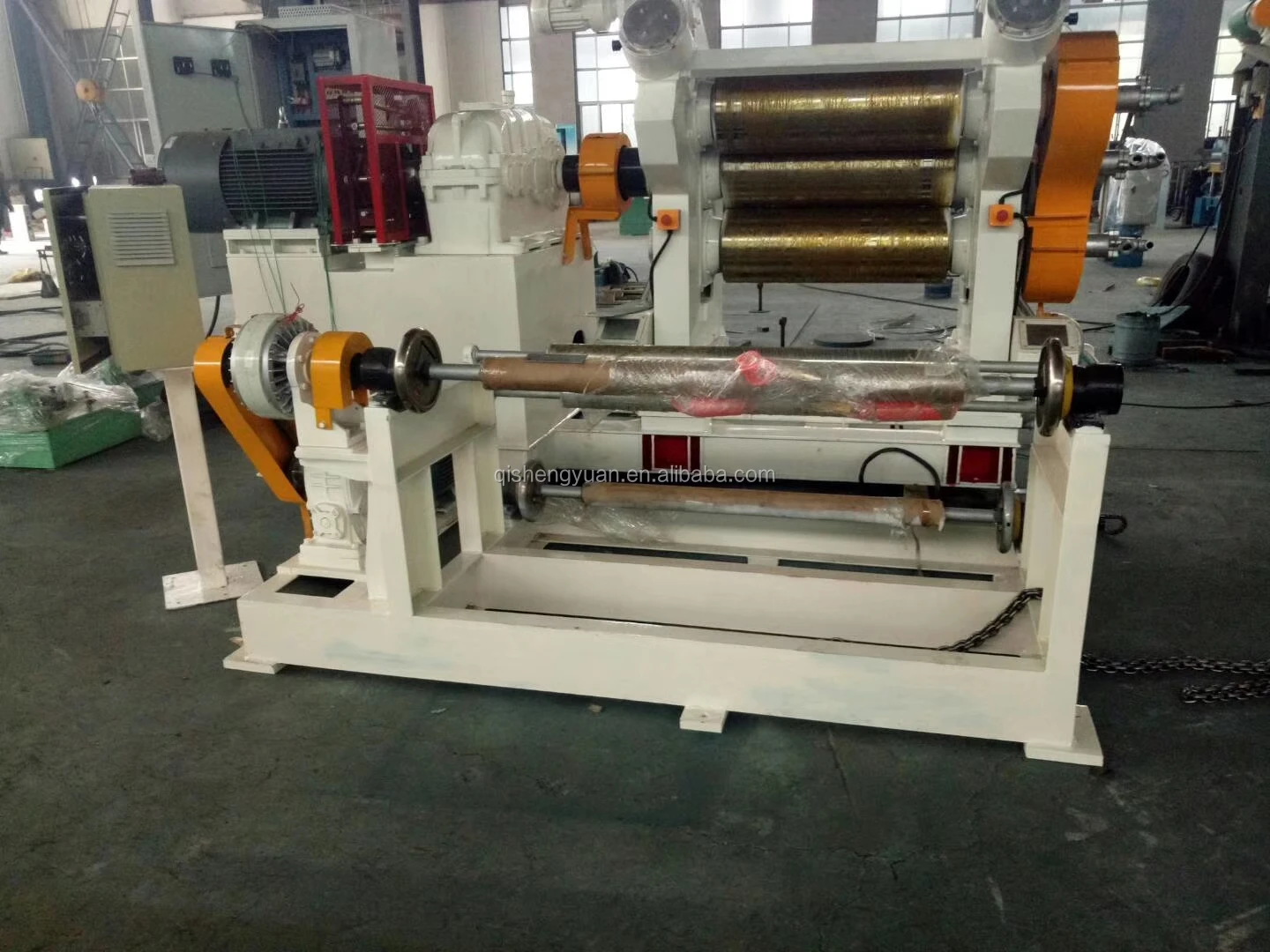

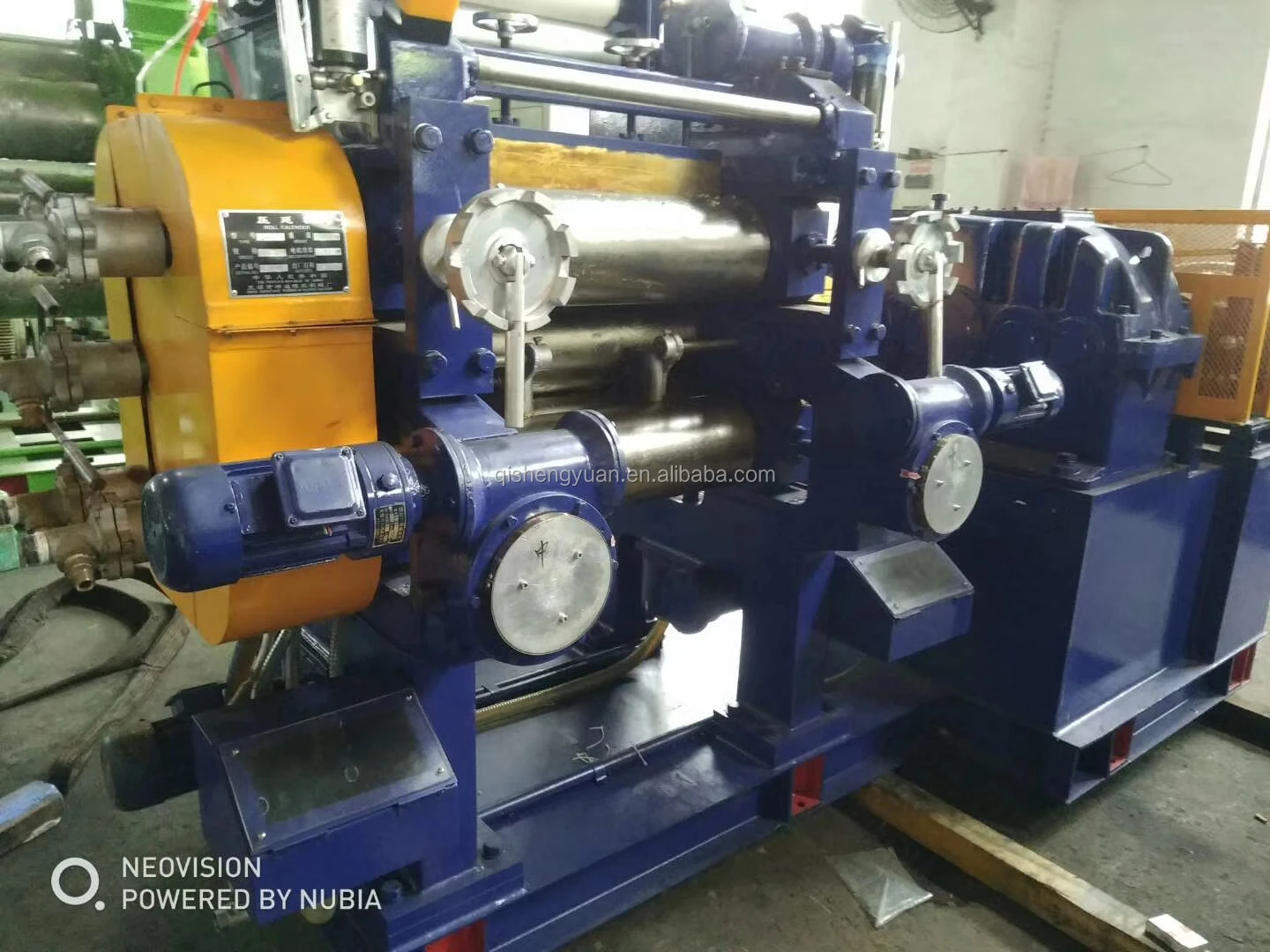

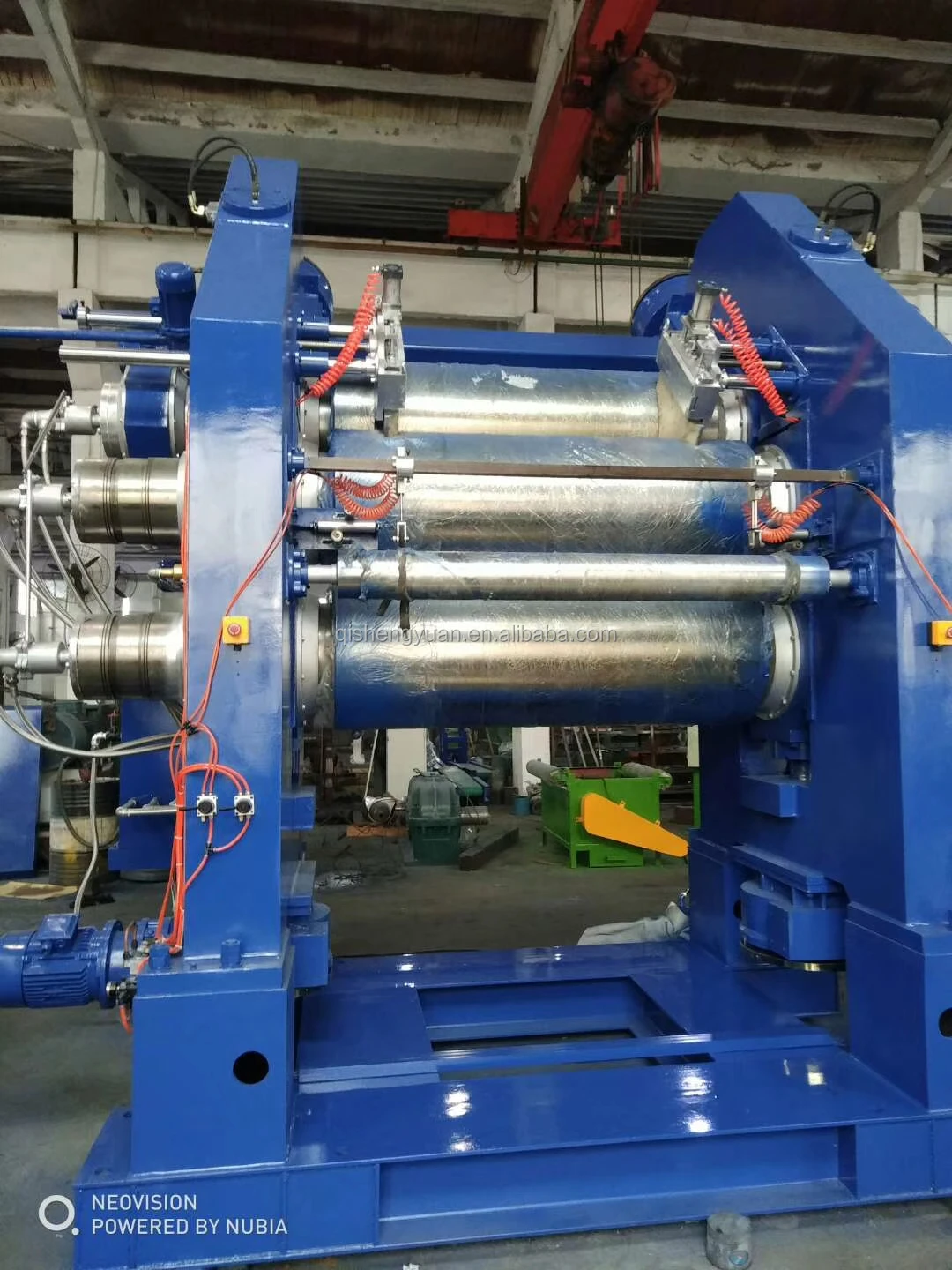

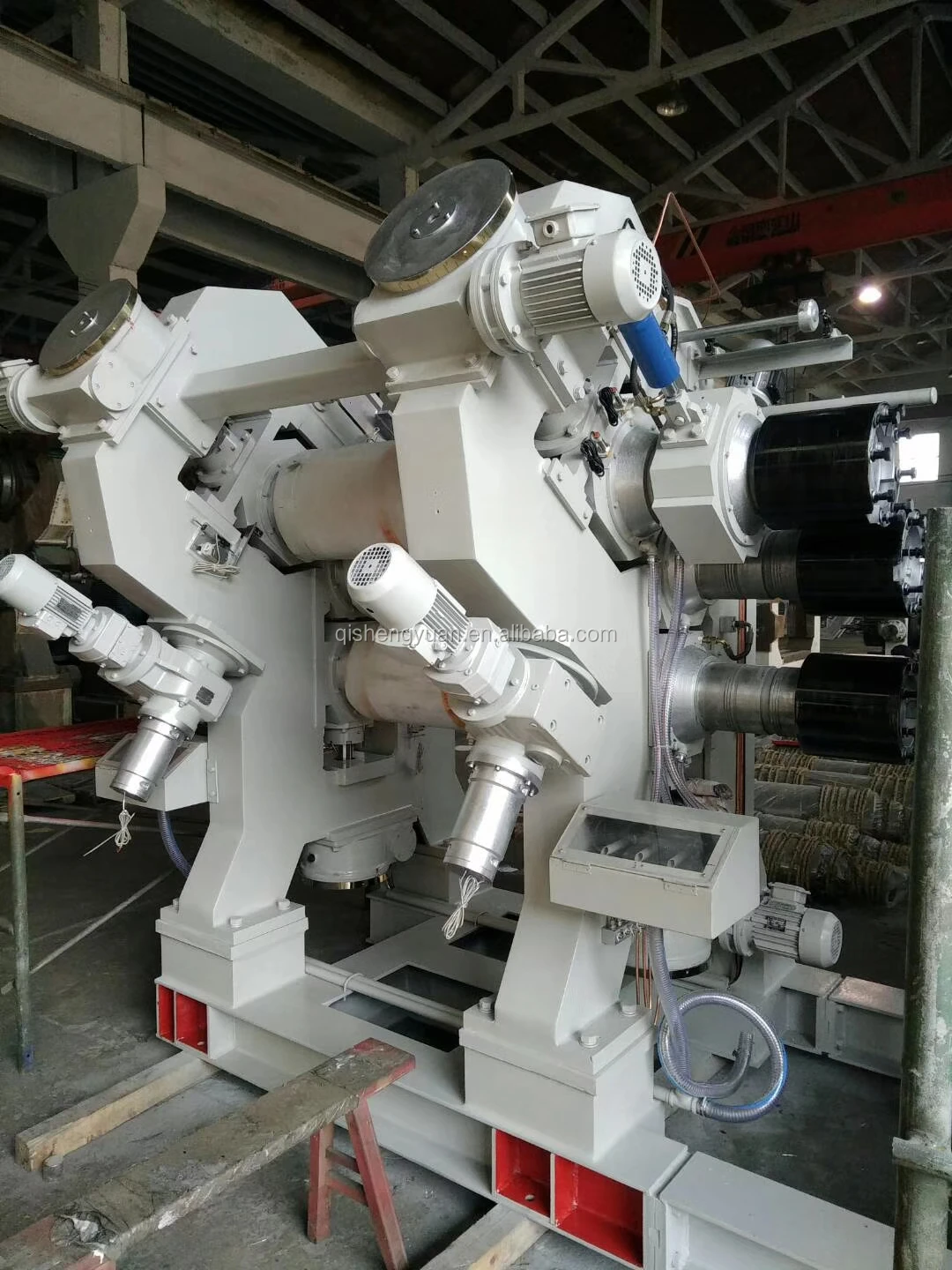

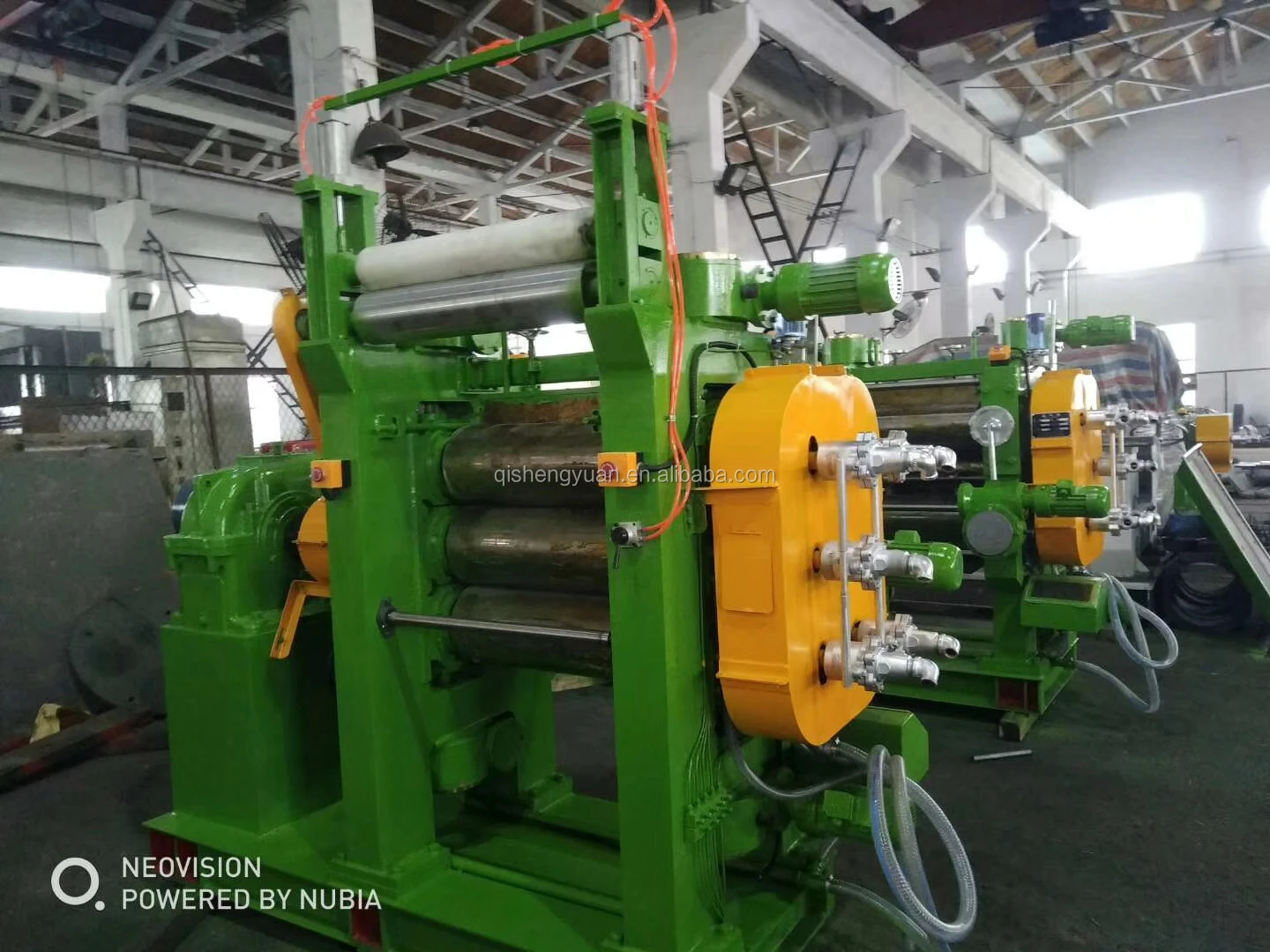

  Picture:













Dear sir
May your day be full of love and blessings.
We have a lot of rubber machines in stock ,but some will export very soon.
Wish u could visit our factory by urself .
Also we do hereby want to have good business relationship with u .
For more information ,pls contact us via
wechat :474171172,whatsapp:008618669718510.
www.qsyjx.com
Facebook link :https://www.facebook.com/wu.stephanie.37
Facebook:Stephanie Wu
Thx a lot.
Yours faithfully
Stephanie
