CGX261D зеркальное стекло прямолинейный шлифовальный станок
- Category: Glass Production Machinery >>>
- Supplier: Cgtech Glass Machinery Co. Ltd.
Share on (62228200908):
Product Overview
Description
Products Description
Description:
●CGX261D is suitable for processing bevel & bottom edge of glass sheet with various size and thickness.
●Coarse grinding, fine grinding and polishing can be completed at one time. ensuring the accuracy and polishing brightness achieving to the mirror effect.
●The base, beam, swing frame, upright column and grinding head are of casting materials(annealed to prevent deformation).They have extreme resistance to abrasion and deformation, as well as the best shock absorbing properties.
●It is a machine with multi-use for processing craft glass, decoration and furniture glass, doors and windows, bathroom mirror and cosmetic mirror.
●CGX261D is suitable for processing bevel & bottom edge of glass sheet with various size and thickness.
●Coarse grinding, fine grinding and polishing can be completed at one time. ensuring the accuracy and polishing brightness achieving to the mirror effect.
●The base, beam, swing frame, upright column and grinding head are of casting materials(annealed to prevent deformation).They have extreme resistance to abrasion and deformation, as well as the best shock absorbing properties.
●It is a machine with multi-use for processing craft glass, decoration and furniture glass, doors and windows, bathroom mirror and cosmetic mirror.
Max.Glass size | 2500×2500mm |
Min.Glass size | 100*100mm |
Glass thickness | 3-19mm |
Transmission speed | 0.5-5m/min |
Max.Hypotenuse width | 40mm |
Bevel angle | 0~25° |
Power | 21.5KW |
Weight | 4000kg |
Land occupation | 6500×1300×2500mm |
glass diagonal error | ≤0.5mm/m |
Power | 380V/50HZ or Customized |

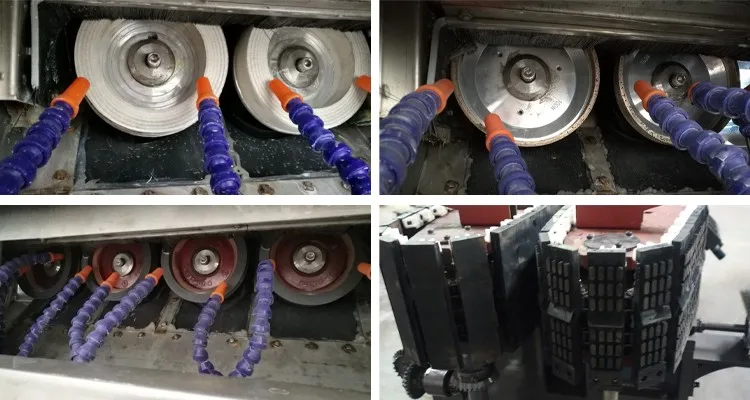

Details Images

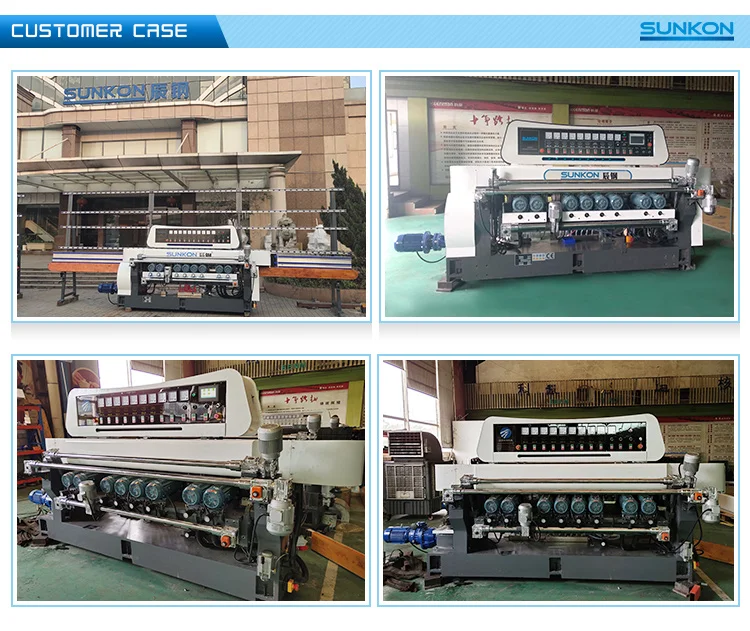

Our Case
