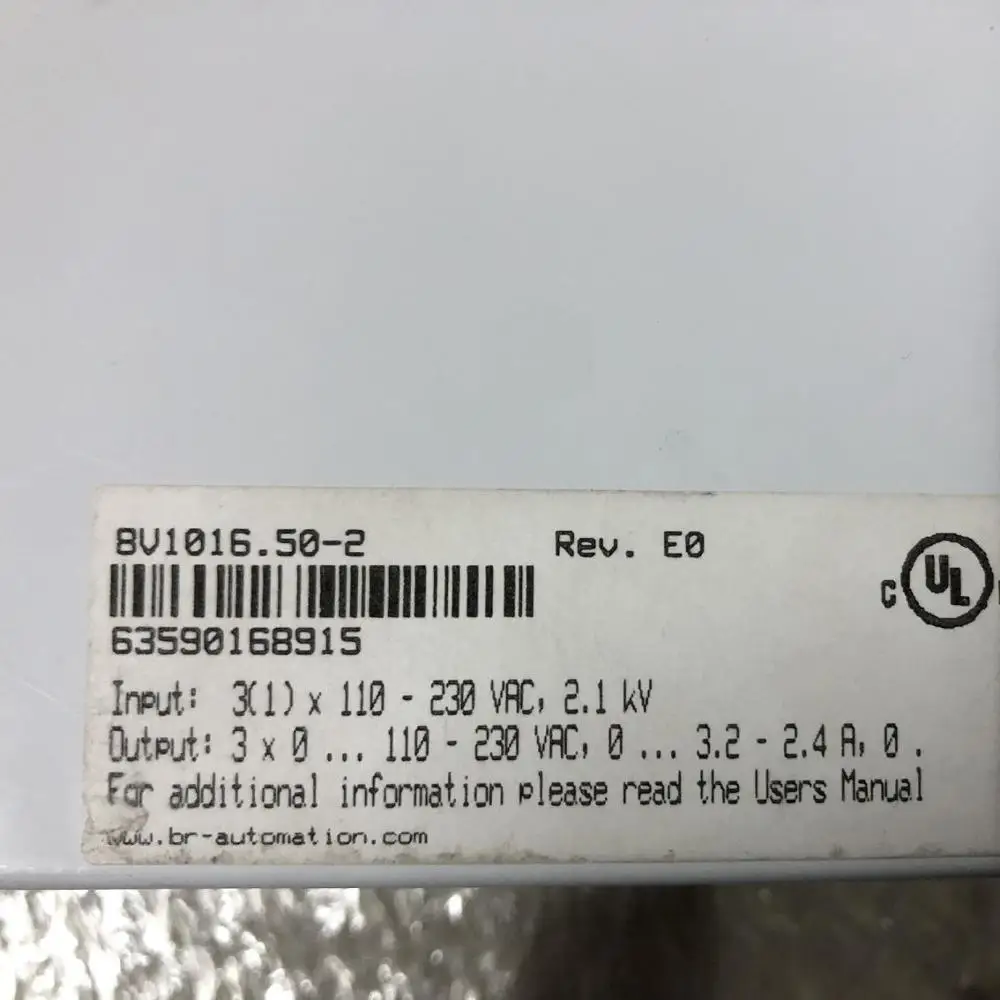

B&R 8V1016.50 2 ACOPOS servo drive, 3x 110 230 V / 1x 110 230 V, 3.6 A, 0.7 kW, line filter
B&R 8V1016.50-2 ACOPOS servo drive, 3x 110-230 V / 1x 110-230 V, 3.6 A, 0.7 kW, line filter
B&R 8V1016.50-2 ACOPOS servo drive, 3x 110-230 V / 1x 110-230 V, 3.6 A, 0.7 kW, line filter
B&R 8V1016.50-2 ACOPOS servo drive, 3x 110-230 V / 1x 110-230 V, 3.6 A, 0.7 kW, line filter

B&R 8V1016.50 2 ACOPOS servo drive, 3x 110 230 V / 1x 110 230 V, 3.6 A, 0.7 kW, line filter

Share on (62228508439):


Price:$1.00

Quantity:


Product Overview

Description


Product Description

 MATERIAL NUMBER:

8V1016.50-2

DESCRIPTION:
  • Designed for operation on a single-phase or three-phase power mains
  • Modular mechanical design using plug-in modules
  • Integrated line filter
  • Integrated braking resistor
  • Integrated electronic restart inhibit
ACOPOS servo drive, 3x 110-230 V / 1x 110-230 V, 3.6 A, 0.7 kW, line filter, integrated braking resistor and electronic secure restart inhibit













Ordering Info:



General information
B&R ID code0x18D7
Slots for plug-in modules3
Certifications
CEYes
KCYes
EACYes
ULcULus E225616
Power conversion equipment
Functional safetyYes
Mains connection
Permissible network configurationsTT, TN
Mains input voltage3x 110 VAC to 230 VAC ±10% or 1x 110 VAC to 230 VAC ±10%
Frequency50 / 60 Hz ±4%
Installed loadMax. 2.1 kVA
Inrush current5 A (at 230 VAC)
Switch-on interval>10 s
Integrated line filter per EN 61800-3, category C3Yes
Power dissipation at device nominal power without braking resistor110 W
DC bus connection
DC bus capacitance2040 µF
24 VDC power supply
Input voltage24 VDC +25% / -20%
Input capacitance5600 µF
Current consumptionMax. 1.47 A + current for motor holding brake
Motor connection
Quantity1
Continuous current3.6 Aeff
Reduction of continuous current depending on ambient temperature
Mains input voltage: 110 VAC
Switching frequency 5 kHzNo reduction
Switching frequency 10 kHzNo reduction
Switching frequency 20 kHzNo reduction
Mains input voltage: 230 VAC
Switching frequency 5 kHzNo reduction
Switching frequency 10 kHzNo reduction
Switching frequency 20 kHzNo reduction
Reduction of continuous current depending on installation elevation
Starting at 500 m above sea level0.36 Aeff per 1000 m
Peak current12 Aeff
Nominal switching frequency10 kHz
Possible switching frequencies5 / 10 / 20 kHz
Electrical stress of connected motor per IEC TS 60034-25Limit value curve A
Max. motor line length15 m
Protective measures
Overload protectionYes
Short circuit and ground fault protectionYes
Max. output frequency598 Hz
Terminal connection cross section
Flexible and fine-stranded wires
With wire end sleeves0.25 to 4 mm²
Approbation data
UL/C-UL-US30 to 10 AWG
CSA28 to 10 AWG
