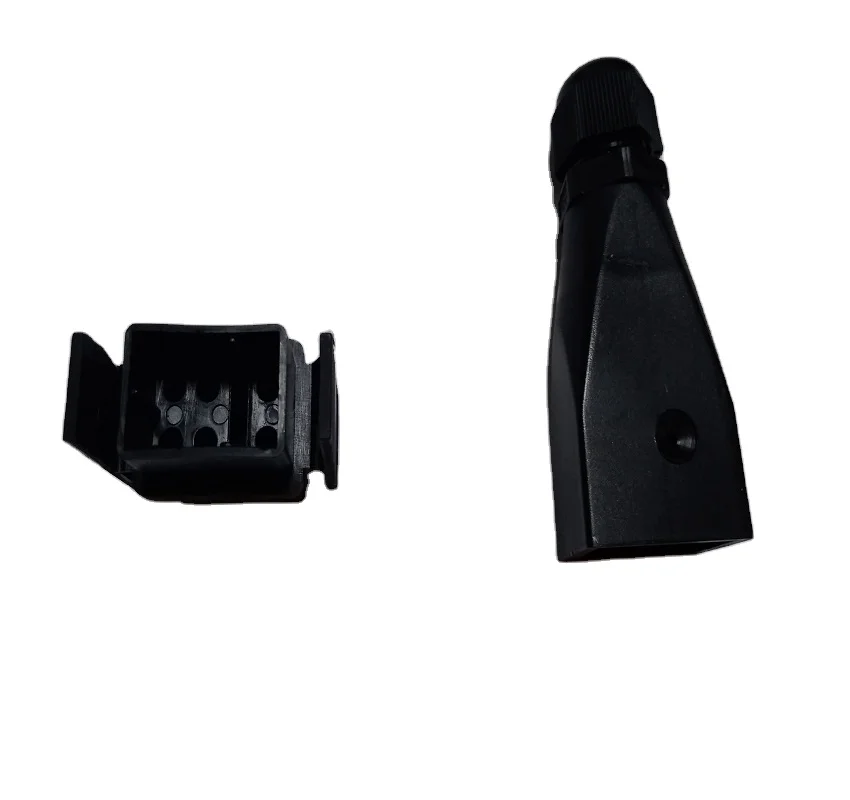

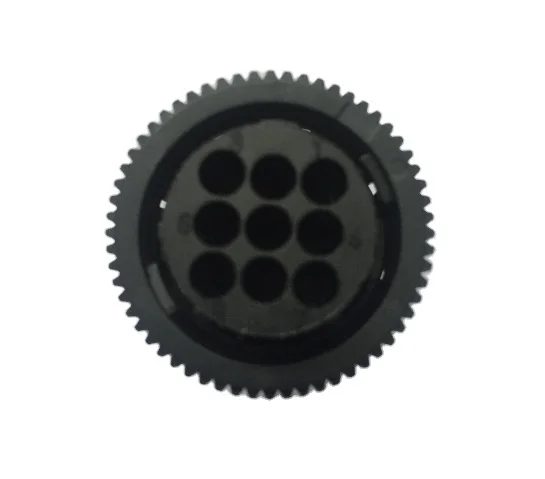

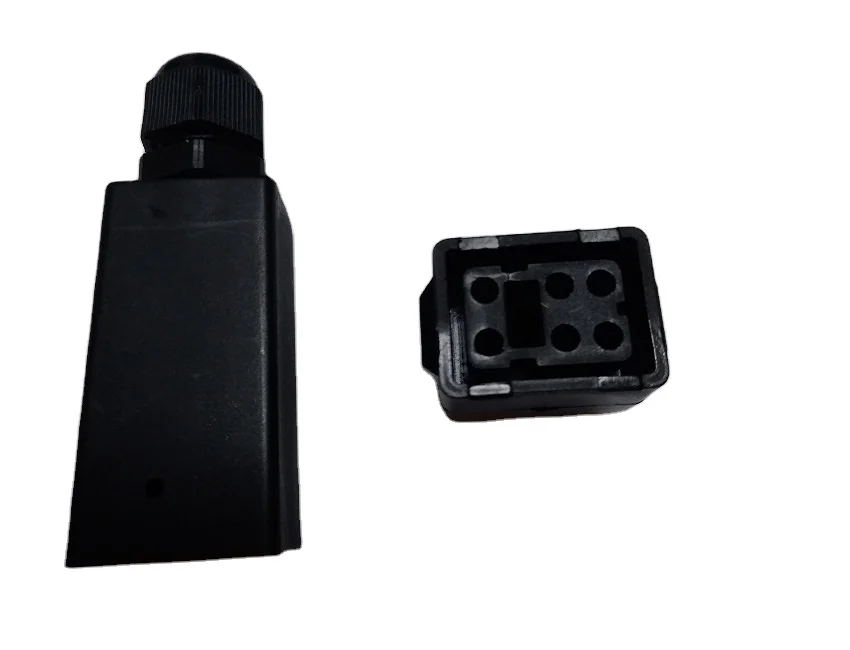

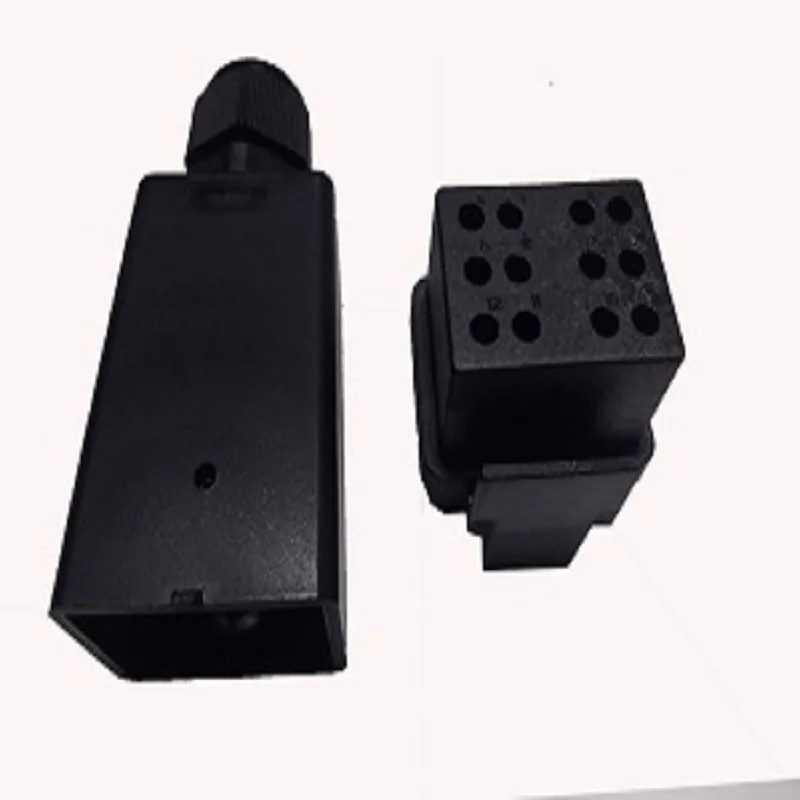

hot melt glue machine Nordson plugs join to glue hose

Product Overview

Description

please click each picture  below for detail

 accessory

Application

1.Automobile manufacturing industry:mainly used for interior decoration,lights,ceiling,doors,carpet,automobile wiring harness,tire protection,autolabel,auto filter,cab dashboard,seats,etc,the bonding wire harness, 2.woodworking industry:mainly used in door frame,decorative lines, flooring,wall cabinet,Tangle line,viscose composit. 3.Appliance industry:Assembly of electric appliance shell,fixing of line and fixed position of pneumatic component 4.LED lighting industry:Lamp tube,bulb,lamp bar,outdoor street lamp adhesive ,sealing, 5.Textile and footwear industry:For example,the joint of the fabric and the bonding of the soles.



workshop and showshop

photoes with clients

Product characteristic:

1.  Stepless control function is used to supply the glue:Glue supply speed can be

adjusted as required.

2.The asymptotic melt way:the heating plate located above the gun when heated,

only above a layer of glue and the heating plate contact,so as to reach the melting

point and melting glue barrel under the heating part,the production need much glue melts,avoid long time heating and aging glue.

3.Pressure plate with Teflon coating:easy to clean ,effectively reduce the phenomenon of glue carbonization

4.Melt pressure plate structure ;Slotted and Slotless optional rubber chassis structure,

choose more suitable for their own melt speed.

5.Fully sealed structure design:The whole melt glue,glue with full sealing method,colloid is isolated from air,ensure PUR hot melt adhesive condisions of use ,even in the endless case,hlue can also be within the specified time preserved next ot continue to use.

6.Whole temperature control:The whole flowpath of he glue feeding channel is precisely controlled without dead angle,so as to ensure the stabilityof the gue supply.

7.Multiple glue supply options:manual control for glue automatic glue supply and remote control made,a variety of ways to make it better with extermal equipment compatibility

8.Overtemperature alarm :PLc automatic temperature control systerm,with high and low

temperature protection function ,the sensor use the international general high-precision PT100 sensor,temperature control precision;

9.Glue pump:it is not easy to wear in high temperature and high viscosity environment

10.Material shortage alarm:Thesysterm has the function of lack of material alarm,when the glue is used up,it will automatically prompt to change the glue

11.Insulation function :when not in the middle of the work,you can automatically heat insulation ,all the temperature control in the ideal range of glue to save the temperature ,to prevent a long time when the glue,

12.Boot protection function:when the operating temperature is not reached,the system

 can not be started

13.Boot protectio function:when the operating temperaturer is not reached,the systerm can not be started.automatically,wich can prevent the motor from damaging the relevant parts in the eneironment of less glue.

the way to change the bucket:Automatic inflatable ,exhaust control design,easy to change glue,,at the same time with anti-blocking standby procesing funcation.

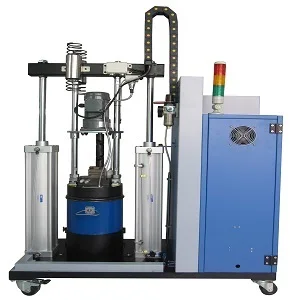

Parametric

Model	JXR-PU50
Temperature control	PLC+touch screen
machine size	1200L*580W*1400H(MM)
Usage mothed	hand glue guns/fixed/automatic
Melt speed	10KG/hour
Plactic barrel specification	20KG standard barrel(5 gallon) 280/286MM
Max outo glue speed	6k/Sec
working pressure	0.4-0.7Mpa
Max heating temperature	230
Max outo glue pressure	5Mpa
pump type	gear pump one piece
Temperature control system	PLC intelligent temperature control system
Usage method	Hand glue gun/fix/automatic
the number of gun-barrel	2tube and 2guns
weight	200KG
packing	standard Export Wooden carton
power	AC380V Three-phase five wire system 60/50HZ 5KW

FAQ

Q1.how about the package?is it safe during the delivery?

A1..all machine is packed by standard strong wooden cartons with foam inside

Q2.What is the delivery way?How many days will the machine?

A2.we will ship the machine by DHL,FEDEX,UPS,etc(Door to Door arrive,or by Air to your  airport(Door to Airport Service),around 3days to arrive,or by Sea to the Seaport,

around 30Days to arrive.

Q3.Do you provide the Warranty?how about the after sales service?

A3.1 year warranty free for spare parts,We have professional team after sales,if any question assistant videos are also provided in after -sale service

Q4.Is this machine easy to use?if I have no experience,can i also operate in well?

Do you provide the user manual and operating videos to support us?

A4.Yes,our machine is designed to use easily ,Normally it will take you 2-3 hours to learn how to operate or more fast ,We wil provide the operation Video with the packaged.

Q5.What is the payment way?

A5.We accept the payment terms,Bank transfer,Westem Union,PAYPAL
