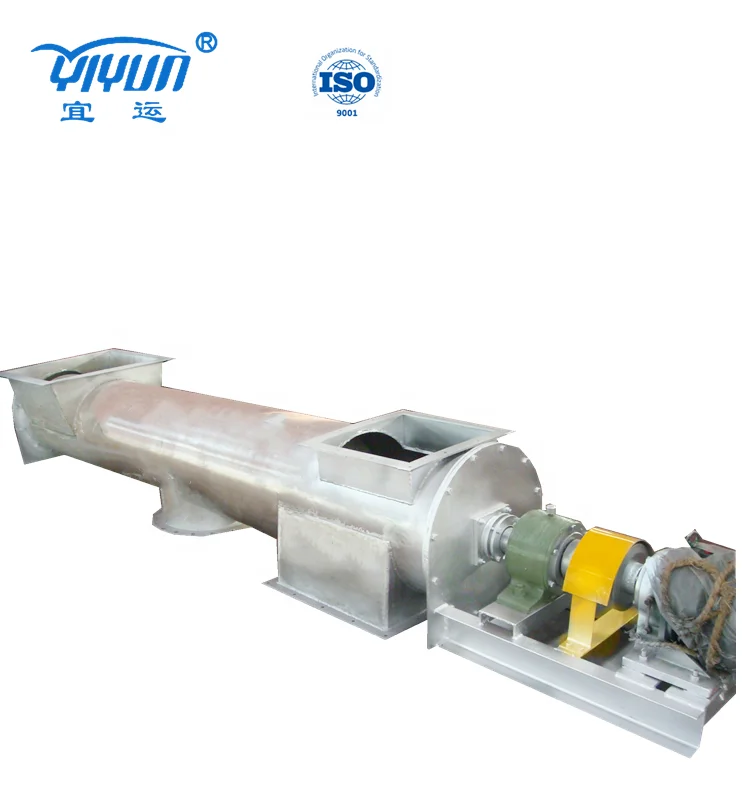

High Quality Hopper Tubular Spiral Conveyor Screw Feeder For Bulk Material

The LS type screw conveyor series is designed and manufactured according to ISO1050 standard. It conforms to the professional standard of ZBJ81005.1-288. Its structure is novel, the head and tail bearings are moved outside the casing, and the intermediate suspension bearing adopts two structures of rolling and sliding interchangeability. The dustproof sealing device is provided, and the discharging end is provided with a cleaning device; the inlet and outlet material device is arranged flexibly, the whole machine has low noise, strong adaptability and convenient operation and maintenance. It has the characteristics of small resistance, strong seal wear resistance and so on. The bearing materials used for hanging bearings are cast copper, alloy wear-resistant cast iron, copper-based graphite, self-lubricating tile and other materials for your choice.

Rotary conveyors are used in many industries, such as building materials, chemical engineering, coal, grain, oil, and feed. Suitable for horizontal or inclined conveyor powder, non-scale and small particle block materials, such as grain, Ding, coal, flour, cement, fertilizer and so on. It does not convey materials that are prone to deterioration, viscosity, and agglomeration; the ambient temperature is -20 to 50 ° C, and the temperature of the conveying material is ≤ 200 ° C.

Can be used in: food processing, pharmaceuticals, powders and energy, petrochemicals, chemicals, mining and minerals, feed processing, plastics and waste incineration etc.

Supply capacity:

Supply capacity:1000 Unit/Units per Month

Drive device option:
he machine is driven by a series of cycloidal pinwheels, gears and other reducers. There are two methods: single-end drive (C1 method) and double-end drive (C2 method). The length of the screw machine is <35m according to the C1 method. End drive. The intermediate suspension bearings of the screw machine are divided into rolling suspension bearings (M1 manufacturing method) and sliding suspension bearings (M2 manufacturing method). When the temperature of the conveying material is ≤80°C, the M1 method is generally adopted. When the temperature of the conveying material is >80°C or the wet material is transported, the M2 method should be used.

Structure:

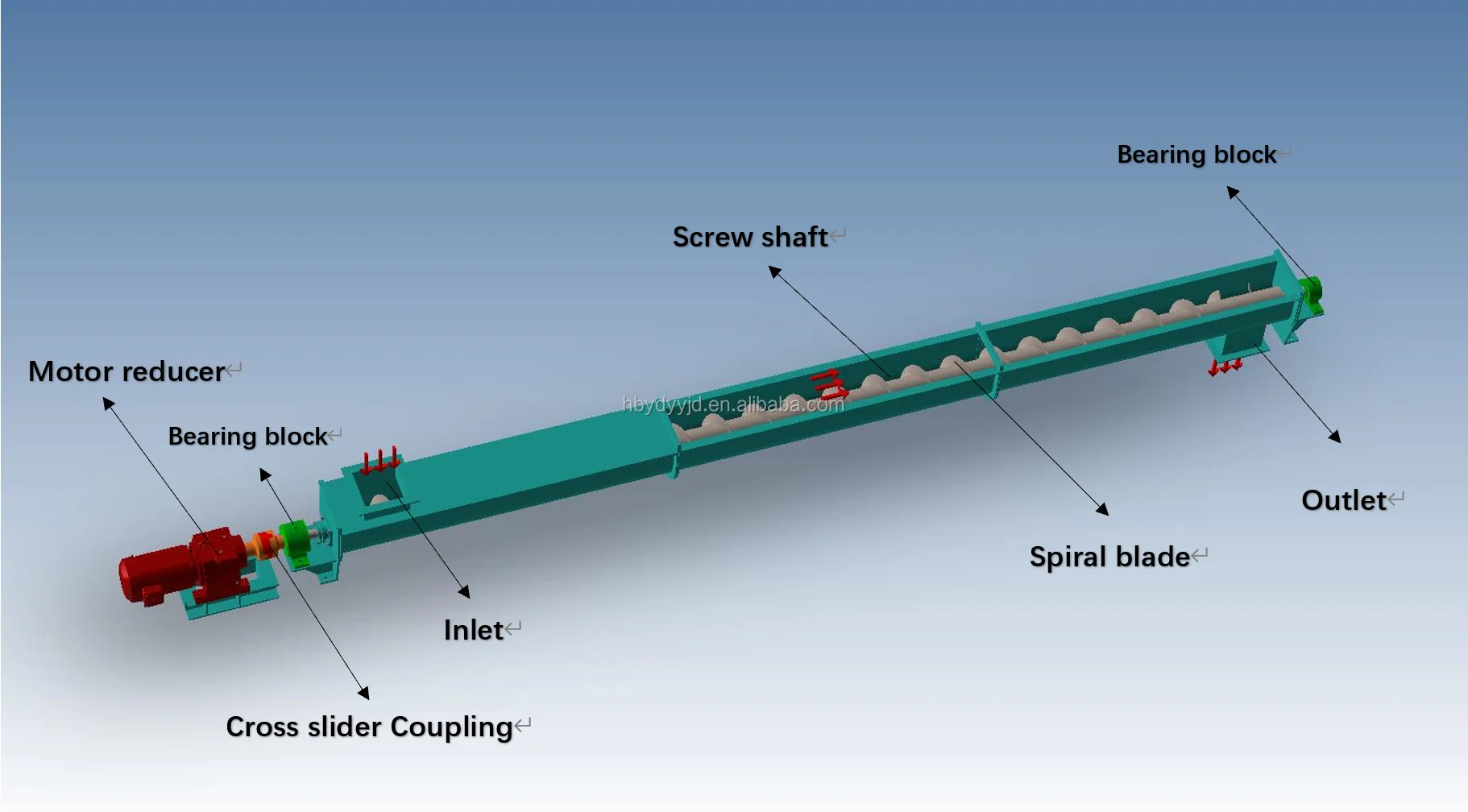

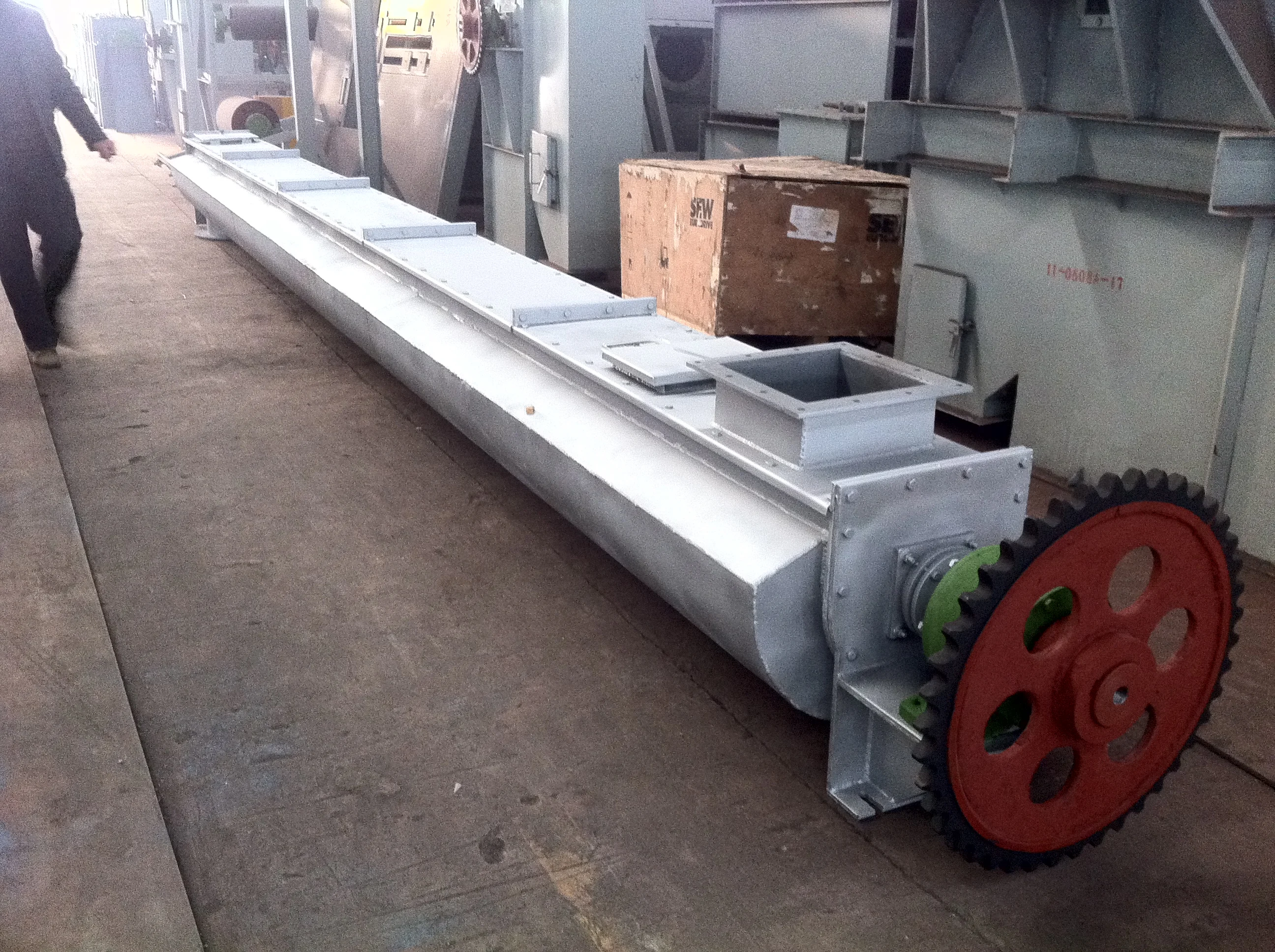

The screw conveyor consists of a drive unit (motor, reducer, coupling or drive chain), drive shaft and blades, housing, cover plate, feed port, discharge port and bearing.

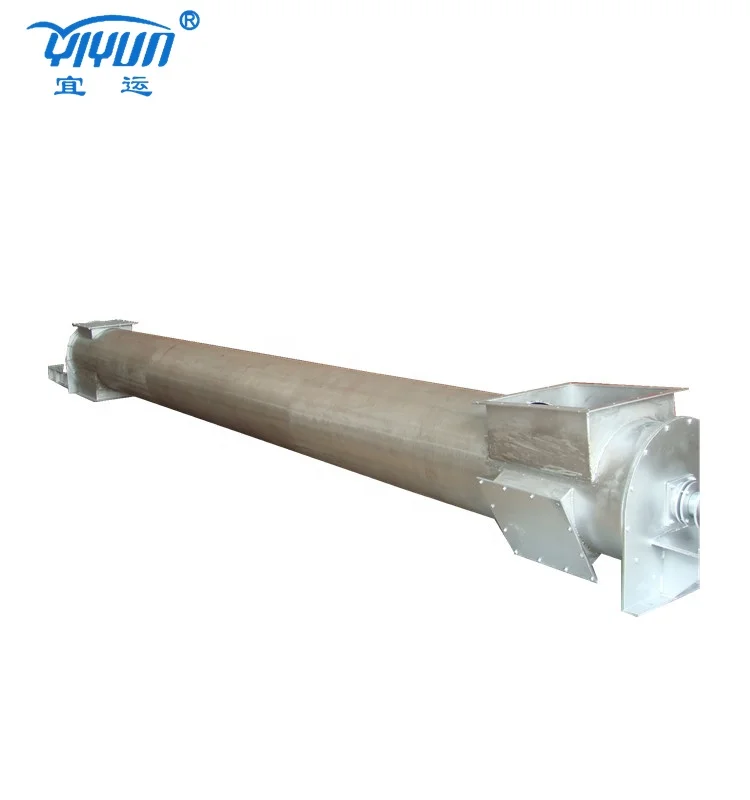

Single tube screw feeder

Overflow screw conveyor
