high quality adsorbent 1.3mm pellet carbon molecular sieve CMS 200 220 240 260 280 for PSA nitrogen concentrator
Product Description

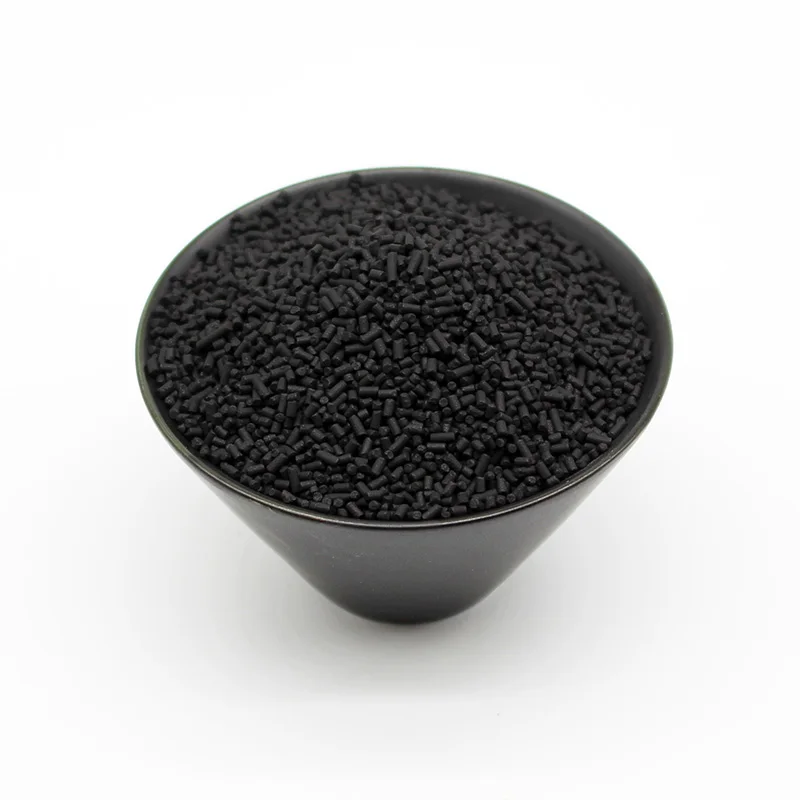

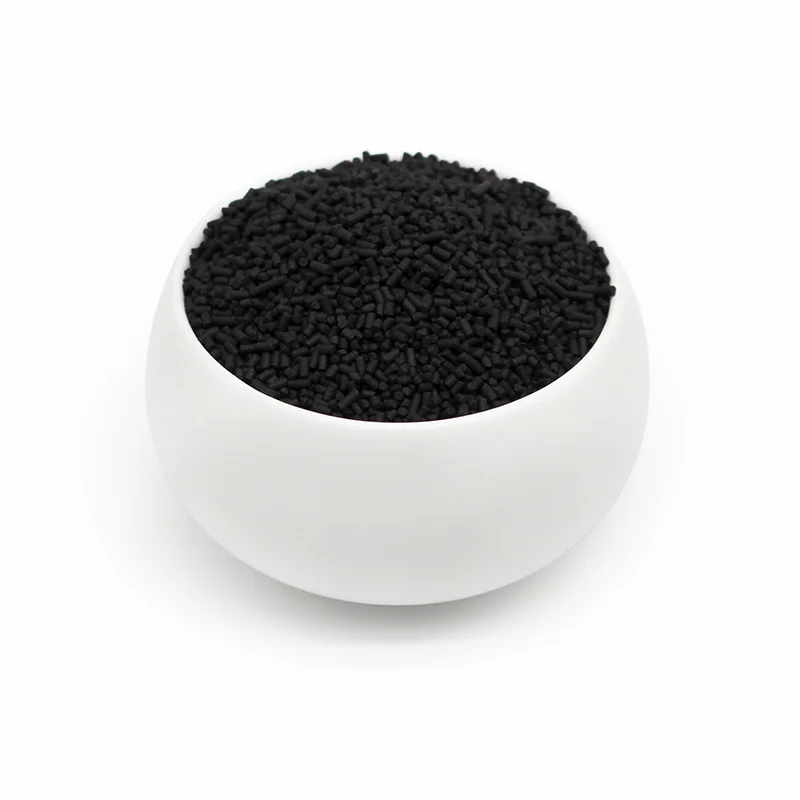

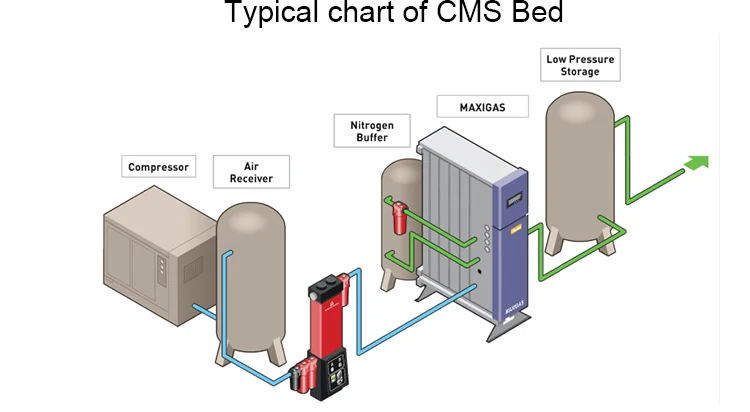

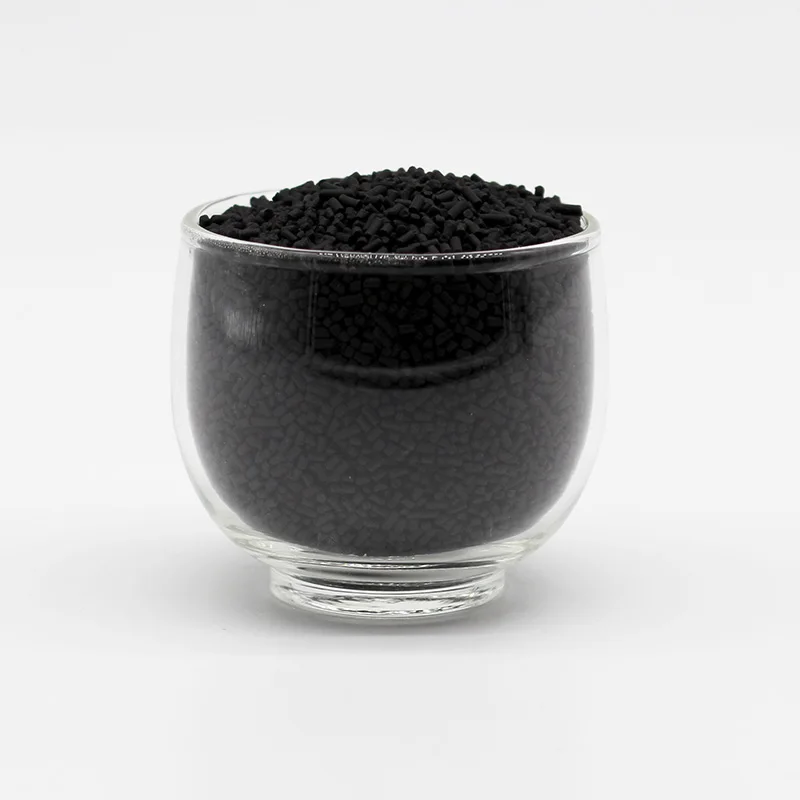

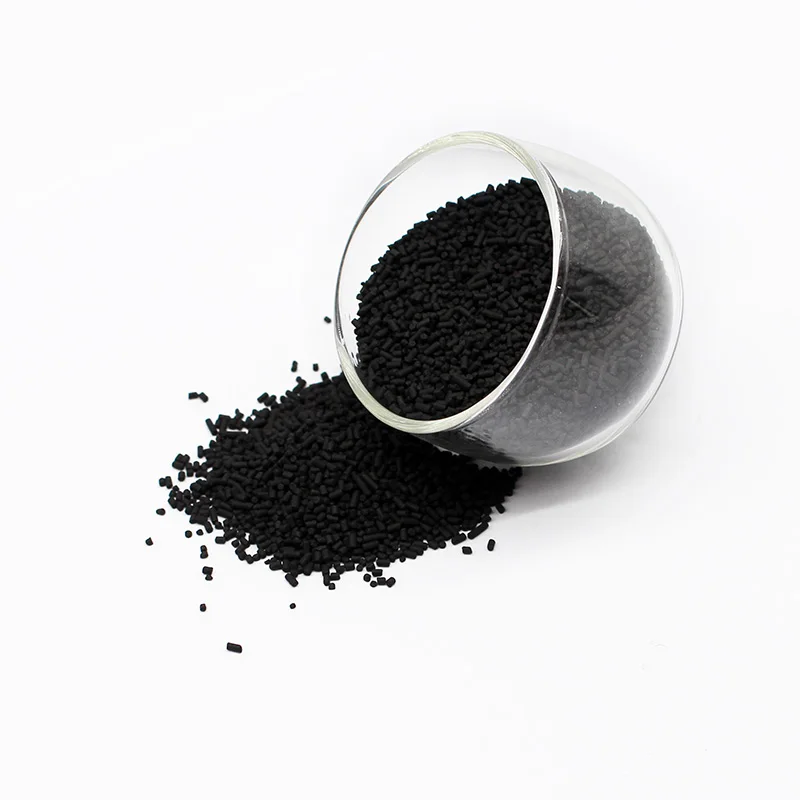

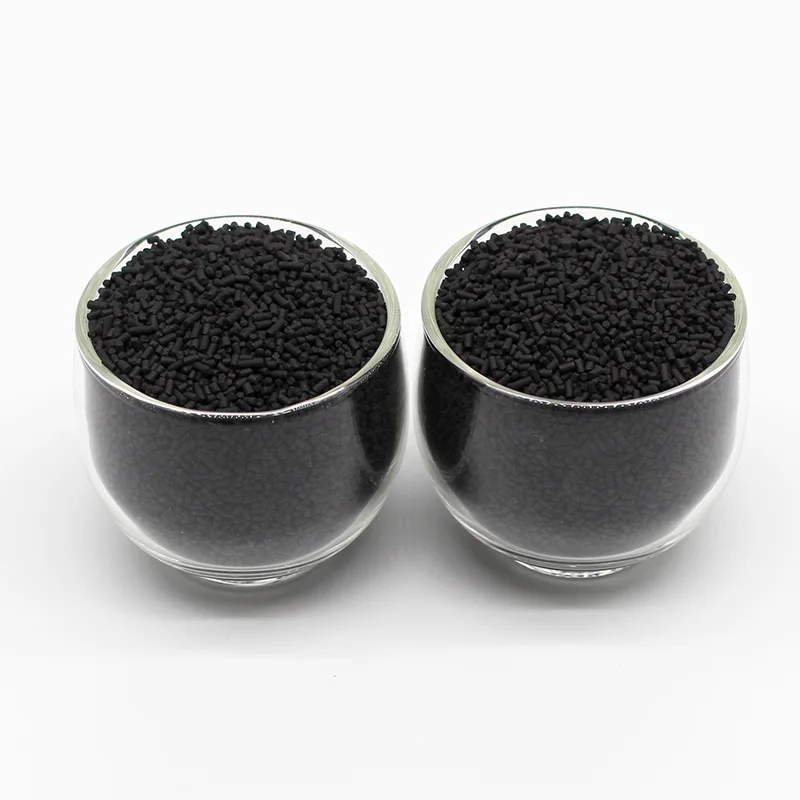

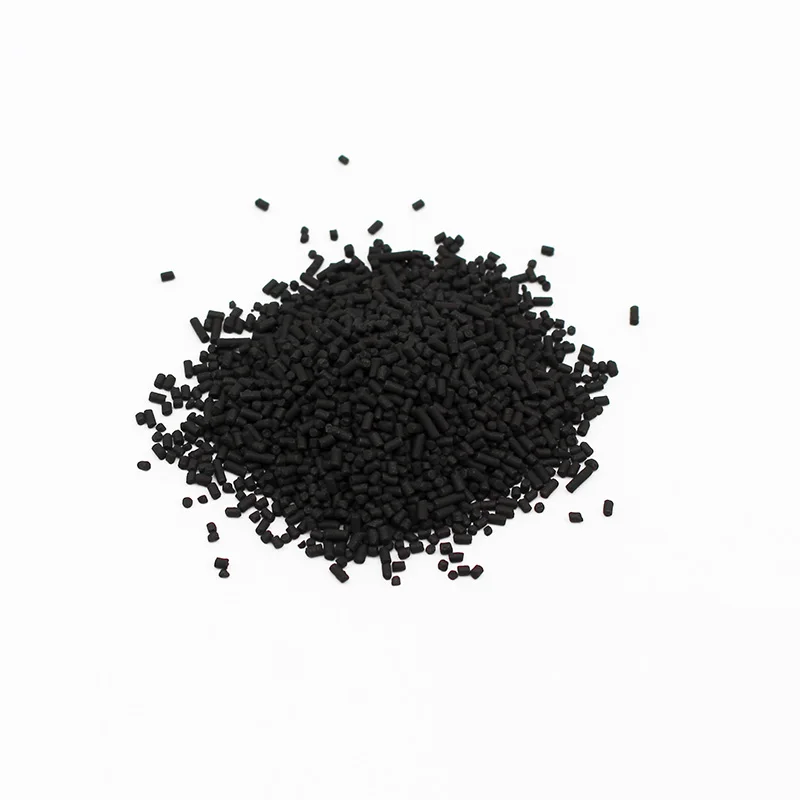

Chemxin Carbon Molecular Sieve takes the appearance of cylindrical black solid, contains countless 4 angstrom fine pores. It can be used to separate air into nitrogen and oxygen. In industry, CMS can concentrate nitrogen from air with PSA systems. Our CMS products have the character of large nitrogen yield capacity; high nitrogen recovery. It can meet the requirement of all types of PSA nitrogen systems. The carbon molecular sieve is widely applied in petroleum chemical industry, the heat treatment of metal, the electronic manufacture and food preservation industries.
Technical Parameter:
Model
Carbon Molecular Sieve
Appearance
Black, extruded(pellet)
Nominal pore diameter
4 angstroms
Diameter (mm)
1.3mm; 1.6mm; 2.2mm or customized
Crushing strength
100N/P min
Bulk Density
640-660g/ml
Dust level
100PPM Max
Type
Adsorbent pressure
Nitrogen purity
Nitrogen quantity
Nitrogen recovery
(MPa)
(N2%)
(NM3/h.t)
N2/Air(%)
CMS-200
0.8
99.99
70
21
99.9
140
27
99.5
200
36
99
260
41
98
330
48
CMS-220
0.8
99.99
90
25
99.9
160
34
99.5
220
43
99
290
48
98
360
54
CMS-240
0.8
99.99
100
26
99.9
175
35
99.5
240
44
99
300
49
98
370
55
CMS-260
0.8
99.99
110
27
99.9
190
36
99.5
260
45
99
310
50
98
380
56
Typical Application: a) Be used to separate air into N2 and O2. b) Be applied in petroleum chemical, heat treatment, electronic and food preservation industries.
