cheap price 150 ton portable hydraulic track link pin press
US $350.00-$850.00
200T 300T Portable Track Pin Press Hydraulic Master Pin Press for Bulldozer CAT D8 D9 D10 D12
- Category: >>>
- Supplier: Nanyang Xinda Electro-Mechanical Co. Ltd.
Share on (62230733472):
Product Overview
Description
Product Overview

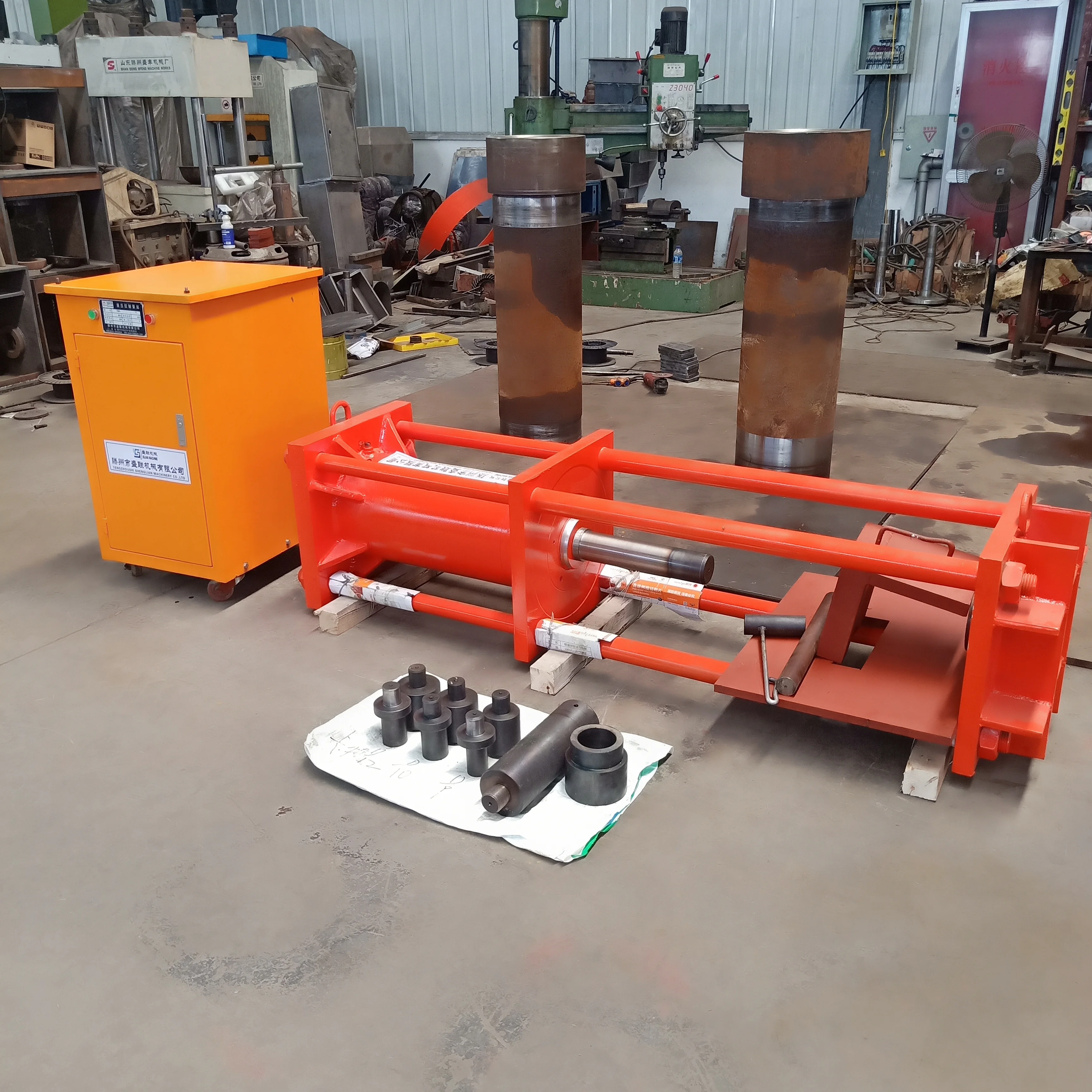

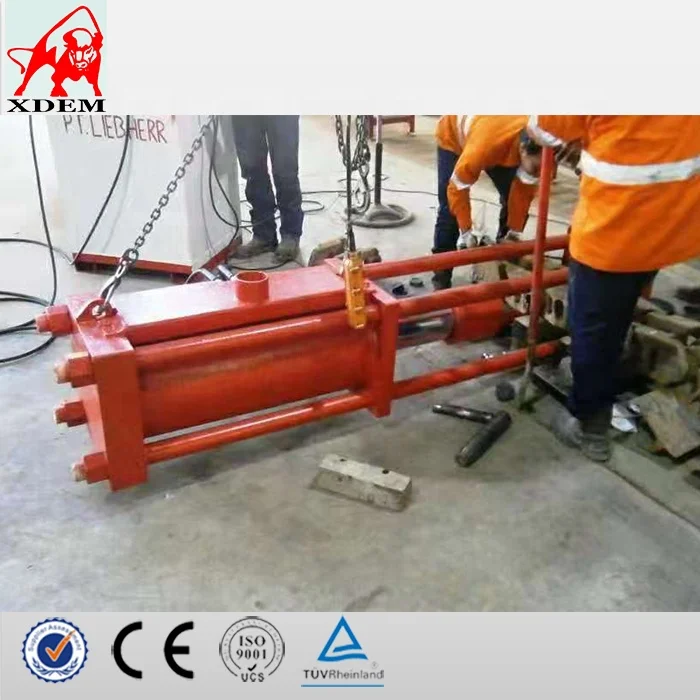

Portable Track Pin Press 200T/300T for D8 D9 Excavators, Dozers, etc.
Hydraulic track pin press is used for press fitting and repair of the traveling mechanism of construction machinery. Hydraulic track press manufactured by our company is suitable for the assembly and dis-assembly of link chains and shaft sleeves for various crawler construction machinery and equipment. It is an essential equipment for construction machinery maintenance companies.
FEATURES AT A GLANCE
Bidirectional hydraulic device
Reducing oil circuit
Easy to maintain and repair
Both in-plant use and on thee site
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Nominal force of oil cylinder | 2000kN | ||
2 | Press stroke | 500mm | ||
3 | Rated pressure | 25Mpa | ||
4 | Opening length | 950mm | ||
5 | Effective area of four screw rods | 500x500mm | ||
6 | Motor | 5.5kW/380v/50Hz | ||
7 | Pump | 10Ml/r |
