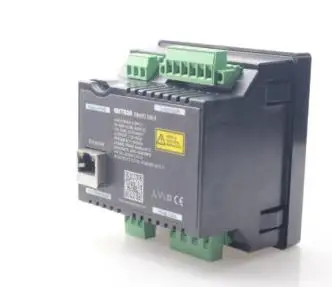

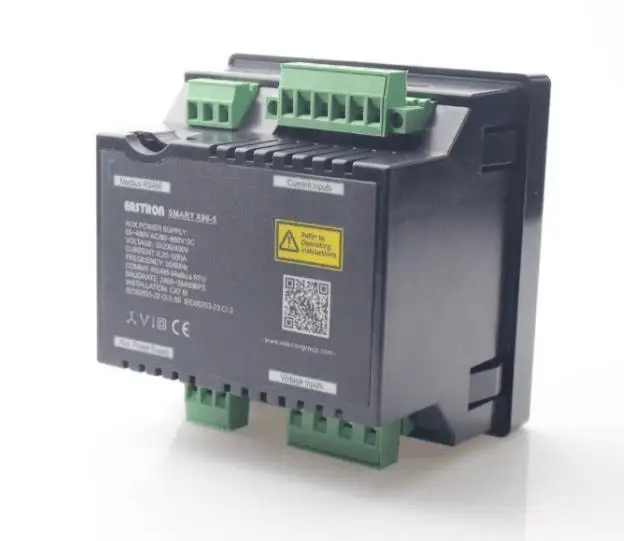

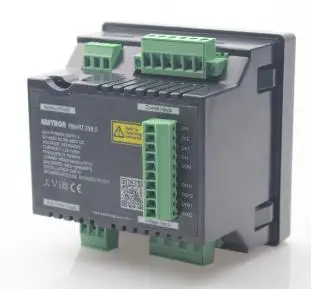

Smart X96 5F~J Three Phase Multifunction Measurements RS485 Modbus LCD Smart Panel Meter Digital
- Category: Panel Meters >>>
- Supplier: Zhejiang Eastron Electronic Co. Ltd.
Share on (62231109948):
Product Overview
Description
The multifunction energy analyzer SMART X96 F~J series is a top new-generation intelligent panel meter with built-in interfaces provides RS485 Modbus RTU and Ethernet TCP/IP communication. Digital input and outputs are provided for external signal counting and external device control. 30 type's parameters can be set for alarm. This series is widely used not only in the electricity transmission and power distribution system, but also in the power consumption measurement and analysis in LV/MV Intelligent power grid. The Unit can be used as a gateway for Modbus RTU/TCP.
SMART X96 measures and displays the characteristics of 1p2w, 3p4w and 3p3w supplies, including voltage, frequency, current, power and active and reactive energy, imported or exported, Harmonic, Power factor, Max. Demand etc. Energy is measured in terms of kWh, kVArh and kVAh. Maximum demand current can be measured over preset periods of up to 60minutes. The SMART X96 can be configured to work with a wide range of CTs and Pts, giving the unit a wide range of operation.
Characteristics
- Multi-parameter Measurements
- Up to 63rd THD and IHD
- RS485 Modbus RTU
- Ethernet TCP Gateway
- Multi-tariffs
- Digital Input/Output
- Accuracy Class 0.5s
- Bar Graph for Power Indication
- Backlit LCD Display for Full Viewing Angles
- Push-in Installation and Plug-in Connection
Type of measurement | RMS including harmonics on three phase AC system (3P, 3P+N) | |
Measurement accuracy | Active power | 1.0% of range maximum |
Reactive power | 1.0% of range maximum | |
Apparent power | 1.0% of range maximum | |
Active Energy | IEC 62053-22 Class 0.5S, IEC 62053-21 Class 1.0 | |
Reactive Energy | 1.0% of range maximum to IEC 62053-24 | |
Frequency | 0.2% of mid-frequency | |
Current | 0.5% of range maximum | |
Voltage | 0.5% of range maximum | |
Power Factor | 1% of unity (0.01) | |
| THD | 2% to 63rd harmonic |
Input & Output | ||
Input-Current | Rated Current | 5A |
Max Current | 9999A (for X96-RC 20000A) | |
Min Current | 0.25A | |
Starting Current | 20mA | |
Output | Contact Rating current | 2-27mA at 27V DC |
Contact Rating voltage | 5-27V DC | |
Pulse Width | 60 / 100 / 200 ms | |
Pulse rate of S0 1 | 0.01 / 0.1 / 1 / 10 / 100 kWh/kVArh | |
| Pulsed output of S0 2 (non-configurable) | 3200IMP/kWh |
| Communications | Modbus RTU (RS485) |
| Type | 2-wire half duplex |
| Baud rate | 2400,4800, 9600, 19200, 38400 |
| Address | 1 to 247 |
Mechanical Characteristics | |
Weight | 340g |
IP Degree of Protection (IEC 60529) | IP51 front display |
Dimensions (WxHxD) | 96x96X92mm |
Panel cut-out | Vertical |
Material of meter case | Self-extinguishing UL 94 V-0 |
Terminals | Voltage: Shrouded screw-clamp. Current: RJ12 |
Environmental Characteristics | |
Operating Temperature | -25 to 55°C |
Storage Temperature | -40 to 70°C |
Humidity Rating | <95% RH at 50 °C (non-condensing) |
Pollution Degree | 2 |
Altitude | 3000m |
Electromagnetic Compatibility | |
Electrostatic Discharge | IEC 61000-4-2 |
Immunity to Radiated Fields | IEC 61000-4-3 |
Immunity to Fast Transients | IEC 61000-4-4 |
Immunity to Impulse Waves | IEC 61000-4-5 |
Conducted Immunity | IEC 61000-4-6 |
Immunity to Magnetic Fields | IEC 61000-4-8 |
Immunity to Voltage Dips | IEC 61000-4-11 |
Radiated Emissions | EN55011 Class A |
Conducted Emissions | EN55011 Class A |
Harmonics | IEC 61000-3-2 |
Safety | |
Measurement Category | Per IEC61010-1 CAT III |
Current Inputs | Require external Current Transformer for Insulation |
Over voltage Category | CAT III |
Dielectric Withstand | As per IEC 61010-1 Double Insulated front panel display |
Protective Class | II |
