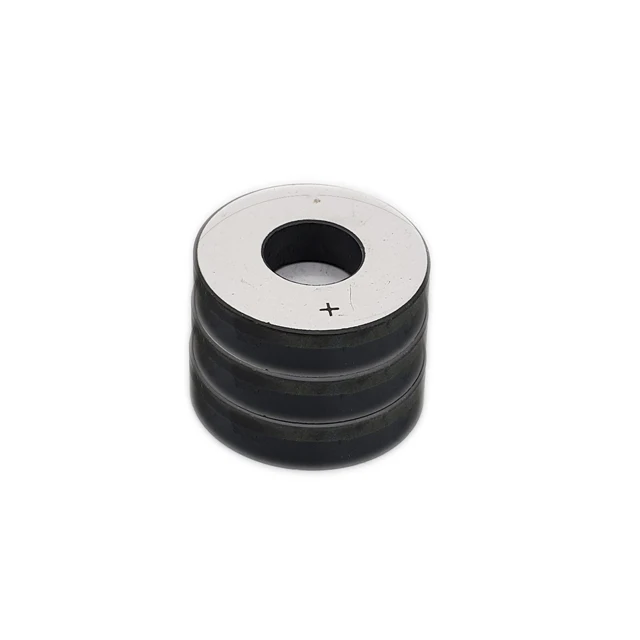

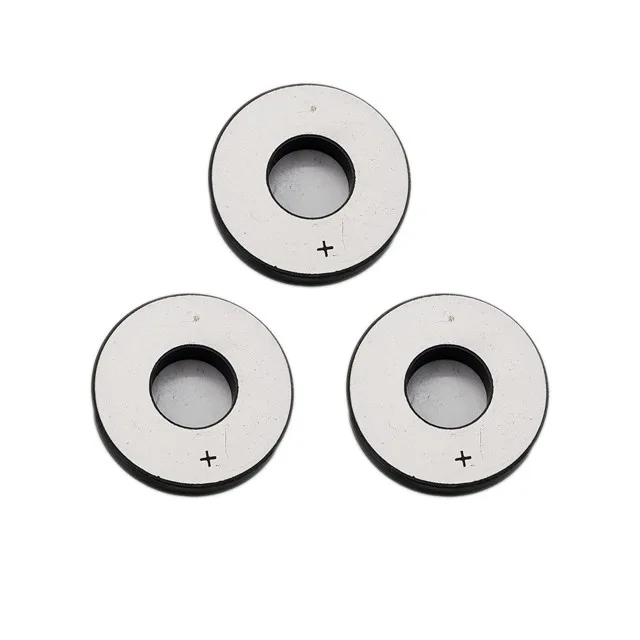

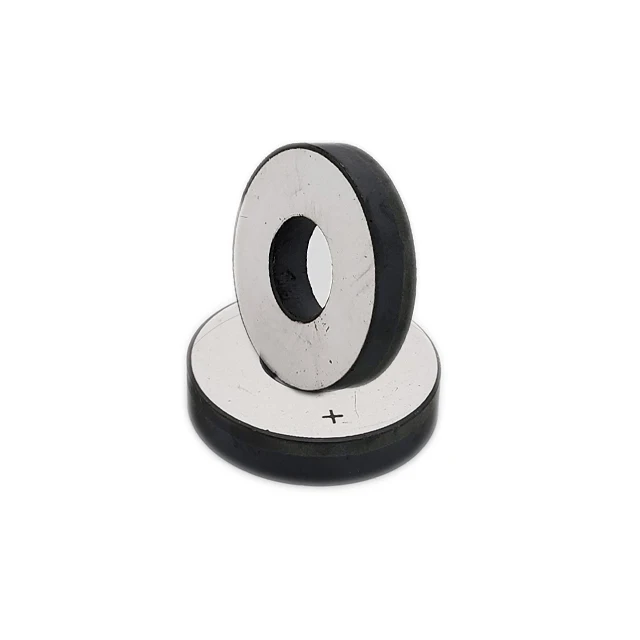

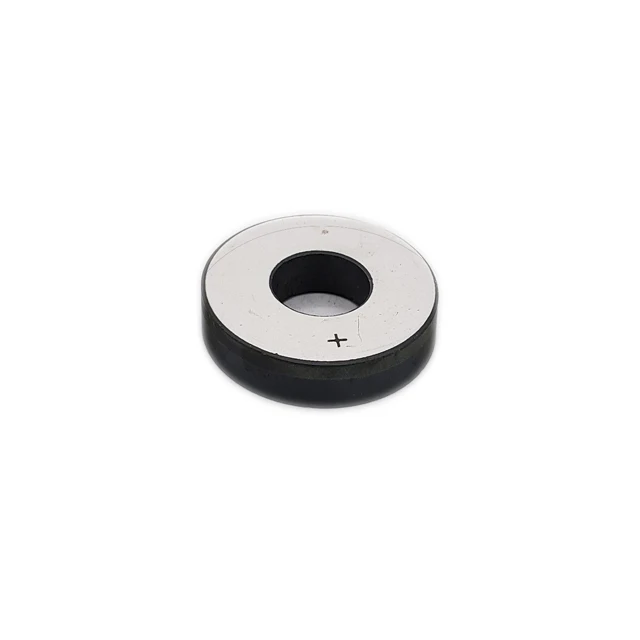

High Quality PZT 8, PZT 4 Material Piezoelectric Ceramic Ring
High Quality PZT-8, PZT-4 Material Piezoelectric Ceramic Ring
High Quality PZT-8, PZT-4 Material Piezoelectric Ceramic Ring
High Quality PZT-8, PZT-4 Material Piezoelectric Ceramic Ring
High Quality PZT-8, PZT-4 Material Piezoelectric Ceramic Ring

High Quality PZT 8, PZT 4 Material Piezoelectric Ceramic Ring

Share on (62231136713):


Price:RUB 151.64

Quantity:


Product Overview

Description

Product Description
Model
CL-R35
CL-R38
CL-R50
Size
Φ35×16×5.0
Φ38×16×5.0
Φ50×16×5.0
Diameter
30mm
38mm
50mm
Thickness
5.0mm
5.0mm
5.0mm
Coupling Coefficient(Radial)
≥0.62
≥0.62
≥0.62
Coupling Coefficient
(Thickness)
≥0.47
≥0.47
≥0.47
Relative Permittivity
1800±200
1800±200
1800±200
Mechanical Quality Factor
1400±300
1400±300
1400±300
Curie Temp
300℃
300℃
300℃
Density
7.6×10³KG/m2
7.6×10³KG/m2
7.6×10³KG/m2
Piezoelectricity constant
≥300×10ֿ ¹²C/N
≥300×10ֿ ¹²C/N
≥300×10ֿ ¹²C/N
Frequency
48.0±1KHZ
42±1KHZ
34±1KHZ
Insulation Resistance
≤20Ω
≤15Ω
≤20Ω
Capacity
2100pf±10%
2300±200 pf
4500±200 pf
Dissipation factor
≤0.4%
≤0.4%
≤0.4%
Apply Range
Transducer & Cleaner
Transducer & Cleaner
Transducer & Cleaner
Products Show
Our Company

Factory

Our Factory

Workshop

Our Workshop

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
