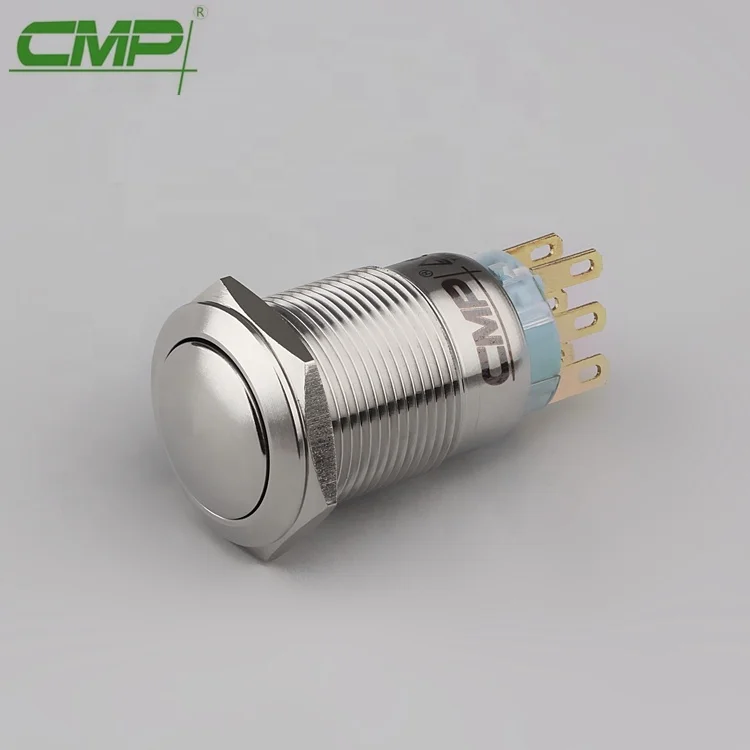

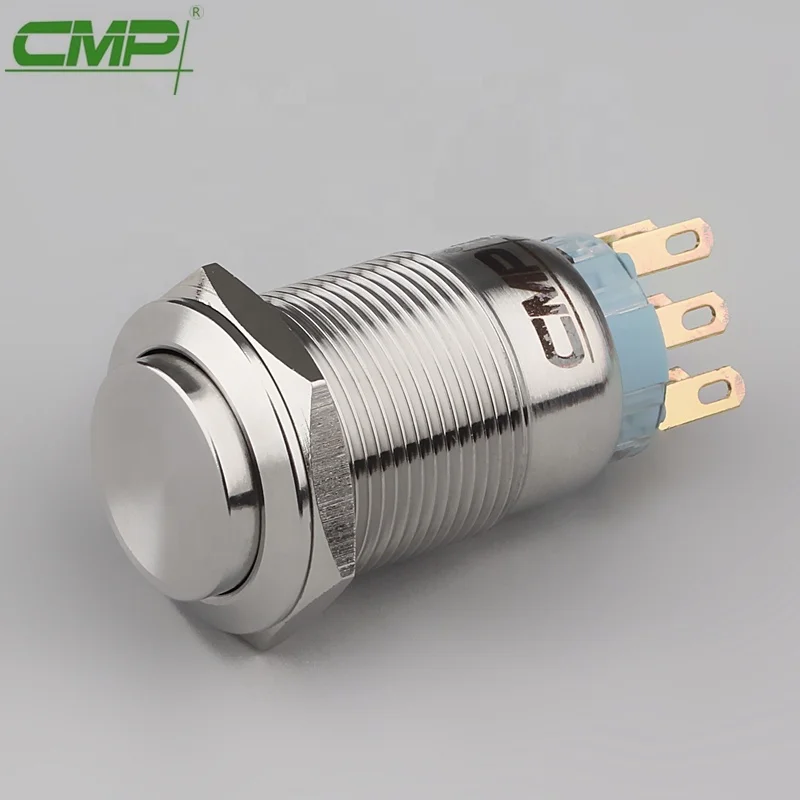

CMP waterproof 19mm 2NO2NC double pole push button switch

Product Overview

Description

double pole push-button switch





CMP waterproof 19mm 2NO2NC double pole push-button switch



1.Thread Diameter:19mm (we have 22mm, 25mm, 28mm,30mm, 40mm for double pole push-button switch)



 2.Operation type:Momentary or Latching



 3.Housing material:Stainless steel or aluminum black or chromium  plated brass



4.Terminal type:Pin terminal



5.Head type:High head,Flat head, domed head with LED or not



6,LED color:red,green,white,blue,yellow,orange,bi-color,tri-color,voltage(made to order)



7.Contact configuration:1NO1NC(SPDT), 2NO2NC(DPDT)

8,switch rating:5A/250V



9,IP67IK10, high quality



10,have TUV,CE,ROSH, SGS

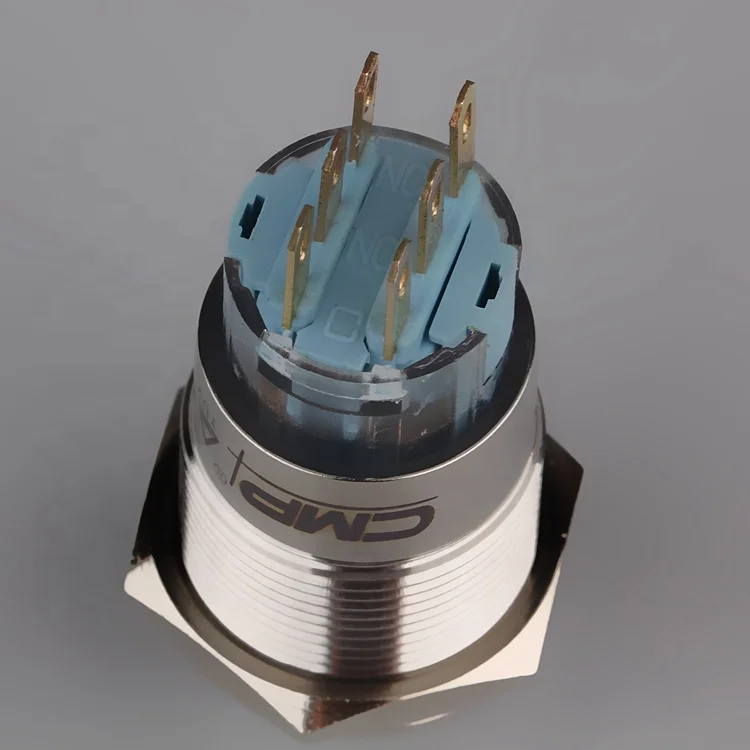

2NO2NC 6 pin push button switch terminal:



Common description for metal push button switch
Momentary	When you push switch and then move your finger, the actuator will back to the original position.
Latching	When you press the button, it keeps pressed until you press again
N.O.	Normally Open circuit
N.C.	Normally Closed  circuit
SPST	Single Pole Single Throw
DPDT	Double Pole Double Throw
Contact	The contact is a conducting part designed to be united by pressure to another conducting part for the purpose of carrying current.
Silver plated gold	Wonderful material with silver plated gold







double pole push-button switch detail specification





You can customize the laser marking and colorized switch.

We supply a great variety of push button switches.Please let me know the parameters of the switch you want,I will recommend the right one for you.

Email: cmpswitch66 at 163 dot com.

Skype: cmpswitch66



related 19mm switches;





double pole push-button switch certificate









 Packaging:inner bubble box--- inner box---carton (or by your request.)

 Delivery Time: All orders ship within 3 days of payment clearing(order quantity less 1000pcs.When order quanity more 1000pcs less 5000pcs, ship within 3-7 days.5000pcs ---10000pcs/order, ship within 7—10 days), Monday - Friday with exception to National Holidays.

Shipping: DHL, EMS, TNT, Fedex, UPS and others international express. Estimated shipping time: 4-9 days.







  6 pin push button switch  double pole double throw switch double pole push-button switch



Supply all products with factory price. If you order our products for the first time, we would like to recommend that you take some samples for testing, so that you will be secure and will find how the quality of our goods is.



1. Installation diameter : There are 12mm series(plastic or metal), and 16mm 19mm 22mm 25mm 28mm 30mm series(metal: stainless steel or copper plated chromium ) button switch.



2. Samples and smaller order as follows:

(1).when you order some samples and smaller order, please contact me by email or Skype for confirming items details.

(2).Shipping: DHL, EMS, TNT, Fedex, UPS and others international express. Estimated shipping time: 3-7 days.



3. Customer Service:

    We strive to provide excellent customer service. All emails will be answered within 24 hours.

    We do not leak your information to any of companies except shipping. When receiving your orders, please inspect the packaging carefully, once finding any damage when get the order from shipping agency, please take pictures and send them to us immediately if possible. We will assist you in replacing your order.

     If you have any questions, please feel free to contact me.

 keyword: double pole double throw switch double pole push-button switch



  double pole double throw switch double pole push-button switch
