High Sensitivity PIR Sensor 360 Degree Human Infrared Motion Sensor Light Switch Ceiling Recessed Switch AC 110V 240V
- Category: Sensors >>>
- Supplier: Yiwu Beide Technology Co. Ltd.
Share on (62233903206):
Product Overview
Description
High Sensitivity PIR Sensor 360 Degree Human Infrared Motion Sensor Light Switch Ceiling Recessed Switch AC 110V-240V
Product Description

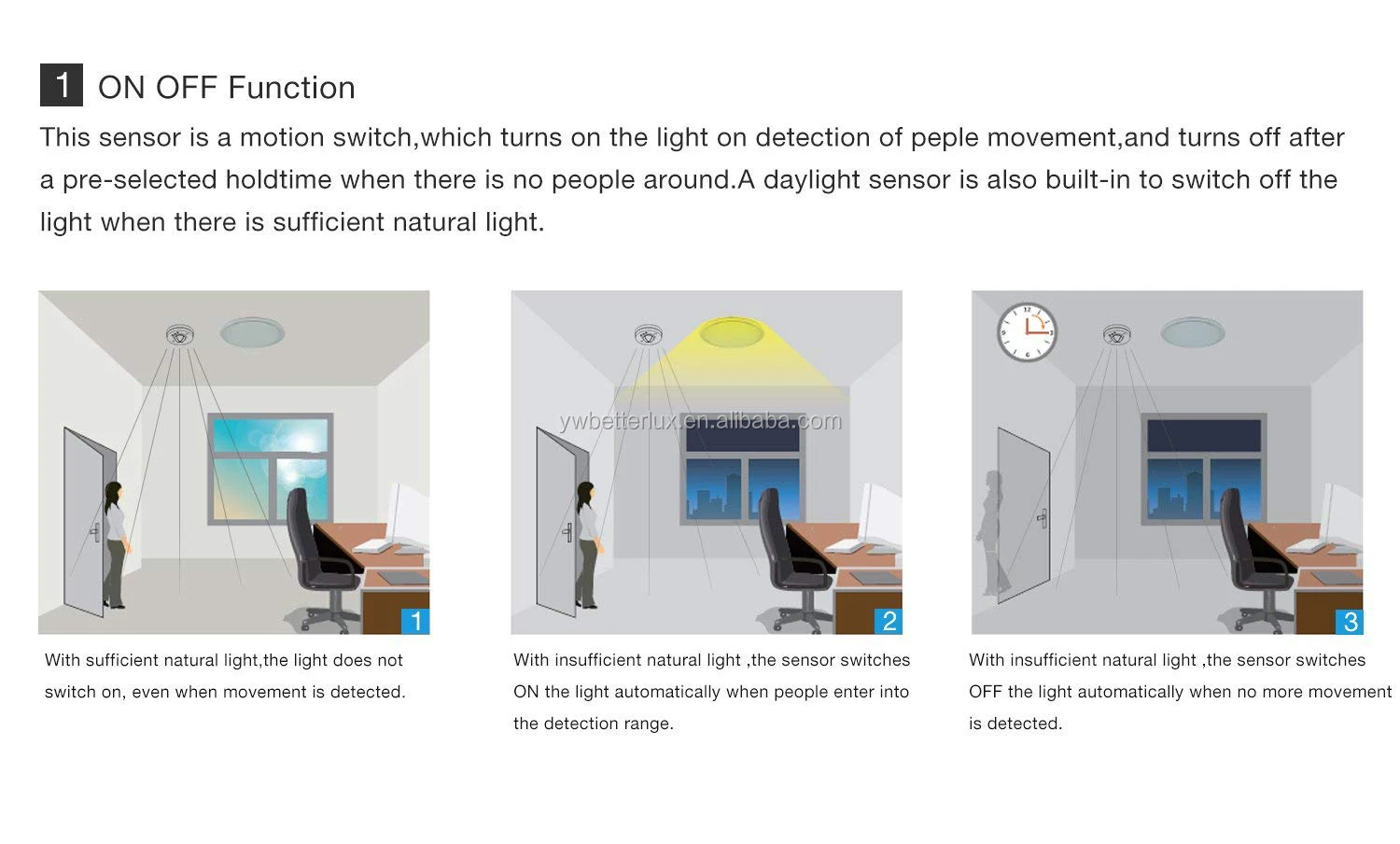

Occupancy Sensing switches are commonly used to control lighting and extract ventilation. They will save energy by ensuring lights and fans are not left on. The energy savings will be high with a short energy saving investment payback time if connected to average energy level lighting such as fluorescent tubes, or compact fluorescent lamps. Higher savings if controlling tungsten or halogen lighting. In a domestic application these products are well suited to rooms such as integral garages, store rooms, toilets, or any other room where lighting may accidentally be left turned on. Potential energy savings in commercial property will be far greater with shorter payback times, generally less than one year.

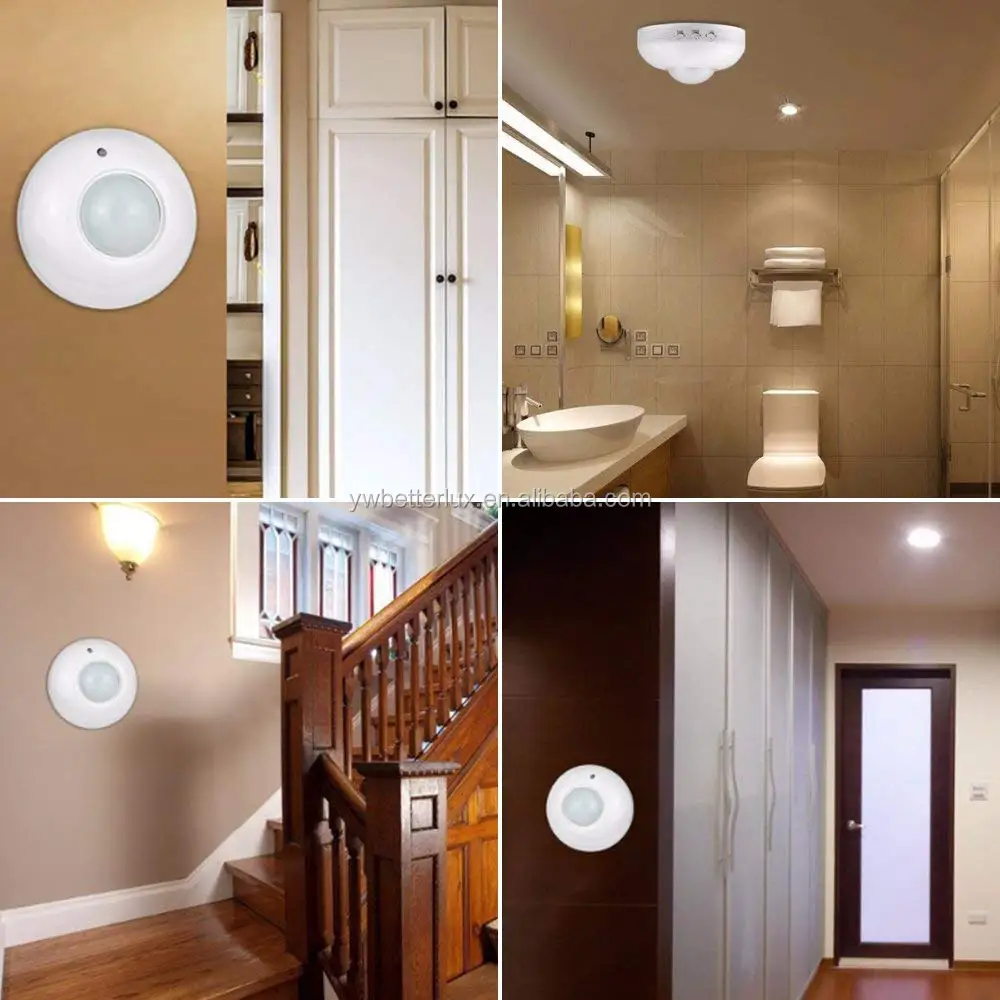

This product is ideally suited to circulation areas, store rooms, toilets, kitchens, common stairs wells or corridors where there are are frequently people passing in an out of an area and the lighting often gets left on all day. Payback is the time it takes for an investment in energy conservation to repay its cost in energy savings. All our PIR and microwave switches have CE marking and have a 2 years warranty.
Specifications:
Condition: 100% Brand New
Material: Plastic + Electronic Component
Color: White
Working Voltage: AC 110-240V
Rated Load Current: 10A
Average Load: Max. 800W(AC110V)/ Max. 1200W(AC220V)

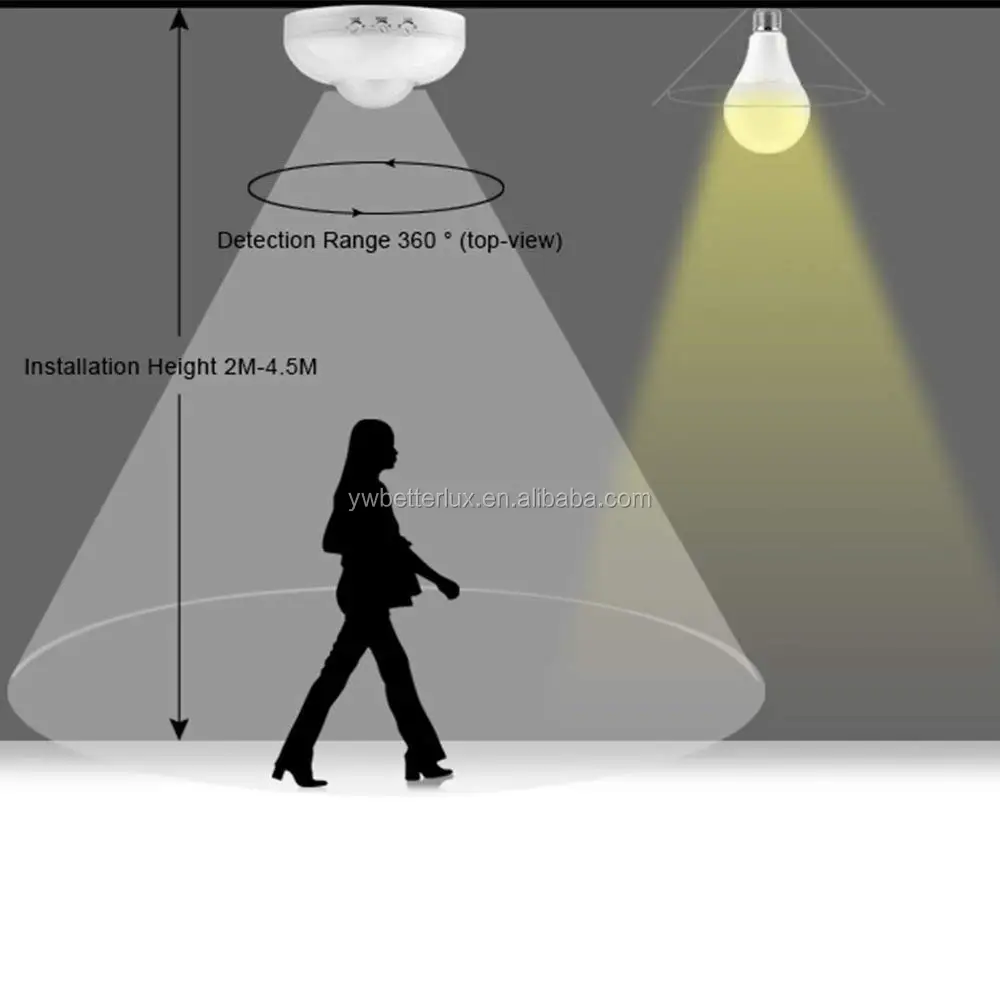

Detection Range: 120 degree(side-view)/360 degree(top-view)
Detection Distance: within 6 meters in diameter(adjustable)
Detection Motion Speed: 0.6~1.5m/s

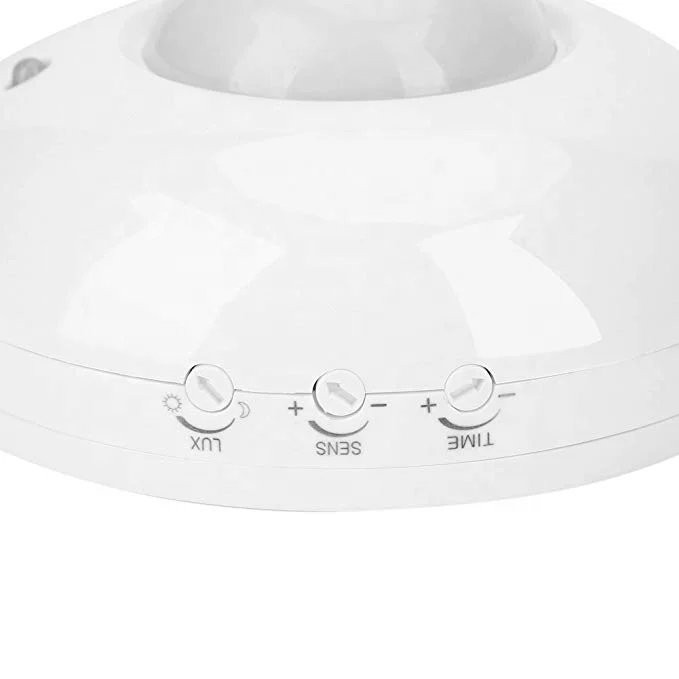

Ambient Light: adjustable 3~2000 lux
Time-delay: Min. 5sec~Max. 7min.
Working Temperature:-20~+40℃
Working Humidity: Max.93%RH
Installation Height: 2~4.5m
Protection Level: IP20
Package Content:
- 1 x Motion Sensor switch
- 1 x User Instruction
