Small mini size OEM Factory Sale Multifunction Laser Distance Module for Laser Rangefinder
- Category: Laser Rangefinders >>>
- Supplier: Suzhou Valueplus2 Electronic Corp. Ltd.
Share on (62234280052):
Product Overview
Description
Small OEM Factory Sale Multifunction Laser Distance Module for Laser Rangefinder
Recommended features
J59 laser ranging module which can realize non-contact and uninterrupted distance measurement. has the advantages of stable measurement accuracy, small size, light weight, convenient installation and wide working temperature range . Especially suitable for integration into Various photoelectric equipment platforms, such as night vision device, UAV pod, etc.
Fast measurement: The measurement right start when Power on. Same cable for power supply and data communication. Provide a complete communication protocol to facilitate customer integration.
Product Parameter | ||
Brand Name | iMeter | |
Place of Origin | Guangdong, China | |
Product Name | Laser Ranging Module | |
Model Number | J59 | |
Measuring Range | 5~600/1000/1500/2000m | |
Ranging Accuracy | 5~100m,±0.5m;100~400m,±1m;>400m,±0.4% | |
Ranging Frequency | 10HZ(Higher frequency can be customized) | |
data format | hexadecimal | |
Measuring Unit | Meter | |
Baud Rate | 9600~230400bps(Universal) | |
Laser Divergence Angle | 3mrad | |
Laser Type | 905nm | |
Laser Safety Level | Class 1 | |
Working Voltage | 3~5V | |
Working Current | 110mA | |

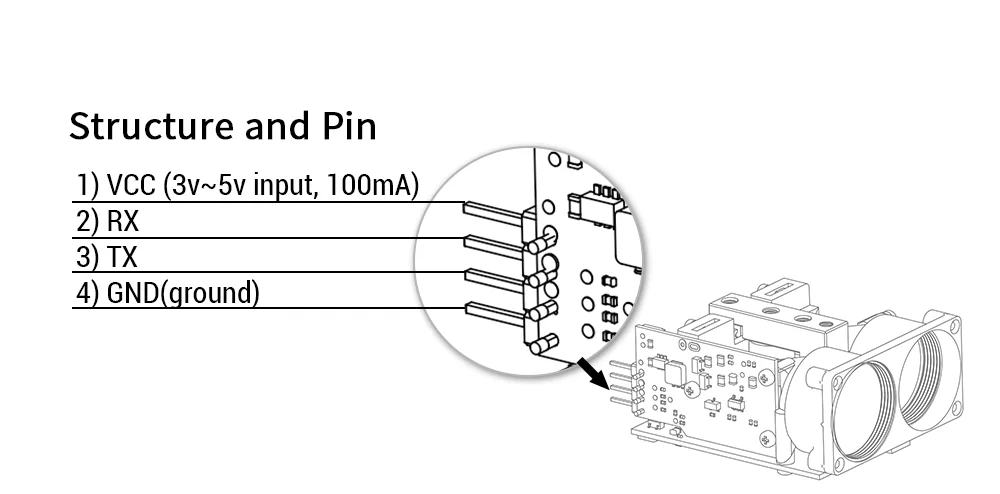

Power Supply | Serial port power supply | |
Product Weight | 36g | |
Size | 57mm*26mm*42mm | |
Package Size | 265*150*188mm/1038g/20pcs | |
Operating Temperature | -20℃ ~50℃（-4~122℉） | |
Storage Temperature | -25℃~60℃（-13~140℉） | |
Data interface | TTL(Can be switched to RS232 by adapter line) | |
Warranty | 18 month | |
Impact Resistance | 800G/ms(10times/s) | |
Certification | CE ,ISO9001,ROHS, FCC | |

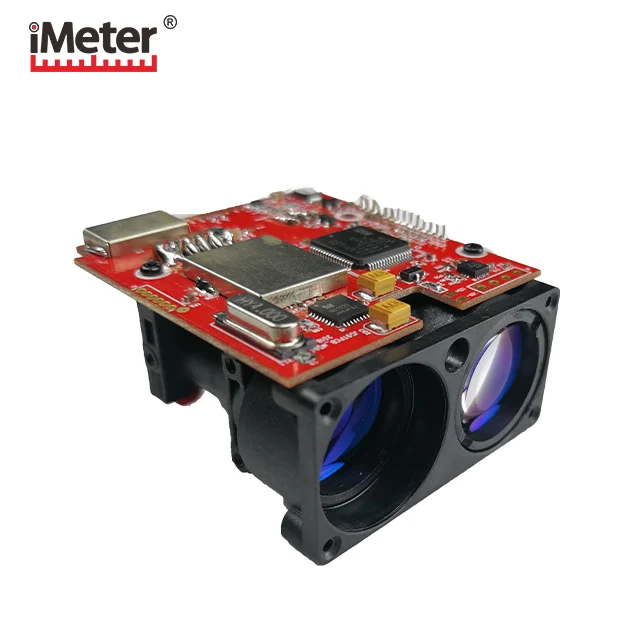

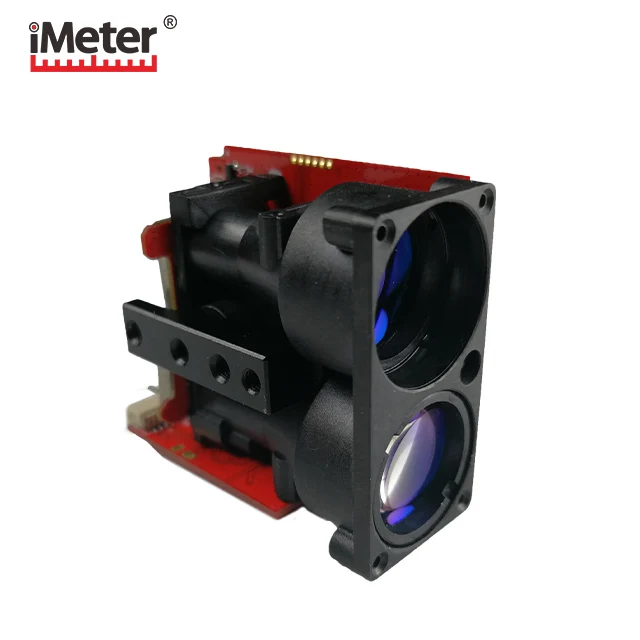

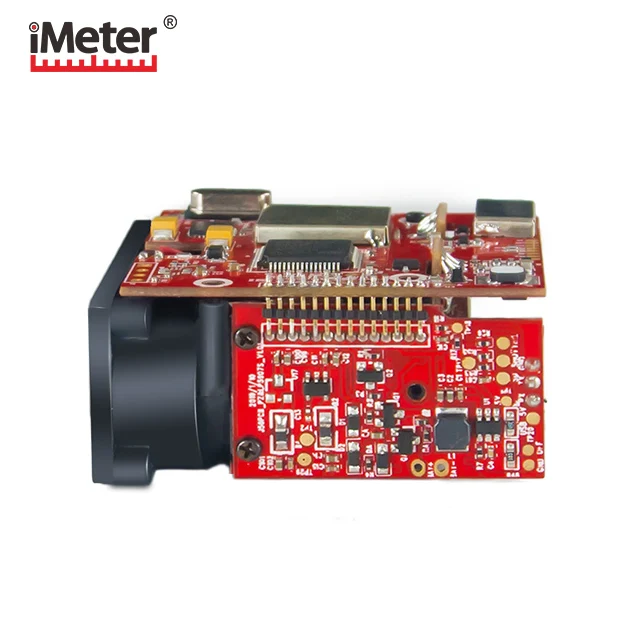

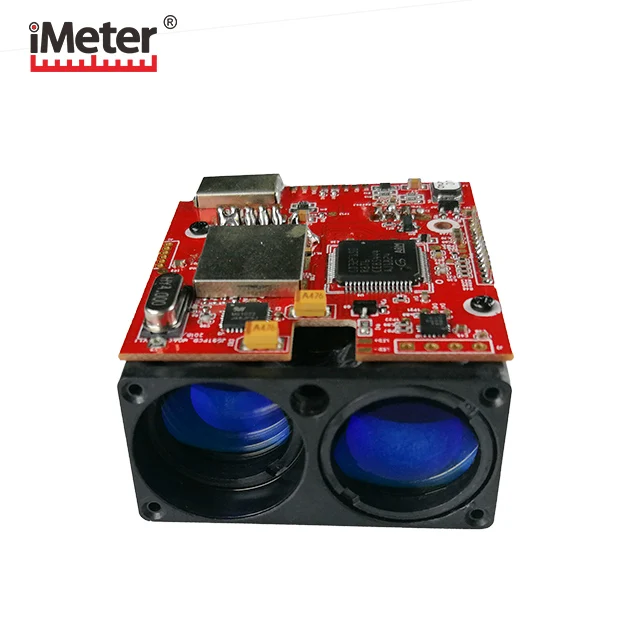

Product display

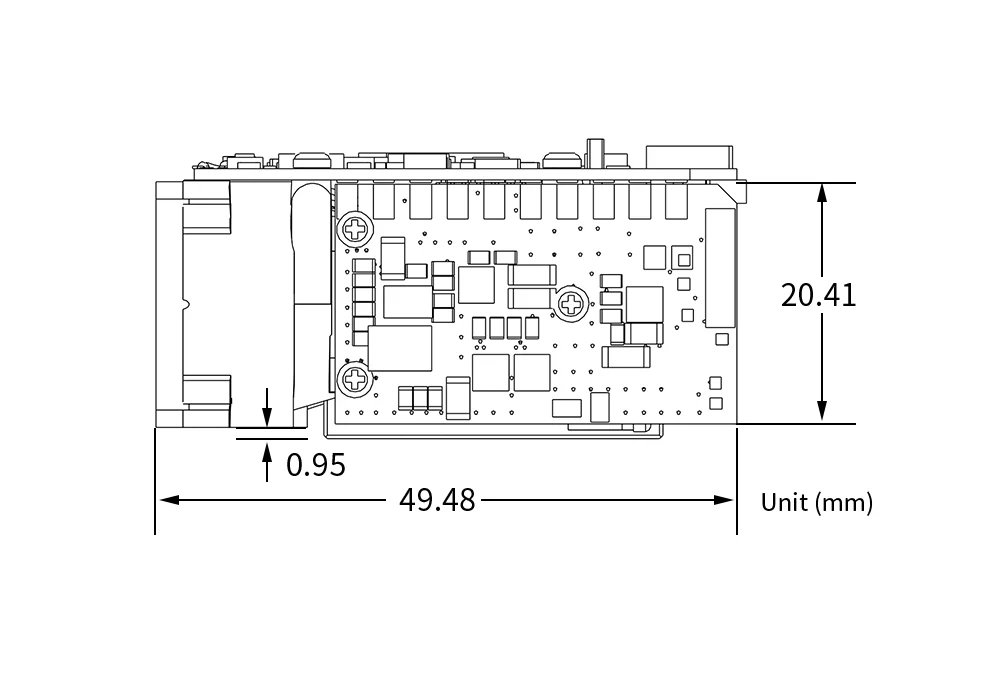

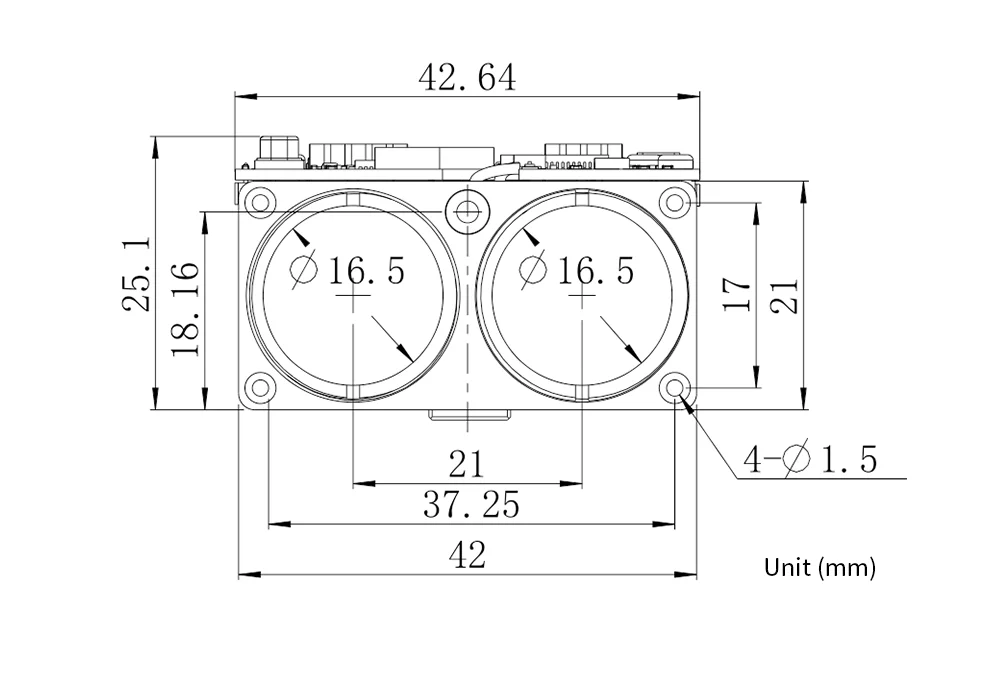

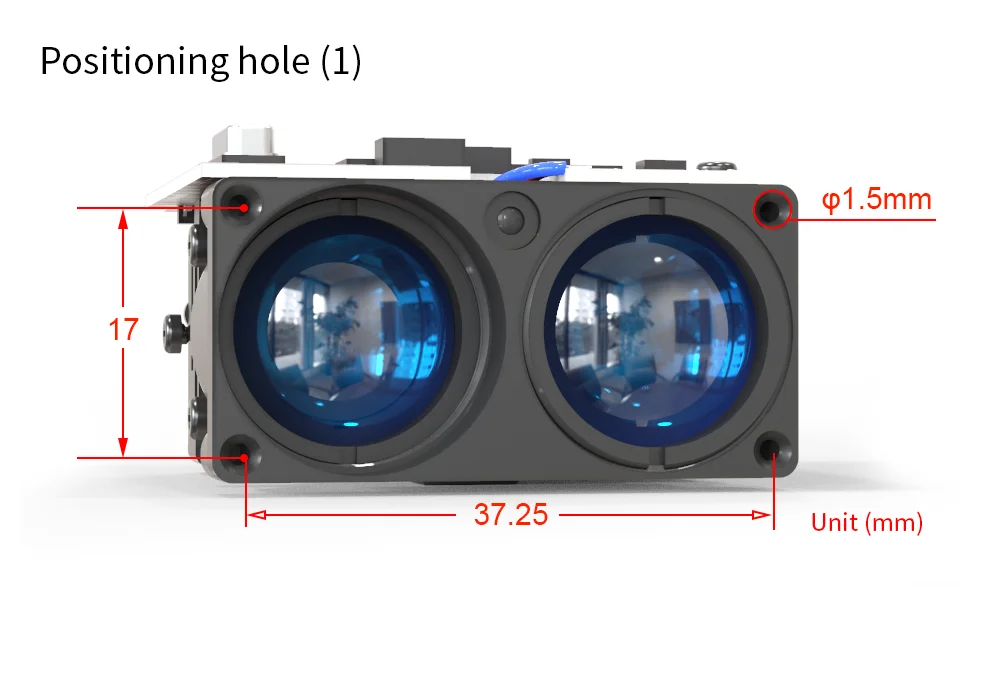

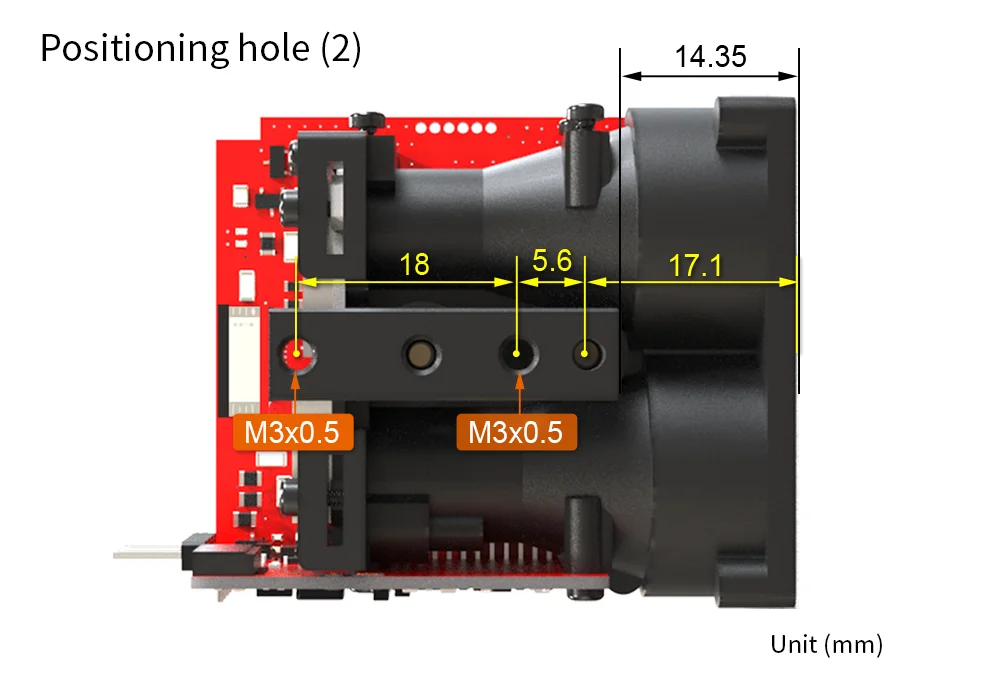

Dimensions

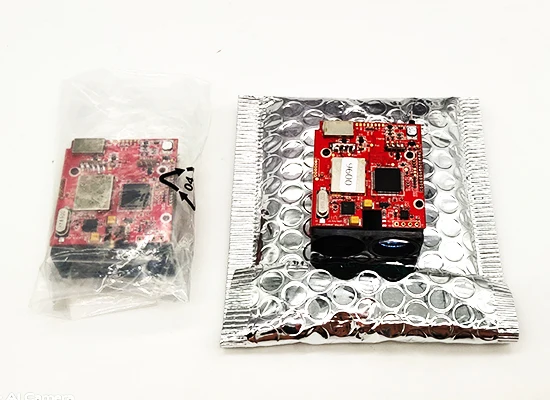

Package
* Anti-static plastic bag*1
* Support customized packaging
* If you need to ship in bulk, we provide shockproof environmentally friendly corrugated boxes
Applications
Our laser ranging module has high integration, low power consumption and light weight. It plays an important role in monitoring system, industrial safety, outdoor activities, UAV application and other fields.
Certifications
All our products have been certified by FCC, CE and ROHS ,before being sold to the market.
