Производитель Китай 3840x2160 @ 60 Гц 4x1 HDMI KVM переключатель 4 к 60 Поддержка ИК управление
- Category: KVM Switches >>>
- Supplier: Shenzhen Tesla Elec Technology Co. Ltd
Share on (62235279141):
Product Overview
Description
Product Description
4x1 HDMI KVM Switch #HKS0401A1U
This 4x1 HDMI KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.
The 4x1 HDMI KVM Switch supports USB 2.0 hub and USB 2.0 keyboard /mouse. By using USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through variable methods, such as the front panel source selector buttons, IR signals and hot keys on keyboard. With EDID emulators in every input ports, keep PCs always have correct display information, prevent display settings changed while switching input ports. Support analog L/R audio output.
HKS0401A1U | 4x1 HDMI 2.0 KVM Switch |
Auto Scan | Yes |
Front panel buttons | Yes |
Keyboard hotkeys | Yes |
IR remote control | Yes |
Resolution | Up to 3840x2160@60Hz 4:4:4 |
Auto to get EDID | Yes |
Data rate | 18 Gbps |
Auto scan interval | 1~250 Seconds |
Panel Description
Top 10 products
Features

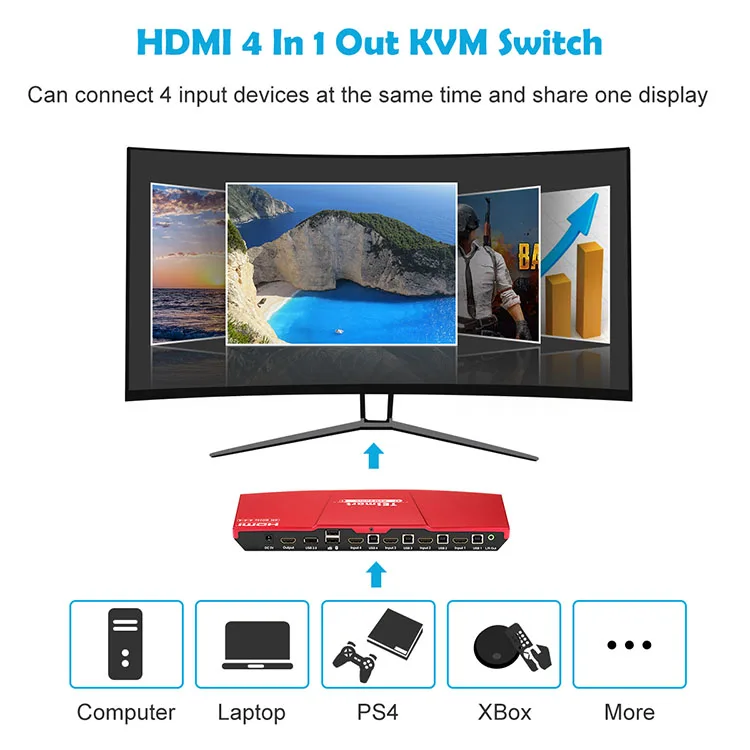

1. Using only 1 set of keyboard, mouse and monitor to control 4 computer devices
2. Available to use keyboard without any delay after switch input sources.
3. Support hot key commands and mouse gesture to switch inputs

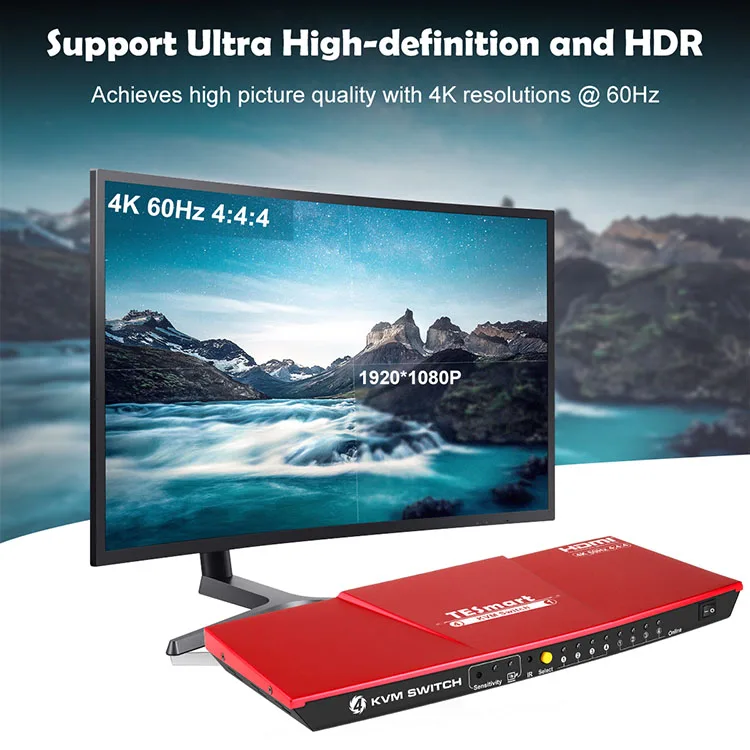

4. Support resolution up to 3840*2160@60Hz 4:4:4
5. Compliant with HDMI and HDCP
6. Support USB 2.0 for printers, USB drives etc
7. With EDID emulators in every input ports, keep PCs always have correct display information.

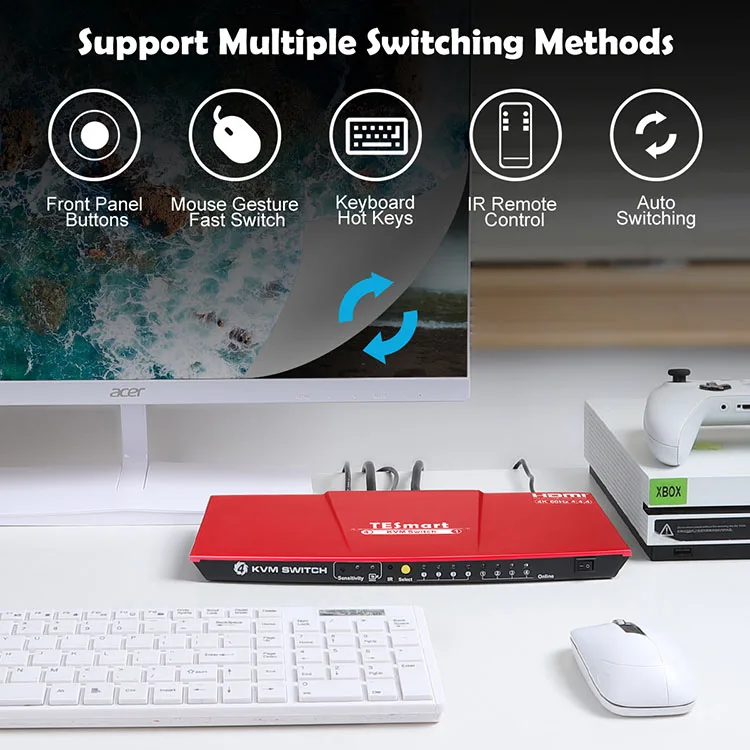

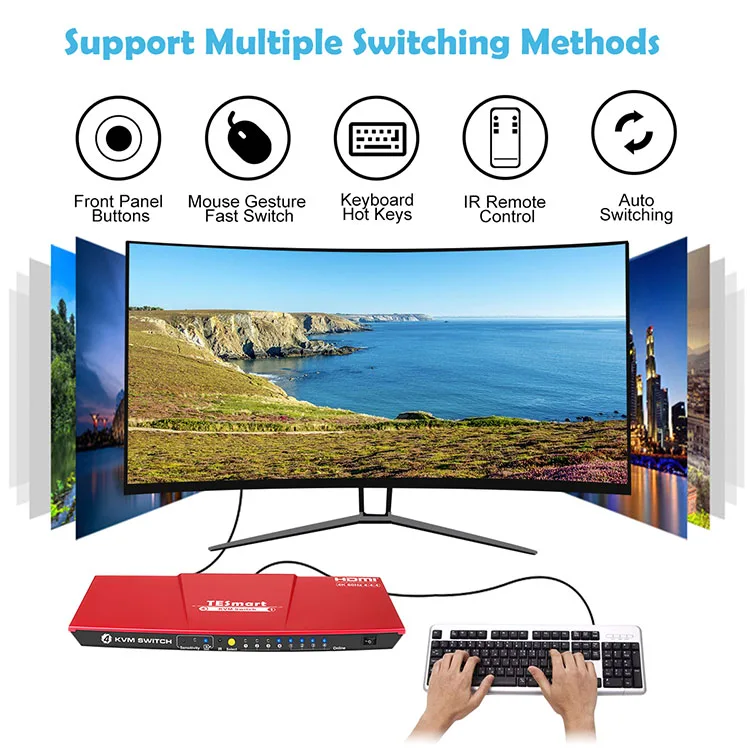

8. Support front panel buttons, IR signals, keyboard hot keys to control KVM switch.
9. Support auto switching among all devices so as to monitor the devices in a specified time interval.
10. Support hot plug, connect or disconnect devices to the KVM switch in any time and without turn off devices.
11. Support analog L/R audio output.
Specification
HKS0401A1U | 4x1 HDMI KVM Switch | |
Functionality: | ||
Auto Scan | Yes | |
Port selection | Front panel buttons | Yes |
Keyboard hotkeys | Yes | |
IR remote control | Yes | |
Console commands | No | |
Technical: | ||
Resolution | Up to 3840x2160@60Hz 4:4:4 | |
Auto to get EDID | Yes | |
Data rate | 18 Gbps | |
Auto scan interval | 1~250 Seconds | |
Beep Sound | On/Off | |
OSD | No | |

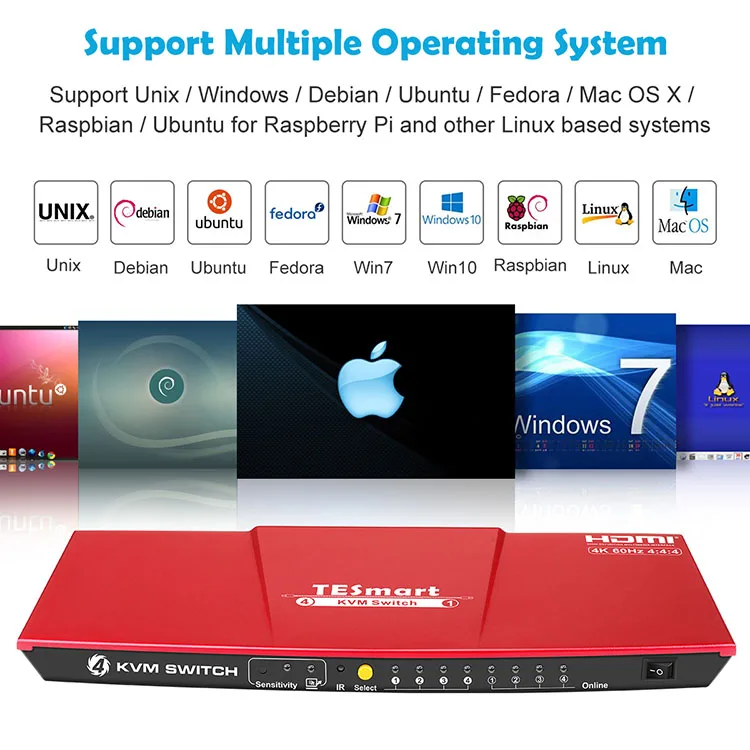

Supported OS | Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based systems | |

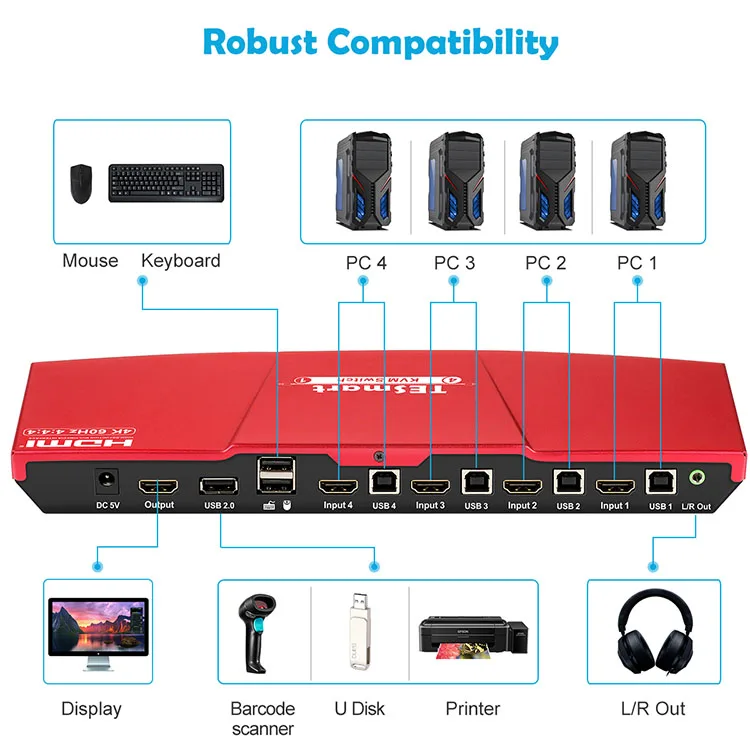

Console ports | Keyboard emulation | 1 * USB Type A |
Mouse emulation | 1 * USB Type A | |
USB 2.0 Hub ports | 1 * USB Type A | |
Video /Audio | 1 * HDMI Type A | |
RS232 | NA | |
LAN | NA | |
System ports | USB Data | 4 * USB Type B |
Video / Audio | 4 * HDMI Type A | |
ESD protection | Human body model - ±8kV (Air-gap discharge) | |
Mechanical: | ||
Chasing material | Aluminum Alloy | |
Product dimensions | 300 (L) x 117 (W) x 27 (H) mm | |
Item weight | 800g | |
Company Profile
Established in 2013, Tesla Elec Technology Company limited is a professional manufacturer and exporter that is concerned with the design, development and production of audio and video matrix, splitter, switcher, KVM, extender and converter.
All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. We have a R&D team with over ten years experience providing ODM and OEM services in various video related products, just tell us your requirements, we can do more than you can imagine. We are looking forward to forming successful business relationships with new clients around the world in the near future.
Certifications
Our Advantages
15+Experience
R&D Engineer
15+Experience
The founders of the company are all from R&D department of the biggest TV manufacturer in China, with 15+ years audio and video solution development experience, knew well of European and American markets. The R&D team had ever developed 120+ ODM products for various kinds of application from 2013.
Product Advantage
CE/FCC/UL/KC/Rohs ... certified
10+ years experience on HDMI compatible issues5+ years experience on USB HID compatible issues
Stable quality
Hot plug and play
Easy to setup
Service Advantage
Professional technology support，Quick response to after-sales service，Various payment: TT. /Paypal/ Western Union
FAQ
Why choose TESmart
1.We have our own warehouse, which can ensure us of shipping out orders within 24 hours after payment (weekends and holidays excluded).
2.We have a R&D team with over ten years experience, providing ODM and OEM services in various video related products.
How to order
1.Pls send email or chat with us via Platform, Whatspp, Skype, and let us know your requirements on order details.
2.We will reply you with Proforma invoice based on your order request.
3.Kindly check the PI, and if everything is ok, the goods will be delivered to you asap after we got your payment.
4.Sample order supported.
Shipment & payment
1.T/T, PayPal, Western Union, L/C available.
2.DHL, UPS, EMS, FedEx, Air freight, Sea freight supported.
Exhibition
