4 in 1Soldering Station BGA Repair Machine Hot Air Suction desoldering gun WEP 948 II

Product Overview

Description

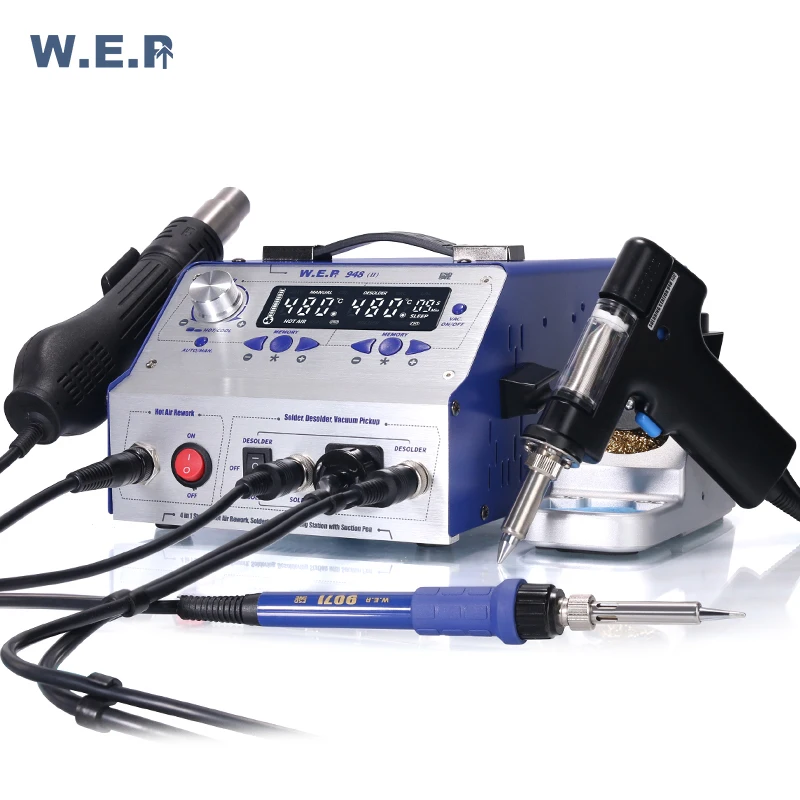

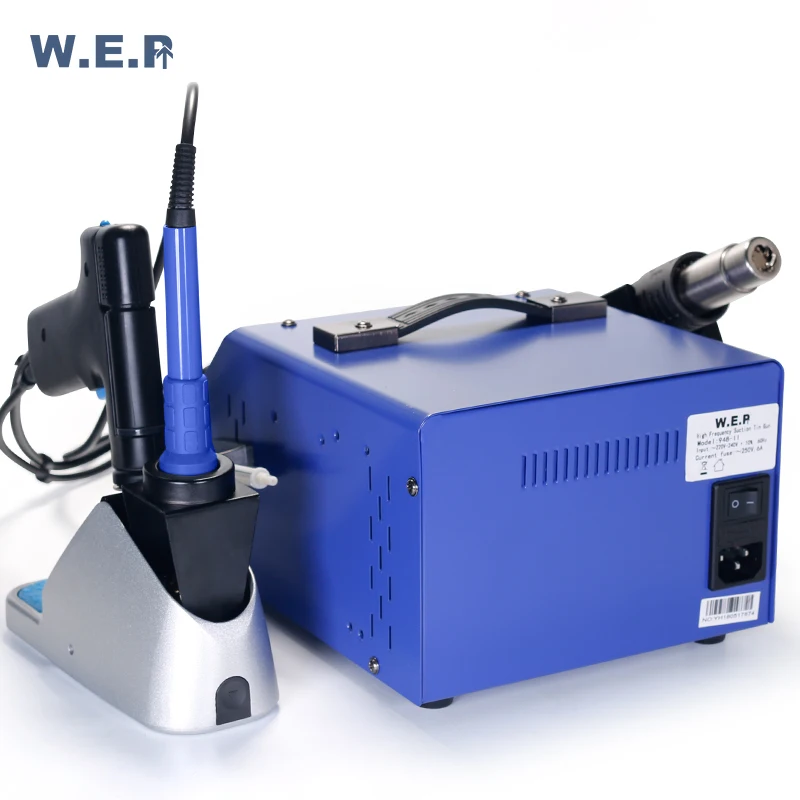

WEP 948-II  4 in 1Soldering Station BGA Repair Machine Hot Air Suction desoldering gun

Product Features

1.  Adopts PID programmable temperature control technology with an implant able highest-precision PID program for high-speed tracking and detection of actual desoldering gun and soldering iron temperatures with real-time temperature correction. Miraculous temperature compensation speeds allow for minimal temperature error for temperature stability and compensation speeds.

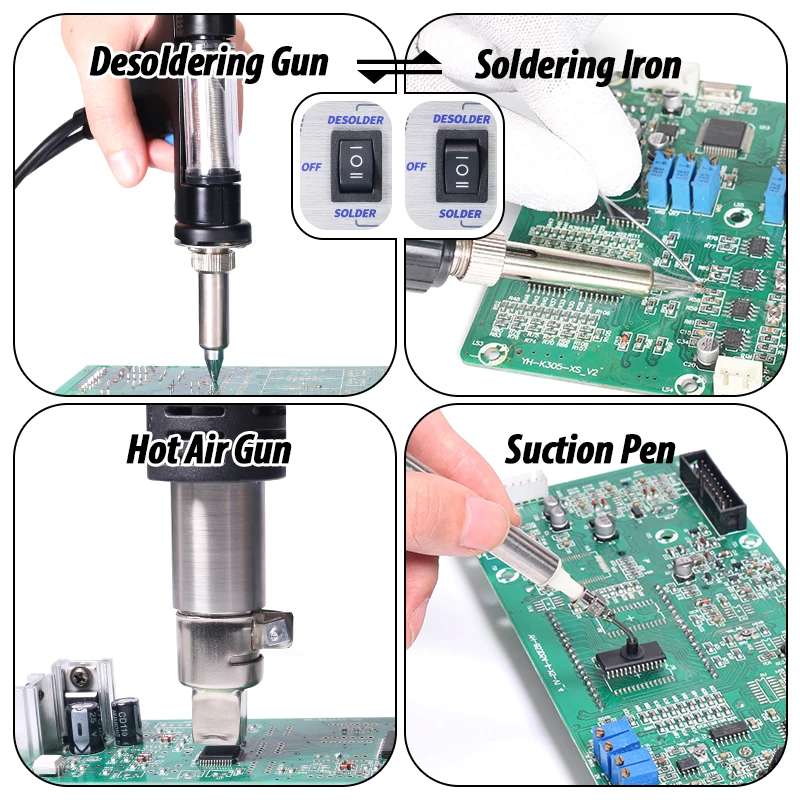

2.  With hot air gun rework station, desoldering station, soldering iron and suction pen functions, the rework range is wide. The desoldering station and soldering iron functions are smart with interchangeable identity. With a handle connected, such a function can easily be used.

3.   Anti-static design prevents electrostatic component damage or leakage.

4.  Built-in vacuum with strong suction and without an external vacuum system, easy to carry.

5.  The design of machine has the following strong humanization functions:

A. With 3 storage function: Different parameters can be stored separately, it is convenient to choice, and easy to operate.

B. Digital temperature correction function: You can use this feature to correct the temperature when the iron temperature is different from the display temperature ,which caused by the environmental impact or replacing heating element, iron tips or other components.

C. Temperature Celsius/Fahrenheit display function: This temperature display mode designed to meet the needs of different markets, you can choose according to your customary or interest.

D. Iron sleep function: Soldering iron automatic detection of their work status are not in use in a quiescent state, arriving to set the sleep time, the temperature of the iron automatically lower the temperature to 200°C enter into sleep state, can effectively prevent the oxidation of iron head and prolong the iron tip service life, energy saving and environmental protection. The sleep time can be set range: 2 to 99 minutes in 1 minute steps, users can be set based on usage, if you do not need a soldering iron sleep ,the sleep time is set to - - -.

Waking up hibernation method:

a. Shake soldering handle up and down several times or flick the red switch on the suction gun once.

b. Press any one button.

c. Turn the power switch on and off.

E. Automatic shutdown function: After machine enter into sleep state, start the timer program, set the shutdown time did not wake up from sleep, automatic shutdown, energy saving and environmental protection. Auto power off time setting range: 2 to 99 minutes in 1 minute steps, If you do not need a auto shutdown function ,the power off time is set to - - -.

F. Air gun without wind protection function: Non-normal stopping in the process of using a hot air gun, the heating element will stop heating, it can prevent burn the handle, and greatly improved product safety.

G. Air gun automatic/manual function:

a. When you choose the Auto function, and the air gun handle back on the bracket, the machine will shut off the heater automatically and cool down, it can prolong the service life of the heating element effectively and it is energy saving and environment friendly. It has very high safe factors when turn on the machine again ,when you turn on the machine at the an unknown condition. It can prevent the fire or other accidents effectively.

b. When you choose the manual function, the air gun will not cool down when you put it back to bracket, this function is suitable for using the air gun frequently, it can save the cooling and warming up time, improve the working efficiency. We recommend you that after using the manual function, please transfer the function into auto function, so it can improve the safety.

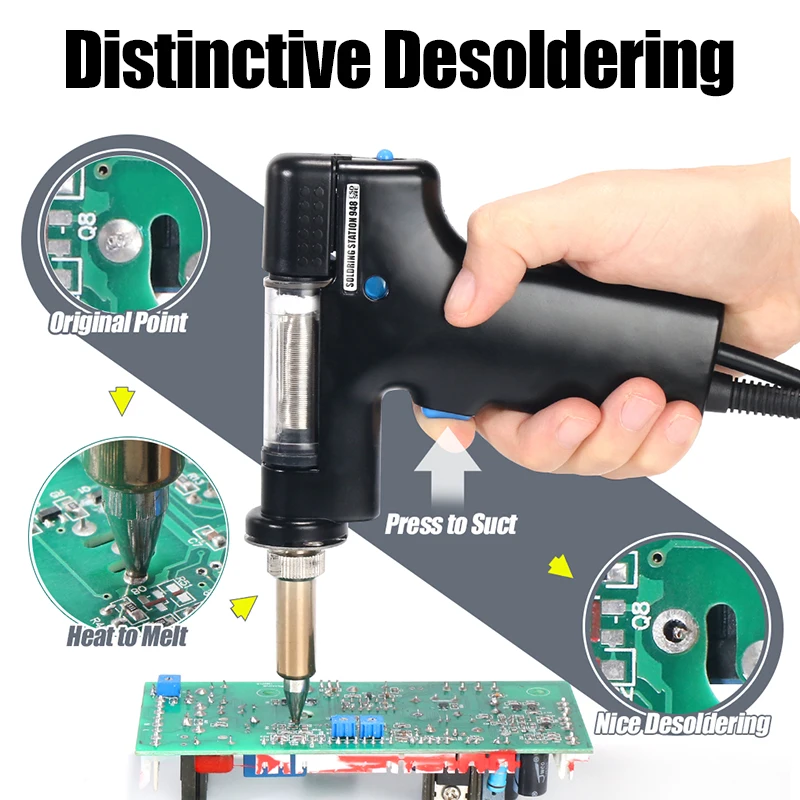

6. With a unique tin suction nozzle and heating pipe design, solder can be inhaled through filters in a molten state without the need for regular maintenance, thereby delivering greater efficiency.

7.  Adopts silicone heat-resistant tubing to prevent heat generation and contact damage.

8.  The double-sided internal SMT manufacturing process boasts clean craftsmanship. The signal flow is clear, and the machine is both stable and safe, further improving its performance and adaptability to various harsh environments.

Specifications

Maximum power	780W
Power supply voltage	AC 110V ±10% 60Hz/AC 220V~240V 50Hz
Outer appearance and dimension	L280xW187xH135mm   ±5mm
weight	5.5kg
Working temperature	0~40℃/32℉~104℉
Storage temperature	-20℃~80℃/-4℉~176℉
Storage humidity	35%~45%
Hot air gun part
Power	700W
Temperature range	100℃-480℃
Air mode	Brushless fan and soft wind
Air flow	≤120L/min
Display mode	LED digital tube
Temperature stability	±1℃
Desoldering station part
Power	90W
Temperature range	350℃-480℃
Tin soldering pump power	12W
Vacuum degree of tin soldering pump	0.12MPa
Display mode	LED digital tube
Temperature stability	±1℃
Heating element voltage	26V~  ±10%
Ground resistance of soldering tips	<2ohm
Soldering iron part
Soldering iron power	60W
Temperature range	200℃-480℃
display mode	LED digital tube
temperature stability	±1°C (static state)
Soldering iron heating element voltage	AC  26V  ±10%
ground resistance of soldering tips	<2ohm
