Станция для починки микросхем BGA, многофункциональная операционная система для починки микросхем BGA

Product Overview

Description

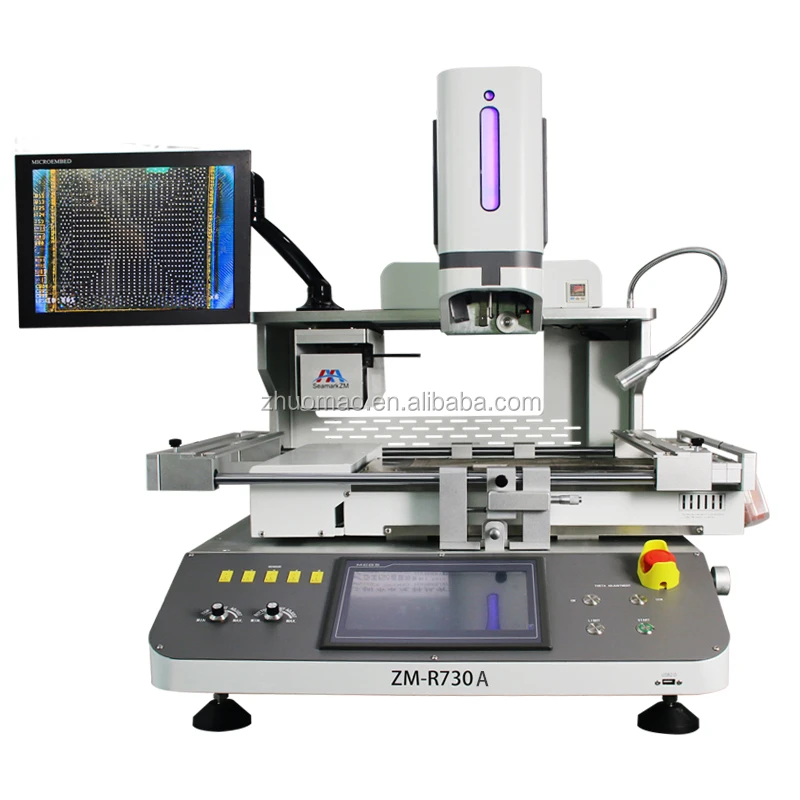

Auto Placement Desoldering BGA rework station for Micro BGA PCB Multi-function operation system BGA rework station

Mainfeatures

1. The upper hot air heating system adopts a ceramic honeycomb heating system, and the heat conversion efficiency is high.

2. Infrared heating system adopts carbon fiber heater, which can move around a wide range at the same time, making the PCB warm up more evenly.

3, Variety of operating modes, a key to complete the demolition of the chip, placement, simple operation.

4, 10 temperature zone control, in line with lead-free repair process.

5, comes with curve analysis function.

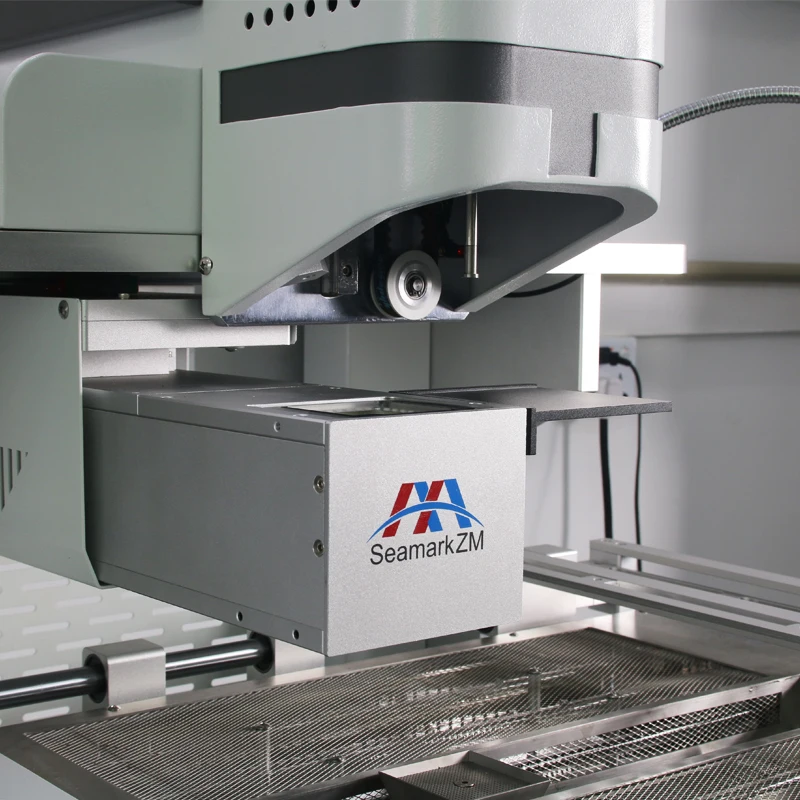

6, high-definition optical alignment system, with BGA edge fast fixed-point observation function, all easy to observe the BGA edge, to eliminate the "observation of blind corners" omissions, to achieve accurate placement of components.

7, X, Y axis micrometer with micro adjustment, adjustment accuracy up to ± 0.01mm.

8. Select high-precision K-sensor to achieve accurate detection of PCB, BGA temperature and automatic curve analysis.

9, standard automatic feeder, automatic feed automatically receive material.

10. The third-class smoke purification system filters and purifies the toxic gases generated during operation (optional).

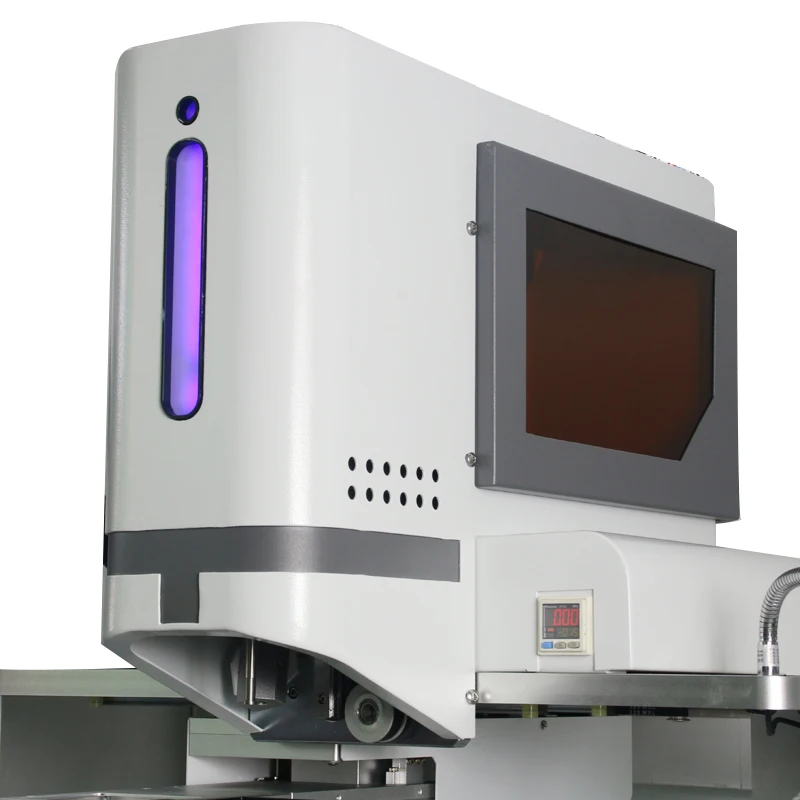

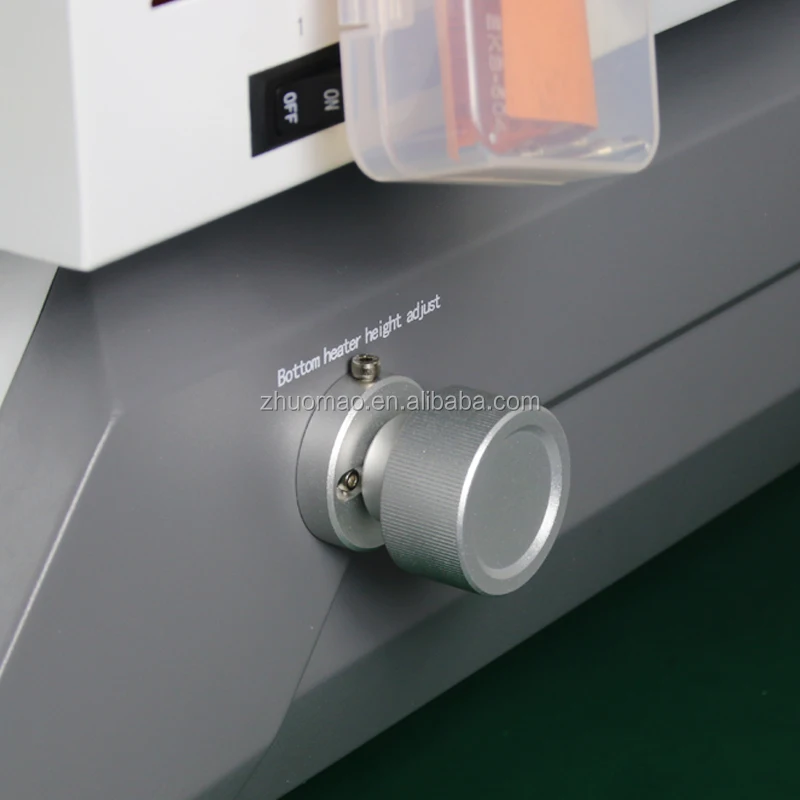

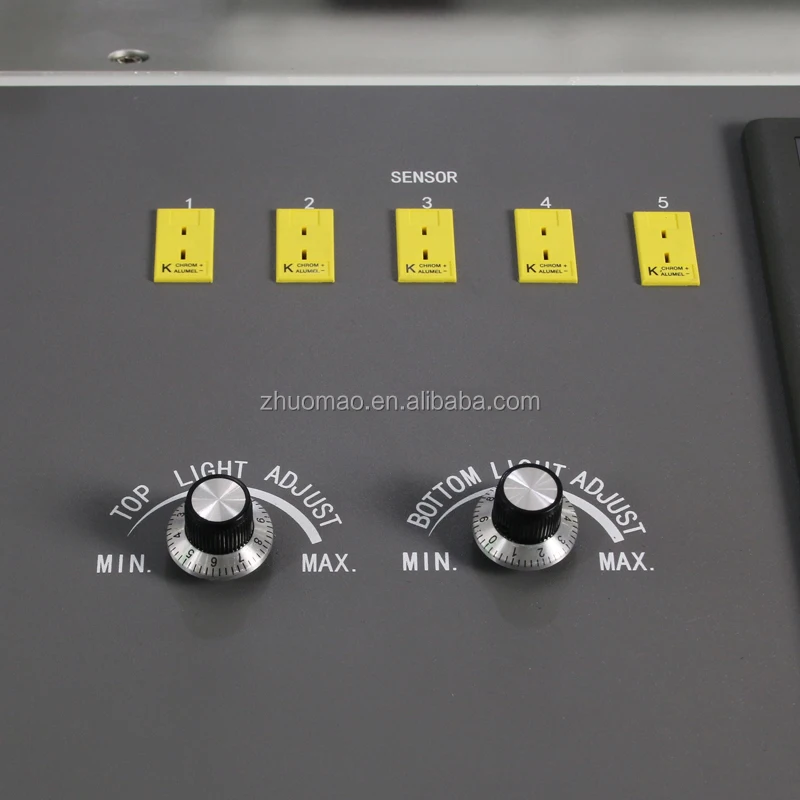

Product pictures

Specification

Power supply	3P380V±10% V 50/60 Hz (220V,50-60 Hz)
Power	7500W Max
Upper hot air heater	1200W
Bottom hot air heater	1200 W
Infrared heater	4800 W
Electrical materials	intelligent programmable temperature control system, support for computer communications
Temperature control	K-type thermocouple closed-loop control: upper and lower independent temperature measurement, temperature accuracy range ± 1 °C
Positioning method	V-card slot positioning
PCB size	Max 645mm × 520mm,Min 6 × 6 mm
External dimensions	L1000 × W840 × H950mm
The bottom of the preheat range	420*435mm
Chip size range	3 × 3mm - 80 × 80mm
Temperature interface	5 pcs
Machine weight	128kg
Appearance color	white&gray

 The packing list of the ZM-R730A

No.	Description	Qty	Unit
1	ZM-R730A BGA Rework Station	1	pcs
2	PCB Fixture	6	pcs
3	M5*30  Supporting Screw	6	pcs
4	Handle Screw	6	pcs
5	Vacuum sucker	12	pcs
6	Nozzle 10*10	1	pcs
7	Nozzle 20*20	1	pcs
8	Nozzle 31*31	1	pcs
9	Nozzle 41*41	1	pcs
10	Bottom Nozzle 35*35	1	pcs
11	Flux Brush	1	pcs
12	Temperature sensor	5	pcs
13	IR heater	1	pcs
14	Hot air heater	1	pcs
15	1.4m shield temperature wire	1	pcs
16	K-type thermocouple wire	1	pcs
17	Tool box	1	pcs
18	LCD monitor	1	pcs
19	Manual	1	pcs
