Functional PUR Hot Melt Laminating Machine

Product Overview

Description

Functional PUR Hot Melt Laminating Machine

PUR hot melt glue lamination machine for textile

PUR Hot Melt Laminating Machine for PU Foam

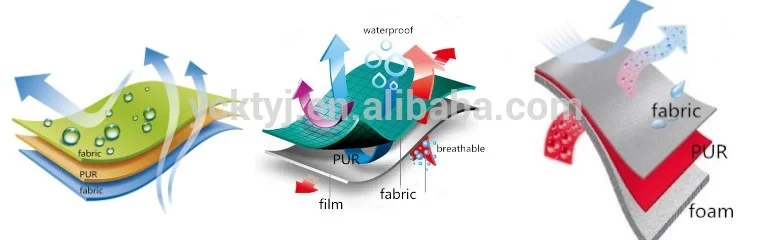

Laminating Machine for :

1. EVA + PVC, PU or Artificial Leather

2. EVA + Fabric (for shoe materials, etc)

3. Neoprene + Fabric (for diving suit, etc)

4. PU Foam + Fabric (for bra, vehicle cushion, etc)

5. TPU Film + Fabric. (for climbing clothing, camouflage uniform, etc)

6. Fabric + Fabric. (for clothing, medical supplies, etc)





Hot Melt Adhesive

In industrial use, hot melt adhesives provide several advantages over solventbased adhesives. Volatile

organic compounds are reduced or eliminated, and the drying or curing step is eliminated. Hot melt ad

-hesives have long shelf life and usually can be disposed of without special precautions.



The most advanced hot melt adhesive, moisture reactive hot melt glue (PUR & TPU), is highly adhesive

and environmentally friendly. It can be used for lamination of 99.9% textiles. The laminated material is

soft and high temperature resistant. After moisture reaction, the material will not be easily affected by the

temperature. Besides, with lasting elasticity, the laminated material is wear resistant, oil resistant and ag

-ing resistant. Especially, mist performance, neutral color and other various features of PUR makes medi

-cal industry application possible.



When PTFE, PE, TPU and other functional waterproof and breathable films are used in laminating, water

-proof and heat preserving, waterproof and protective, oil & water & gas filteration and many other different

new materials will be created. The demands of garment industry, motor manufacturing, medical industry,

environment protection industry will be met.



Our hot melt laminating machine is mainly consisted of fabric rewinding and unwinding units, fabric and film

transmission systems and tension controller, film unwinding and lining or film carrier rewinding device, hot

melt glue melting unit (optional), pump (optional), conduction oil source system (optional), glue dot transfer

unit, laminating device, cooling device, PLC and other devices. It is compact, highly automatic and easy to

maintain.





Standard Technical Parameters (Customizable):

Model:	KT-PUR-1800
Maximum Material Width:	2300mm
Machine Roller Width:	2500mm
Gluing Amount:	5-80g/m2
Machine Speed:	10-60 m/min
Power:	50.0 KW
Electric Current and Voltage:	Customizable
Estimated Net Weight:	14500 KGS
Estimated Dimension:	11800 x 4100 x 3600 mm





Key Features:

• Hot melt adhesives makes possible environmental friendly products and realizes no pollution during the whole process of lamination.


• With this type of laminating machine, materials are firmly bonded and products are soft, comfortable, washable and breathable.


• Controlled by Programmable Logic Controller system with touch screen and modular designed structure, this machine can be easily and simply operated.


• Famous brand motors and inverters can be installed for stable machine performance.


• Non-tension unwinding unit makes laminated materials smooth and flat, guaranteeing good bonding effect.


• Fabric and film openers also makes materials feed smoothly and flatly.


• For 4-way strechable fabrics, special fabric transmission/conveyor system can be installed on the laminating machine.


• Parallel centering unit makes sure the materials feed in order.


• Specially designed gluing system well controls the adhesive amount and guarantees precision.


• For the hot melt adhesive melter, temperature control is accurate and stable.


• Final laminated materials can be rewinded into small rolls or large rolls.


• Low maintenance cost and less running noise.


• Advanced technology, secure quality control and satisfactory aftersales service make our lamination machines the first choice for customers both domestically and internationally.

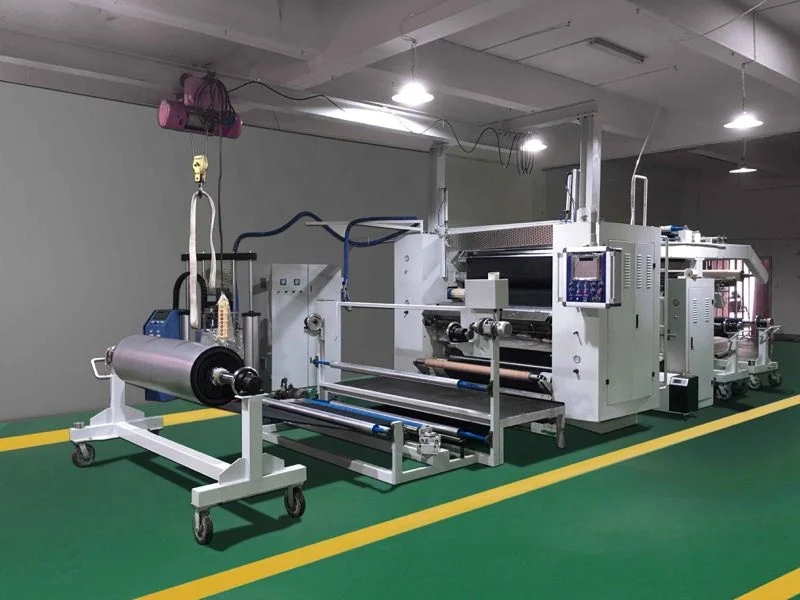

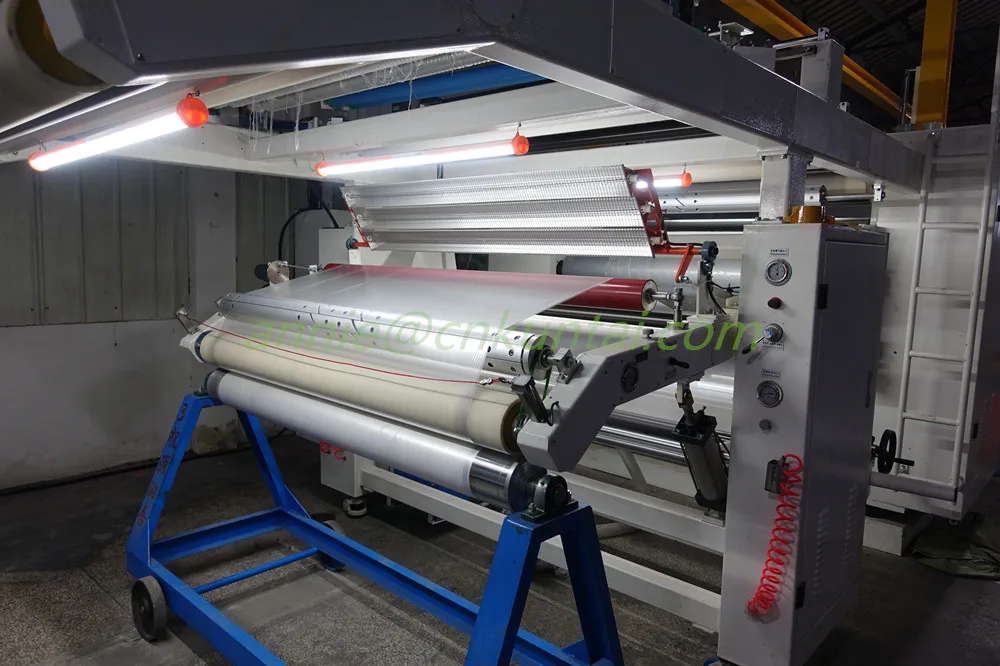

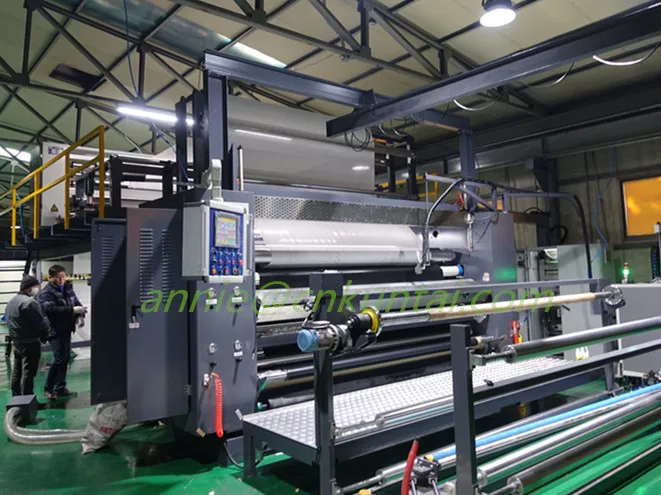

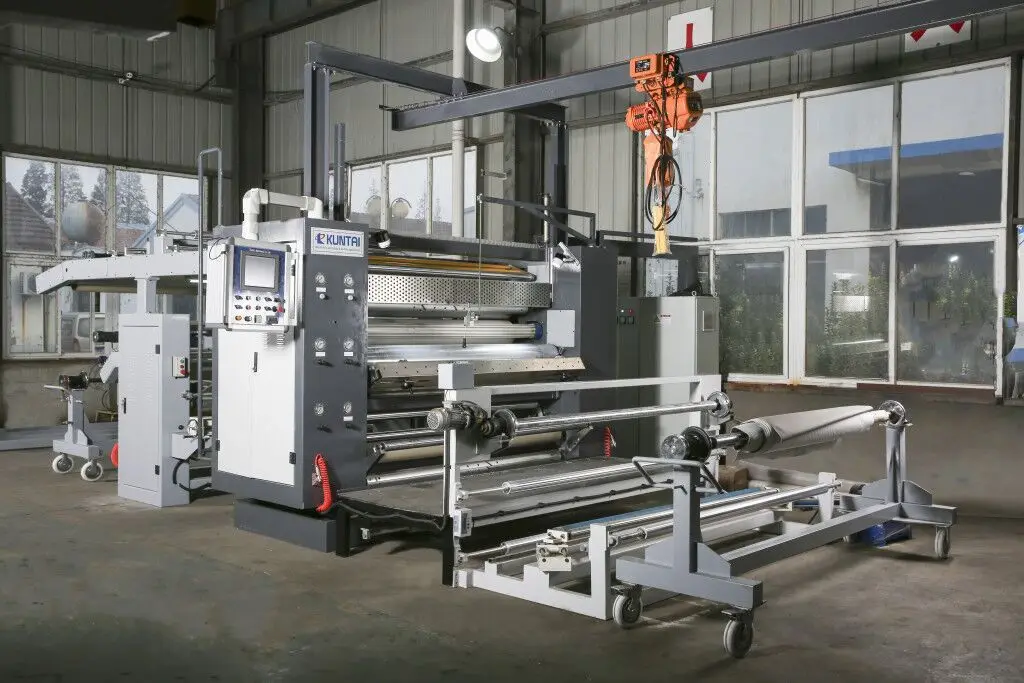

Functional PUR Hot Melt Laminating Machine photos:

Hot Melt Laminating Machine with Different Structures



Inner Package: Protective Film, etc

Outside Package: Standard Export Container



• Machines well packed with protective film and loaded in export container;


• English version operation manual and technical data;


• One-Year-Period wear parts;


• Tool kit

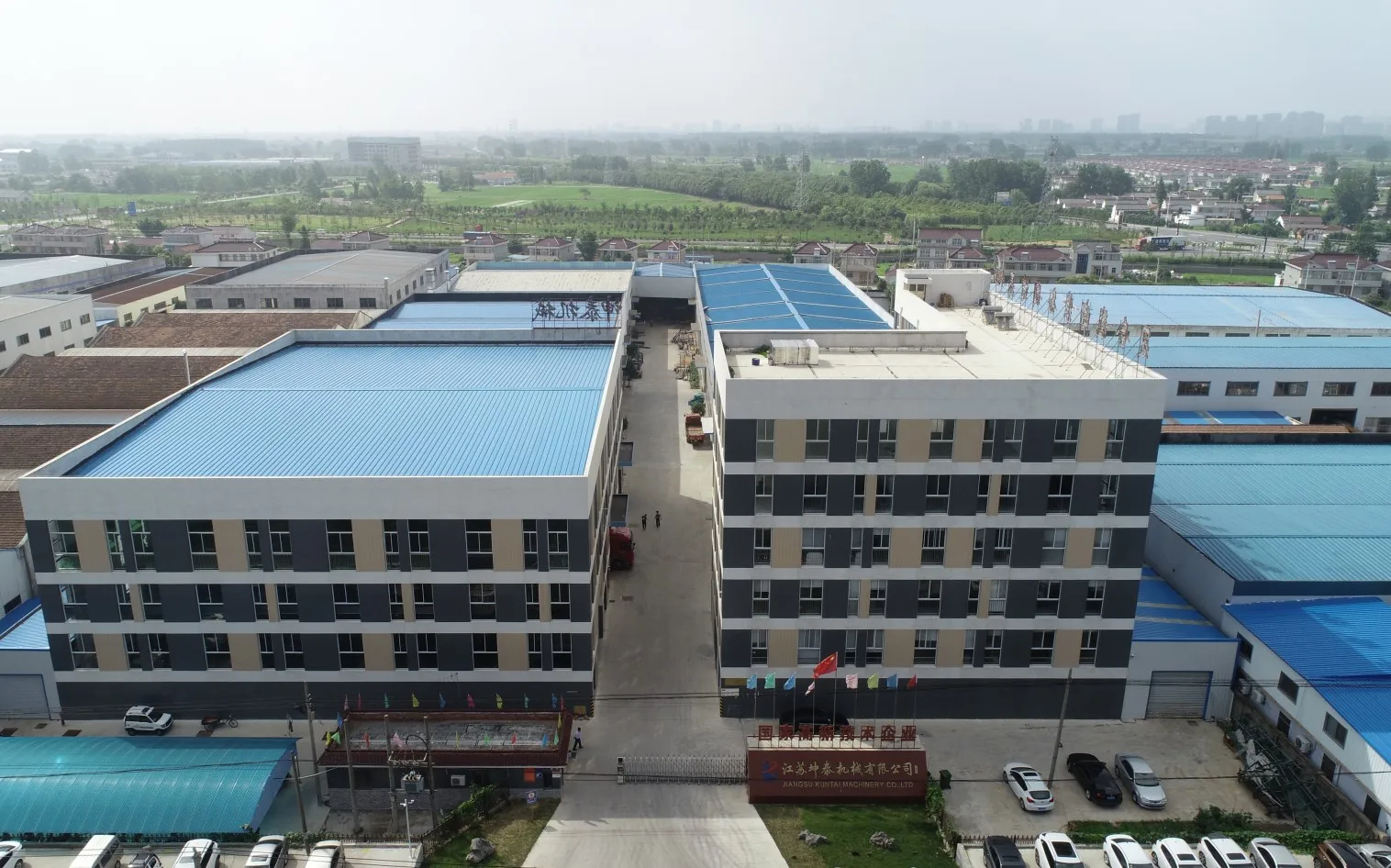

Jiangsu Kuntai Machinery Co., Ltd has over 35 years' experience in designing and manufacturing lamination machines, cutting machines and various other material processing machines for fabric, nonwoven cloth, sponge, leather, artificial leather, paperboard, films, EVA, PUR, TPU, PVC and other materials in various industries, such as garment industry, footwear industry, bags or belts making industry, motor interior decoration industry, upholstery-home textile industry, health care industry and so on. With CE certificate, our machines have been accepted by many European countries, thus expanding our overseas sales market. Experienced and knowledgeable engineers make desired and customized specifications and lifelong maintenance service available on request. Should you have any need, pls feel free to contact us! Tell us your desired length, width, thickness, speed, temperature, pressure and materials, and we will provide you with specialized design.
