Plastic pyrolysis involves subjecting plastic to high temperature of 400 to 450 degree Celsius, in absence of oxygen. In case of oxygen is present plastic will start burning. During pyrolysis plastic breaks down into smaller molecules of pyrolysis oil, pyrolysis gas and carbon black. Pyrolysis is great a way of recycling waste plastics. This plant can also used for waste tire recycling.
Product Description
Input raw mateiral
The waste pyrolysis plant can process various kinds of waste plastic including pp , pe , ps , abs , rubber products ,tires to fuel oil , carbon black , steel wire.
Output product from the waste pyrolysis plant
From waste tire pyrolysis plant, 4 kinds of products can be obtained: fuel oil, catbon black, steel wire, and incondensable gas. Fuel oil is widely used in industries, such as steel factory, heavy oil generator, cement factory, and boiler heating etc. Carbon black can be made into pellets for making new rubber products. Steel wire could be sold to the recycle station or steel mill for remelting. The incondensable gas is recycled to heat the pyrolysis reactor, saving energy.
Specification
Item
Contents
Model
HY2200mm*5500mm
5 Ton/Batch
HY2200*7500
7 Ton/Batch
HY2600*6600
8 Ton/Batch
HY2800*6000
9 Ton/Batch
HY2800*6600
10 Ton/Batch
Reactor material
Q345R/Q245R/310S+Boiler plate/Stainless steel
Thickness
14mm/16mm/18mm
Weight
15T-35T
Power
Average 15KW/h
Space needed
300-400 square meters (Width:10m, Length:30m-40m)
Labor needed
3-4 workers
Features
Security:
1. Adopting automatic submerged-arc welding technology and all of the weldings will be detected by the ultrasonic nondestructive testing method.
2.Vacuum system ensures the whole line working well. temperature guages ,pressure guages ,auto alarm etc. to ensure the safety.
Environmental protection
1) The flue gas and sulphur will be purified and cooled by dust and sulphur removal device.
2) The procedure to remove carbon black is working under closed situation to avoid pollution.
3) The syngas will be recycled to the furnace for second burning ,avoid pollution.
Long service life
1. High temperature and pressure resistant raw material Q245R boiler plate with 16mm/18mm.

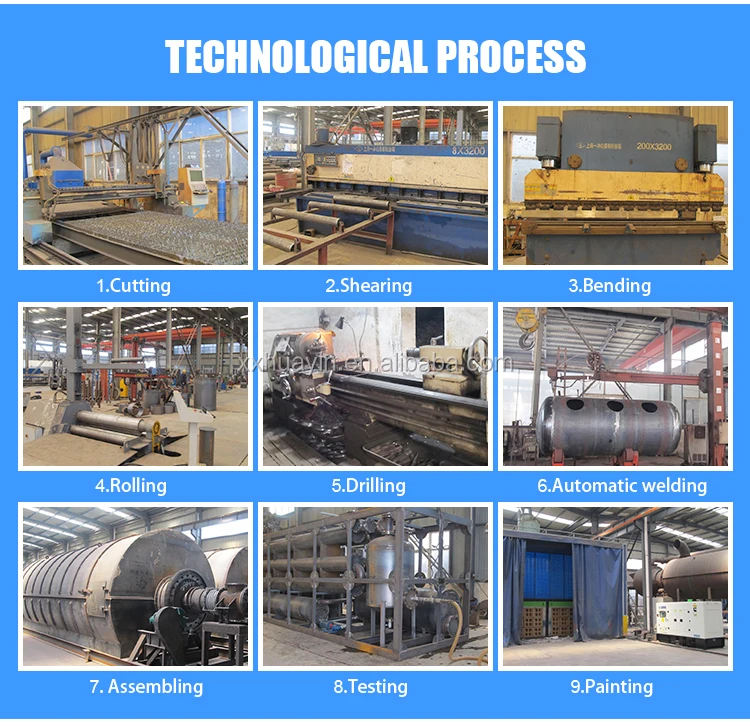

2. All cutting, rolling and welding works are finished by automatic machines.

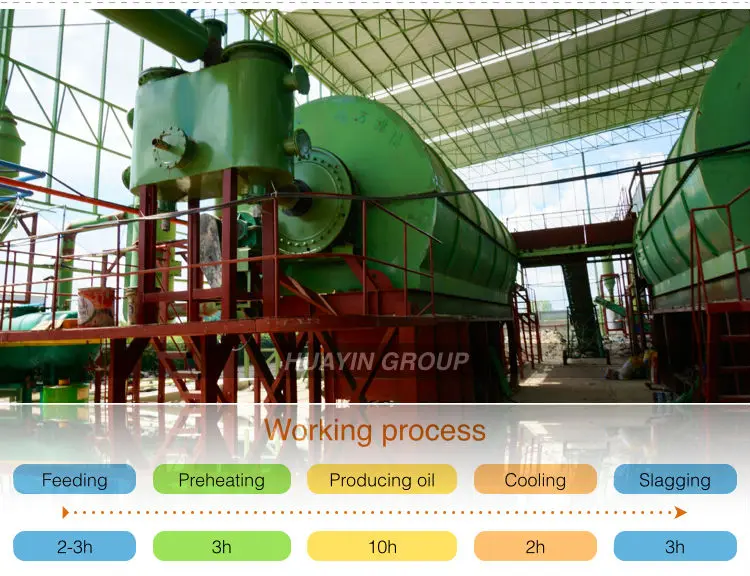

Working process of huayin pyrolysis machine

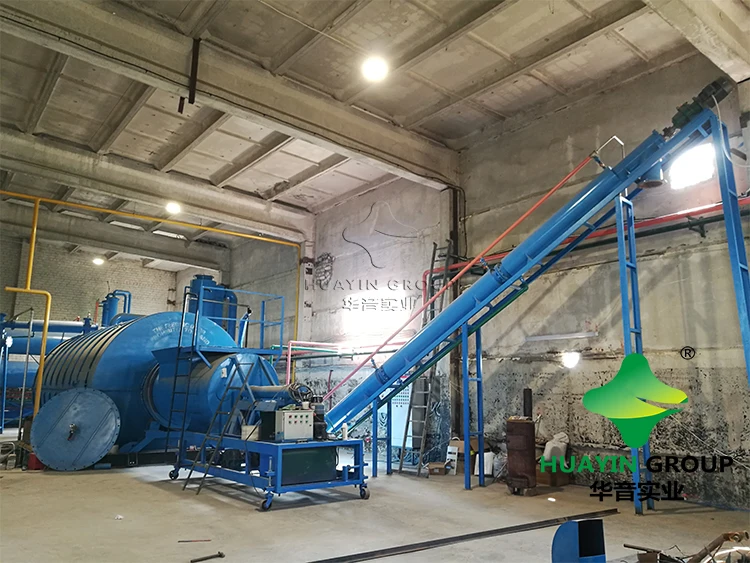

1. Put raw materials into reactor by auto-feeder, then heat the reactor. Do not stop heating the reactor when the temperature reaches nearly 250 degree Celsius, waste tyre will be transferred to oil gas.

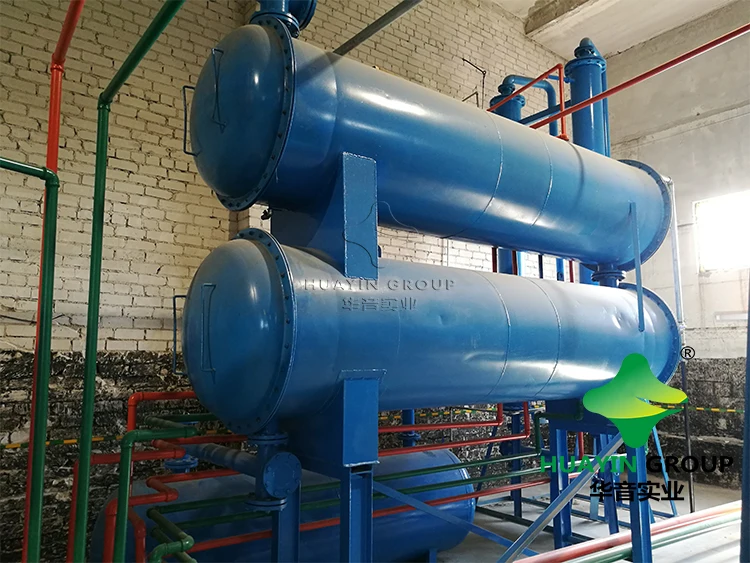

2. The oil gas will be cooled by condenser to liquid oil then collected by oil tank.
3. The exhaust gas which can not be cooled to liquid oil will be recycled to heat the reactor. Smoke produced during processing can achieve national emission standard through dual desulfurization and dusting removal device.

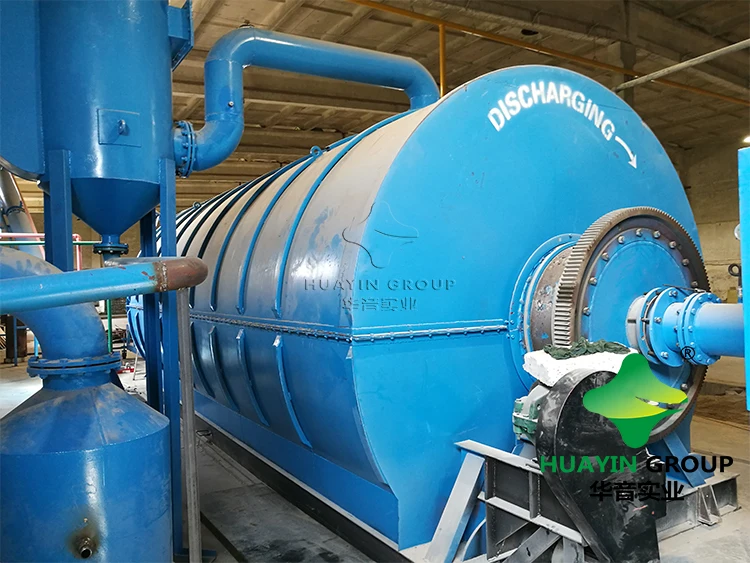

4. After oil producing finished , give 3 hours for cooling the reactor,after that carbon black will be discharged automatically.

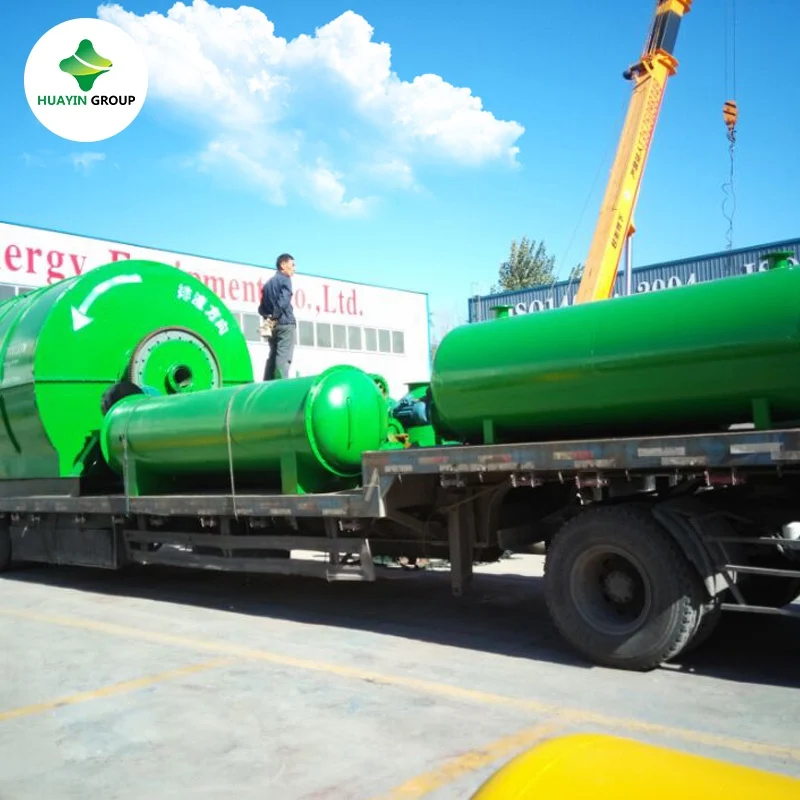

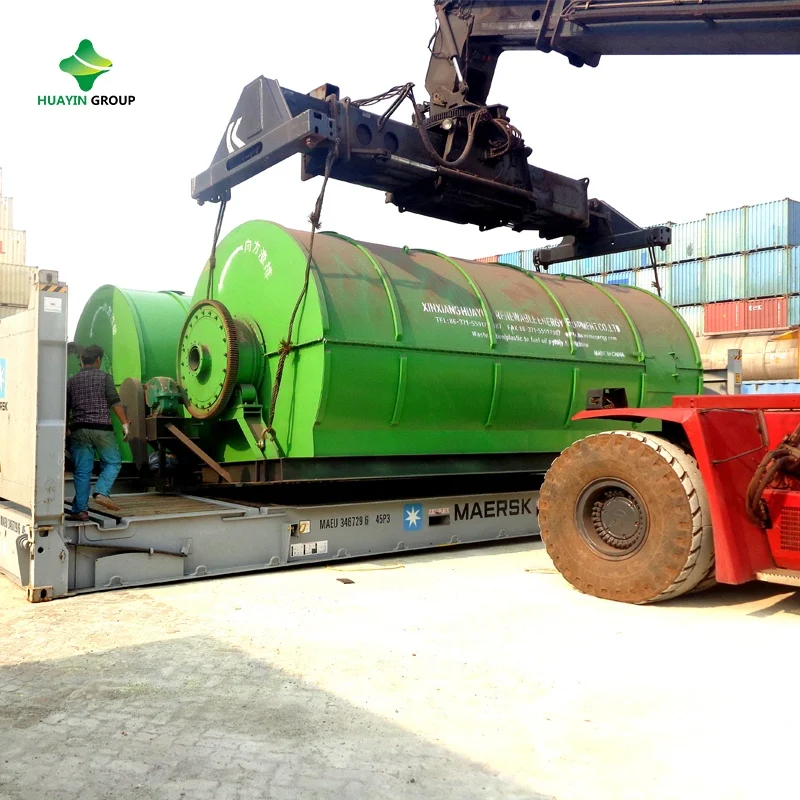

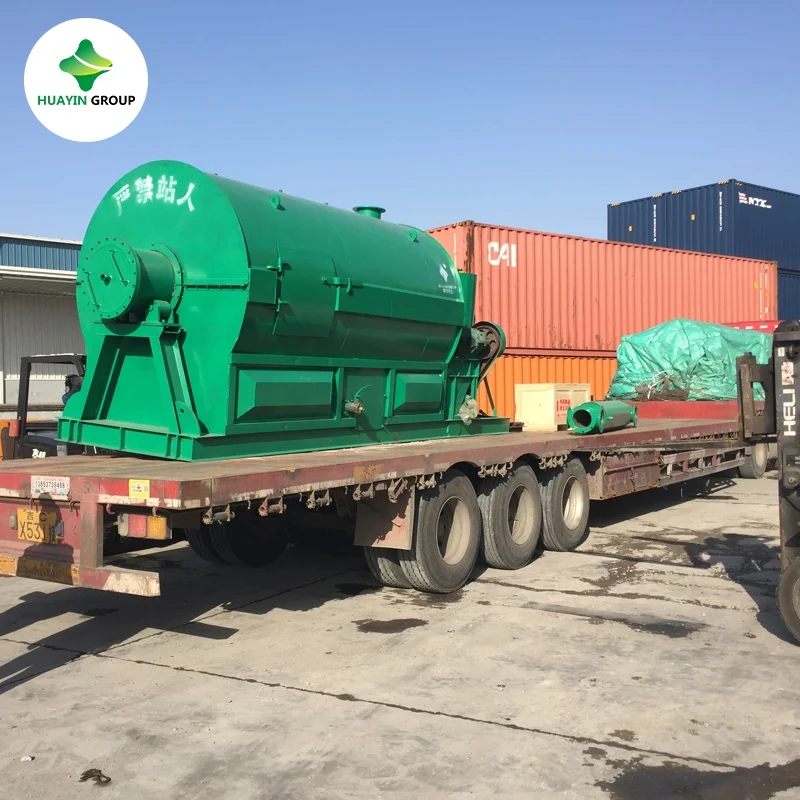

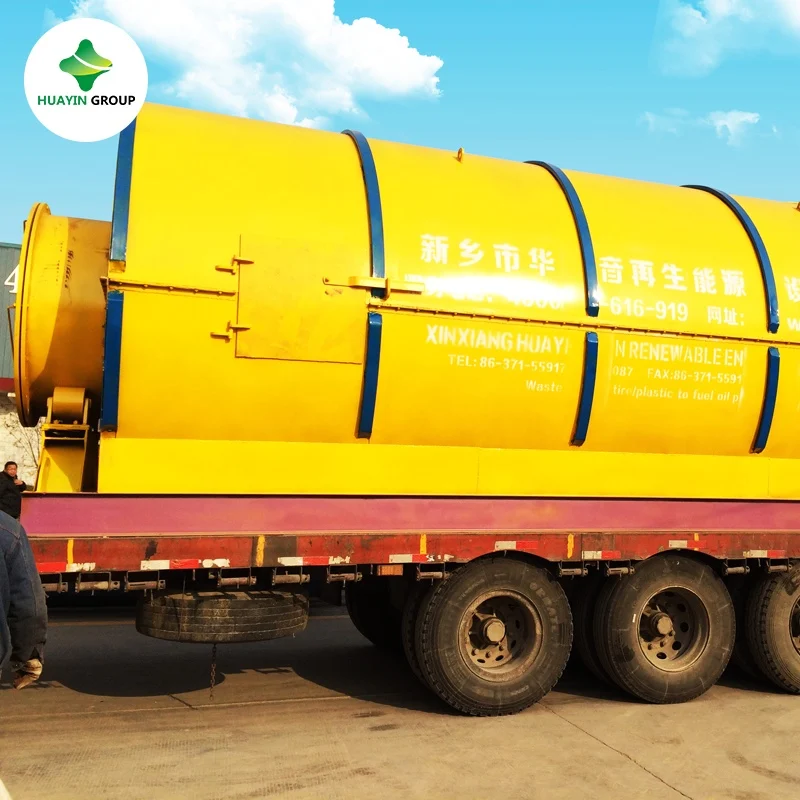

our machines have been sent to the following countries:
1. Delivery time- It will be 10-15 days after we receive the deposit.
2. Warranty-The warranty period for reactor and other parts except spare parts is 1 year.
3. Installation and Training-Our company will send one technician for each set of machine for guiding your installation, testing the machine and training your worker.
5. About us
We are specialized in manufacturing waste tire/plastic/rubber recycling machine, pyrolysis machine and oil distillation machine, oil refining machines, tire oil/plastic oil/engine oil/ship oil refining plants.
We have three workshops producing every parts, professional laboratory improving technology and demo plant which could show customers running machine. And experienced engineers guarantee installation of our equipments and good after sale service as our company starts from 1993.
ISO9001, ISO14001 and CE
We have got ISO9001 and ISO14001 Certifications.
And also our products are equipped with CE Certification that we have the rights to export our waste oil recycling machine to European.
We also have got SGS certificate for our pyrolysis oil products you can check the oil quality features from the analysis and chose the right market for the end products.
For more details information , welcome send us inquiry !
