Product Overview

Description





Products Description


The single/double-arm electric medical endoscope pendant has a simple and compact structure and is easy to use. It is an ideal medical gas power supply, network output terminal and instrument carrying workstation for the operating room; the installation adopts the ceiling suspension mode, and the swing arm can rotate within 340 degrees. It is equipped with mechanical brakes to prevent drift, and the height of the equipment makes it easy for medical personnel to lift their hands. It is an indispensable medical auxiliary equipment in the operating room of small and medium-sized hospitals.




Product Paramenters


Arm length
500-1000 mm
Console height
600-1200mm
Power socket
8pcs sockets
Move distance
500mm
Equipotential
1pc
Network socket
1pc
Gas terminal
Oxygens/2nos,air/2nos,Vac/2nos
Gas tube
Import gas pipeline
Platform
3pcs , size 550*420mm
Drawer
1pc
Working power
220V 50HZ 10A
Infusion support
Stainless steel infusion rack 1 set


Product Detail

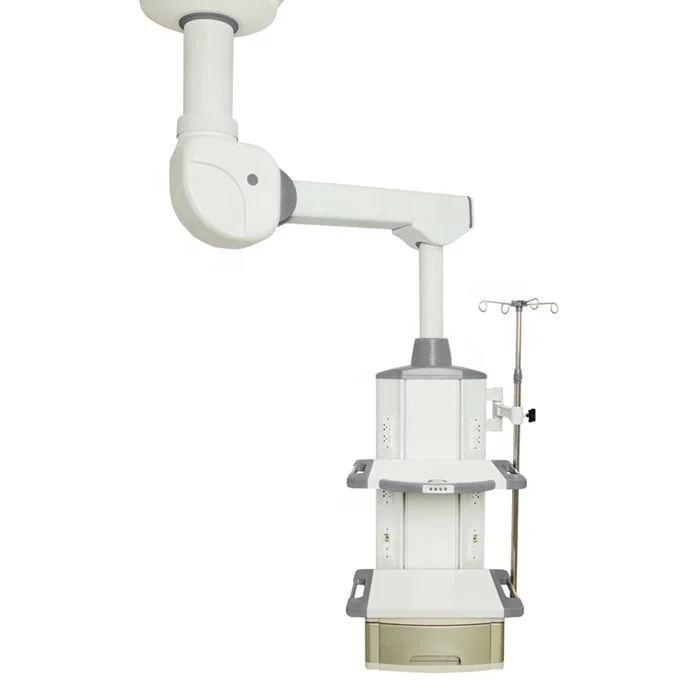

single arm model

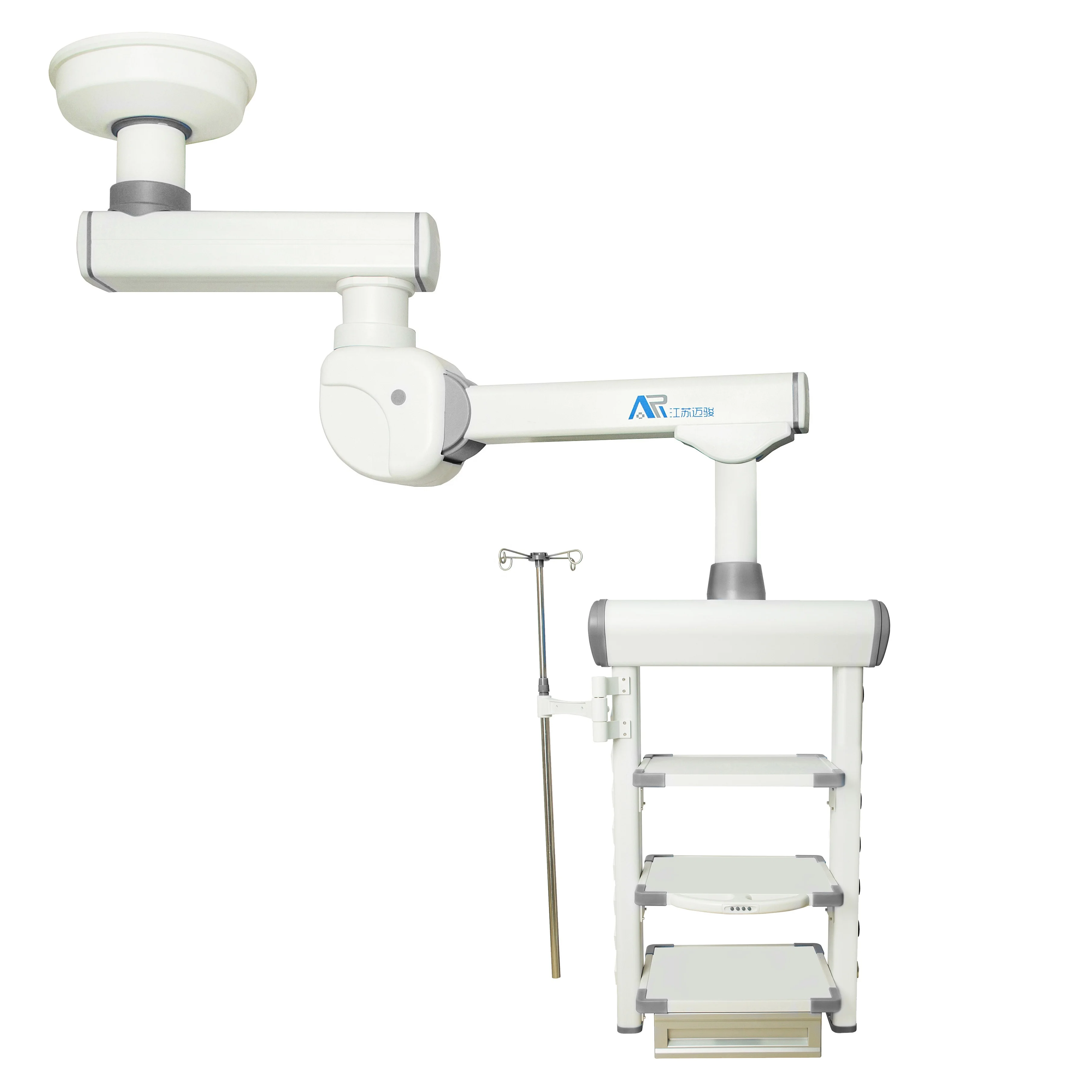

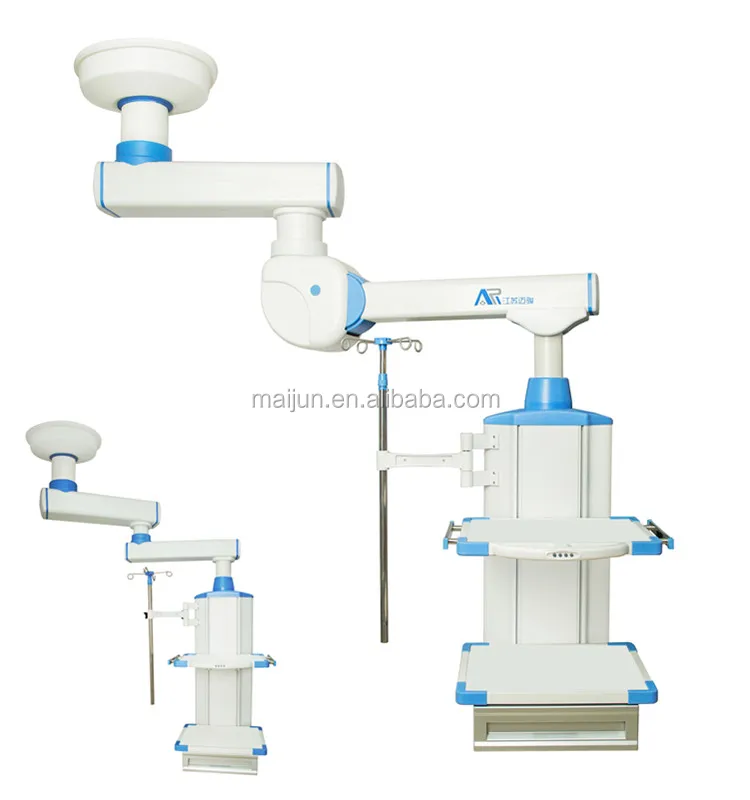

double arm modle

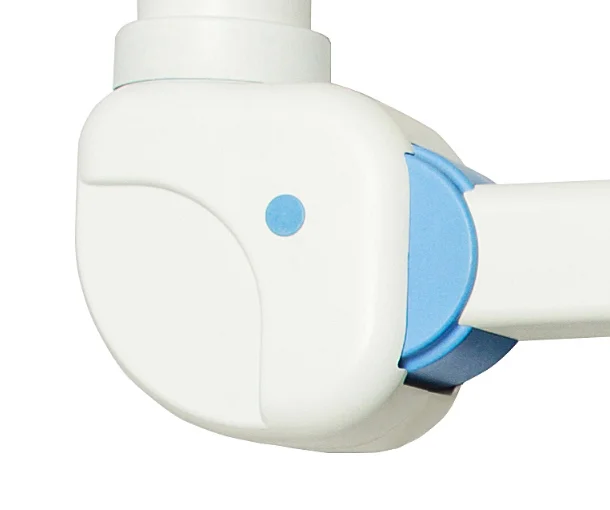

Ceiling Arm

Arm length 500-1000 mm (the length can be customized according to customer's require), up to 8 mm, the thickness of tower body rotation Angle: a minimum of 340 °.




Shelving Unit
●console height from 600mm-1200mm (can be customized according to customers requirements), rotation 340 degrees, gas-electric separation design.

●trays size:550*420mm, easy to clean and disinfect. Round Angle anti-collision design, height adjustable, with 2 standard side rails 10*25.

● Drawer , engineering plastic molding,automatic reset device.






Electric Machine

The vertical lifting range of the table is ≧ 500MM; the button is on the table control handle.






Gas Outlet
Oxygens,air,Vac,different shapes to avoid improper insertion, the number of inserts is greater than or equal to20,000 times.

Support various standard gas terminals, German, American, British, French






Power Socket

universal power sockets
working power 220V 50HZ 10A
Equipotential
Network socket

Support various standard socket terminals, German, American, British, French.







Infusion Support

Stainless steel infusion IV Support
adjust height is not less than 800mm
