3 Axis Flat Brush Drilling and Tufting Machine / Brush Making Machine

Product Overview

Description

PROFUCT DETAILS

Place of Origin:Guangzhou,China

Brand Name:BHF

Model Number:BHF-305

Product Name:3 Axis Flar Brush Drilling and Tufting Machine / Brush Making Machine

Condition:New

PAYMENT&SHIPPING TERMS

MOQ: 1 Set

Price: $2500.00-$25000.00

Price Item: CNF,CIF,DDP,EXW,FOB

Payment Terms: D/A,D/P,T/T,WesternUnion,MoneyGram

Shipping Item: Sea Freight

Port: Guangzhou,China

Packaging Detail: Wooden Box

Lead Time: Around 30 Days

TECHNICAL DATA

Axis:  3 Axis

Function:  Drilling and Tufting

Standard Working Area:  250mm*250mm*360°

Max. Filament(mm):  250

Diameter of Holes(mm):  2-6

Color of Filament:  Single Color or Double Color

Production Speed:  240-360/Min.

Material of Brush Blocks:  Plastic,Wooden

Material of Filament:  PP,PVC,Nylon,Pig Bristle,Horse Hair etc.

Motor:  Servo Motor

Quantity of Design:  Max. 36000 Holes

Weight(KG):  Around 800

Dimensions of Machine(l*w*h,mm):  1700*1300*1450

Dimensions of Power Box(l*w*h,mm):  580*660*1500

Power Supply:  Three Phase 380V

Power Consumption(W):  3500

Warranty(Year):  3

PRODUCT DESCRIPTION

3 axis drilling and filling machine quick to set up and easy to operate. Thanks to its fast change-over speed, the machine is ideal for small productions and frequent model changes. The operator manually loads the virgin blocks onto the machine and enables the working cycle. When the cycle is over, the operator removes the filled block and then moves the drilled block from the drilling station to the filling station, and places a virgin block into the drilling station, during the operating, the machine no need to stop, it would run automatically.

HIGHLIGHTS

(1) Full automatic,no need to stop the machine even changing the virgin blocks.

(2) Ability to produce flat brush with upright filling,easy to change design.

(3) Easy to input data,one-hole finishing and suitable for varied designs.

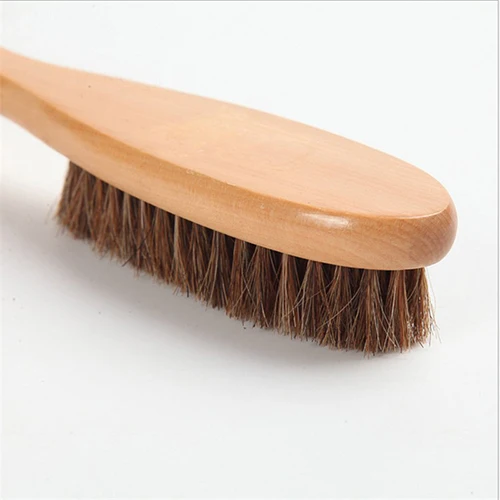

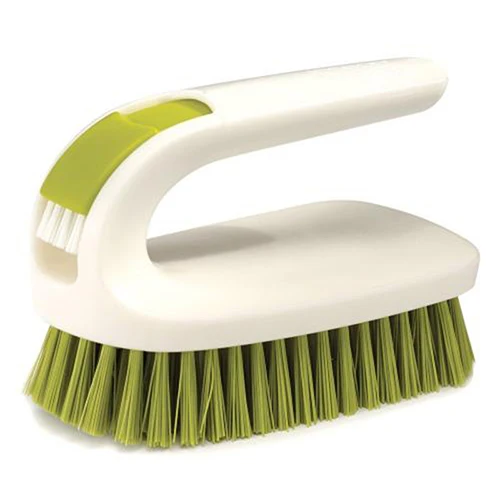

DETAILED IMAGES
