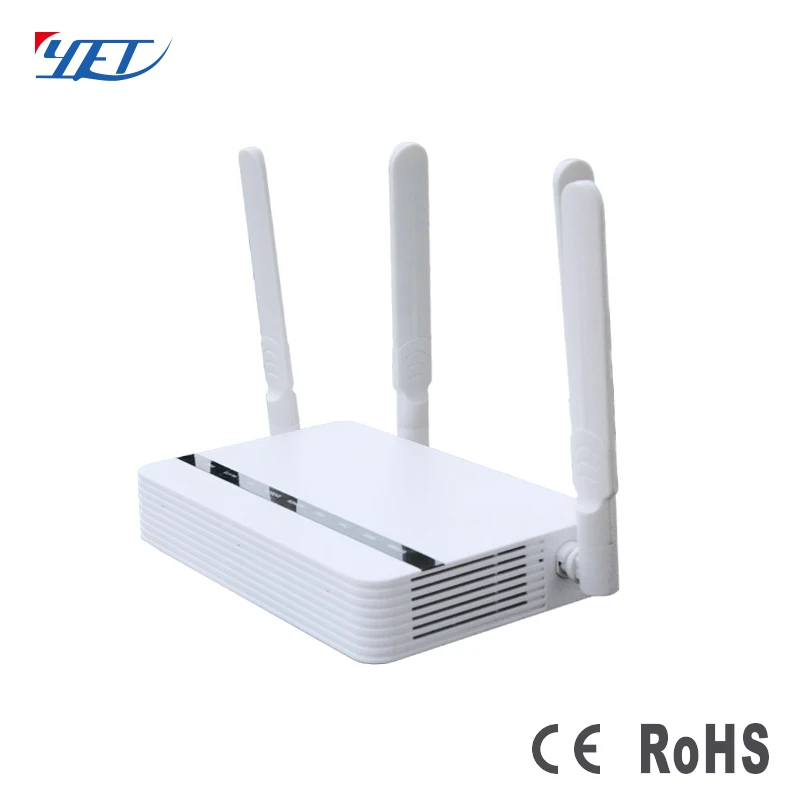

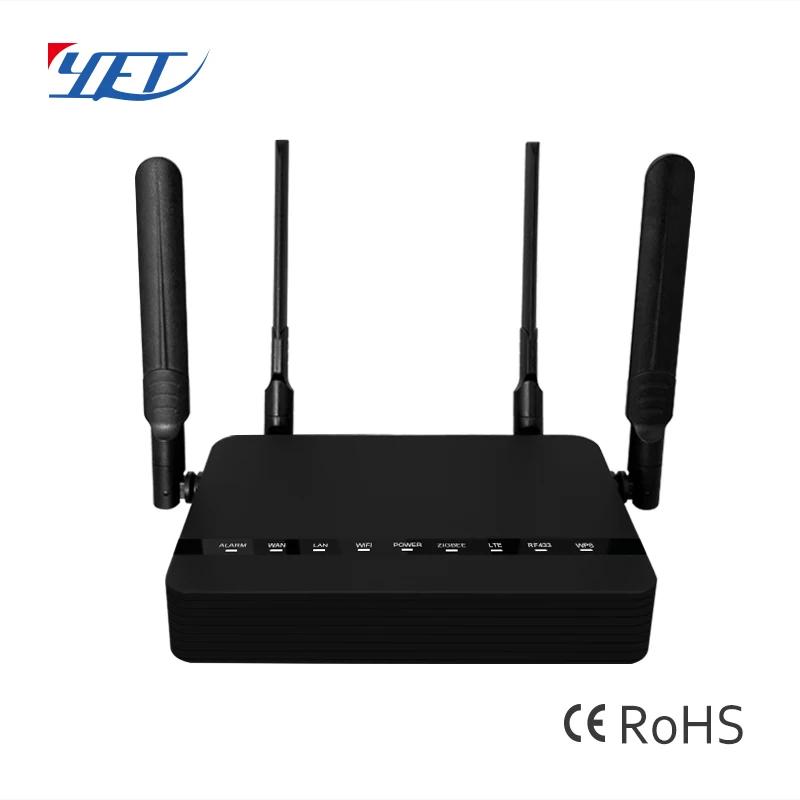

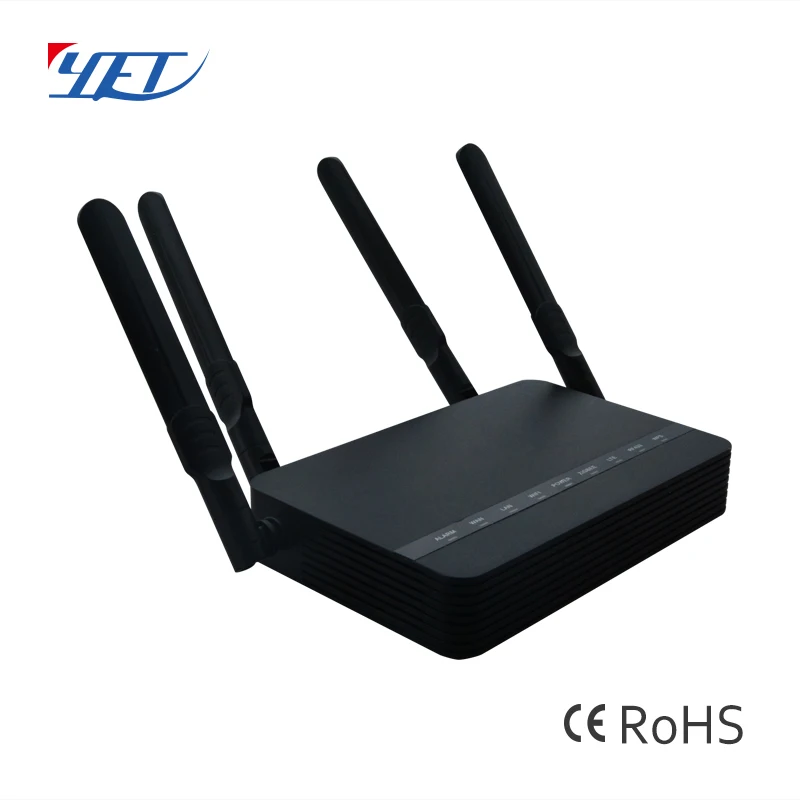

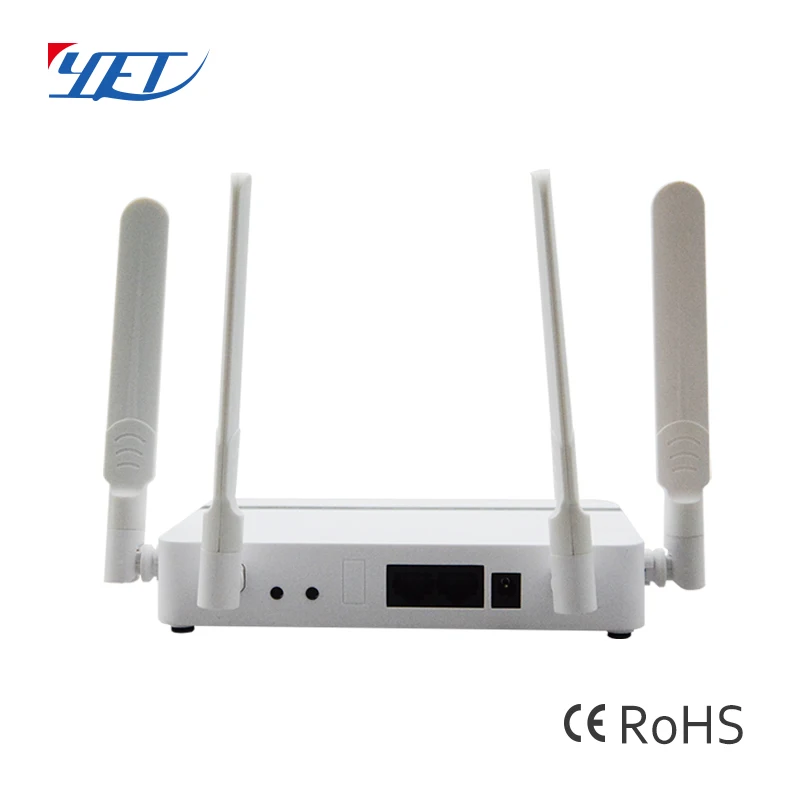

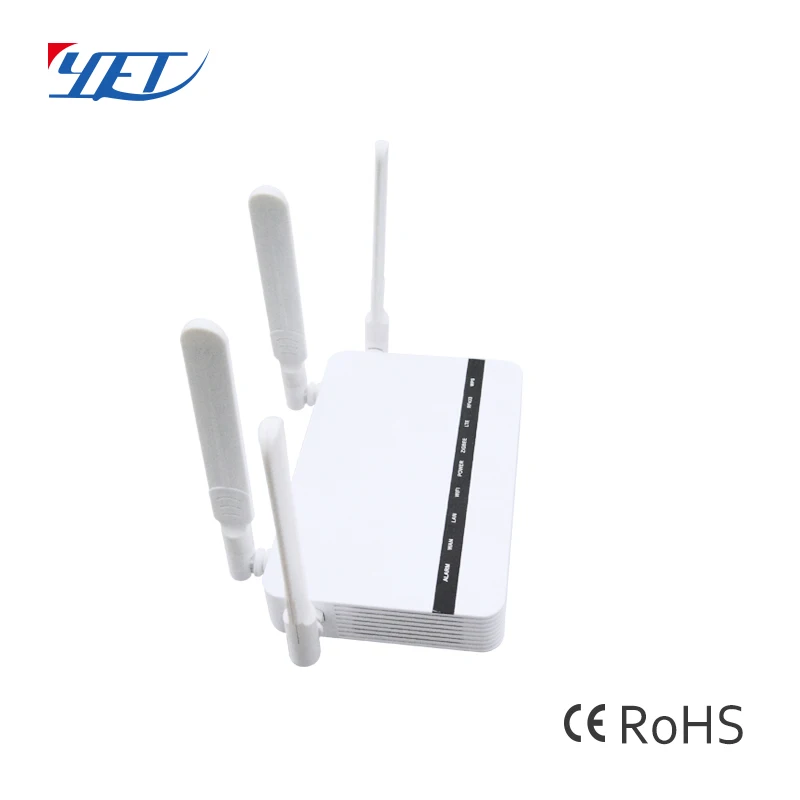

Беспроводной маршрутизатор Zigbee Gateway, точка доступа Wi Fi 9 В/12 В постоянного тока YET6950WFR
- Category: Zigbee Modules >>>
- Supplier: Shenzhen Yaoertai Technology Development Co. Ltd.
Share on (62240976061):
Product Overview
Description
Product Overviews
DC9V/12V Wifi Hotspot Wireless Zigbee Gateway Router YET6950WFR
Featuer:
- The product is equipped with proprietary APP software for remote/short-range configuration and manipulation of each node device;
- This product is mainly used in personal home life, office space and other smart office applications in business offices.
- The product has a router function, accessing the external network through the WLAN port, and supporting wired Internet access through the LAN port;
- Support WPS wifi one-key configuration ,to make access to the network more convenient;
- Support automatic networking after disconnected network and so on.
Parameter:
System configuration: | |
System kernel | CPU: 32-bit 580MHz MIPS® 24KEc™ / Antenna: 2T2R WIFI(IEEE 802.11n) |
| FLASH | SPI Flash 32M Bytes |
| DRAM | 16b DDR2 / 128M Bytes |
| Wireless standards | IEEE 802.11b/g/n , IEEE 802.15.4 |
| Working frequency | 2.4GHz ~2.5GHz(2412MHz ~2467.5MHz) / 433.92MHZ |
| Encryption Type | WEP64 /128, TKIP, AES, WAPI |
| Security mechanism | WPA / WPA2 |
Wireless receive sensitivity | 802.11b: -91 dbm (11 Mbps) 802.11g: -75 dbm (54 Mbps) 433MHZ : -94 dbm |
| Electrical data: | |
| Input voltage | DC9V / @2A – DC12V / @1A |
| Working current | ≤350mA @12V |
| Standby current | ≤150mA @12V |
| Working enviroment | temperature:-10℃ ~ +60℃ Humidity:≤ 95% |
| Storage enviroment | temperature:-20℃ ~ +80℃ Humidity:≤ 95% |
| RF remote control code | Use 301code remote control |
| Can add the remote control number | 1pc(max) |
More Show
Related Products
Packing & Delivery E
Delivery way:
We are ship goods by DHL, Fedex, UPS, TNT at usual. If you prefer others shipment way, we also can ship them to you as your requirement.
Delivery time:
Sample: 3-5 working days.
Bulk order: 7-20 working days.
Company Information
Exhibition
Certifications
FAQ
Q1.Could I order one piece for sample to test the quality?
Yes, sample is available
Q2.What should I know before ordering?
Please let me know the frequency (433.92 is the most common frequency), code (fixed code EV1527, rolling code HCS301 or duplicator). And please also let me know the quantity, our MOQ is 100pcs.
Q3.Are you a manufacturer?
Yes, we have our own factory, production line, SMT&Plug-in,automatically screw driver machine etc and R&D department.
Q4.Can I visit your factory?
Yes,welcome.Our address: 5th and 6th floor block 27,lianchuang Technical zone , Bu Lan road, long gang district, Shenzhen , R.P. China
Q5.What about your delivery time?
For samples, 3~5 working days, for bulk order, 7~20 working days.
Q6.Do you accept OEM order?
Yes. We customized a lot of items for our clients.
Q7.What kind of payment do you accept?
We accept T/T(Wire transfer),Western Union and PayPal, Credit card.
TT can be 30% prepayment before production, 70% balance payment before shipping.
Q8. Does all of your goods come with remote function?
Yes, our remote cotrol receiver distance is about 50-100 meters.
Q9.Do your products carry warranty?
Yes,6 month or more and permanent service.
