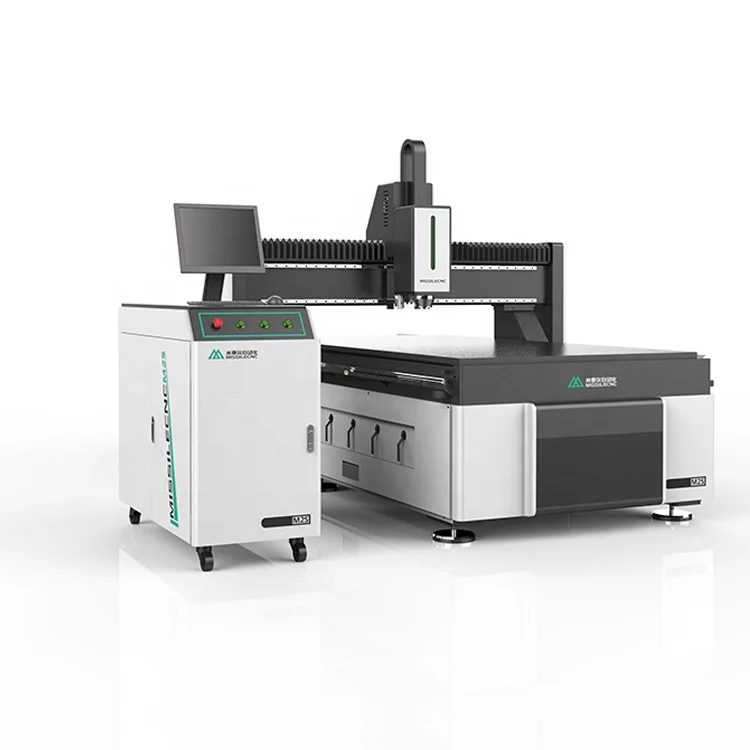

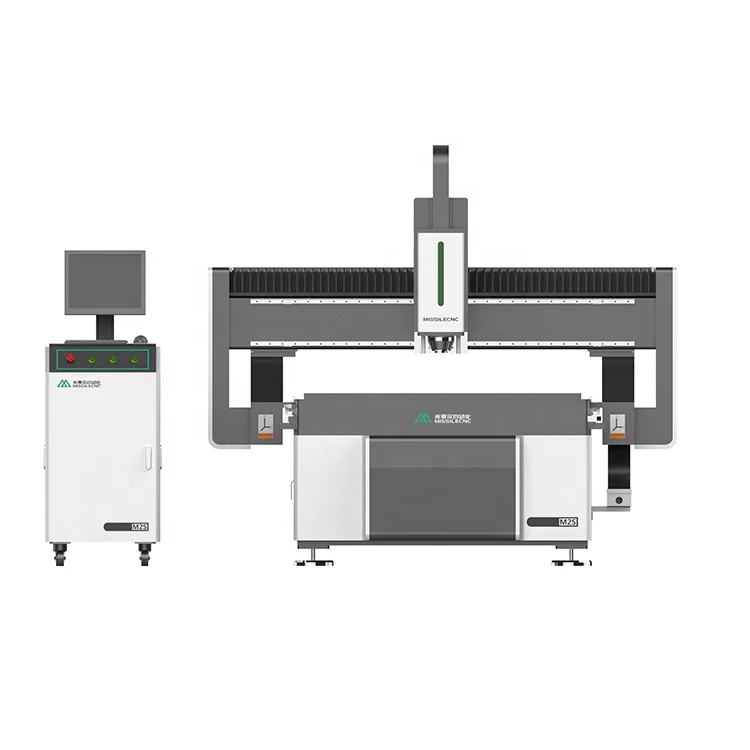

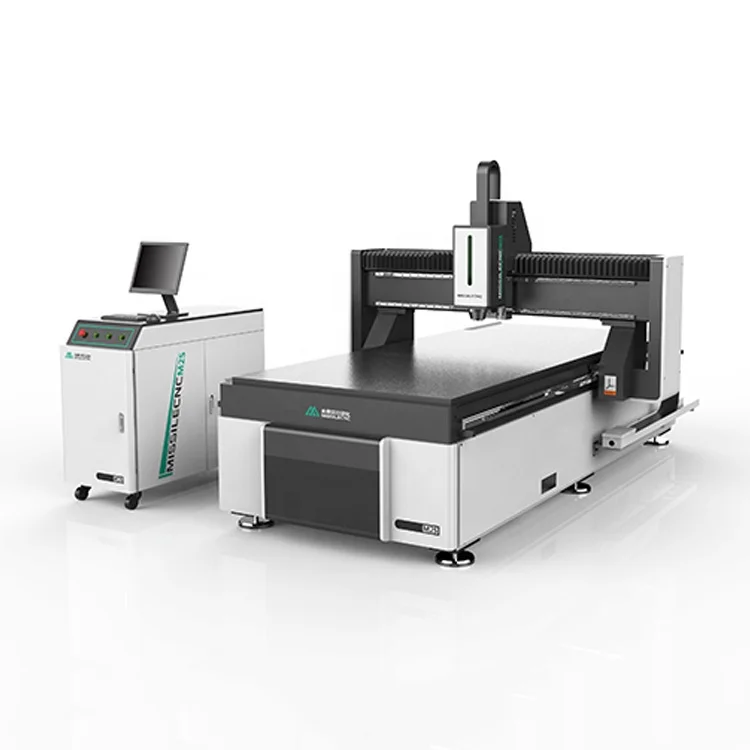

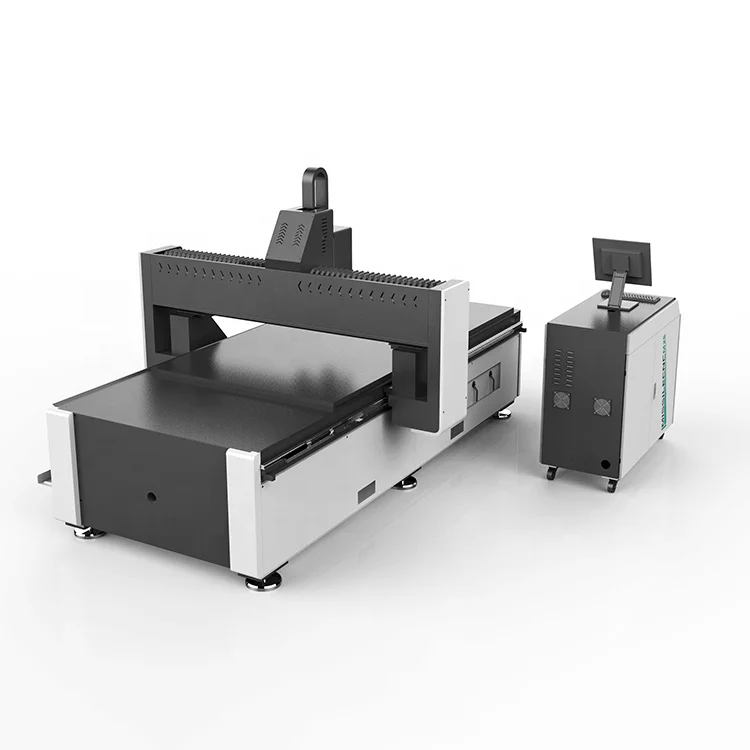

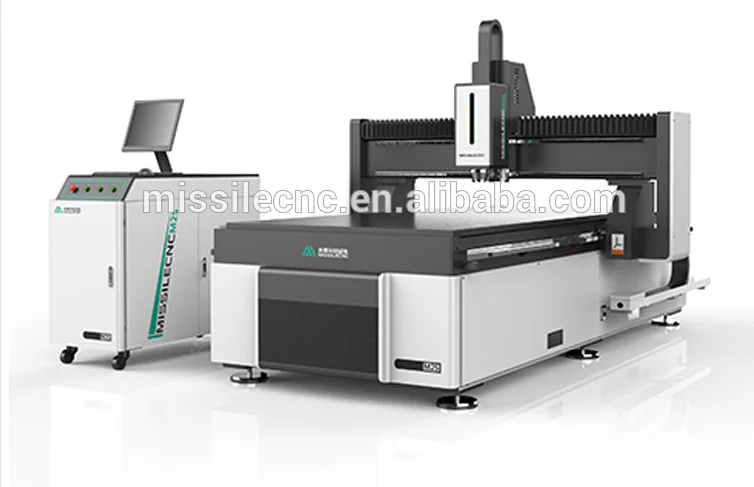

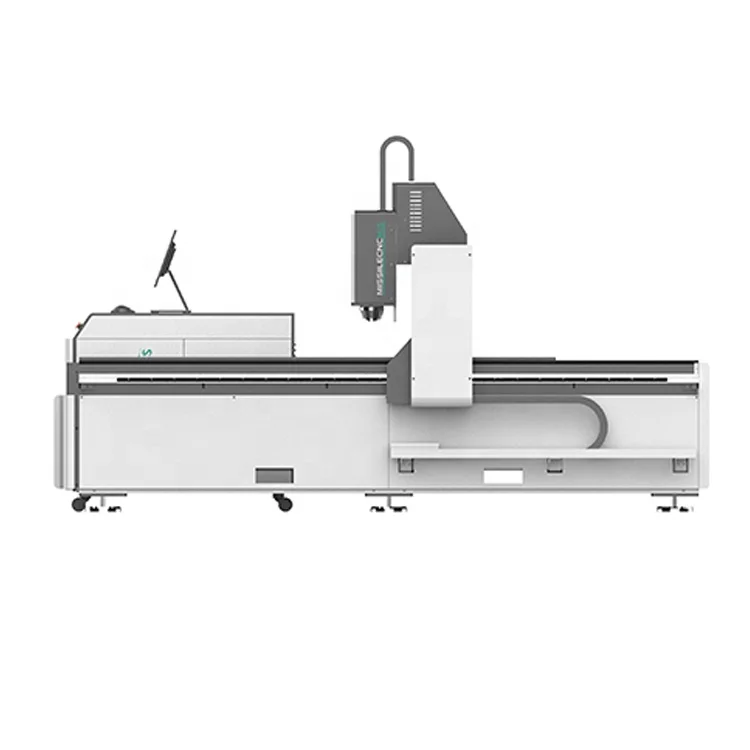

Профессиональный гравировальный станок с ЧПУ 3ph хорошего качества от производителя (62240985656)

Share on (62240985656):


Price:16 000,00 $
Price in USD:Details

Quantity:


Product Overview

Description



Product Description







Information of this machine





Brief introduction of this machine


M2S comes with 7.5kw ATC spindle with linear 4 tools bank, so that make M5S has versatile functions: routing, drilling, cutting, edge chamfering, etc.


Perfect for advertising and woodworking job





M2S equipped with famous brand Ledashine servo system and France MOTO Reducer, guarantee the machine working stality, Taiwan T-win 25 square guide rails and high precision gear rack, which guarantee the working precision





Configurations & Parameters of this machine




















































































NameTypeUnitBrandIndex
SpindleWater1Ronghua5.5 kw
Control systemDSP1DSP A11
 X.YaxisGear2German
TransmissionZ axisBall screw2Taiwan TBI
 Guide railSquare rail6TaiwanT-WIN 25mm
Drive systemServo4LeadshineX,Y 850w servo
Z axis 750 w servo
InverterChinese1Fuling7.5kw
ReducerFranceFrance Moto
Table surfaceVacuum table and T-slot table1
Vacuum pumpAir type17.5kw air vacuum pump
OthersTool sensor, auto oil, auto mist spray




































ParameterX,Y Working Area:1300*2500mm
Repositioning Accuracy:±0.02mm
Processing Accuracy:±0.02mm
Max.Traveling speed:60000mm/min
Max.Working speed:25000mm/min
Spindle rotating speed:0-24000RPM
Working Voltage:AC380V/3ph









Detail pictures and introduction of this machine

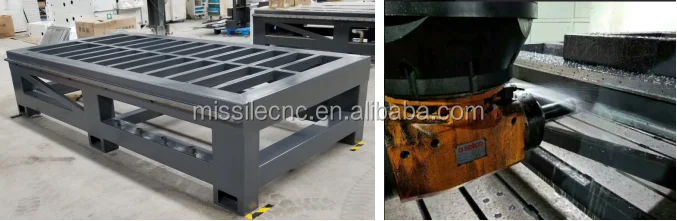

1)Heavy duty bed structure




8mm thickness pipe welding bed structure, high strength welded bed with tempering aging treatment, five-axis CNC maching center processing, guarantee the stablity of the machine structure.


High rigidity body structure design with material stress analysis; tempering aging treatment , guarantee the accuracy of the machine, ensure the bed structure will be not deformed after long time using, via the high precision machining center processing, guarantee the machine working precision

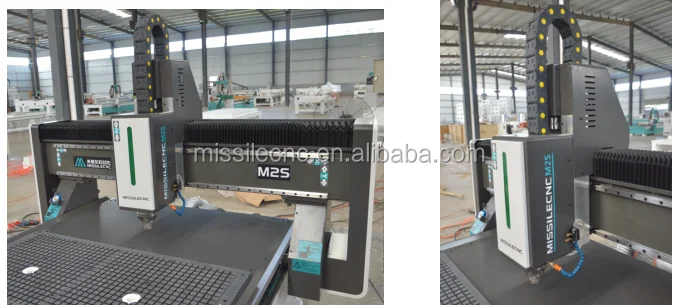

2) Gantry and motor




 380V 5.5kw Ronghua watercooling spindle, meet your needs on all kinds of materials cutting, milling       and carving work, which is specially perfect for acrylic, aluminum, wood, mdf, pvc, acp ..., equipped with auto     mist spray system, can meet the aluminum cutting and carving work which no need the water tank

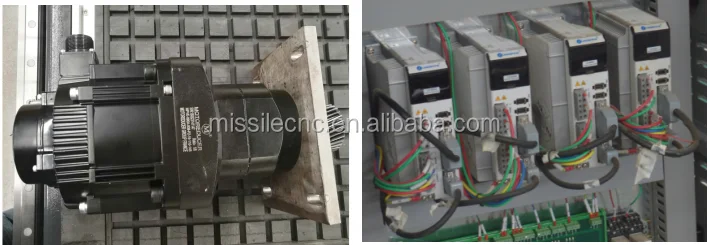

 X,Y axis adopt Leadshine 850w servo motor driver with France MOTO Reducer, make the machine working   with high speed, but will not shake when high speed working.

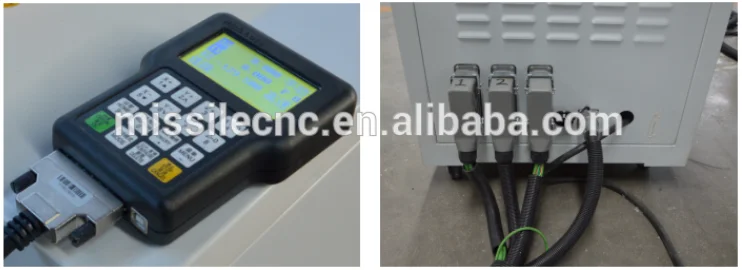

3) Control system & inside of Cabinet box





 DSP A11 control system, which is more convenient for the single spindle machine.


 Aviation plug of the cabinet, guarantee the parts working long life

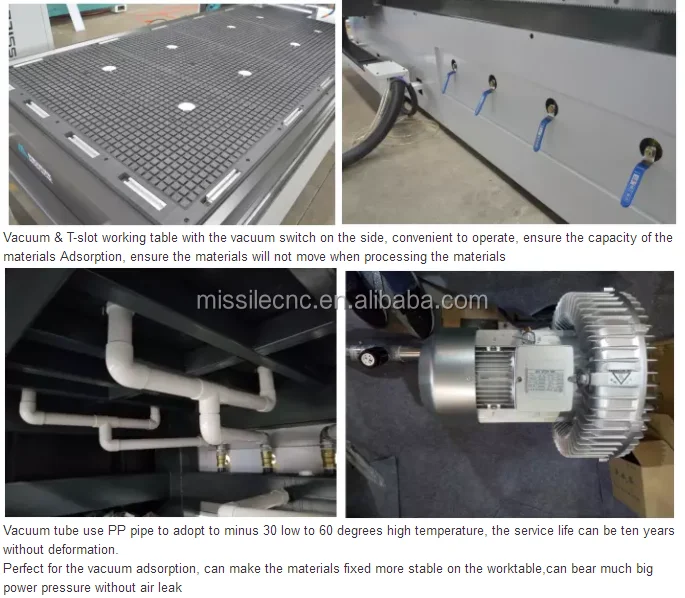

4) Worktable

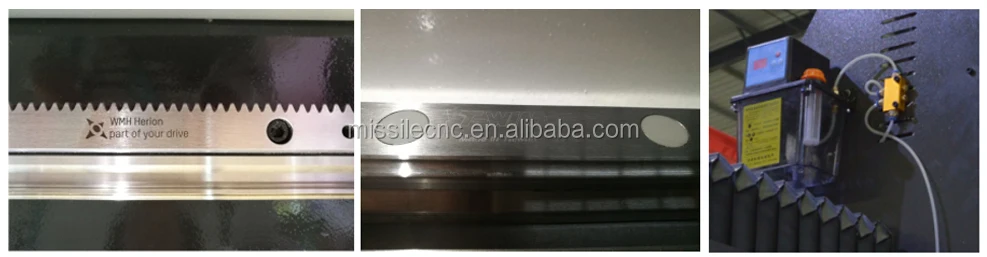

5)Transimission

















World famous German Herion gear rack



Taiwan T-win 25 sqaure guide rails



Lubricating system: Automatically oil the guide rails, protect the guide rails in some degree

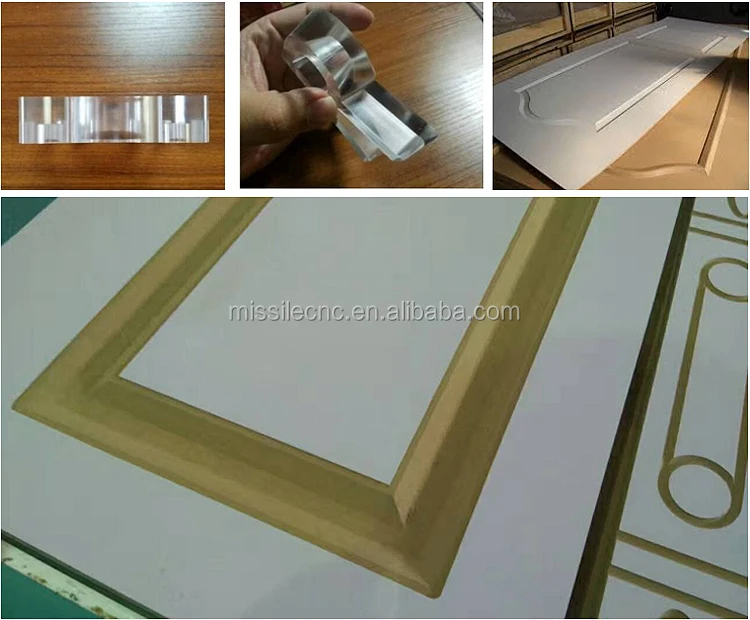

Sample pictures of this machine





























Company Information

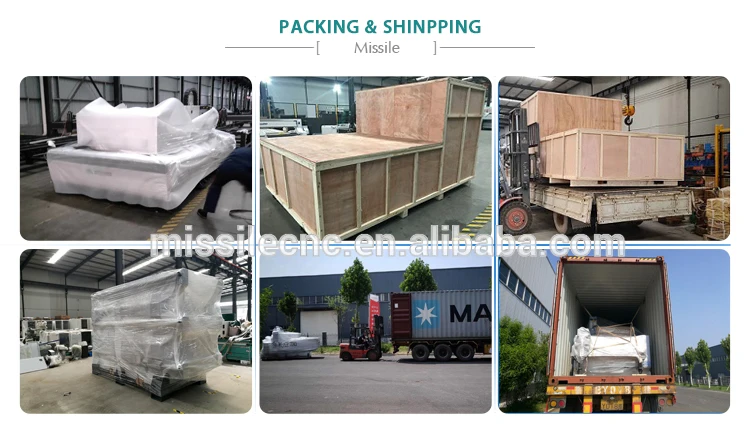

Packaging & Shipping







FAQ







Q1.How to get the most suitable machine and best price Please tell the material you want to working on?


How to working on it ? Engraving ? Cutting ? Or other ?





Q2: Do you have the manual of machine.


Yes,we have.





Q3.If we donot know how to use the machine,can you teach us?


Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.


And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like tickets and hotel and meal.





Q4.How about your after-sales service?


We offer you 24 hours service phone,skype or MSN.





Q5.How about your guarantee period?


One year and during the time,if you have any questions ,we will solve it for free.
