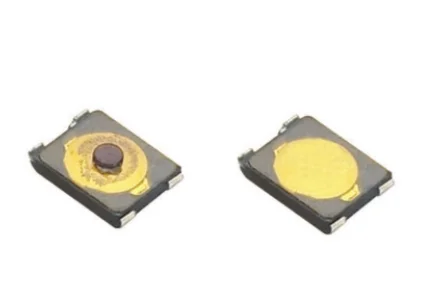

Mini series 2.7*3.0 miniature type vertical push momentary smd tact switch button

Product Overview

Description























Materials:

· Terminal:H65

· Actuator:PA6T

· Housing: PA6T

· Cover:stainness

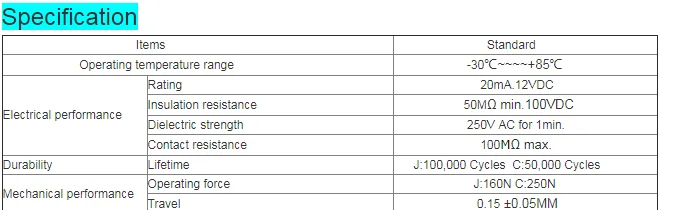

Specification:

MODEL SERIES  :TACT  SWITCH

MODEL NO:TS-1108M-HQM-K-RS

Rating: DC 12V 50mA

CONTACT RESISTANCE:50mΩMAX

INSULATION RESISTANCE:100MΩMIN

DIELECTRIC STRENGTH:NO DAMAGE TO PARTS ARCING OR BREAKDOWN ETC

TEMPERATURE:AT-16℃~+60℃

FORCE:180/250gf

LIFE  TEST:40,000CYCLESCONTACT RESISTANCE SHALL BE 200mΩ MAX./30,000 CYCLESMECHANECAL AND ELECTRICAL CHARACTERISTICS SHALL BE SATISFIED.

SOLDERING test:

SOLDER  TEMPERATURE260±5℃,IMMERSION TIME 5±0.5 SEC,IMMERSION DRPTH UP TO THE SURFACE OF THE BOARD THICKNESS OF PRINTED WIRING BOARD 1.6mmDIMENSIONS OF COMPONENT HOLES IN THE PRINTED WIRING BOARD SHALL BE ACCRDANCE TO THE SPECIFCATION
