IP65 66 67 embedded box pc 4*RS232 2*RS485 2*RJ45 industrial compact computer
- Category: Industrial Computer & Accessories >>>
- Supplier: Shenzhen Pontron Technology Ltd.
Share on (62243453110):
Product Overview
Description
IP65 66 67 embedded computer 1*HDMI, 4*RS232, 2*RS485, 2*RJ45 industrial compact box pc
Product Description
Main Feature:
« Rugged and compact computer with Fanless design.
« The whole device meets IP rate: IP65/IP66/IP67 (Optional)
« Intel Kabylake-U chipset
« Support CPU Intel Dual Core i3/i5/ i7Series
« 2* RJ45 10/100/1000M LAN
« 4*RS232, 2*RS485(optional:COM1 to COM4 with power supply)
« Support DC 9-36V power supply (Optional)
Introduction:
« RBOX-I500B-I5 is industrailly rugged computer which meets IP 66 rate, it supports Intel CPU Dual Core i3/i5/i7 Series, Intel Kabylake-U chipset, which comes with 1*HDMI, 4*RS232, 2*RS485, 2*RJ45 10/100/1000M LAN, 4*USB3.0, 2*USB2.0, 8*GPIO,1*LPT with fanless design.
« It’s very good heat scattering and beautiful appearance, being popular in the whole market. Box PC help user to save space with multi-functions which can be used to Intelligent car, Environmental control, equipment, industrial line, transportation, automation, communication etc.
Specification:
Material | Industrial Al-alloy |
CPU | Intel Dual Core i3 7100U 2.4GHz, i5 7300U 2.5-3.1GHz, i7 7500U 2.7-3.5GHz (optional ) |
Chipset | Intel Kabylake U |
Memory | DDR4 8G/16G /32G(optional) |
Storage | 2.5”SATA 500G/1TB/2TB HDD, 64G/128G/256G/512G(optional) SSD |
Expansion slot | 1x M.2, 1 x SIM |
IP65/IP66/IP67 I/O | 1 x HDMI |
1 x DP, 1x eDP | |
4 x RS232, 2 x RS485(Optional: COM1 to COM4 with power supply) | |
2 x RJ45 10/100/1000M LAN | |
4 x USB3.0, 2 x USB2.0 | |
1 x Audio Line Out,Mic | |
1 x LPT | |
WIFI(Optional) | |
GPIO | 8 bit GPIO |
Power supply | DC 9-36V Input(optional) |
LED light | 1 x Power LED |
Watchdog timer | Programmable overtime interrupt or recovery |
Color | Black(optional) |
OS | Win7, Win10 , Linux |

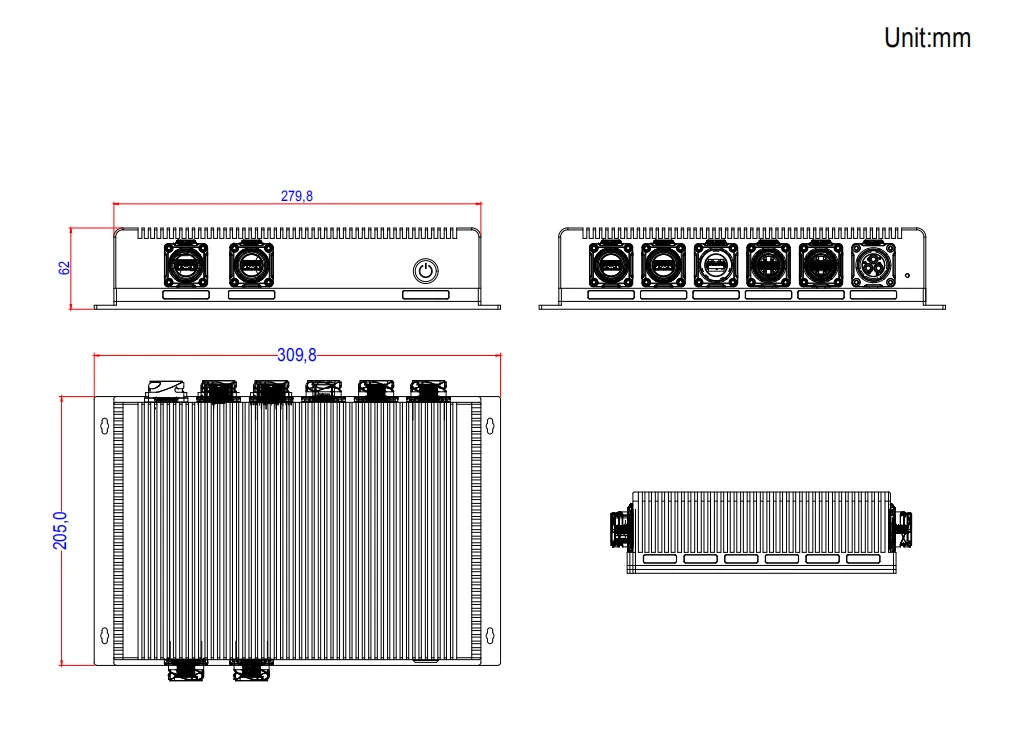

Dimension | 309.8 x 279.8 x 62mm |
N.G | 3.3KG |
Operating Temperature | -10°C ~ 60°C |
Storage Temperature | -20°C ~ 80°C |
Storage Humidity | |
Vibration | 5 grms / 5 ~ 500Hz in working status(SSD) |
Shock | 50 g peak acceleration(11ms duration)(SSD) |
Ordering Information :
RBOX - 1500B-I5 | Rugged embedded computer with IP66 rate, W/industrial 3.5'' mother board, W/Intel CPU i5 7200U 2.5GHz Dual Core, W/SSD 64G, W/8G memory, W/36V power supply. |
