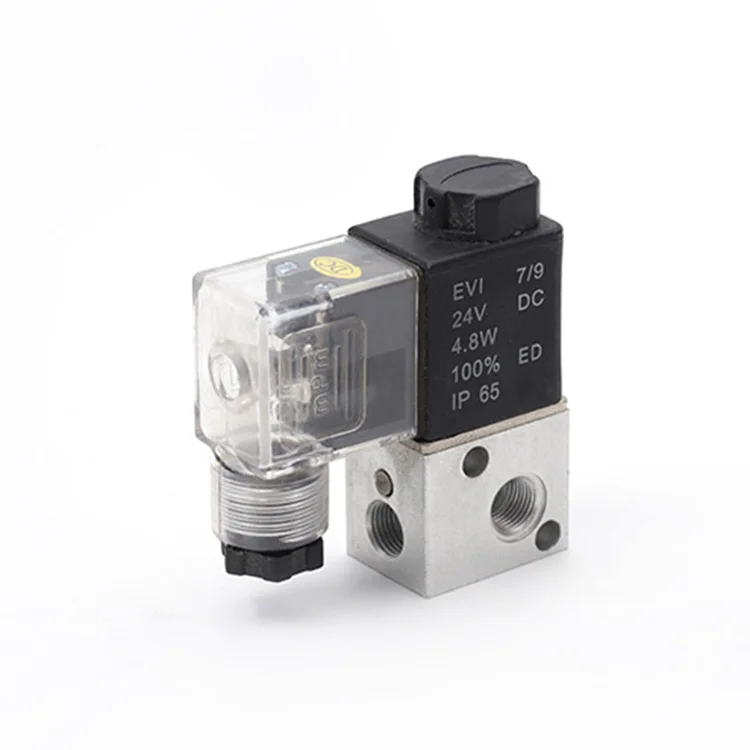

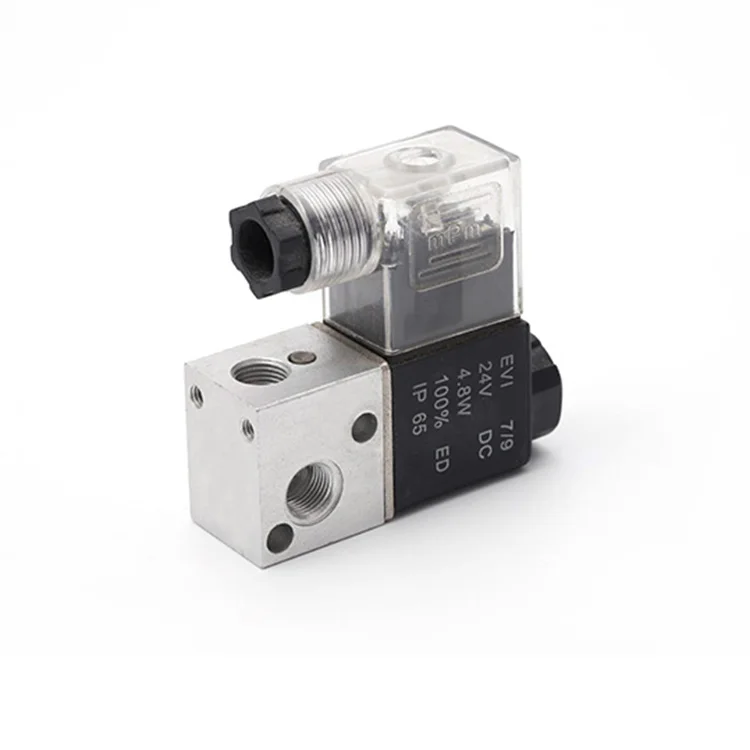

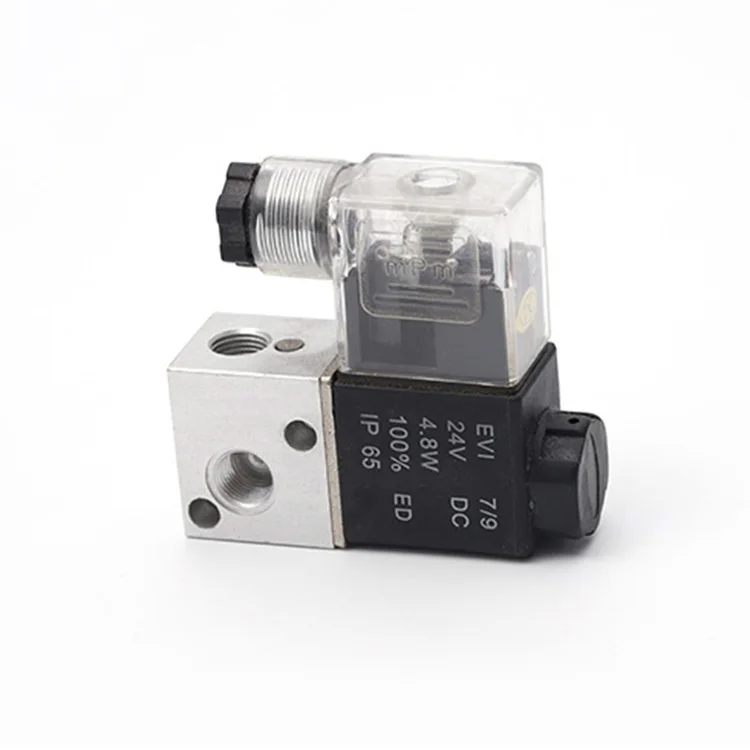

3V1 06 series direct drive type two positions three ways solenoid valve
3V1-06 series direct drive type two positions three ways solenoid valve
3V1-06 series direct drive type two positions three ways solenoid valve
3V1-06 series direct drive type two positions three ways solenoid valve
3V1-06 series direct drive type two positions three ways solenoid valve

3V1 06 series direct drive type two positions three ways solenoid valve

Share on (62243750650):


Price:RUB 306.71

Quantity:


Product Overview

Description

SV22 small Solenoid valve

Two position

1/4" port size

1)Valve Position number: two positions five ways
2) Ambient temperature: -5~50°C
3) solenoid valve working pressure: 0.15-0.8MPa
4) solenoid Voltage: DC 24V/DC12V or AC 24V/110V/220V/380V (50/60/Hz)

Solenoid  Shortest excitation time: 0.2 second

 SV251-08 valve specification :

Media

Compressed air

Applicable pressure range

0.15~0.85Mpa

Proof pressure

1.2Mpa

Ambient and fluid temperature

-5~60°C

Valve Material of body

Aluminum alloy

Standard voltage

DC12V,DC24V,AC24V,AC110V,AC220V,AC380V

Solenoid Power consumption

AC220V

2.0W

DC12V,AC110V,AC380V

2.5W

DC24V

3.0W

AC24V

3.5W

Allowable voltage range

-15%~10%

IP rate

IP65

Insulation rate

Class F

Action

Internally piloted

Min. activate time

0.05 s

Lubrication

Needless

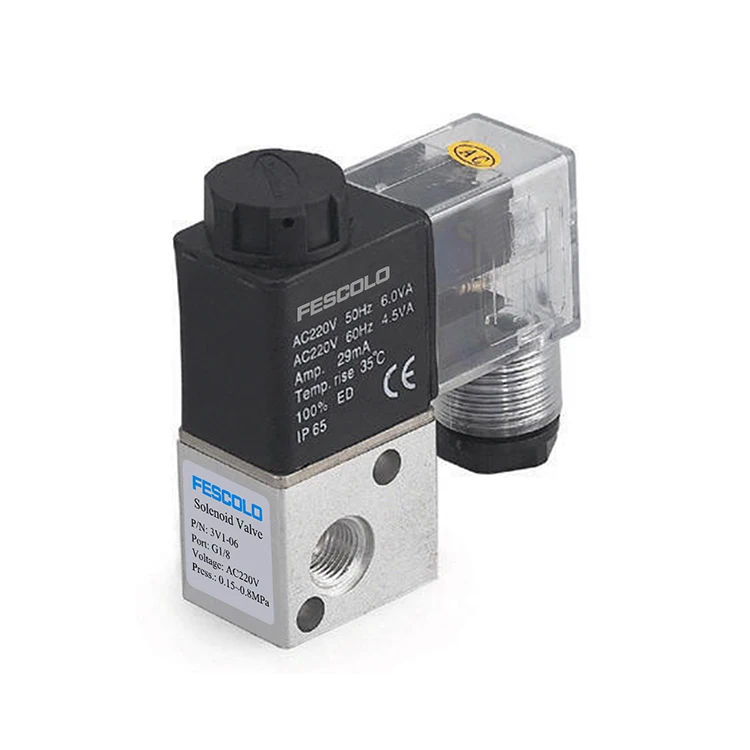

 3V1-06 solenoid valve(2).jpg
