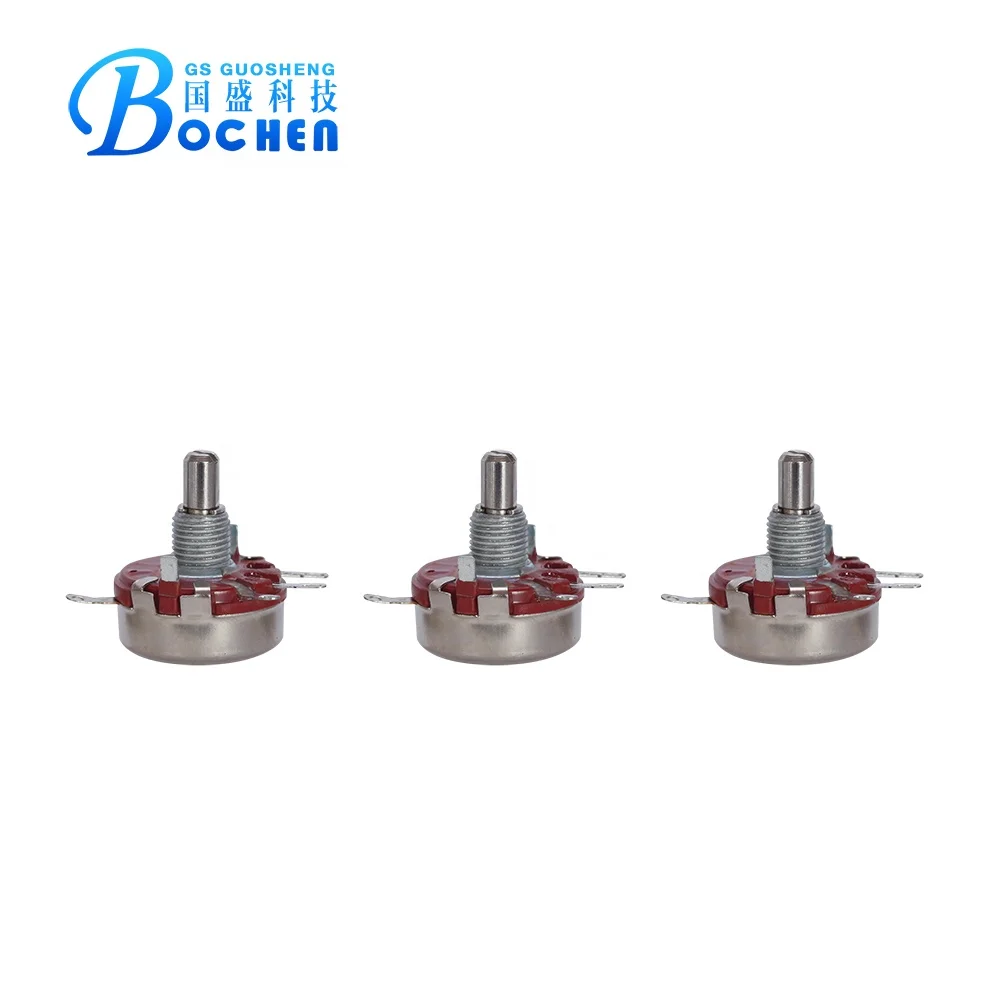

Bochen carbon Rotary potentiometer WTH118 datasheet singleturn potentiometer
- Category: Passive Components >>>
- Supplier: Chengdu Guosheng Technology Co. Ltd.
Share on (62246534745):
Product Overview
Description
Carbon film Potentiometer WTH118
Carbon Film Potentiometer WTH118
| |
| Electrical Characteristics: | |
| Total Resistance | 470Ω-2.2MΩ |
| Total Resistance Tolerance | ±20% |
| Max. Operation Voltage | 250VAC |
| Rated Power | 2W |
| Slider Noise | ≤47mV |
| Insulation Resistance | ≥100MΩ at DC 500V |
| Mechanical Characteristics: | |
| Total Rotational Angle | 260°±10° |
| Rotational Torque | 0.3~2N.cm |
| Rotational Life | 10,000 cycles |
| Mechanical Travel | 260°±10° |
| Temperature Range | -10℃-85℃ |

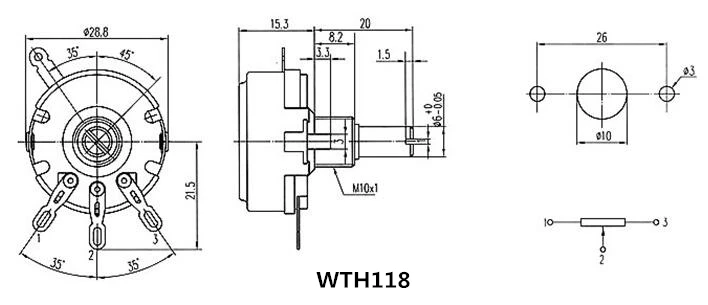

Shape Dimension:
