Lpg Gas Compressor Conversion Kits Cng Gas Compressor With Oil Free
The compressor adopts oil-free lubrication structure and can run continuously for a long time. Meet the process requirements, suitable for all kinds of gases. All oil-free lubrication compressors with various parameters and requirements can be customized according to customer requirements.
Product overview:

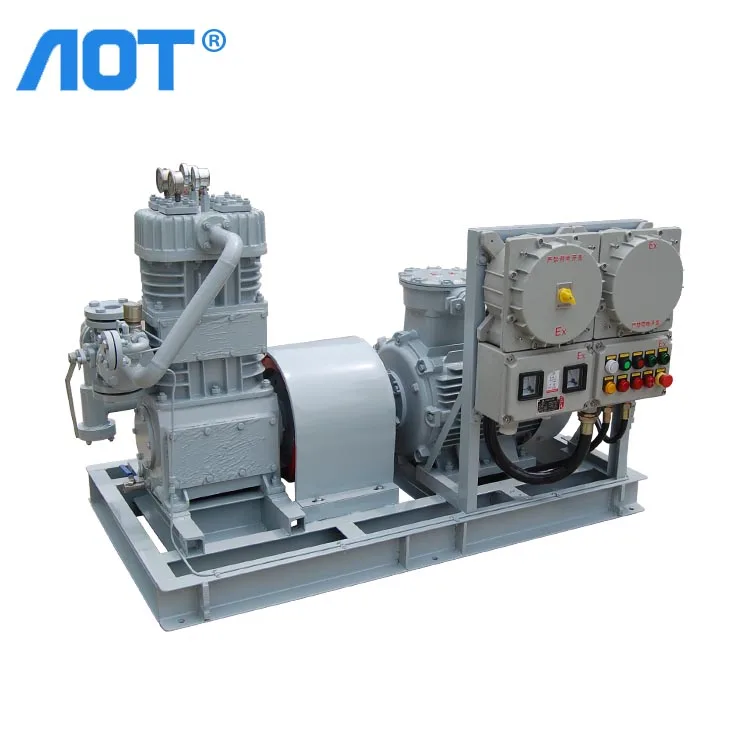

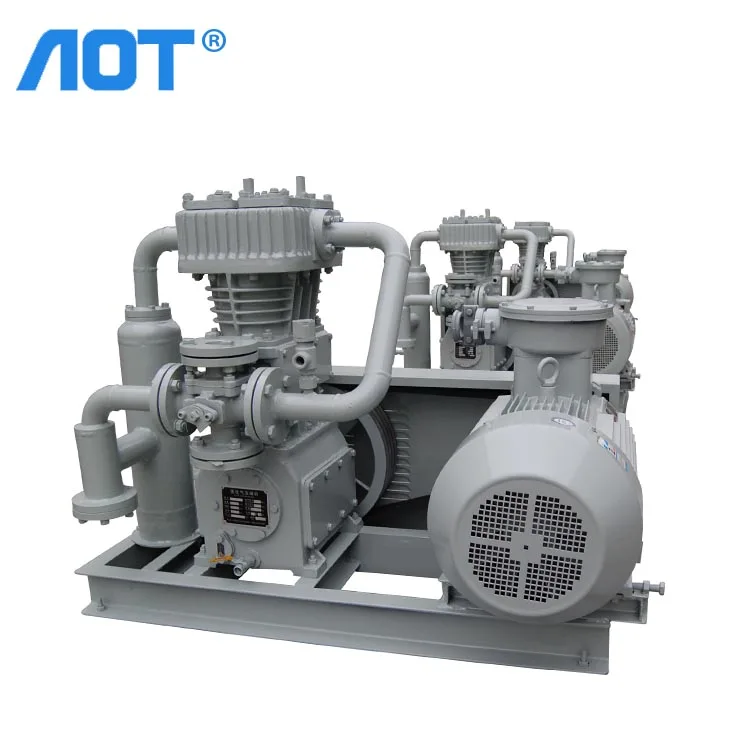

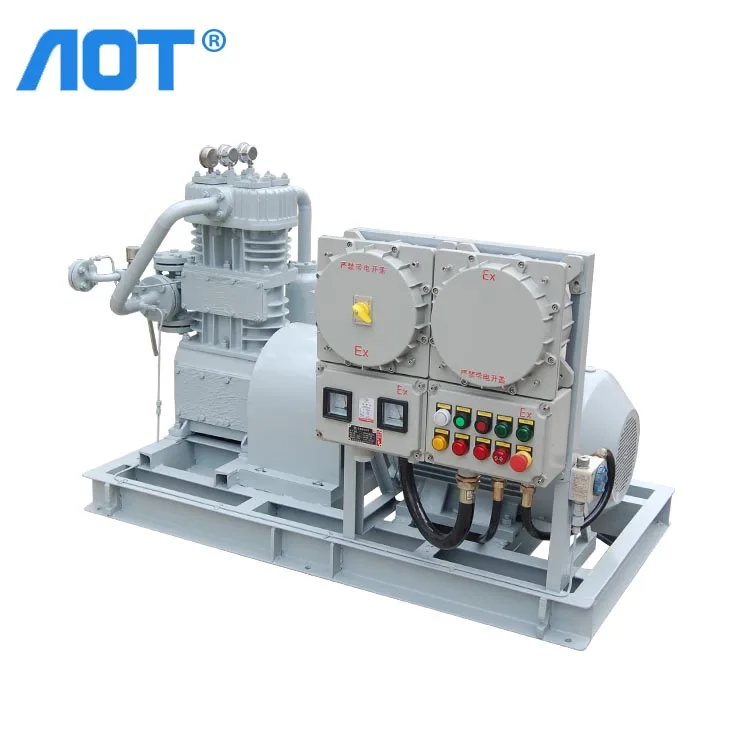

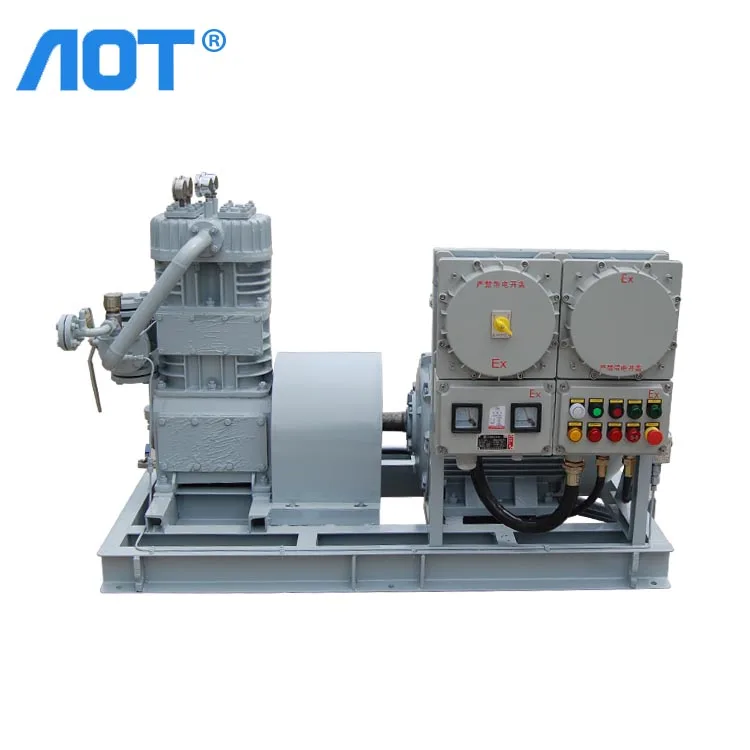

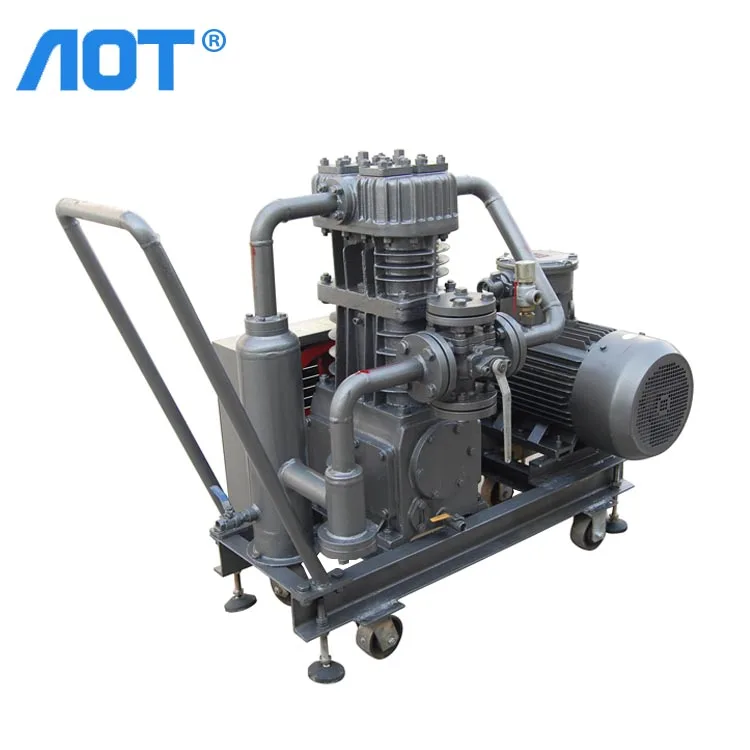

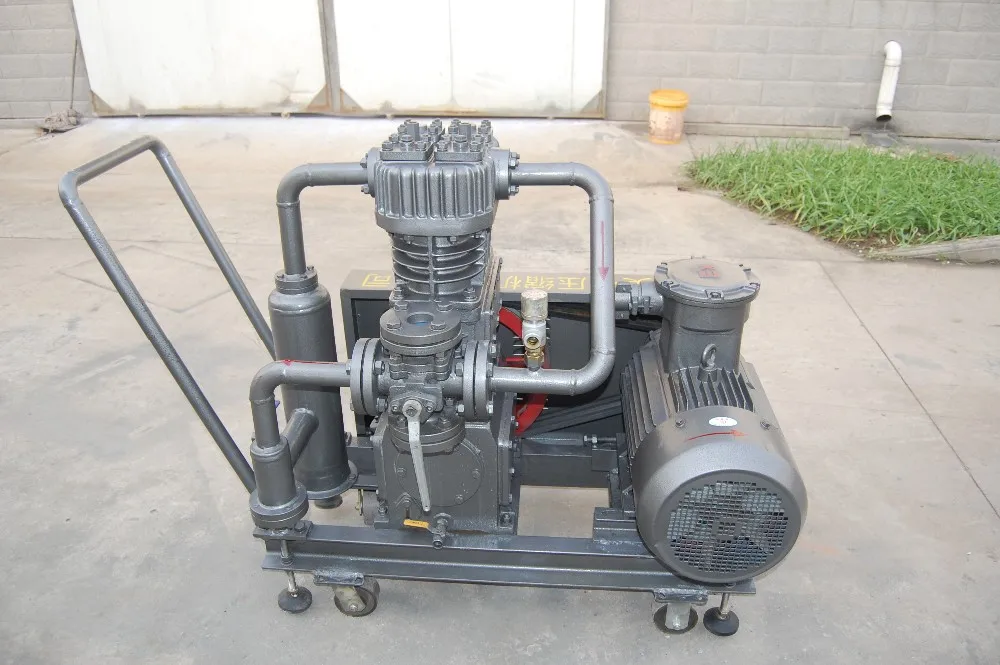

LPG compressor is a patented product of our company. Our LPG compressor adopts oil-free lubrication technology to ensure gas cleanness and adopts vertical two-cylinder structure. The overall volume occupies a smaller area and the structure is more compact and reasonable.
Detailed Images
Features:
Small size, light weight, smooth operation, low noise, simple structure, easy operation, safe and reliable
Application:

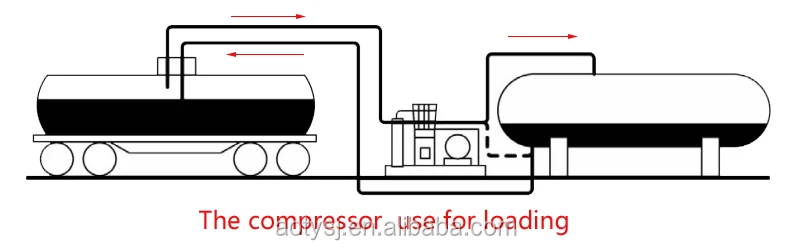

Widely used in liquefied gas station loading and unloading, residual gas recovery, and chemical plant exhaust recovery.
Technical Parameters
Compressor
Product Model
ZW-0.6/10-16B
Type
Z Type
Compressed medium
LPG
Nominal volume flow(m³/mim)
0.6
Compression stage
1
Cylinder number
2
Driving mode
Belt
Noise (sound pressure level) dB(A)
≤75
Cooling mode
Air cooling
Rotational speed (r/min)
400
Suction pressure (MPa G)
1.0
Discharge Pressure (MPa G)
1.6
Suction temperature (℃)
30
Discharge temperature (℃)
≤150
Lubrication type
Crankshaft, connecting rod, cross head
Oil lubrication
Cylinder, Packing
Oil-free lubrication
Motor
Model
YB3-132M-4
/
/
Rotational speed (r/min)
1450
Rated voltage (V)
380
Rated frequency(Hz)
50
Rated current (A)
15.4
Rated power (Kw)
7.5
Compressor size (L×W×H) mm
≈1100×800×1000
Weight(kg)
≈350
Note:With the parameters of the logo will be subject to leave the factory
Scope of supply
No.
Name
Number
Note
1
Compressor host
1
/
2
Motor
1
/
3
Inlet gas-liquid separator
1
/
4
Safety valve
1
/
5
Shared chassis
1
/
6
Belt
1 set
/
7
Piping parts
1 set
/
8
Random spare parts
1 set
/
9
Sub cooler
1 set
/
10
control cabinet
1
/
LPG compressor product specifications
Model
Gas displacement (m3/h)
Inlet pressure (MPa)
Discharge pressure (MPa)
Motor power (Kw)
ZW-0.6/10-16
0.6
1.0
1.6
7.5
ZW-0.8/10-16
0.8
1.0
1.6
11
ZW-1.0/10-16
1.0
1.0
1.6
15
ZW-1.3/10-16
1.3
1.0
1.6
18.5
ZW-1.5/10-16
1.5
1.0
1.6
22
ZW-2.0/10-16
2.0
1.0
1.6
30
ZW-2.5/10-16
2.5
1.0
1.6
37
ZW-3.0/10-16
3.0
1.0
1.6
45
ZW-4.0/10-16
4.0
1.0
1.6
55
ZW-8.0/10-16
8.0
1.0
1.6
110
ZW-0.4/10-16
0.4
1.0
1.6
5.5
ZW-0.2/10-16
0.2
1.0
1.6
3
The above models are commonly used and can be customized according to requirements.
The above data are calculated according to: inlet pressure: ≤ 1.0mpa; exhaust pressure: ≤ 1.6mpa; maximum pressure difference: 0.6mpa; maximum instantaneous pressure ratio: ≤6 cooling mode: air cooling; inlet temperature: 40℃; liquid density of liquefied gas: 582.5kg/m3. When the working condition changes, the unloading quantity will change accordingly, for reference only.
Specification of LPG compressor for recovery
Model
Gas displacement (m3/h)
Inlet pressure (MPa)
Discharge pressure (MPa)
Motor power (Kw)
ZW-0.6/10-16
0.6
1.0
1.6
7.5
ZW-0.8/10-16
0.8
1.0
1.6
11
ZW-1.0/10-16
1.0
1.0
1.6
15
ZW-1.3/10-16
1.3
1.0
1.6
18.5
ZW-1.5/10-16
1.5
1.0
1.6
22
ZW-2.0/10-16
2.0
1.0
1.6
30
ZW-2.5/10-16
2.5
1.0
1.6
37
ZW-3.0/10-16
3.0
1.0
1.6
45
ZW-4.0/10-16
4.0
1.0
1.6
55
ZW-8.0/10-16
8.0
1.0
1.6
110
ZW-1.0/1-10
1.0
0.1
1.0
15
ZW-1.0/2-5
1.0
0.2
0.5
7.5
The above models are commonly used and can be customized according to requirements.
Related Products
Five reasons to choose AOT compressor:
1.Overall skid-mounted humanized design:
Adopt integral skid-mounted design, compact structure, more convenient operation and maintenance.
2."Tailored" for customers:
According to the usage parameters and requirements provided by customers, provide the best solution to fully meet the needs of customers.
3.A machine a file:
Record the relevant data and information of the whole process of the equipment and the delivery place in detail, so as to facilitate the timely tracking service.
4.24Monthly free warranty
All factory compressors are Free warranty for 24 months, lifetime warranty, so that users can be more assured.
5.Perennial spare parts support
Our company stock spare parts for every factory compressor, to ensure the long-term use of users, remove users' worries.
Our Company
Bengbu AOT Compressor Co., is located in Bengbu Anhui.China. This is the world's important compressor production base. The company specializes in the development, manufacturing and sales of compressor products. The company is mainly engaged in the new type of high efficiency and environment-friendly special gas compressor for oxygen, hydrogen, menthane , liquefied gas, natural gas and gas station and chemical industry. The company has always adhered to the scientific and technology and design concept of compressor industry at home and abroad, combined with the actual situation in China, and applied scientific enterprise management and advanced manufacturing techiology in the design, development, assembly process and testing means. Product quality, to create first-class products.
Our Services
Two-years warranty period for whole machine except of tubes and human factors etc, and 24-month of after-sale service from the date when you receive machine or 24 months when installation finished; Consultant services for whole machine life, and 24 hours technical support by email; UPS, English software, user manual and the installation & debugging by our experienced technicians.
Packing & Delivery
FAQ
Please tell me inlet pressure,outlet pressure,voltage frequency,capacity,the usage of compressor, I will recommend a suitable gas compressor.
If you want to send me the inquiry,please fill the below technical information: 1. The flow rate: _____Nm3/hr 2. Inlet pressure: _____ Bar 3. Discharge pressure: _____ Bar 4. Voltages and Frequency : ______V/PH/HZ 5. Natural gas compressor application:
