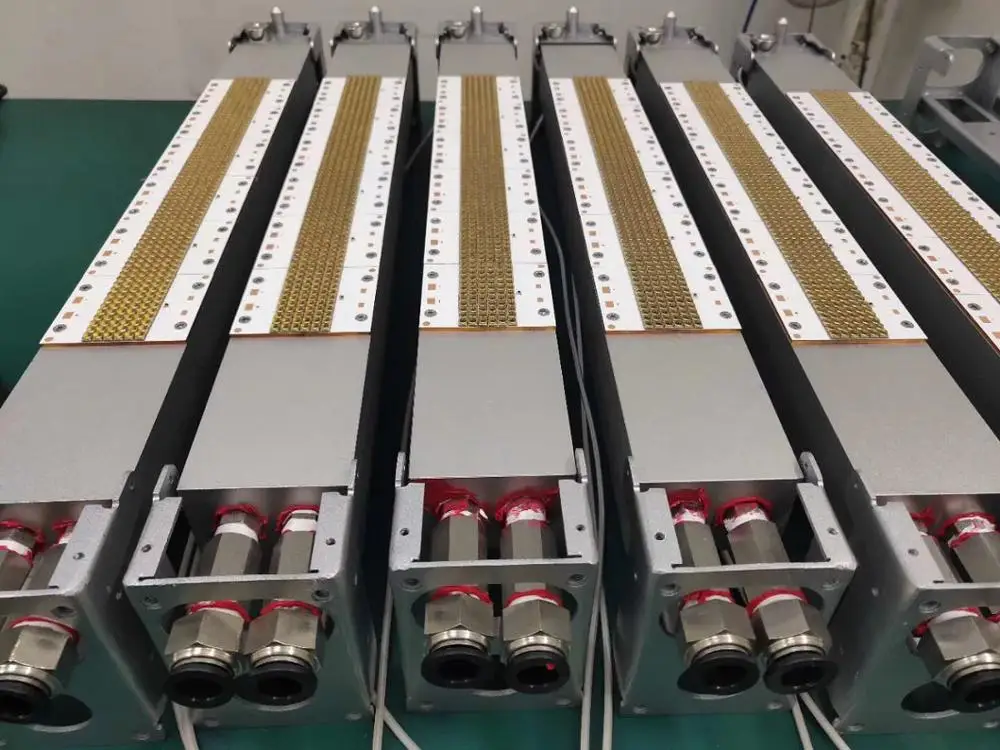

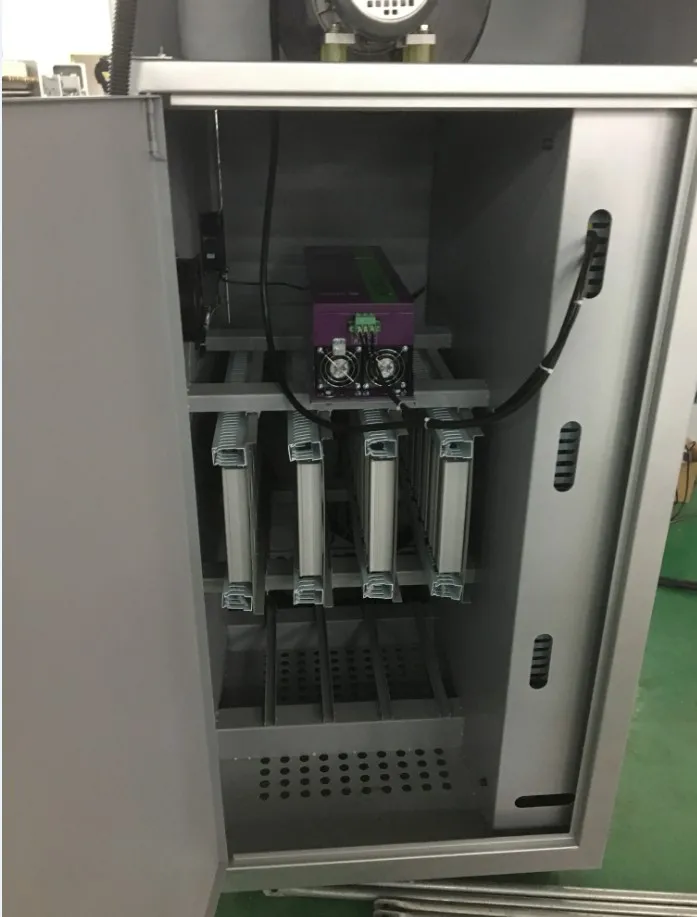

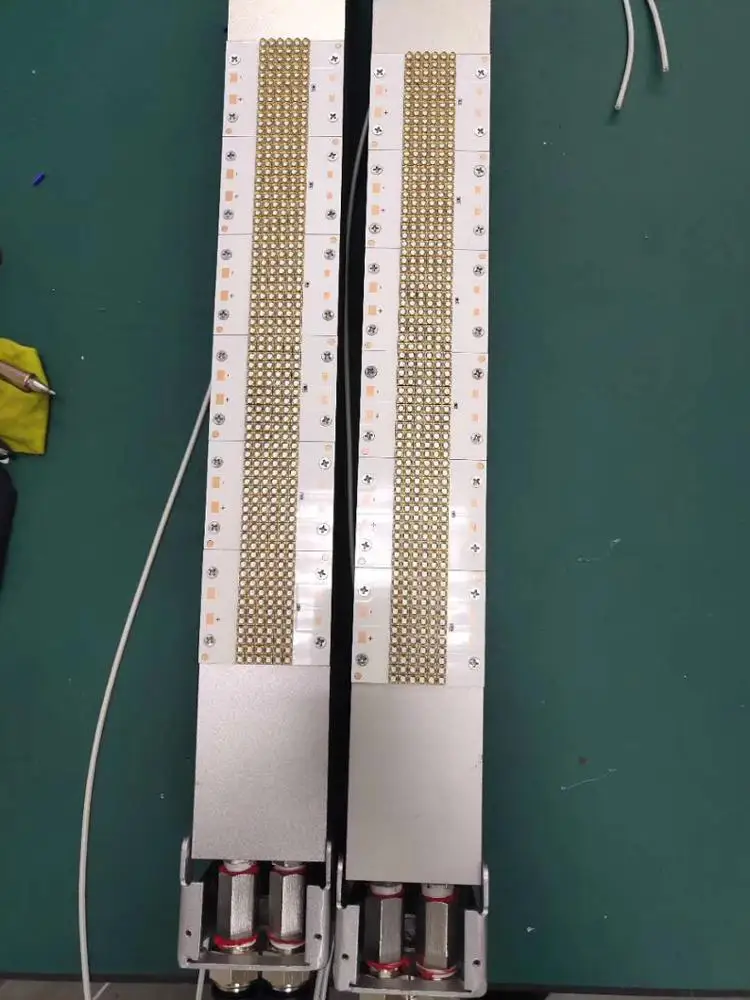

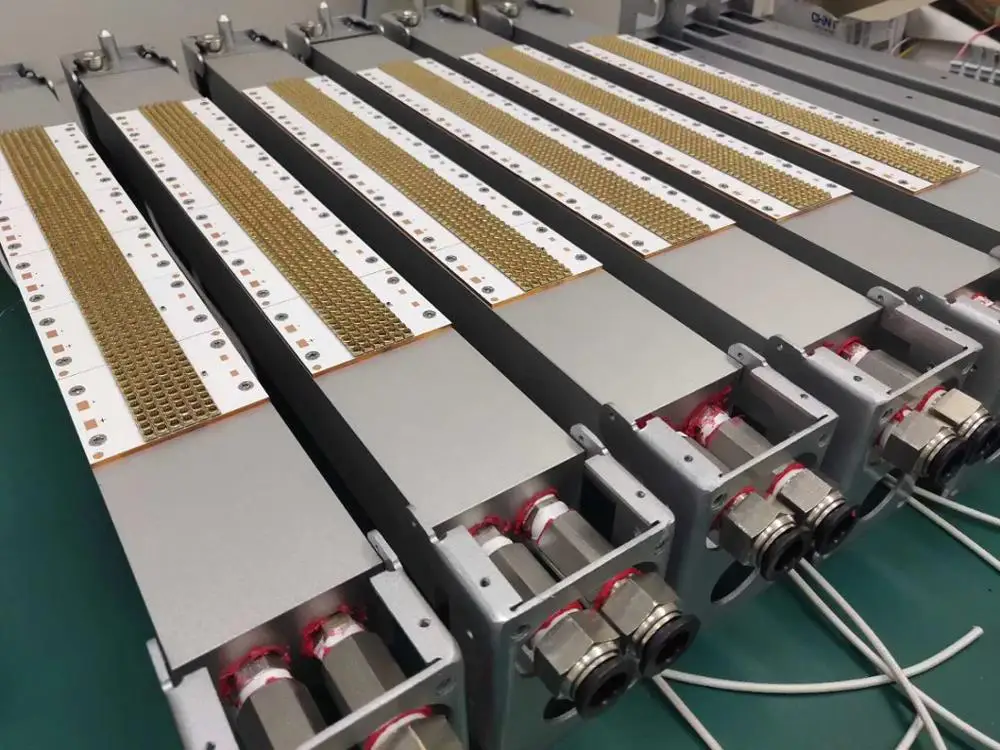

1- led UV lamp Including: water tank, lamp housing, electric cabinet and monitor touchscreen Cooling:water cooled, use pure water only, water cooling system including water chiller + water tank Wavelength: 385nm Voltage: 380v Power: 2kw for LED lamp LED power 20%-100% linear stepless adjustable Intensity: 10w/cm2 Curing width: 50x350mm Unique water cooling: water flows directly below the housing of LED beads, achieving better cooling effect LED lights: using Korean light beads, life time 20,000 hours LED lamp unit size: 56 (L) x 6.5 (W) x 17 (H) cm (approx.)
2- UV lamp curing system Including lamp housing, electric cabinet and monitor touchscreen Cooling:pneumatic air source supply by buyer Wavelength: 345nm-385nm Power: 5kw for UV lamp Lamp power: 160w/cm2 Lamp arc: 50x350mm UV power 20%-100% linear stepless adjustable UV lamp unit size: 64 (L) x 12 (W) x 42 (H) cm (approx.)

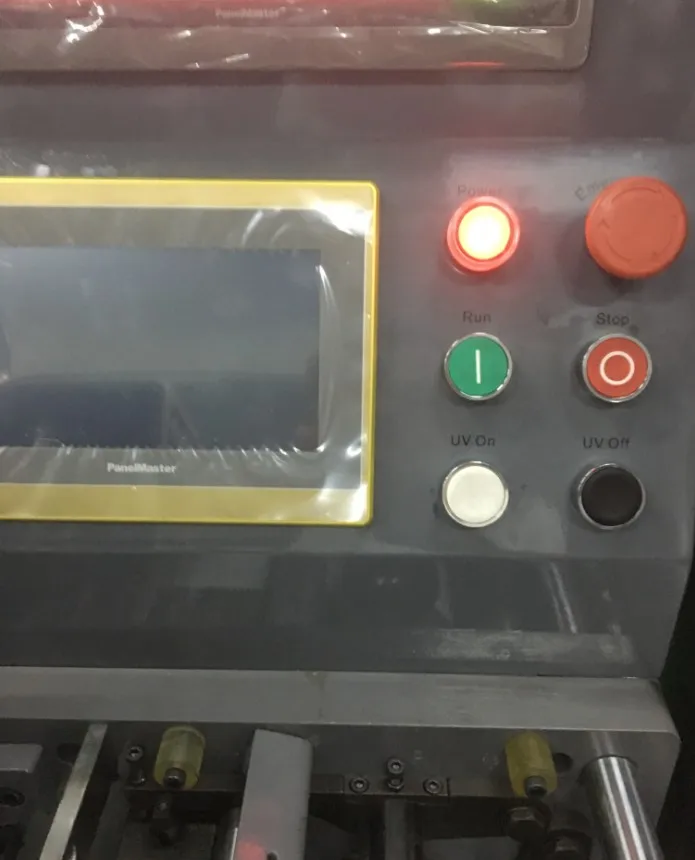

3- Easy Control integrated plc + touch panel control + UV control panel UV lamp housing with automatic motor, Frequency conversion control by air cylinder, when the printing press stops, auto shutter close and lamp change to low power output; press run
4- Safety Over temperature protection Over current protection Over loading protection Low voltage protection Warranty: 1 year (exclude consumables)
Packaging & Shipping
each UV lamp is standard export packed
Our Services
We have a after sales team to fully support after service. our after sales service includes hotline, new machine installation, warranty maintanence&repair, life-long technique support.
Company Information
Guangzhou Nickel Printing Machinery Co.,Ltd. was established in 2003, with more than 100 employees now. The company specializeds in label printing equipments. We possess independent teams of design, R&D, manufacturing and sales. Since the company was founded, it has been adhering to the "technical innovation, services winning" management concept, won the trust of many domestic and overseas customers. The company has sold about one thousand rotary presses. Nickel is the leading company of domestic manufacturer of label presses.
FAQ
Q: Are you factory or trading company?
A: We are professional factory of label printing machine for over 20 years
Q: How about your after service?
A: We have a after sales team to fully support after service. our after sales service includes hotline, new machine installation, warranty maintanence&repair, life-long technique support.
Q: where is your factory?
A:we are located in Guangzhou city, China, near Hongkong. 1 hour's drive from Guangzhou airport.
