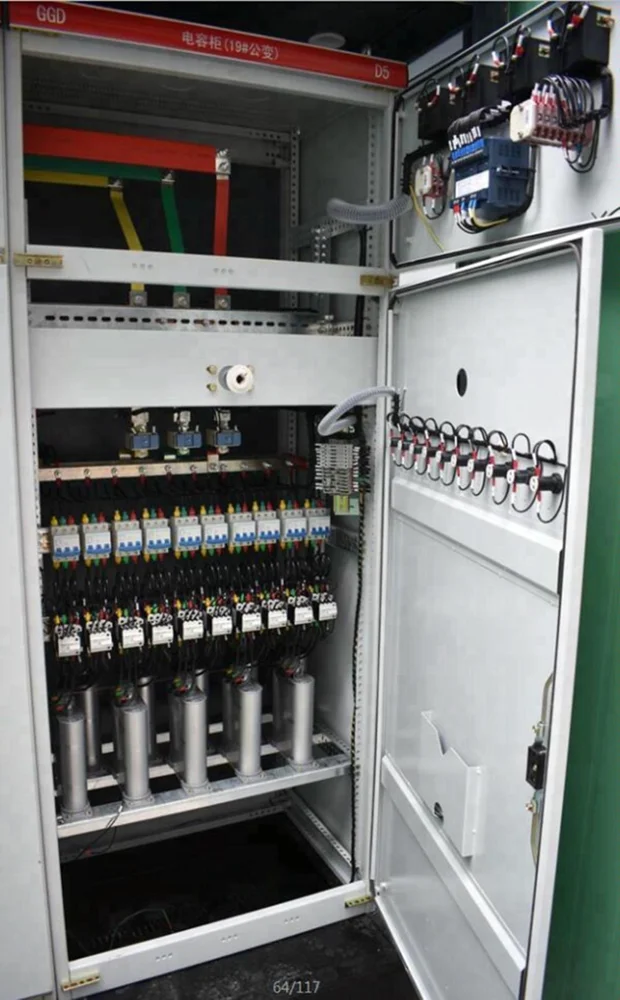

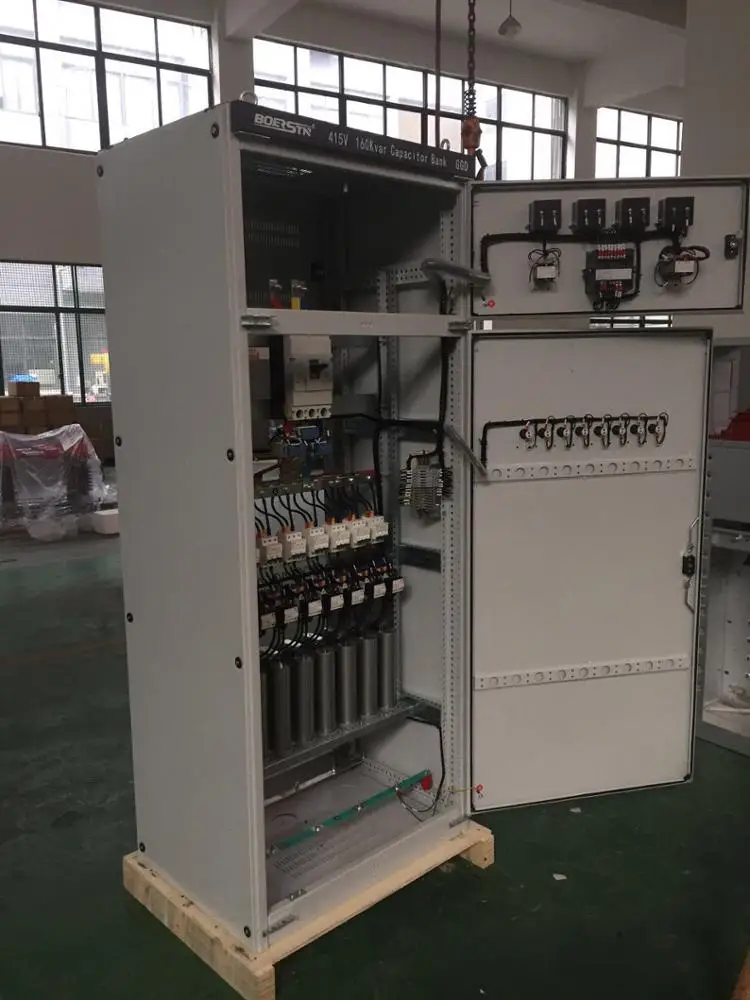

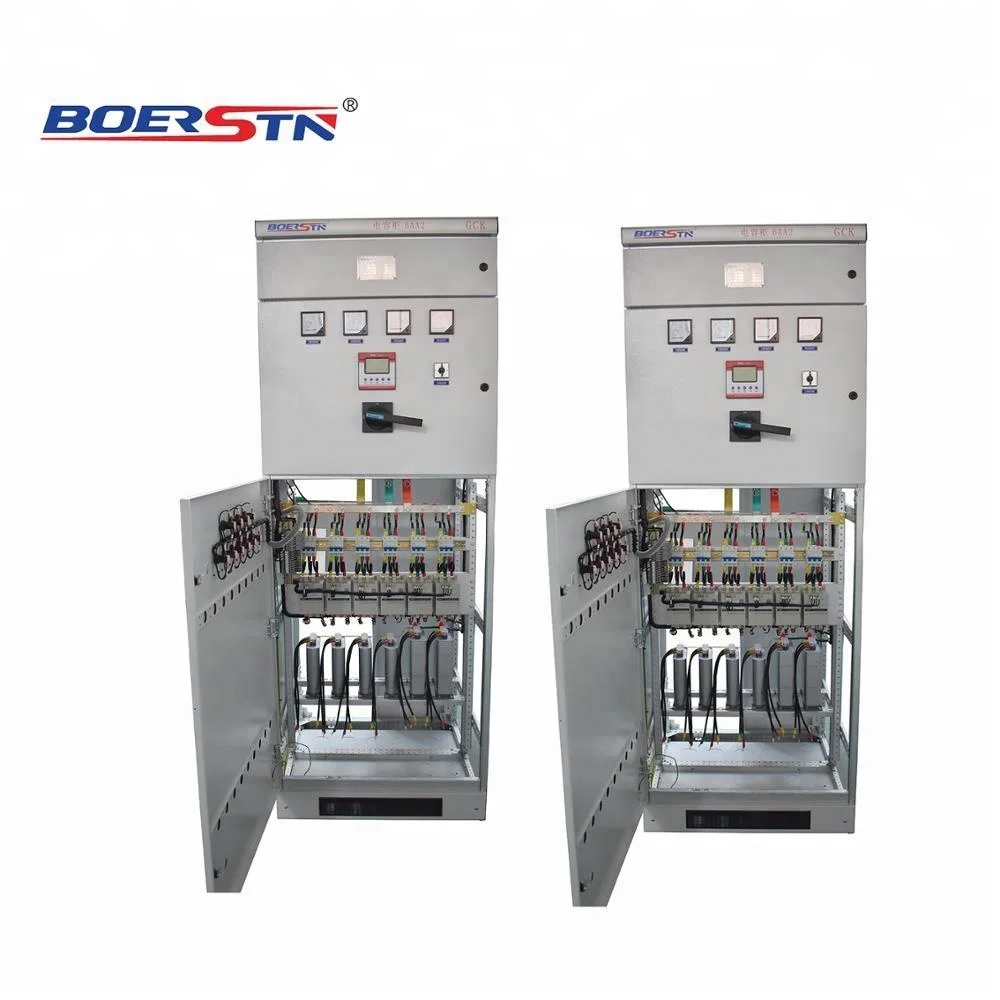

APFC Automatic Power Factor Correction Panel Capacitor Banks 300Kvar 400Kvar 450Kvar 11KV

GCK 160KVAr auto Power Factor Improvement Plant Device (PFI) / Auto PFI Plant, complete with capacitor bank, magnetic contactors, HRC fuse PF correction relay 630A TPN MCCB, ON/Off switch indication lamps, secector switch

• Sheet steel clad , 6 steps correction


• Birch gray color powder coating paint


• free standing floor mounting type


• 400/415V ,50 /60 Hz, 150 KVAr ,indoor


• 350A main MCCB -Moulded case circuit breaker, 63A AC magnetic contactor, 50A MCB-Mini circuit breaker


• model RPC5CMC-6 type automatic power factor correction ,with communication port can be connected with PLC or PC


• BH-0.66 400/5A CT (current transformer)


• 6 x 25 KVAR bank of TP dry type power capacitor with discharge capacitor


• 5 kvar bank of TP dry type power capacitor


• 1pc auto power factor correction relay..

GCK type LV switchgear is suitable for three-phase AC 50 /60HZ, max voltage 660V, rated current to 3150A system and  three-phase four wire and three-phase five wire, it is widely used in

power plants, substations, industrial and mining enterprises, hotels, airports, docks and the building of broadcasting and communication center, transmission & distribution and the electric energy conversion, power distribution and power consumption in PC and motor control center MCC.

 1.Indoor altitude above sea level: Maximum installation altitude: 2000m

2..Ambient air temperature: -5℃~+40℃ and the average temperature should not

exceed +35℃ in 24h

3.Relative humidity should not exceed 50% at max temperature +40℃. Higher

relative humidity is allowed at lower temperature. Ex. 90% at +20℃. But in view of

the temperature change, it is possible that moderate dews will produce casually.

4.No fire, explosion danger, serious pollution, chemical corrosion and severe vibration

5.Installation gradient not exceed 5°

6.This product is suitable for the following temperature transportation storage: -25℃ ~+55℃ 24h, in a short period of time (no more than 24hours) not more than+70℃.

7.Any specific requirement, consult with manufacture.

This series of products with high breaking capacity, good dynamic stability, advanced and reasonable structure, electrical program of practical, series, strong versatility, various schemes of unit combination, a cabinet contained many circuits, save the area , beautiful appearance, high level protection, safe and reliable, convenient  maintenance etc.

It accords with the standards IEC439 NEMA ICS2-322 as well as the GB7251-87 “Low voltage complete switch device ” national standards and ZBK36001-89 "low voltage withdraw type complete switch device” professional standards".
