LS055R1SX03 5.5 inch 2560x1440 2k high resolution high contrast ips lcd panel display controller driver board
- Category: LCD Module >>>
- Supplier: Shenzhen Huai Zhi Technology Co. Limited
Share on (62247216786):
Product Overview
Description
Product Description:

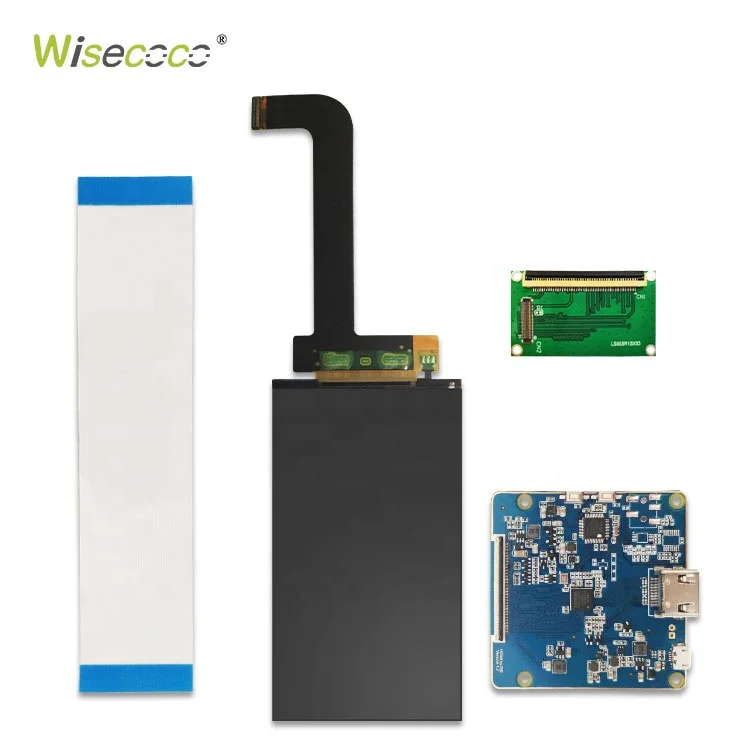

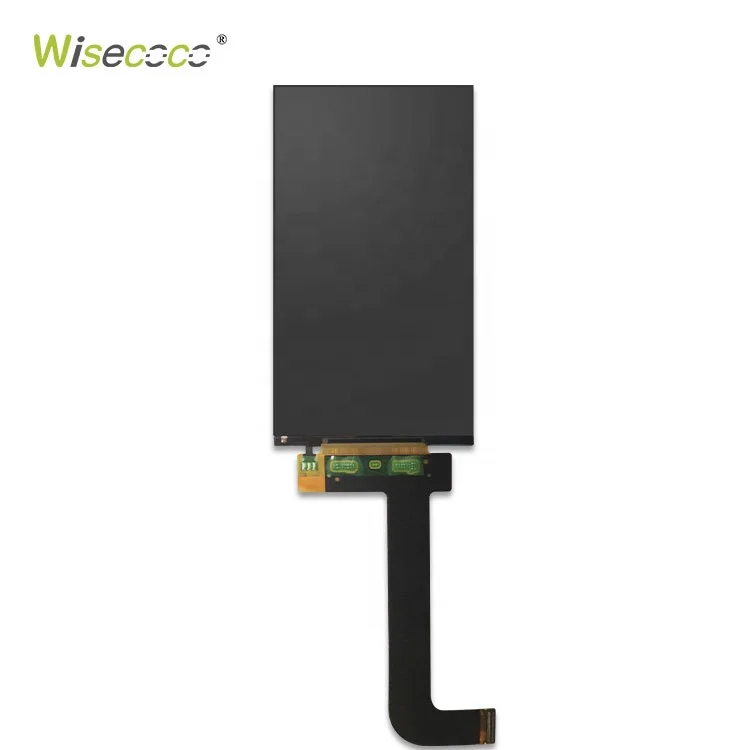

LS055R1SX03 5.5 inch 2560x1440 2k high resolution high contrast ips lcd panel display controller driver board
General Features | |||
5.5 inch | Type | CG-Silicon, LCM | |
Pixel Number | 1440(RGB)×2560 [Quad-HD] | RGB Vertical Stripe | |
Active Area(mm) | 68.04(H)×120.96(V) mm | Outline(mm) | 70.94(H)×128.49(V) ×1.45(D) mm |
Luminance | 450 cd/m² (Typ.) | Contrast Ratio | 1300 : 1 (Typ.) (TM) |
View Direction | Symmetry | Response Time | 35 (Max.)(Tr+Td) |
Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Light Source | WLED [8S2P] , W/O Driver |
Support Color | 16.7M 72% (CIE1931) | Used for | VR / 3D Printer |
Refresh Rate | 60Hz | Touch screen | Without |
Operating Mode | New Mode2, Normally Black, Transmissive | ||
Voltage Supply | 1.8/5.75/-5.75V (Typ.)(IOVCC/VSP/VSN) | ||
Signal Type | 50 pins MIPI (2 ch, 4 data lanes) , Connector | ||
Environment | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C | ||
